React Native SDK UI Customization API

This article describes two different ways to customize your React Native application UI using the React Native SDK

Static Resources customize the UI layout during build time.
Programmatic Customization modifies the layout at run time.

Note:You can combine static and programmatic approaches for customization.

To use the SDK in the most flexible way, combine the reference in this article with the React Native SDK. Sample Application: Refer to the React Native sample application for example code.

Text, Color, and Font Customization

For text-related customization, there are two types of customization, dynamic and static:

For dynamic customization, update the source code’s desired string, color, and font (as typeface).

JavaScript

new TextConfig(text, color, font)
new TextConfig(text, gradientColorArray, font)

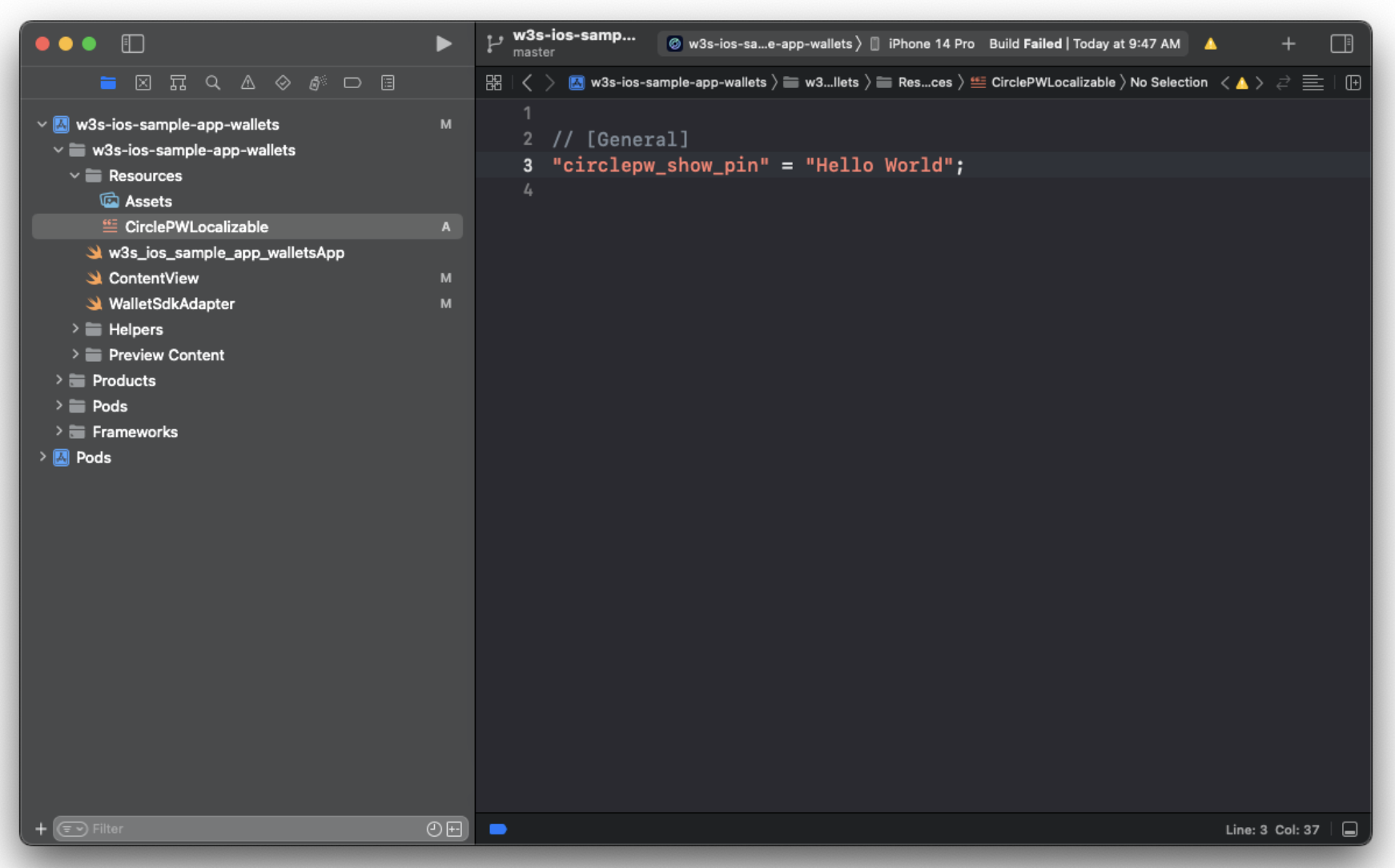

For static customization, please refer to Static Resource to add or update resource files for Android and iOS respectively. To avoid the static customization being overwritten by the dynamic customization, use the undefined value for the text argument when initializing with the TextConfig() constructor, for example:

JavaScript

new TextConfig(undefined, color, font) // text remains static customization
new TextConfig(text, undefined, undefined) // color and font remain static customization

Please reference the UI screenshots below with each string’s mapping code, then use the mapping code to find the Key name in the Index Table A, B, C for more detail of customization support and usage for each text string.

Note:The detail of supporting scope can be found in the index table and the note column. For Android, if the app still customizes those unsupported values, it will give a WARN level log printed to logcat, filtered with CustomizeChecker for log abstraction.

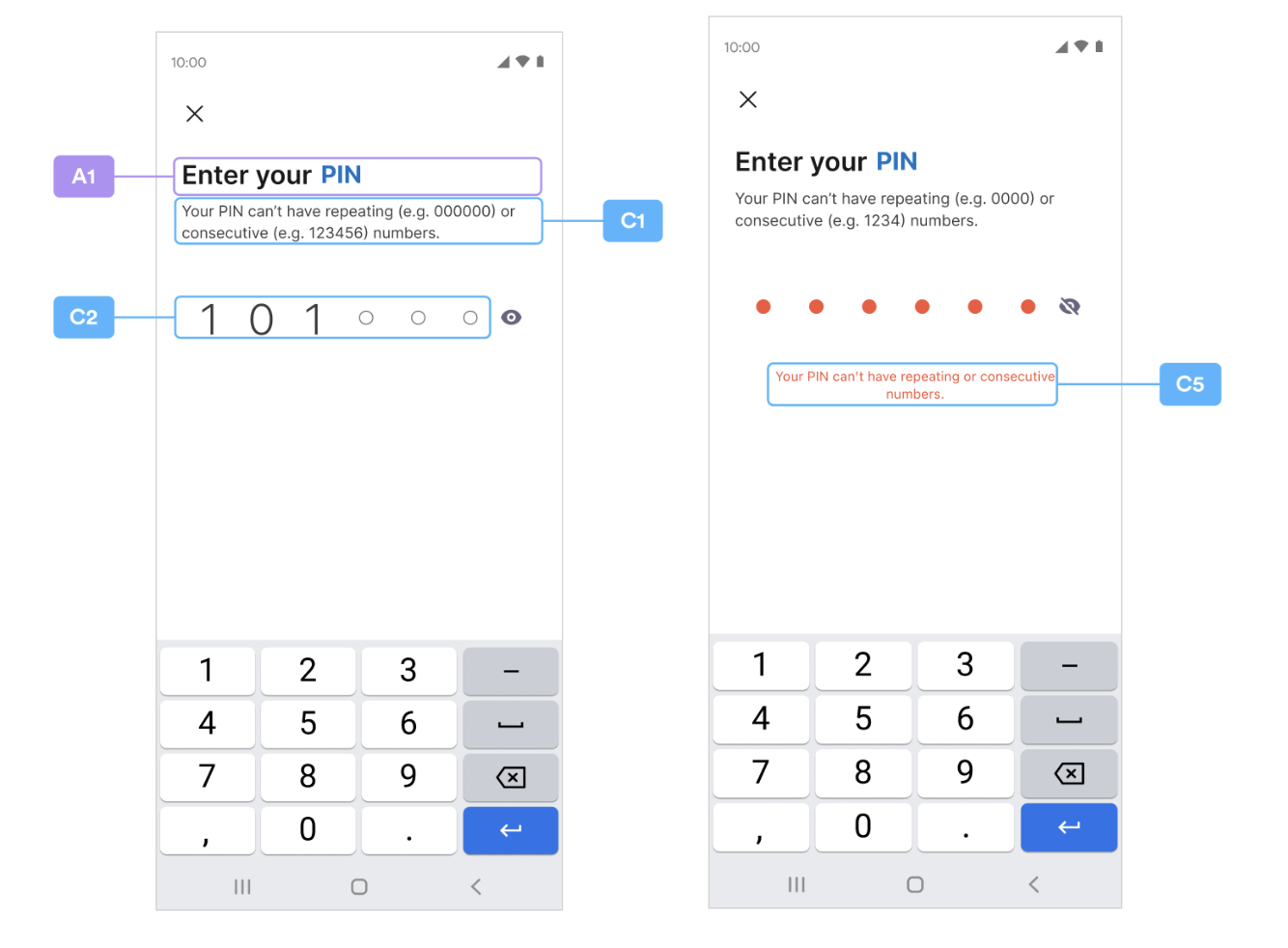

New PIN Code

A1 / C1~C5

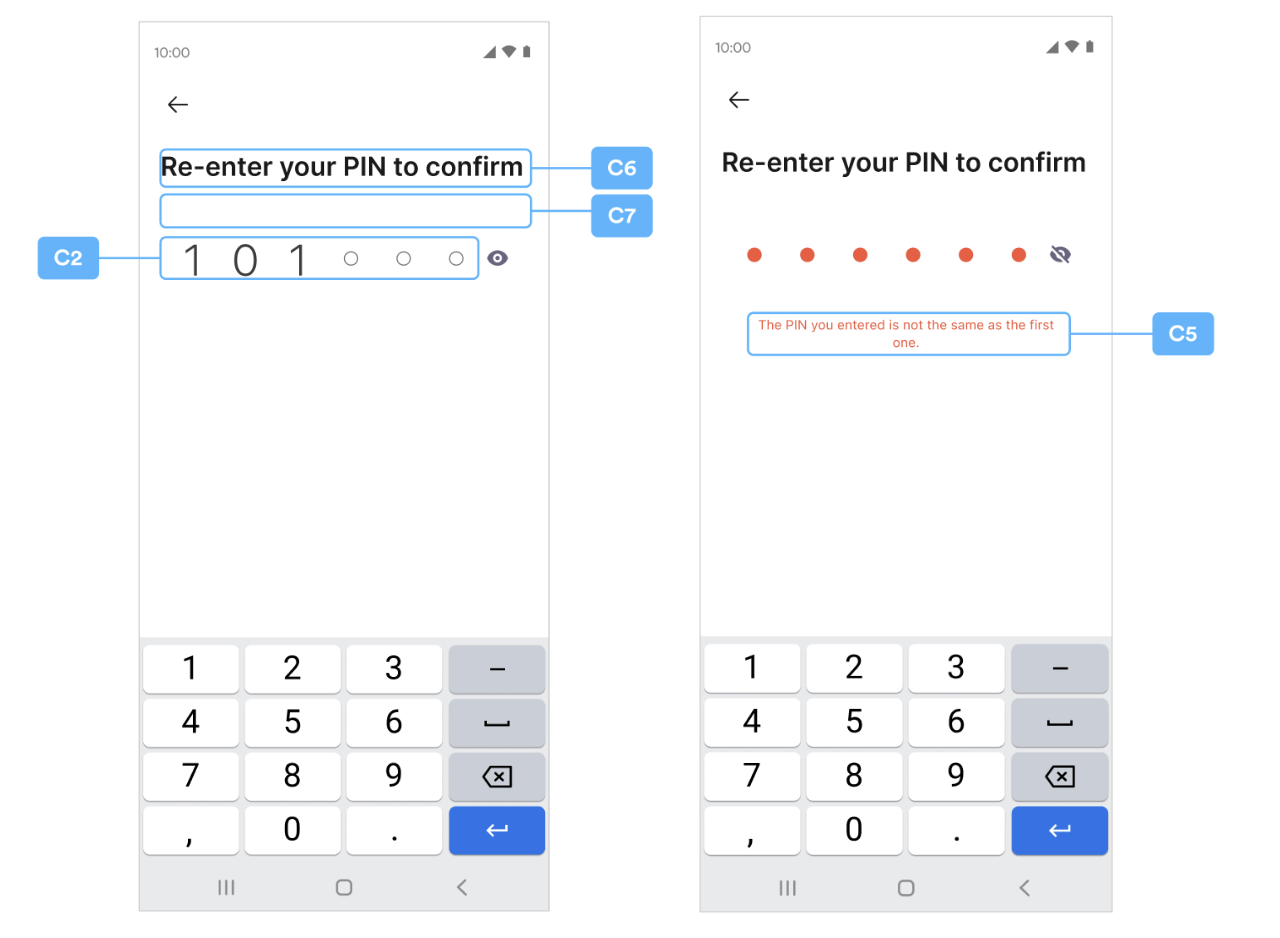

Confirm PIN Code

C6~C7

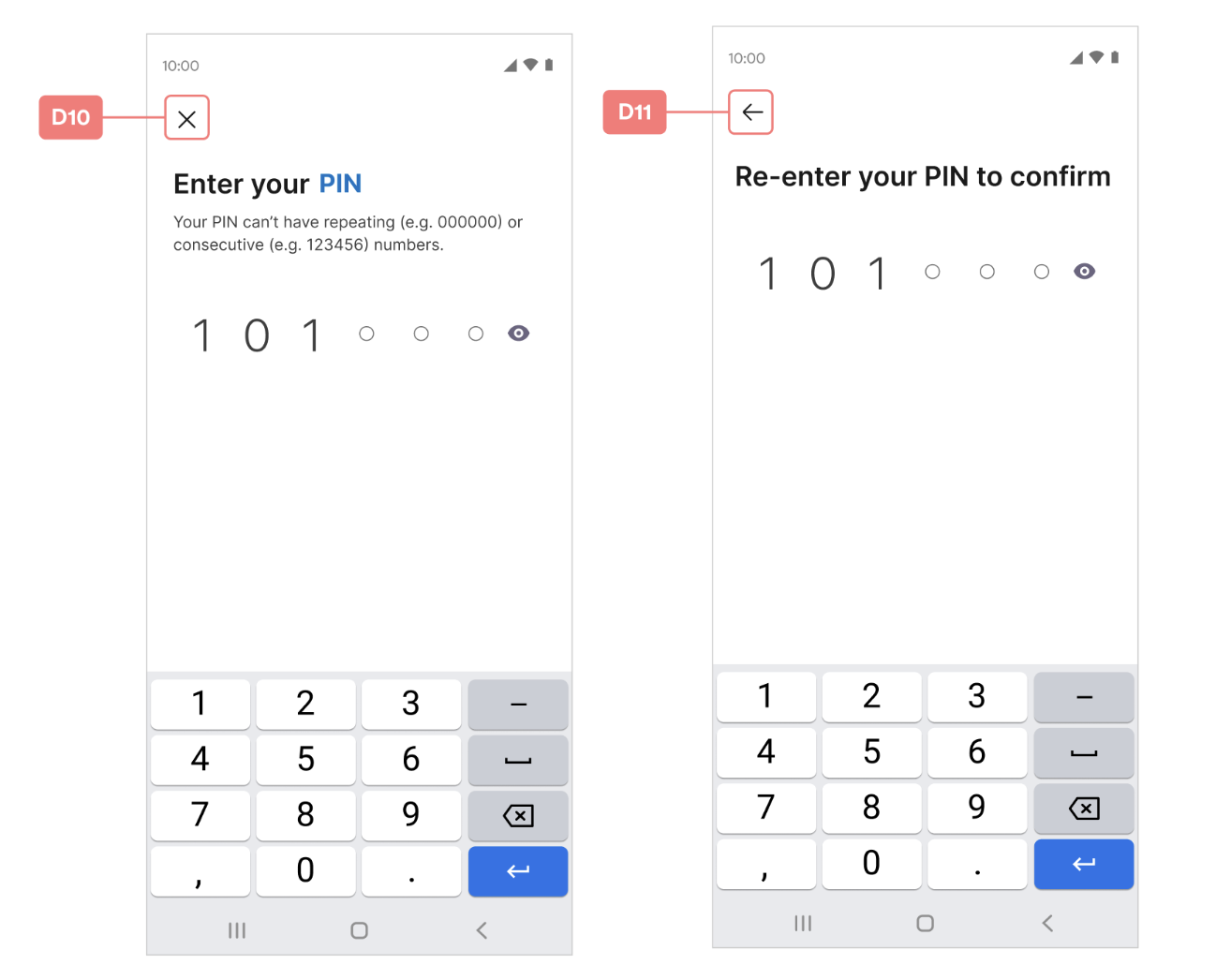

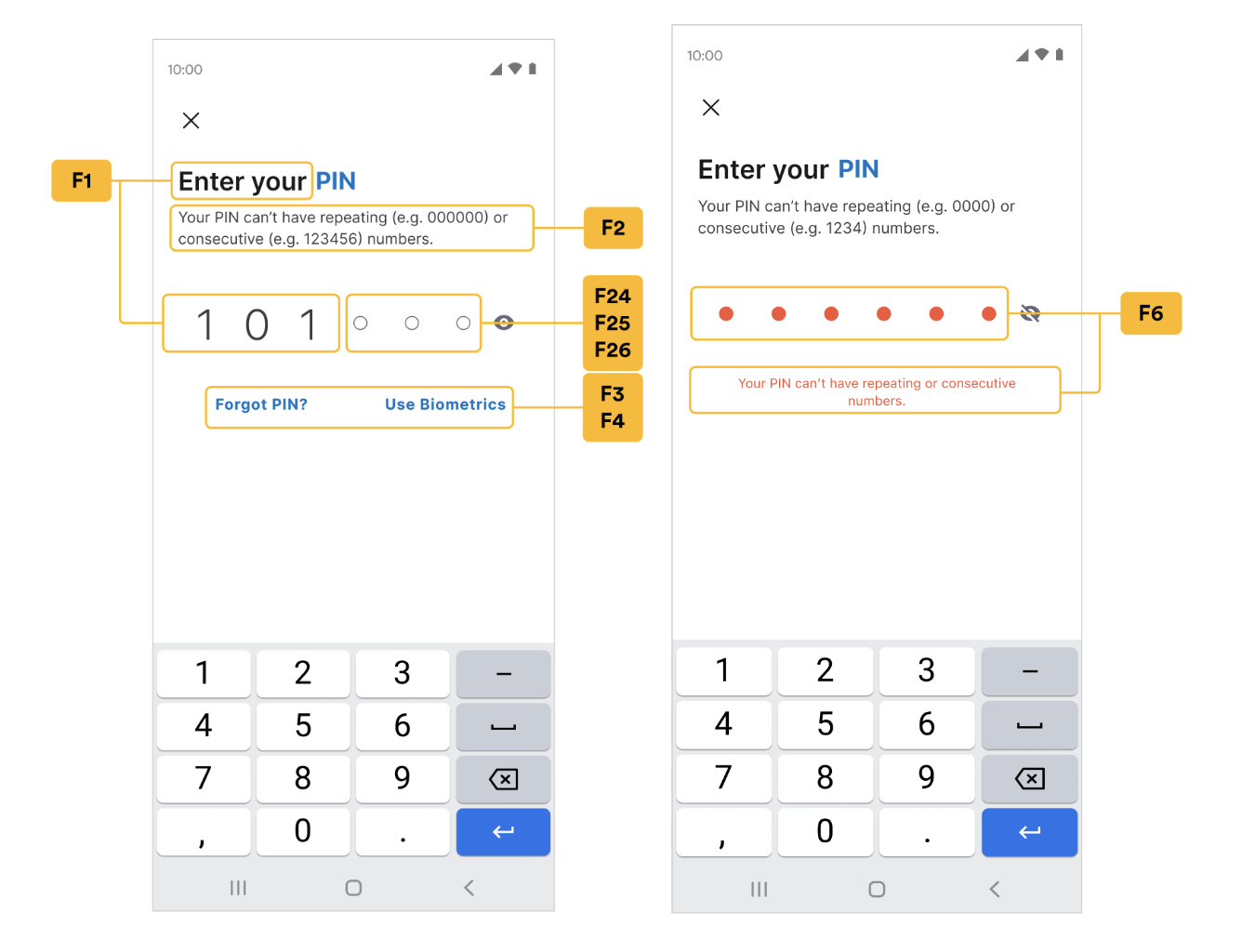

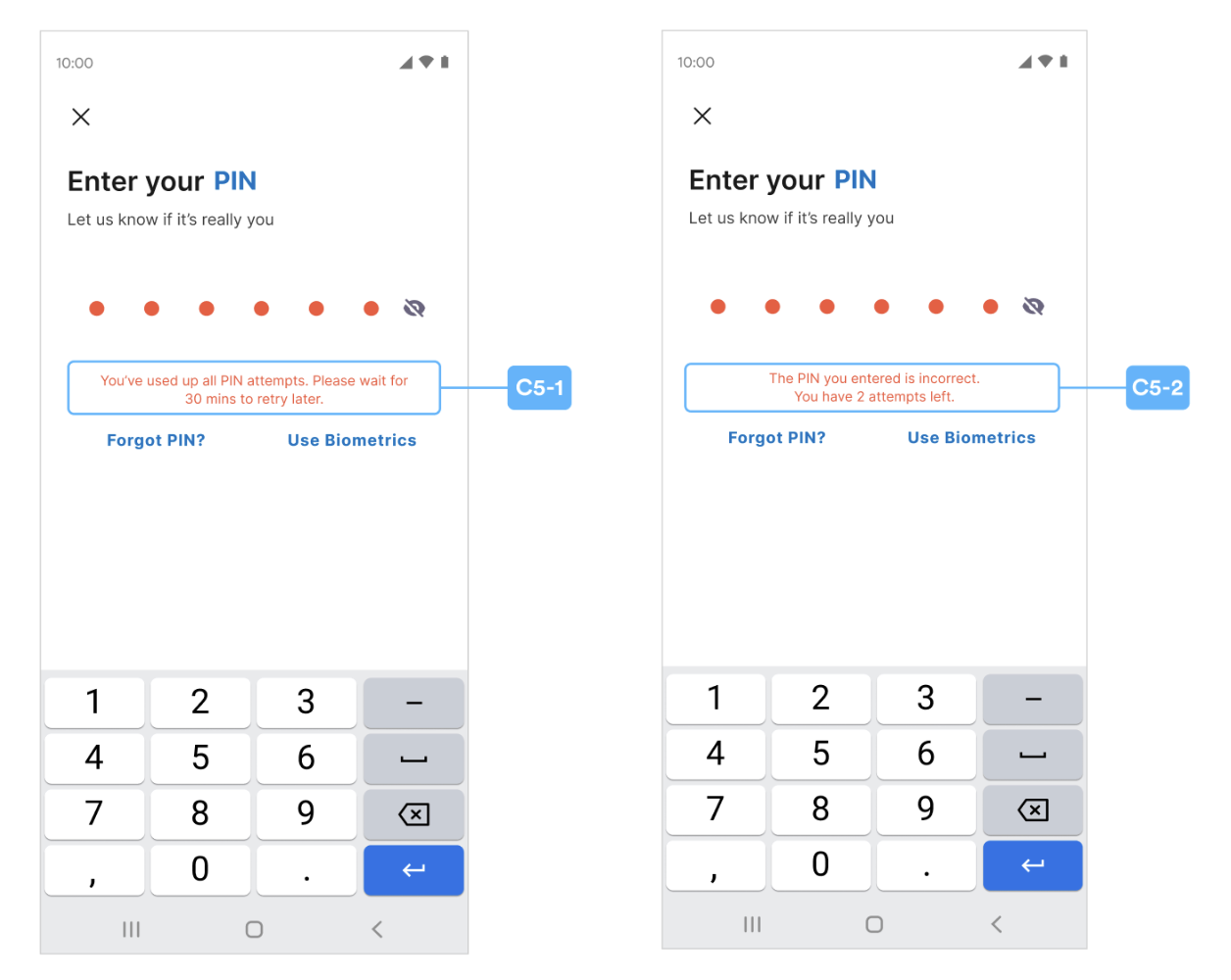

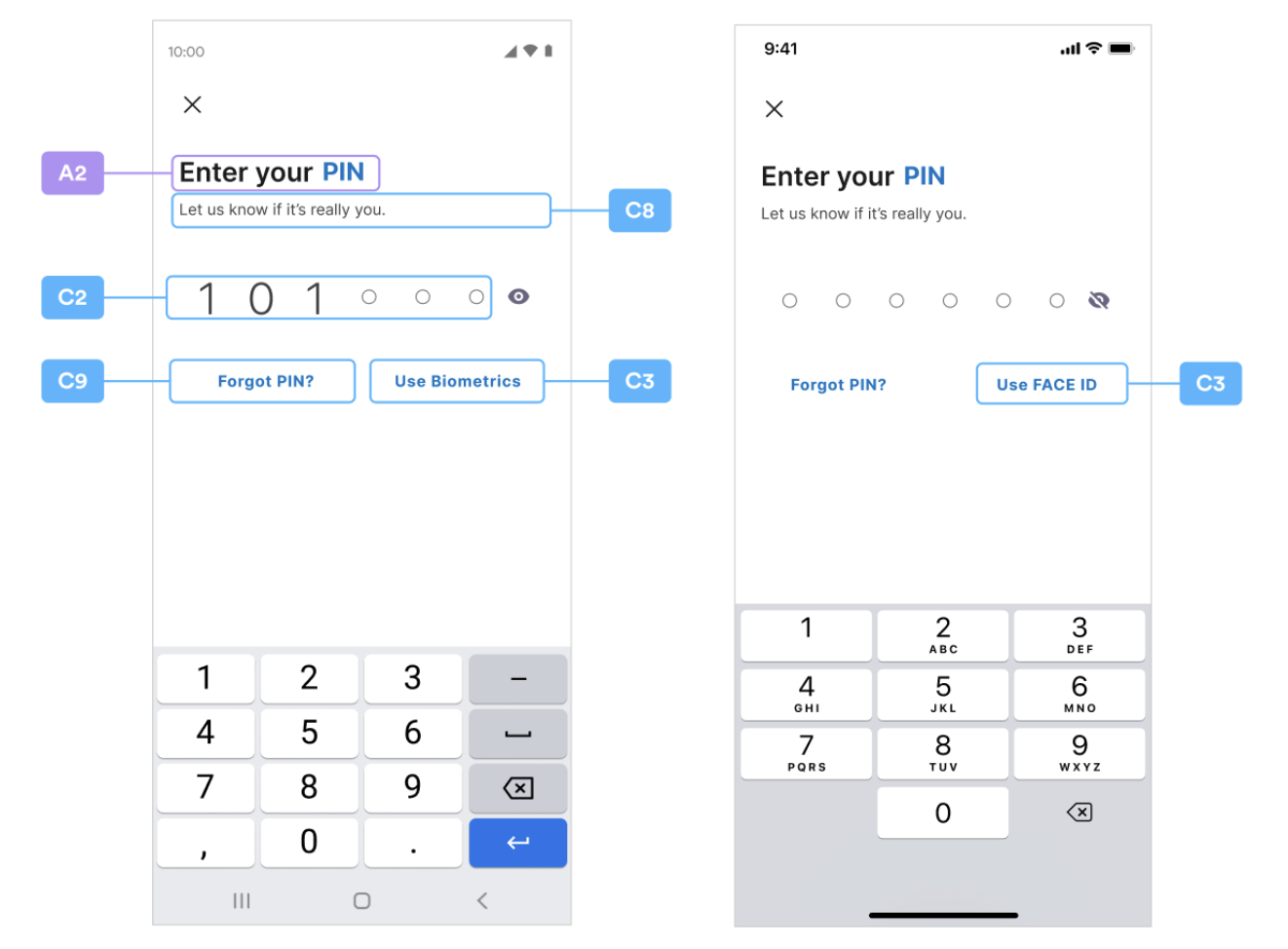

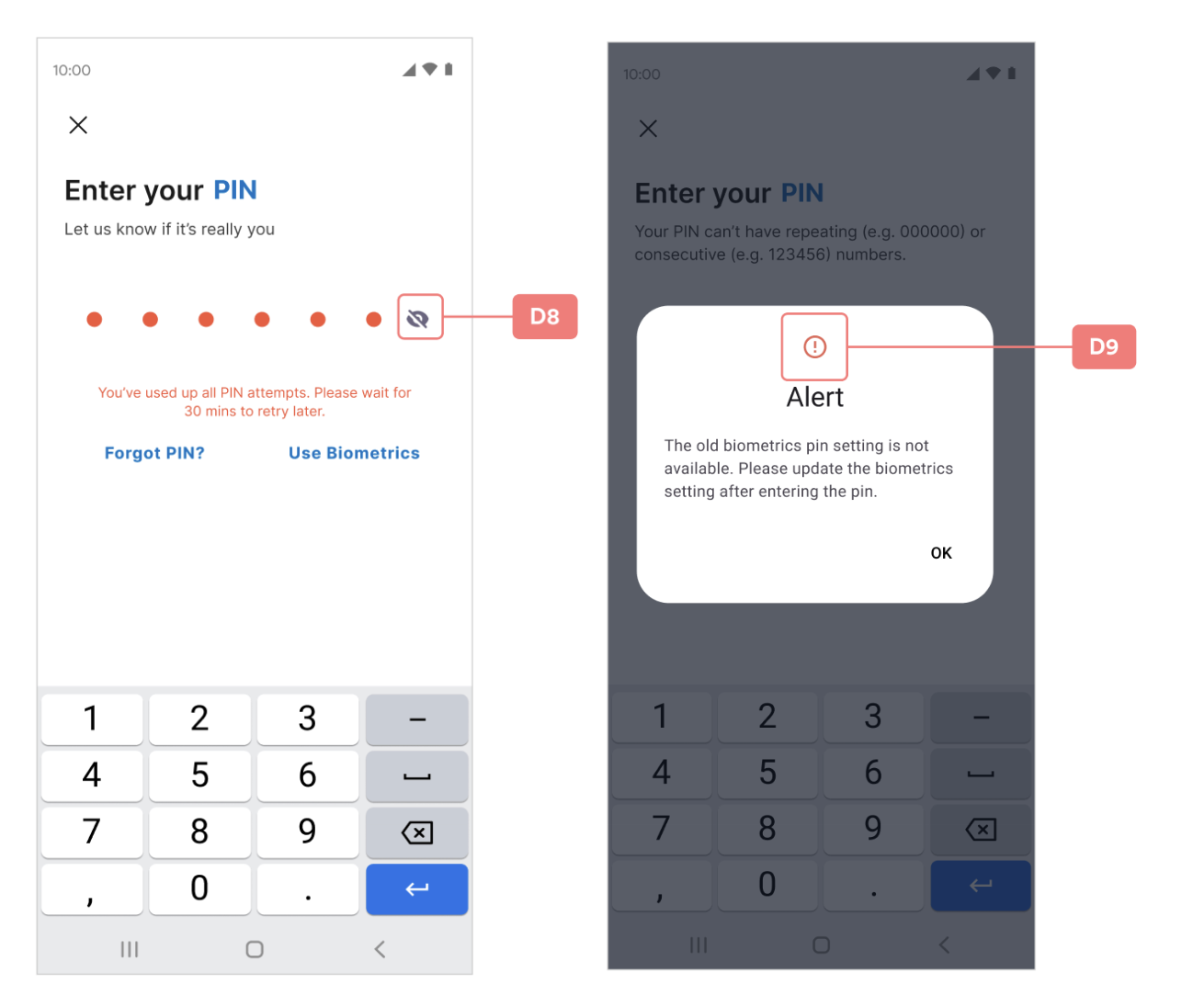

Enter PIN Code

A2 / C8~C9, C5-1, C5-2

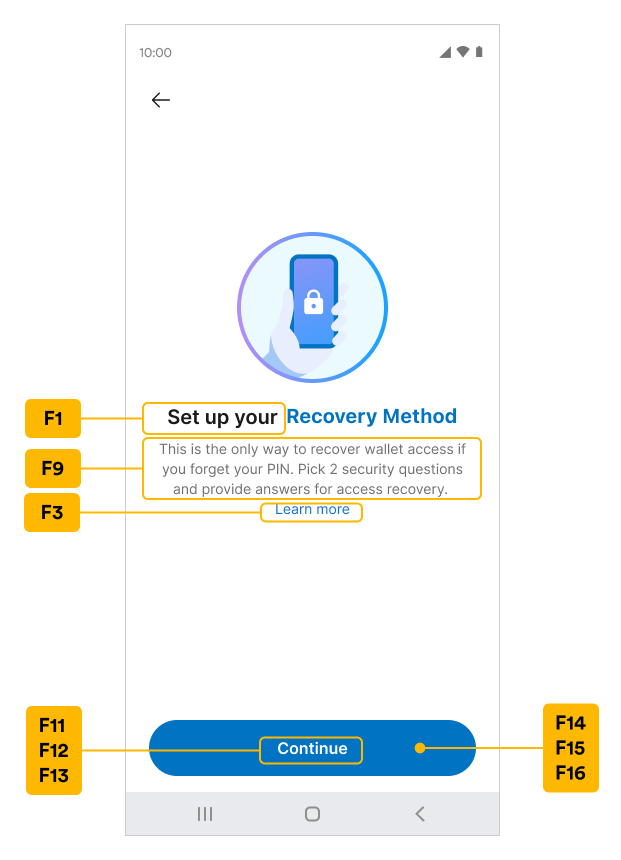

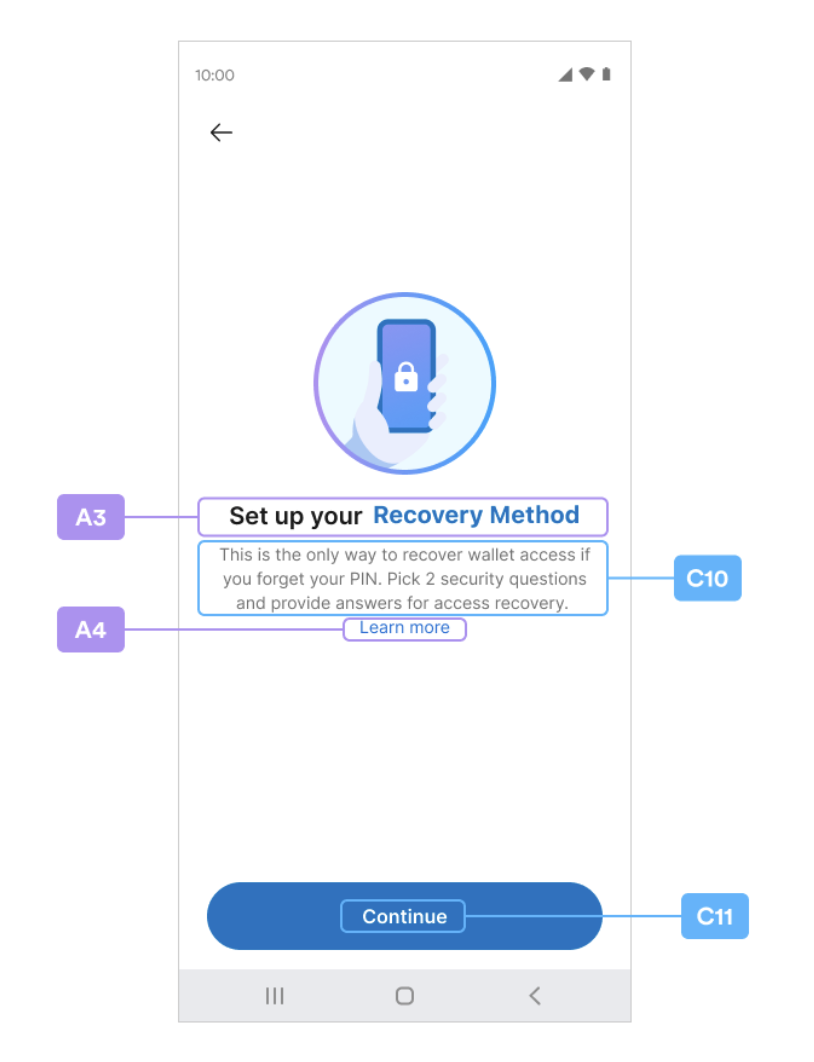

Security Intros

A3A4 / C10C11

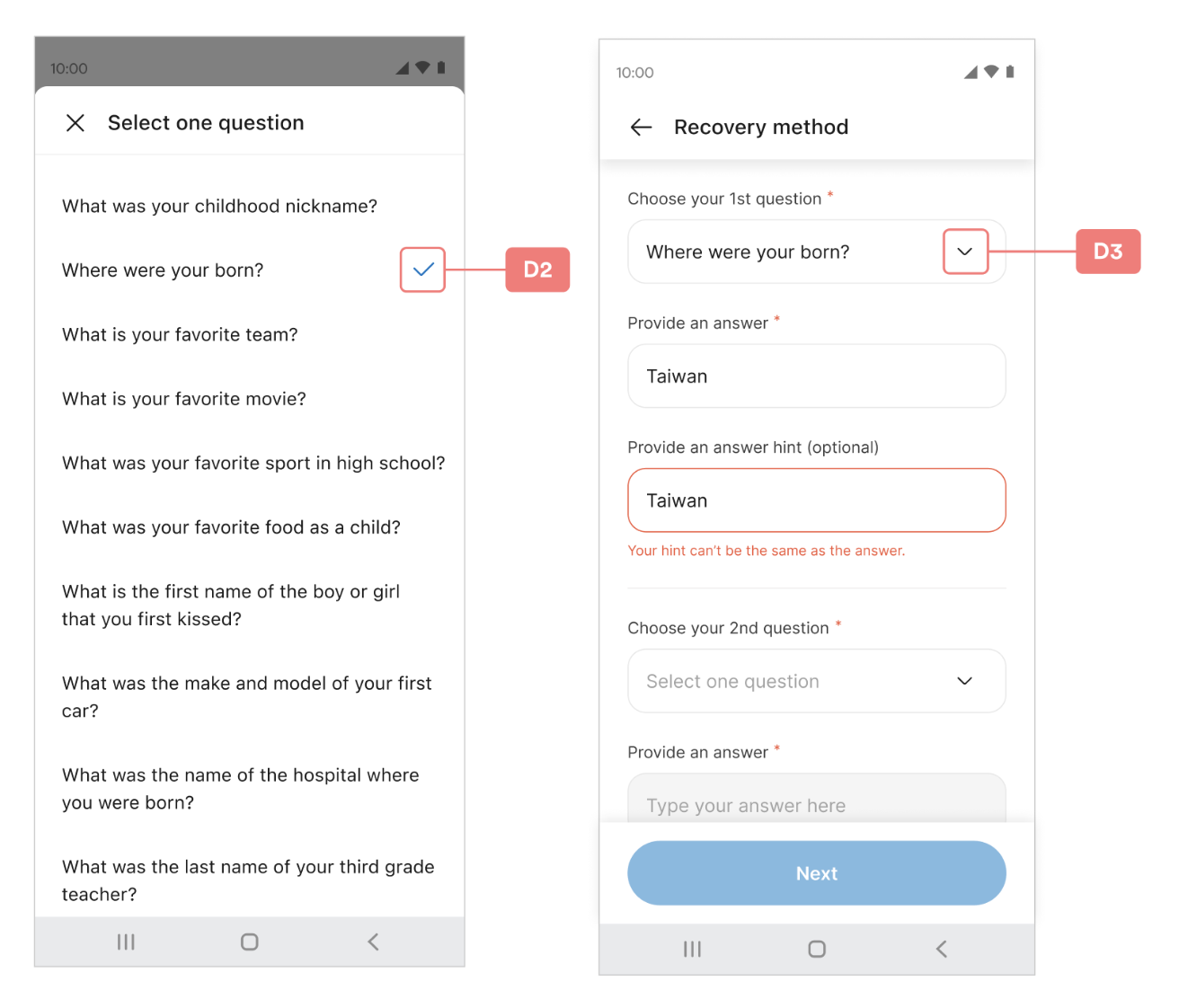

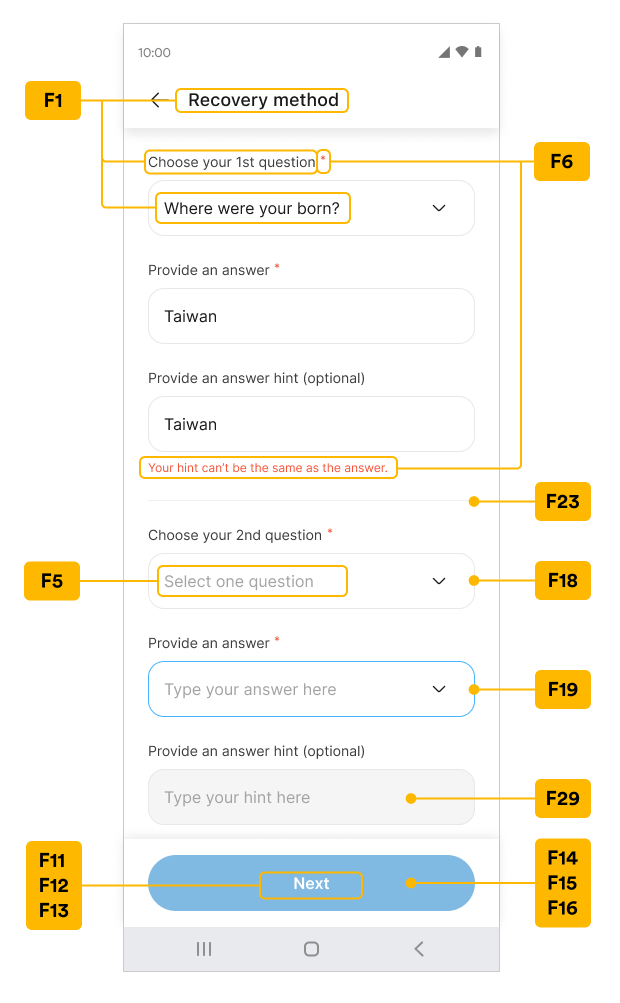

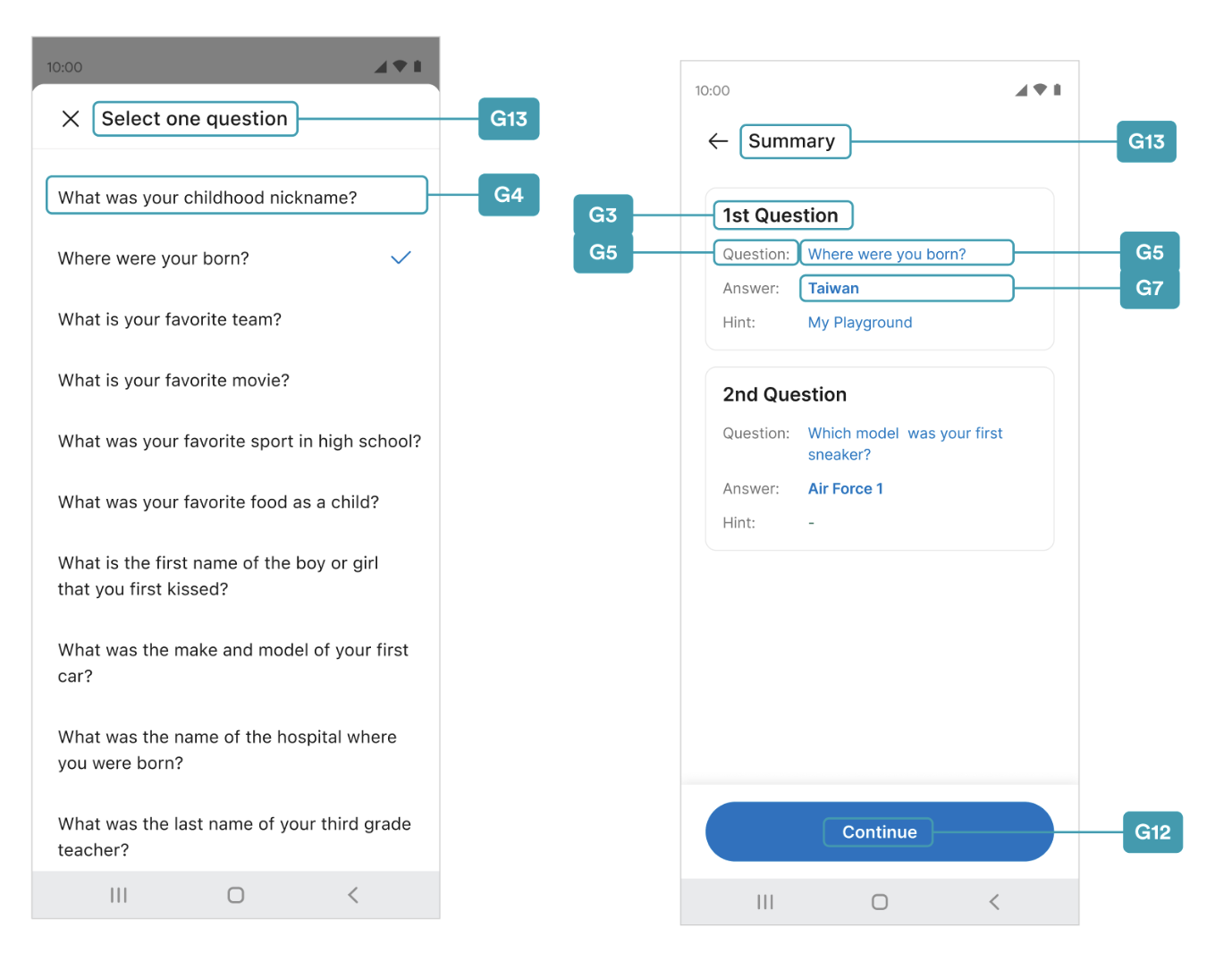

Security Questions Customization

Please reference the Security Question section in the SDK for how to customize the question by using setSecurityQuestions method.

A5 / C12~C25

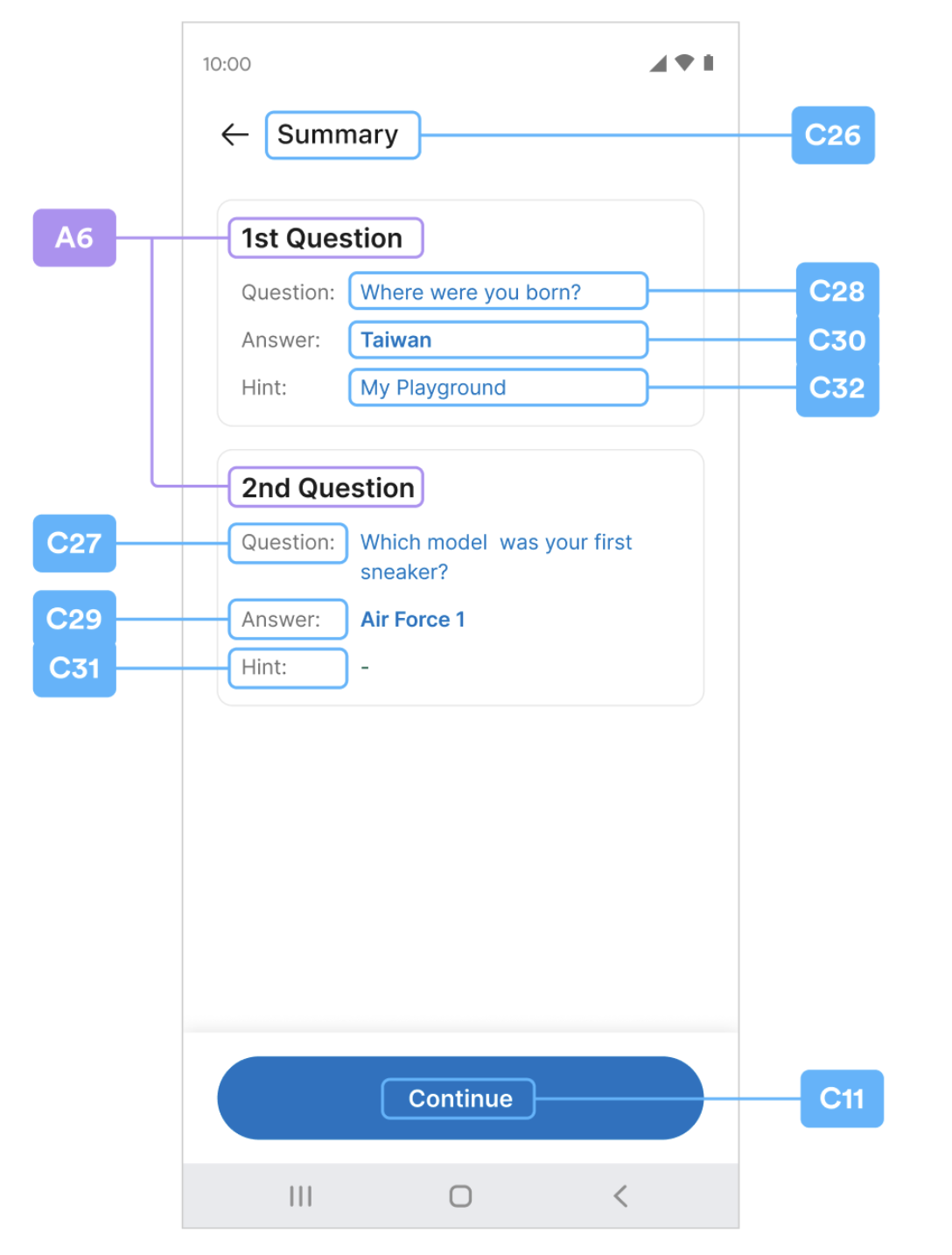

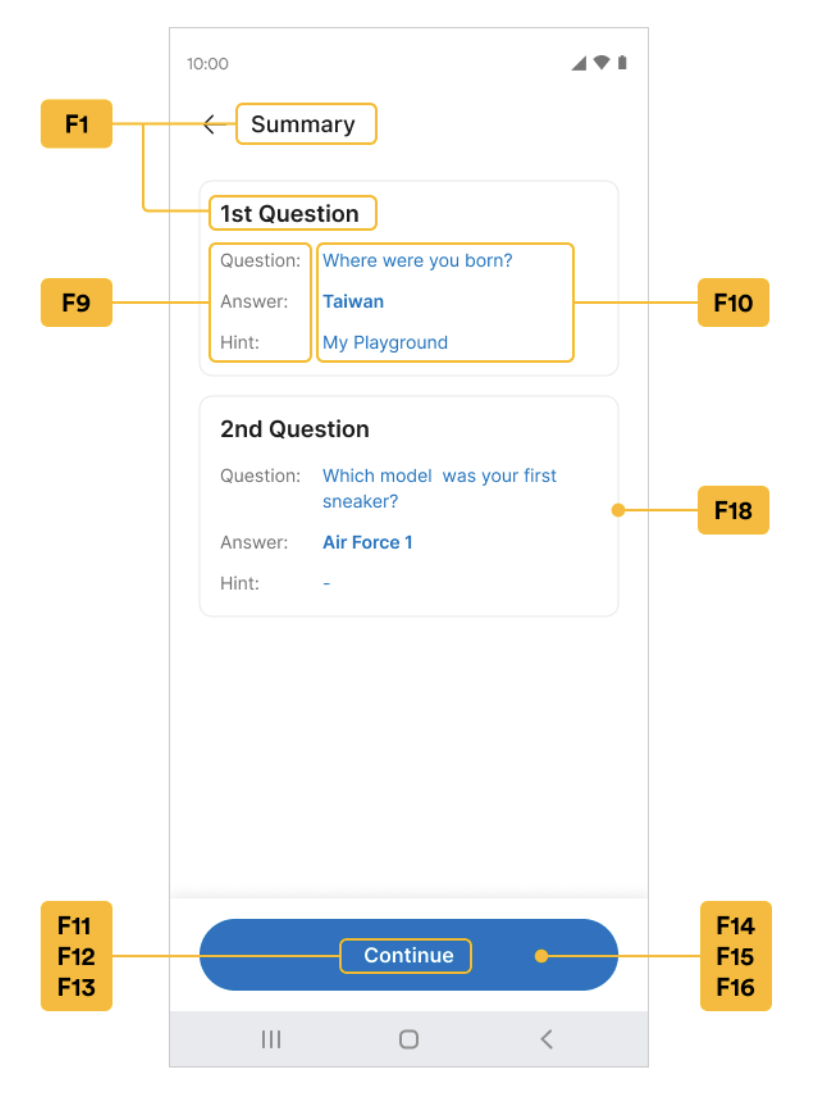

Security Summary

A6 / C26~C32

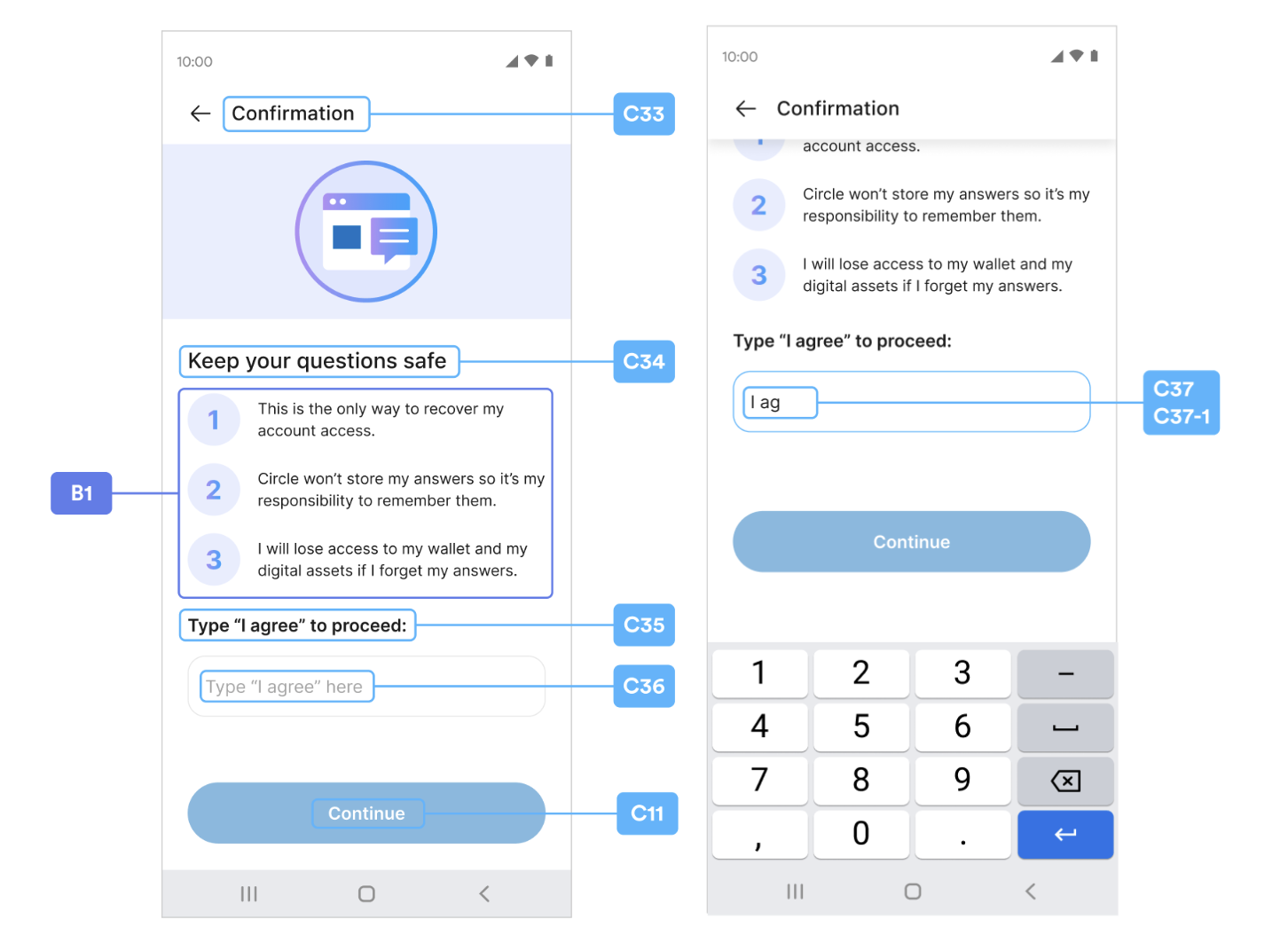

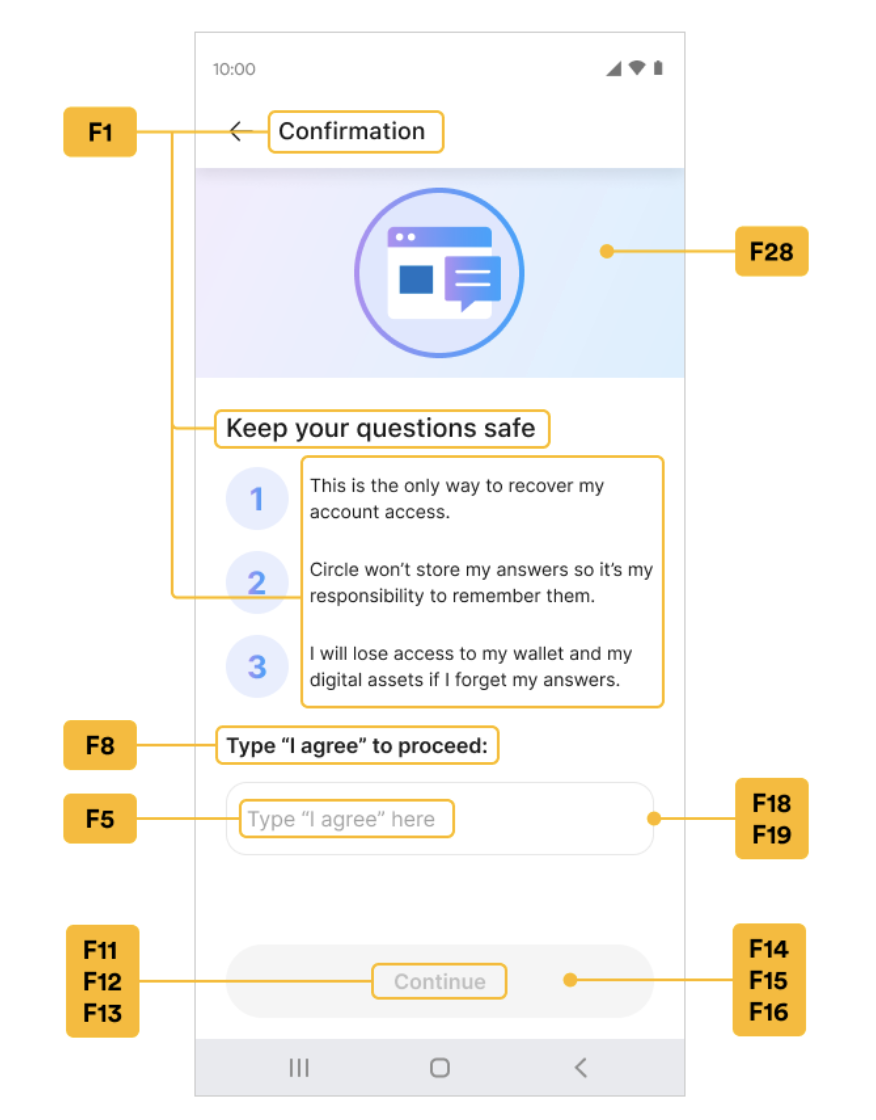

Security Confirm

C33~C37 / B1

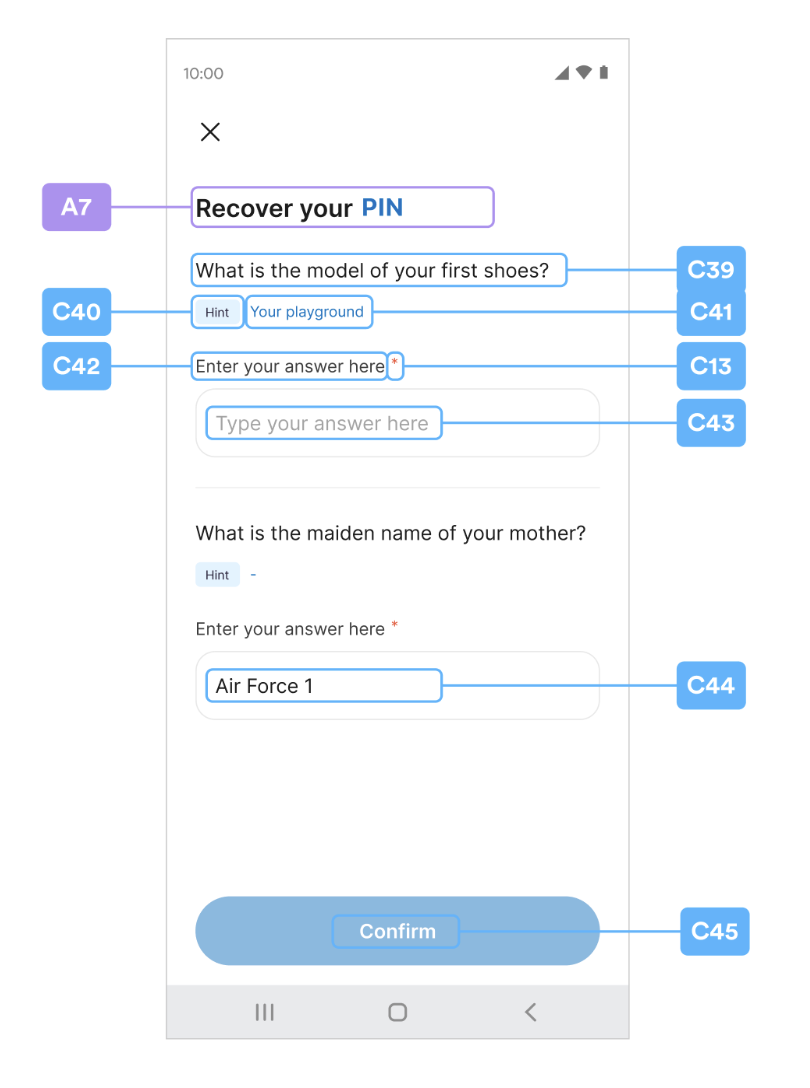

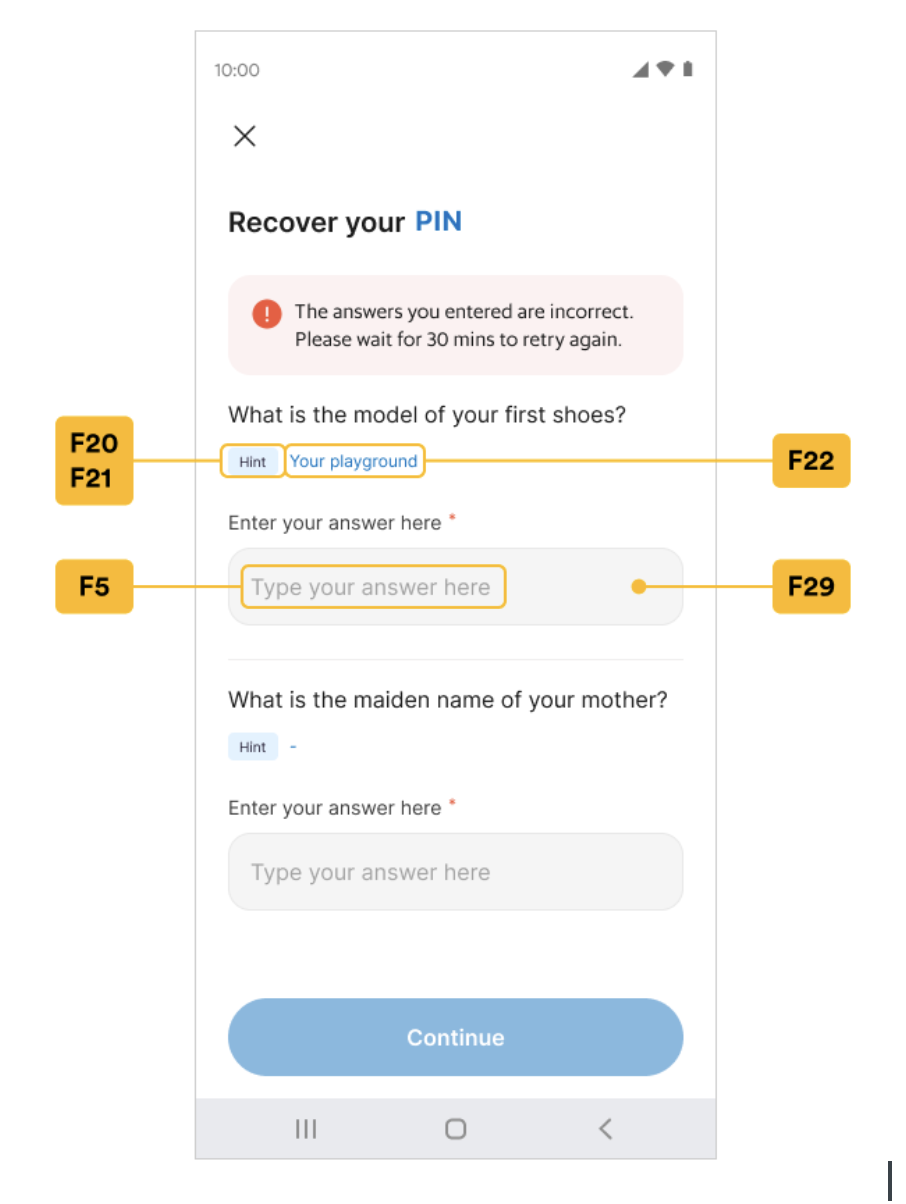

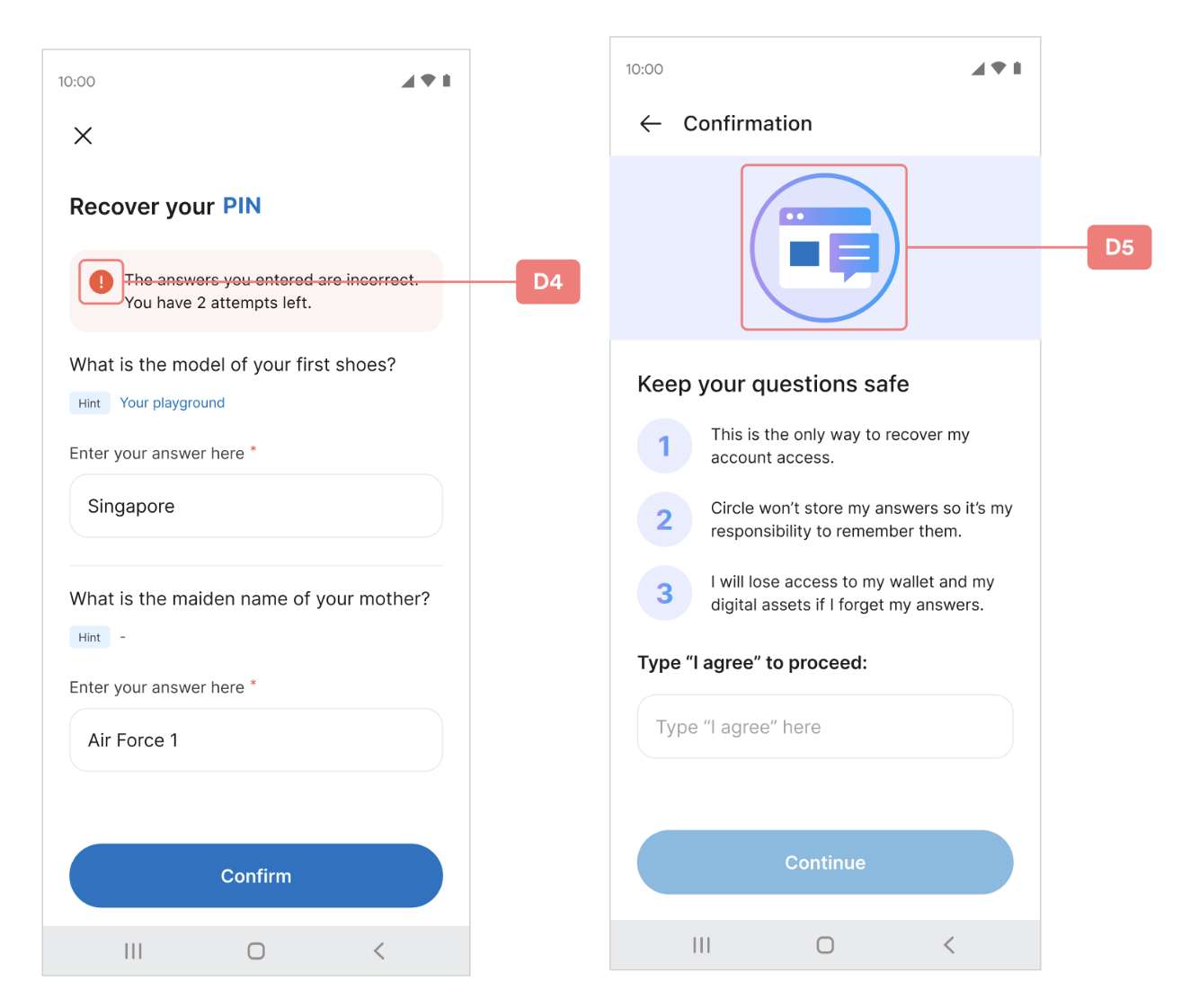

Recover PIN Code

A7 / C39~C47

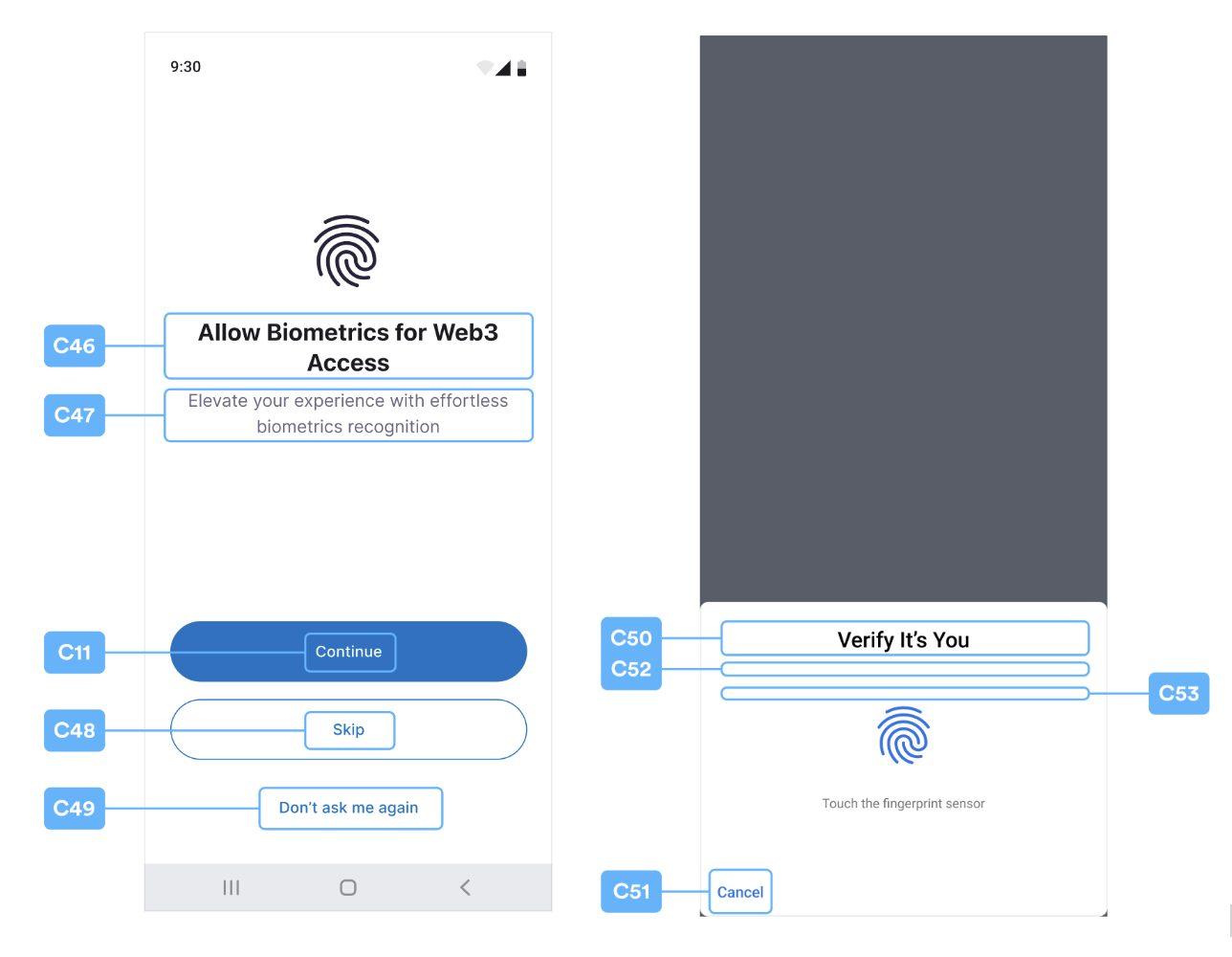

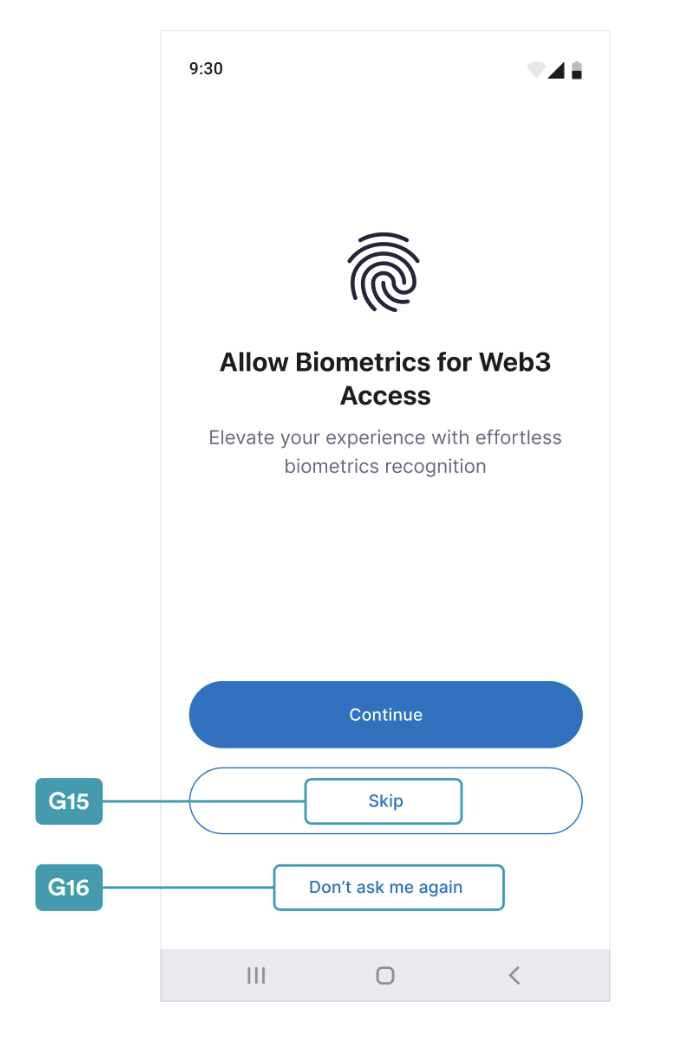

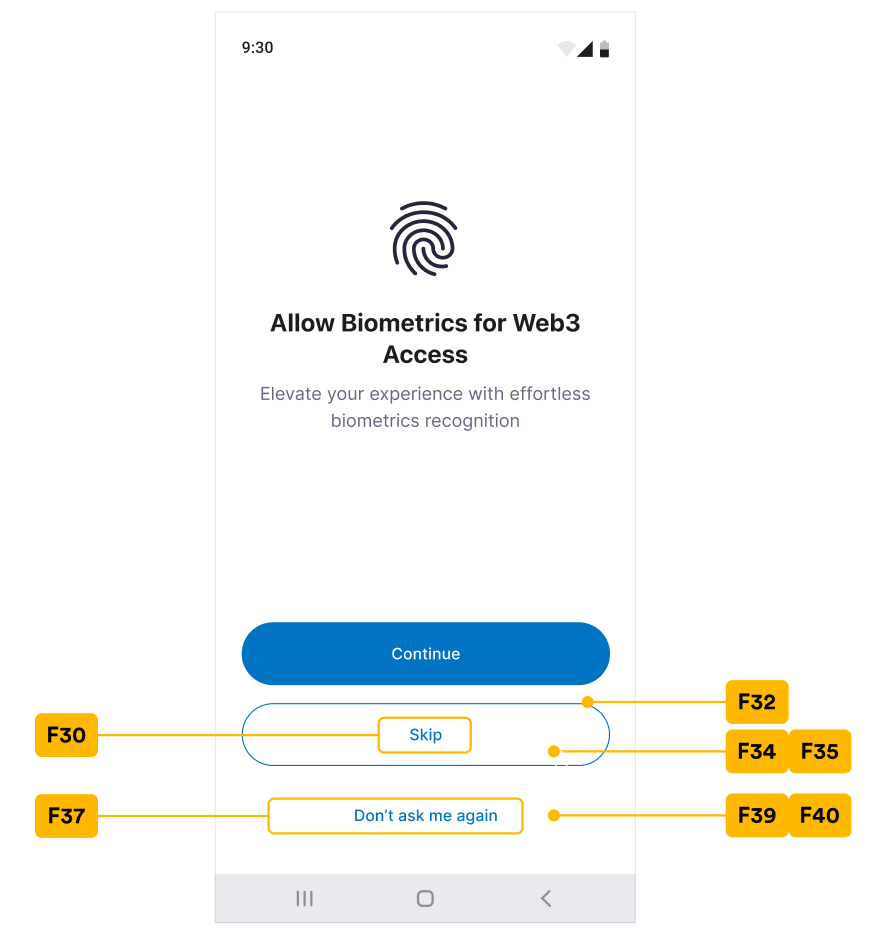

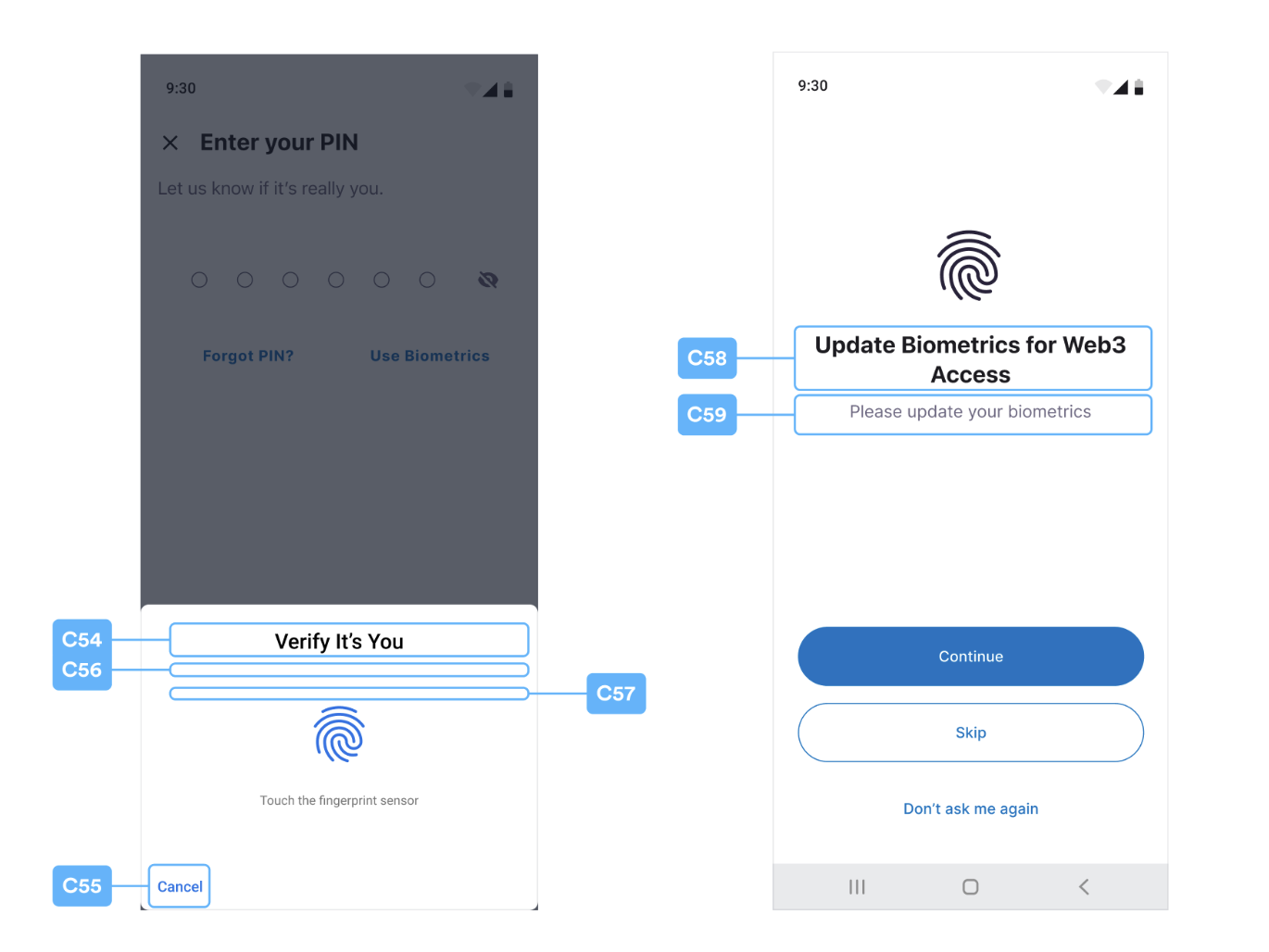

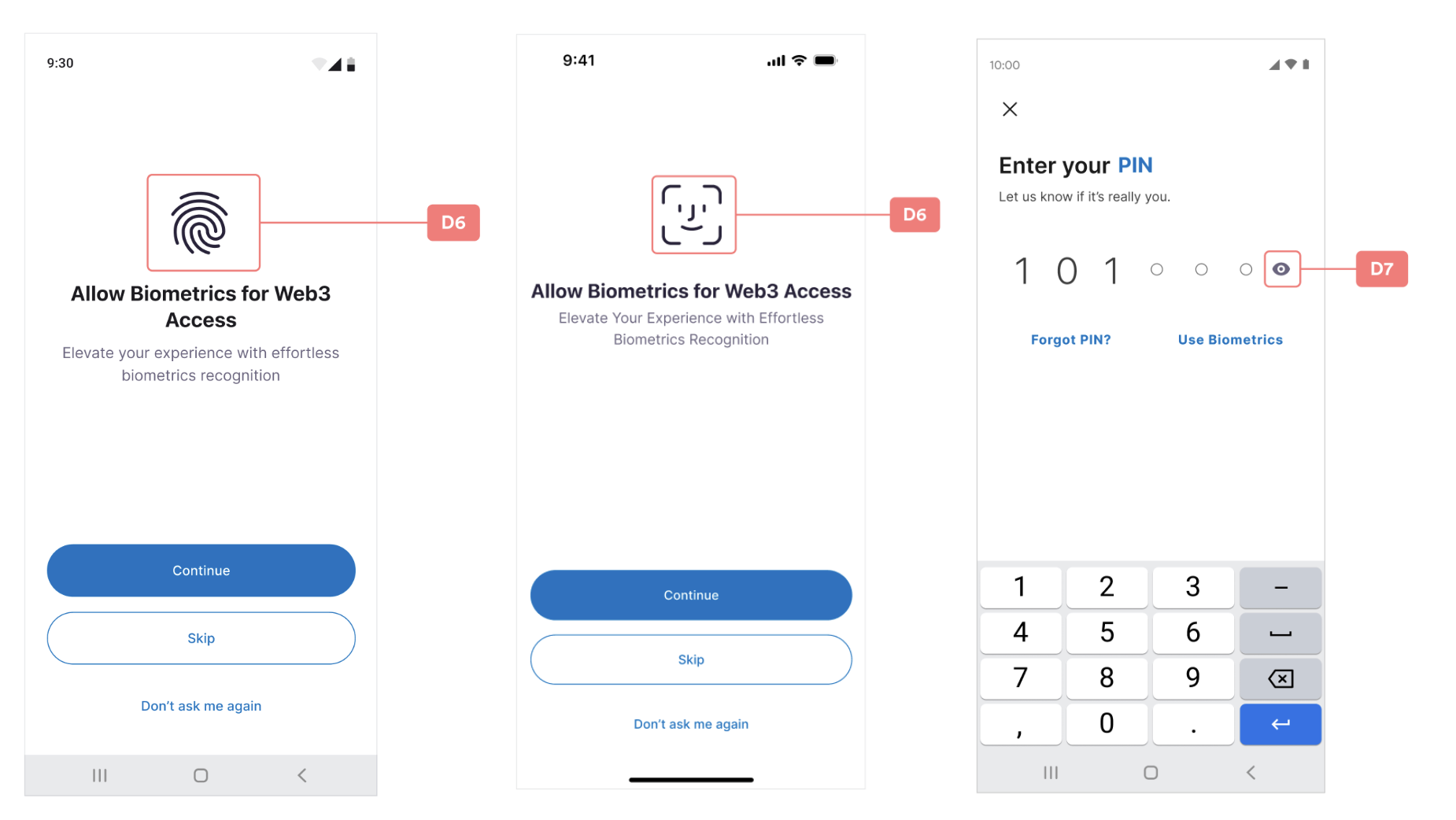

Biometrics Prompt

C46~C60

Alert Pop Window

C61~C62

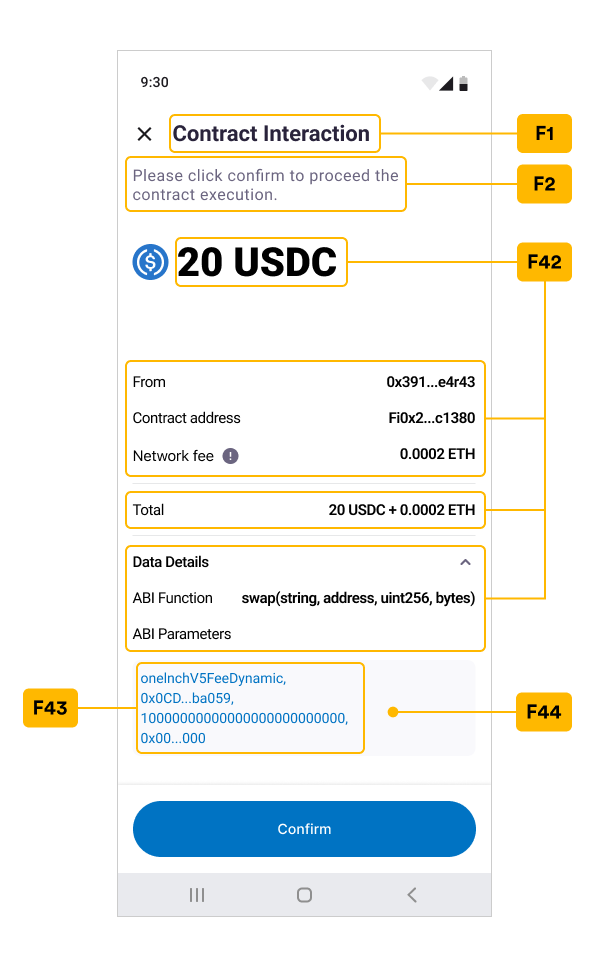

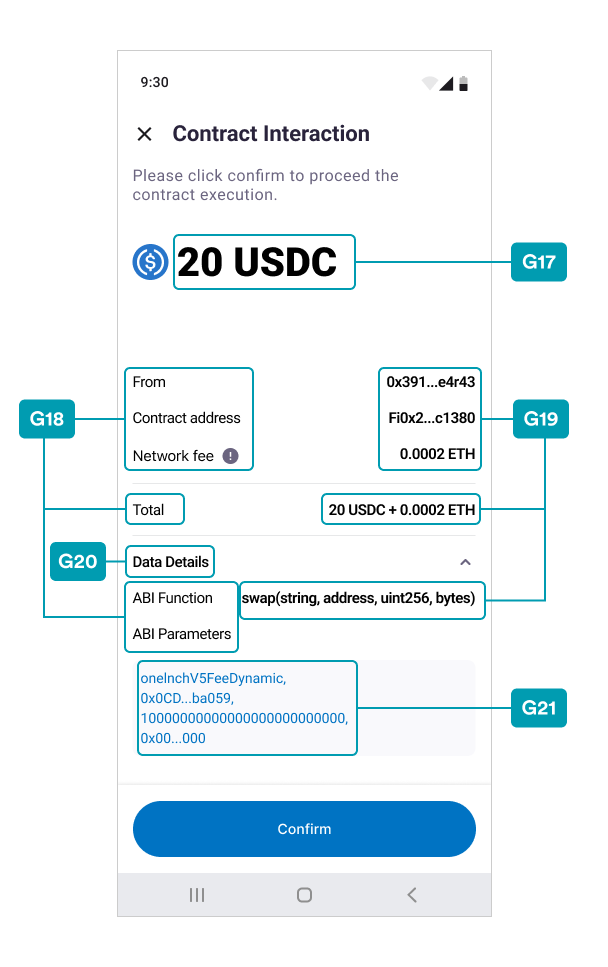

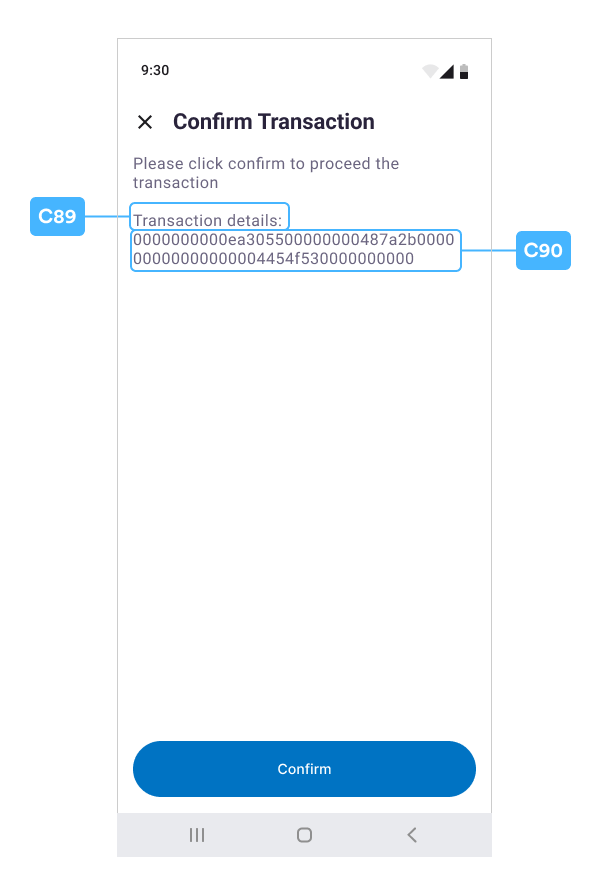

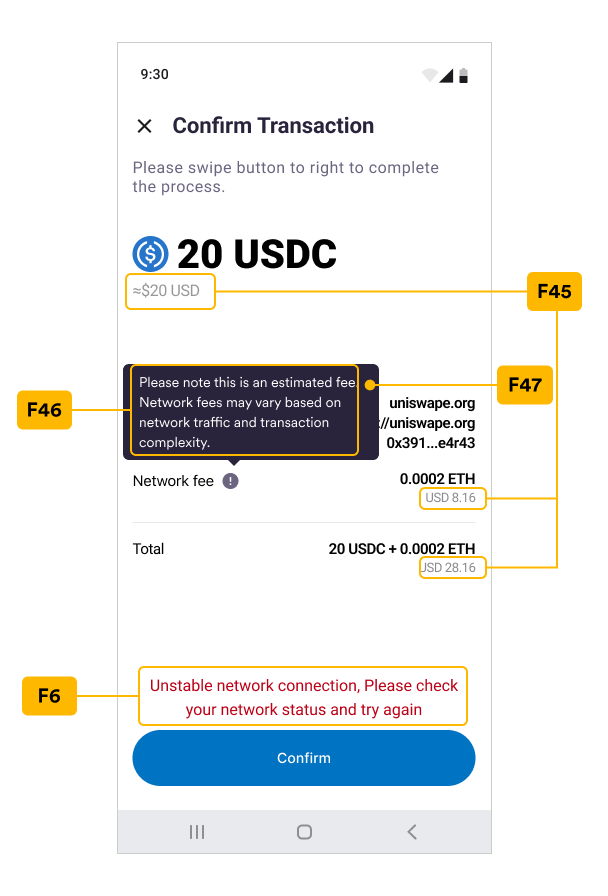

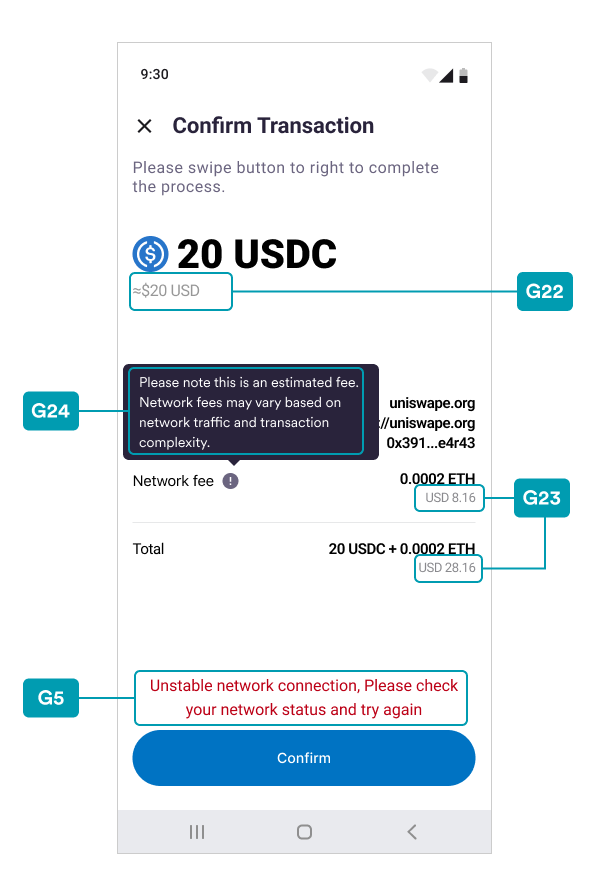

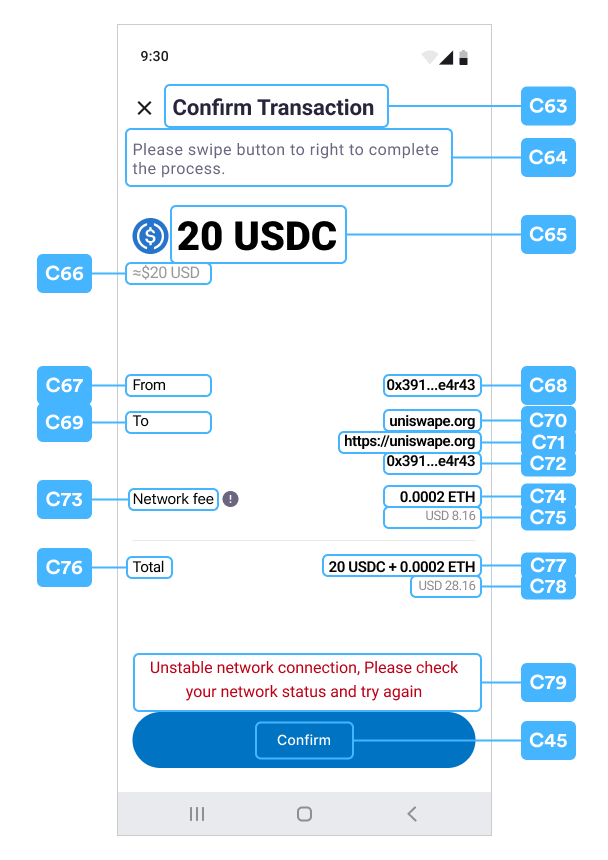

Confirm Transaction

C63~C90

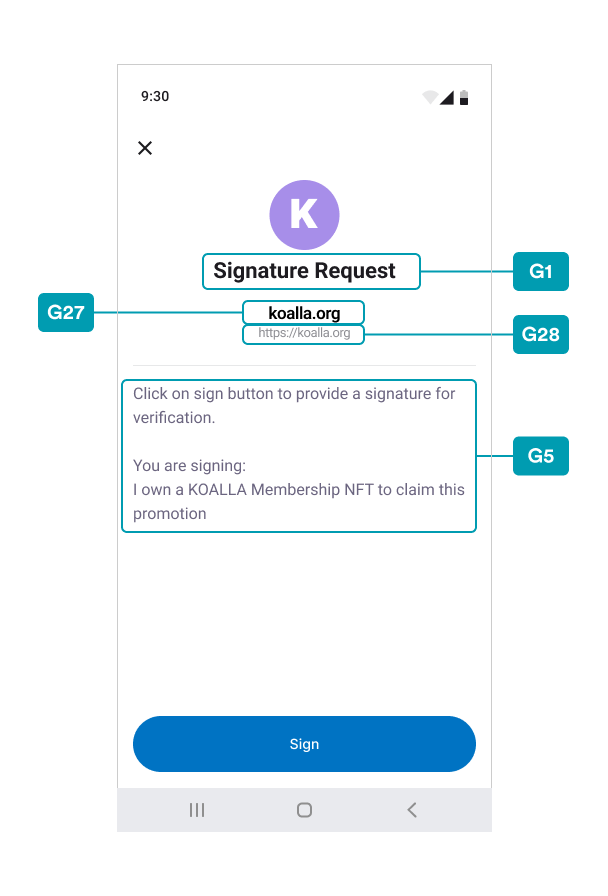

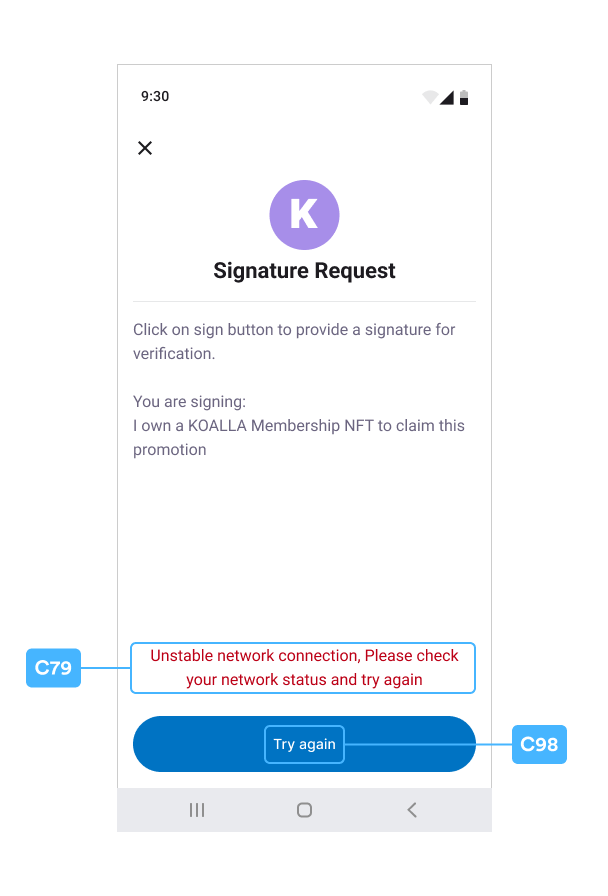

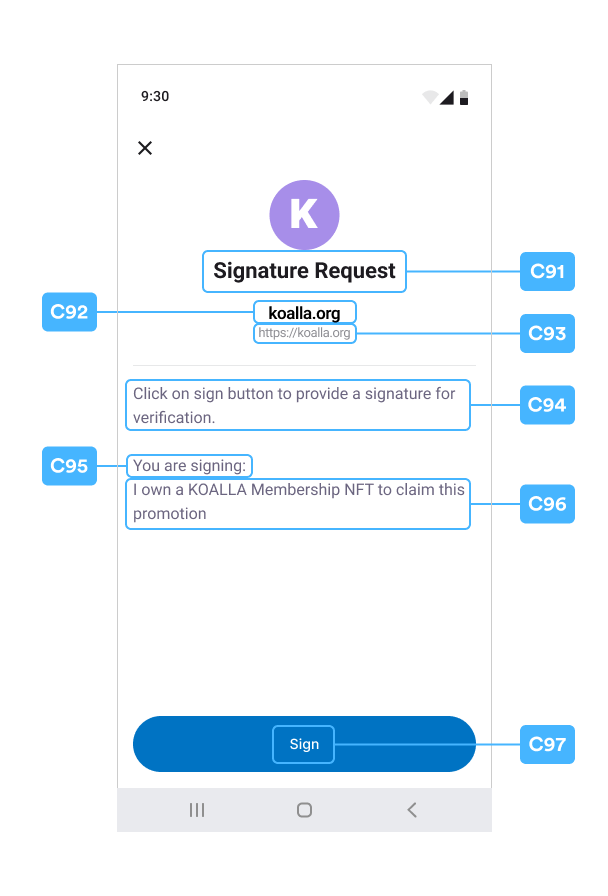

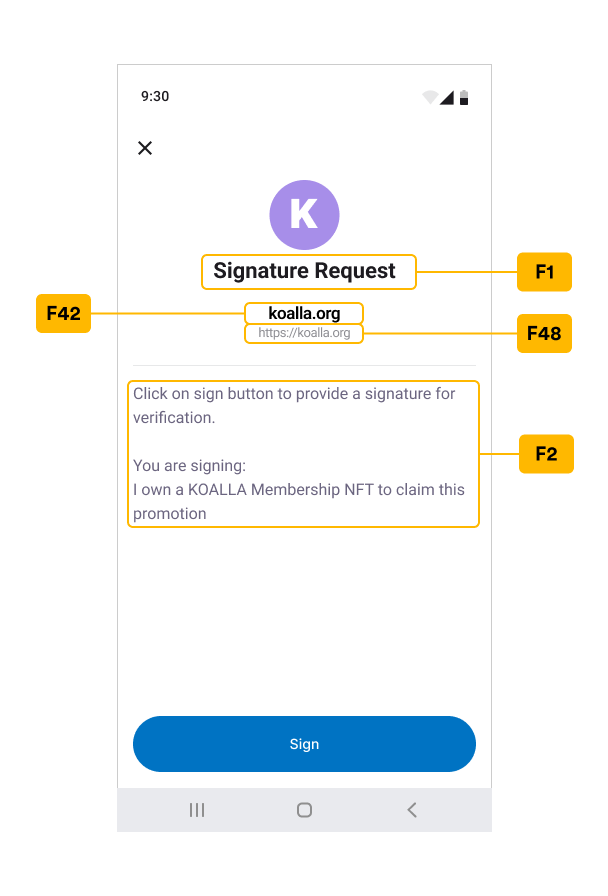

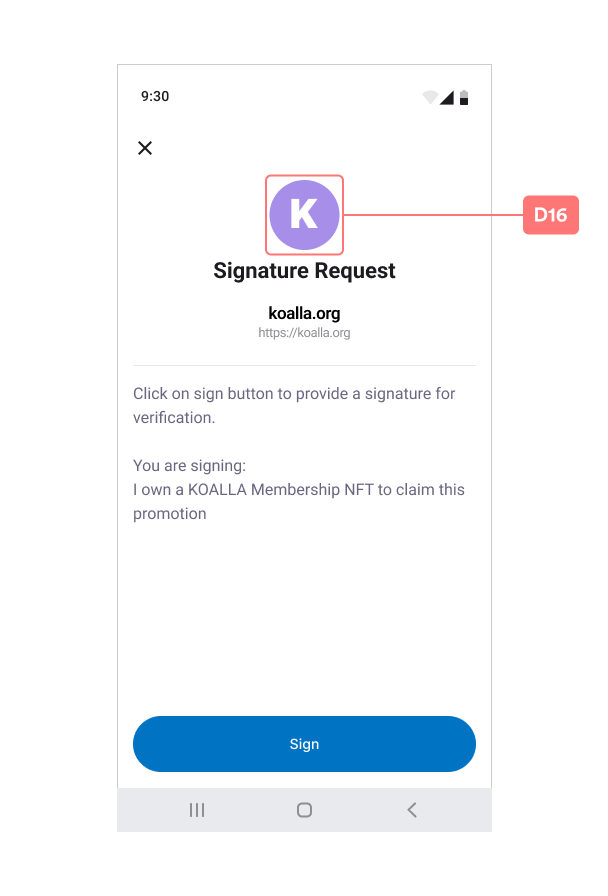

Signature Request

C91~C98

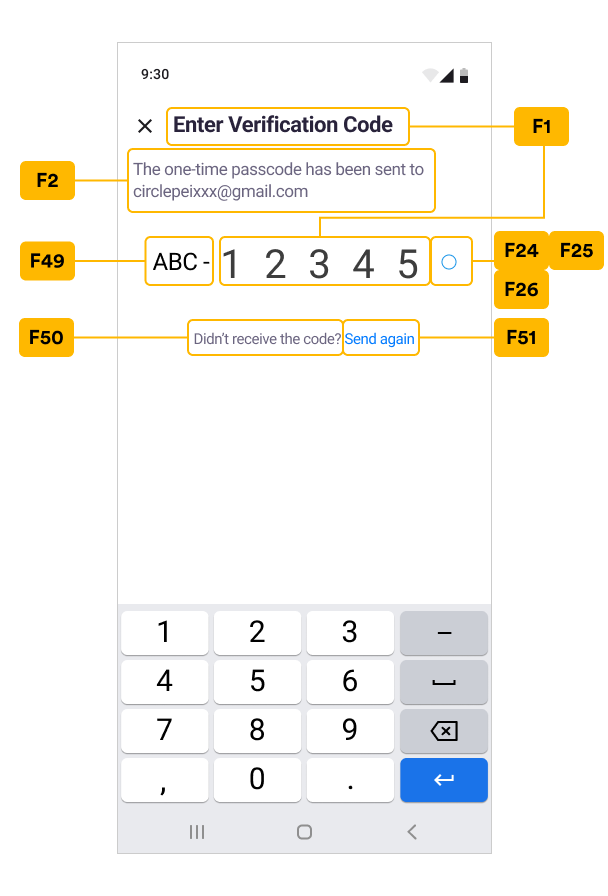

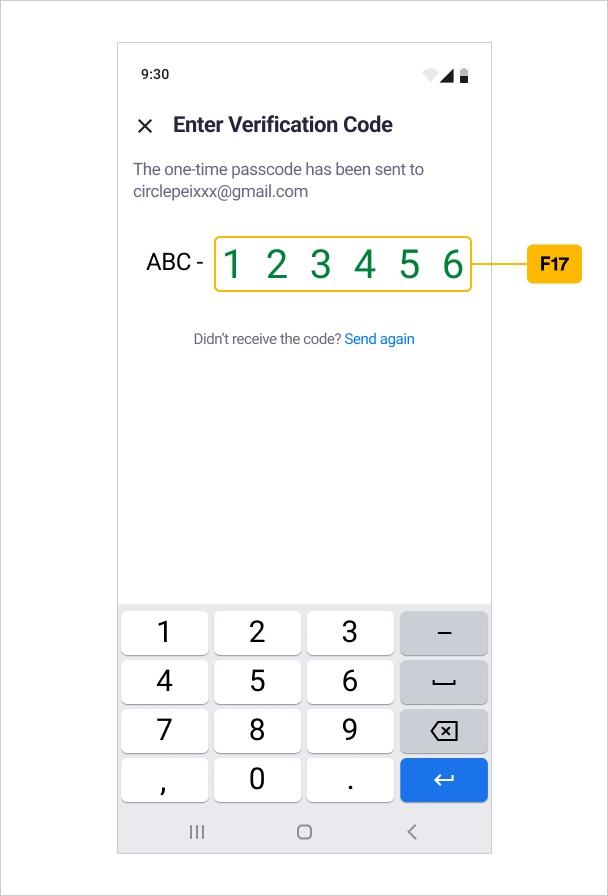

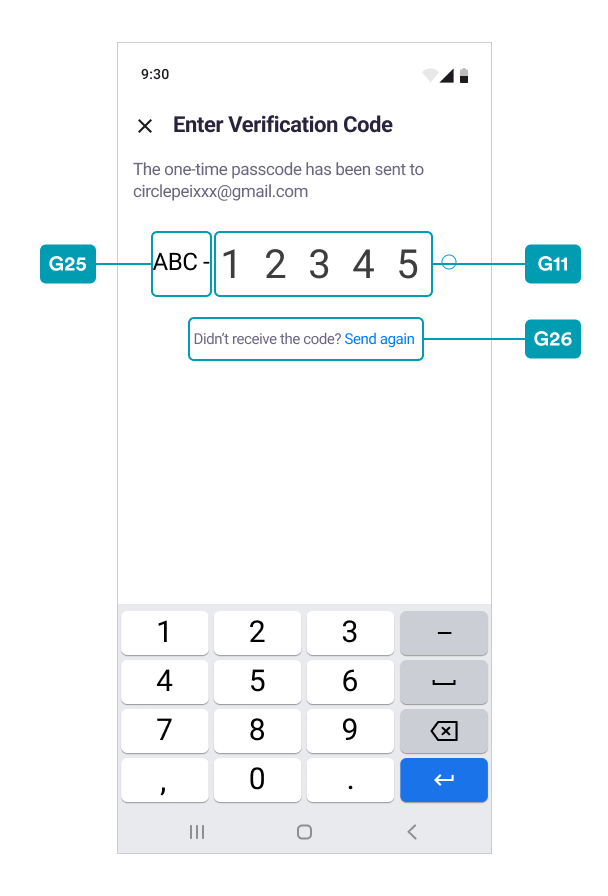

Verify OTP

C99~C105

A Index Table -TextsKey

Put the configs in a map then call WalletSdk.setTextConfigsMap(). For example:

JavaScript

  const map = new Map()
  map.set(TextsKey.securityQuestionHeaders, [
    new TextConfig('Choose your 1st question'),
    new TextConfig('Choose your 2nd question')
  ])

  WalletSdk.setTextConfigsMap(map)

	Programmatic Customization						Static Resources				Note🔖

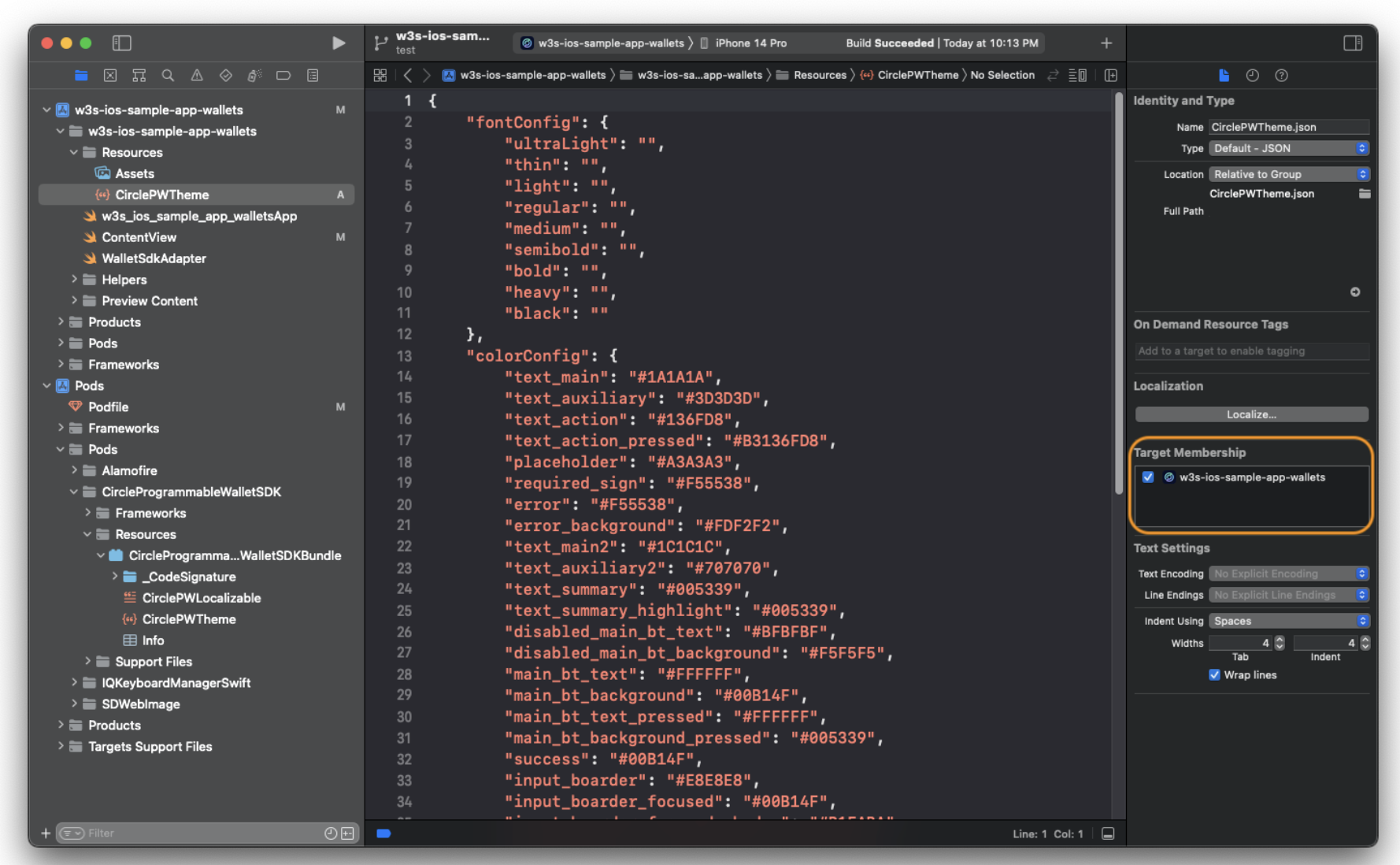

							Android		iOS CirclePWTheme.json
#	TextsKey	TextConfigs length	TextConfig.text	TextConfig.textColor	TextConfig.font	TextConfig.gradientColors	colors.xml	styles.xml	color	font
A1	newPinCodeHeadline	<=2	✅	✅🔖	✅	✅🔖	circlepw_text_main	circlepw_heading3	text_main	semibold	textColor will be applied if gradientColors is null.
A2	enterPinCodeHeadline	<=2	✅	✅🔖	✅	✅🔖	circlepw_text_main	circlepw_heading3	text_main	semibold	textColor will be applied if gradientColors is null.
A3	securityIntroHeadline	<=2	✅	✅🔖	✅	✅🔖	circlepw_text_main	circlepw_heading4	text_main	semibold	textColor will be applied if gradientColors is null.
A4	securityIntroLink	2🔖	✅	✅🔖	✅🔖	❌	circlepw_text_action	circlepw_body2	text_action	regular	TextConfigs: [DisplayText, URL]Only display when the array length is not less then 2 and the URL is not empty.Set color / font according to TextConfig[0].
A5	securityQuestionHeaders	<= 5🔖	✅	✅🔖	✅🔖	❌	circlepw_text_auxiliary	circlepw_body2	text_auxiliary	regular	TextConfigs over the length limit will be ignored.
A6	securitySummaryQuestionHeaders	Same as securityQuestionHeaders (A5)	✅	✅	✅	❌	circlepw_text_main2	circlepw_heading5	text_main2	semibold	TextConfigs over the length limit will be ignored.
A7	recoverPinCodeHeadline	Free	✅	✅🔖	✅	✅🔖	circlepw_text_main	circlepw_heading3	text_main	semibold	textColor will be applied if gradientColors is null.

B Index Table - IconTextsKey

Use this Index Table to reference the dynamic special Icon, Text, Color, and Font Customization. Both the icon image and the text fields are dynamically configured together.
You can use IconTextConfig() constructor with local image or remote image URL. For example:

JavaScript

new IconTextConfig(
      require('../assets/image/local_icon.png'),
      new TextConfig(text, color, font)
    )

new IconTextConfig(
      {uri: 'https://remote_image'}
      new TextConfig(text, color, font)
    )

And put the configs in a map then call WalletSdk.setIconTextConfigsMap():

JavaScript

 const map = new Map()
 map.set(IconTextsKey.securityConfirmationItems, [
    new IconTextConfig(
      require('../assets/image/local_icon.png'),
      new TextConfig(text, color, font),
    ),
  ])
  WalletSdk.setIconTextConfigsMap(map)

	Programmatic Customization						Static Resources				Note🔖
							Android		iOS CirclePWTheme.json
#	IconTextsKey	TextConfigs length	TextConfig.text	TextConfig.textColor	TextConfig.font	TextConfig.gradientColors	colors.xml	styles.xml	color	font
B1	securityConfirmationItems	<=4🔖	✅	✅	✅	❌	circlepw_text_main	circlepw_body2	text_main	regular	textColor will be applied if gradientColors is null.

C Index Table - TextKey

For programmatic customization, put the configs in a map then call WalletSdk.setTextConfigMap(). For example:

JavaScript

   const map = new Map()
  map.set(
    TextKey.circlepw_recover_pincode_answer_input_placeholder,
    new TextConfig(
      'Type your answer here',
      colors.placeholder,
      'Inter-Regular',
    ),
  )
  WalletSdk.setTextConfigMap(map)

For static customization, please check Static Resource.

Note:The gradientColors field is not supported for the Keys in this table. If you dynamically set the color as gradientColor, the effect will be ignored and the Android WARN level log will be printed.

	Programmatic Customization				Static Resources						Note
		TextConfig			Android			iOS CirclePWLocalizable.json	iOS CirclePWTheme.json
#	TextKey	text	textColor	font	strings.xml	colors.xml	styles.xml	string	color	font
C1	circlepw_new_pincode_subhead	✅	✅	✅	circlepw_new_pincode_subhead	circlepw_text_auxiliary	circlepw_body2	circlepw_new_pincode_subhead	text_auxiliary	regular
C2	❌	❌	❌	❌	❌	circlepw_text_main	circlepw_pinDigitText	❌	text_main	light	Normal
						circlepw_success	circlepw_pinDigitText		success		Succeed
						circlepw_error	circlepw_pinDigitText		error		Failed
C3	circlepw_enter_pincode_use_biometrics	✅	✅	✅	circlepw_enter_pincode_use_biometrics🔖	circlepw_pressed_assist_text_color	circlepw_actionText	circlepw_enter_pincode_use_biometrics🔖	text_action	semibold	For Android, the default text is “Use Biometrics”. For iOS, the default text is “Use FACE ID”.
C5	circlepw_pincode_error_config	❌🔖	✅	✅	❌🔖	circlepw_error	circlepw_body2	❌🔖	error	regular	For text, see Error Message:incorrectUserPin(155112), userPinLocked(155119), pinCodeNotMatched(155703)
C5-1	circlepw_pin_remain_attemps_template	✅🔖	❌	❌	circlepw_pin_remain_attemps_template	❌	❌	❌	❌	❌	e.g. You have %s attempts left.
C5-2	circlepw_pin_lock_period_template	✅🔖	❌	❌	circlepw_pin_lock_period_template	❌	❌	❌	❌	❌	e.g. You’ve used up all PIN attempts. Please wait for %s mins to retry later..
C6	circlepw_confirm_pincode_headline	✅	✅	✅	circlepw_confirm_pincode_headline	circlepw_text_main	circlepw_heading3	circlepw_confirm_pincode_headline	text_main	semibold
C7	circlepw_confirm_pincode_subhead	✅	✅	✅	circlepw_confirm_pincode_subhead	circlepw_text_auxiliary	circlepw_body2	circlepw_confirm_pincode_subhead	text_auxiliary	regular
C8	circlepw_enter_pincode_subhead	✅	✅	✅	circlepw_enter_pincode_subhead	circlepw_text_auxiliary	circlepw_body2	circlepw_enter_pincode_subhead	text_auxiliary	regular
C9	circlepw_enter_pincode_forgot_pin	✅	✅	✅	circlepw_enter_pincode_forgot_pin	circlepw_text_action	circlepw_actionText	circlepw_enter_pincode_forgot_pin	text_action / text_action_pressed	semibold
C10	circlepw_security_intros_description	✅	✅	✅	circlepw_security_intros_description	circlepw_text_auxiliary2	circlepw_body2	circlepw_security_intros_description	text_auxiliary2	regular
C11	circlepw_continue	✅	✅	✅	circlepw_continue	circlepw_main_bt_text	circlepw_mainButtonText	circlepw_continue	main_bt_text	semibold	Normal
						circlepw_main_bt_text_pressed			main_bt_text_pressed		Pressed
						circlepw_disabled_main_bt_text			main_bt_text_disabled		Disabled
C12	circlepw_security_questions_title	✅	✅	✅	circlepw_security_questions_title	circlepw_text_main	circlepw_toolbarTitle	circlepw_security_questions_title	text_main	medium
C13	circlepw_security_questions_required_mark	✅	✅	✅	circlepw_security_questions_required_mark	circlepw_error	circlepw_metadata1	circlepw_security_questions_required_mark	error	regular
C14	circlepw_security_questions_question_input_config	❌	✅	✅	❌	circlepw_text_main	circlepw_body1	❌	text_main	regular
C15	circlepw_security_questions_question_placeholder	✅🔖	✅🔖	❌	circlepw_security_questions_question_placeholder	circlepw_placeholder	circlepw_body1	circlepw_security_questions_question_placeholder	text_placeholder	regular	Set TextView’s textColorHint and hint. Apply circlepw_security_questions_question_input_config (C14)’s font.
C16	circlepw_security_questions_answer_header	✅	✅	✅	circlepw_security_questions_answer_header	circlepw_text_auxiliary	circlepw_body2	circlepw_security_questions_answer_header	text_auxiliary	regular
C17	circlepw_security_questions_answer_input_config	❌	✅	✅	❌	circlepw_text_main	circlepw_body1	❌	text_main	regular
C18	circlepw_security_questions_answer_placeholder	✅🔖	✅🔖	❌🔖	circlepw_security_questions_answer_placeholder	circlepw_placeholder	circlepw_body1	circlepw_security_questions_answer_placeholder	text_placeholder	regular	Set TextView’s textColorHint and hint. Apply circlepw_security_questions_answer_input_config (C17)’s font.
C19	circlepw_security_questions_answer_hint_header	✅	✅	✅	circlepw_security_questions_answer_hint_header	circlepw_text_auxiliary	circlepw_body2	circlepw_security_questions_answer_hint_header	text_auxiliary	regular
C20	circlepw_security_questions_answer_hint_input_config	❌	✅	✅	❌	circlepw_text_main	circlepw_body1	❌	text_main	regular
C21	circlepw_security_questions_answer_hint_placeholder	✅🔖	✅🔖	❌🔖	circlepw_security_questions_answer_hint_placeholder	circlepw_placeholder	circlepw_body1	circlepw_security_questions_answer_hint_placeholder	text_placeholder	regular	Set TextView’s textColorHint and hint. Apply circlepw_security_questions_answer_hint_input_config (C20)’s font.
C22	circlepw_security_questions_error_config	❌🔖	✅	✅	❌🔖	circlepw_error	circlepw_metadata1	❌	error	regular	For text, see Error Message:hintsMatchAnswers(155705)
C23	circlepw_next	✅	✅	✅	circlepw_next	circlepw_main_bt_text	circlepw_mainButtonText	circlepw_next	main_bt_text	semibold	Normal
						circlepw_main_bt_text_pressed			main_bt_text_pressed		Pressed
						circlepw_disabled_main_bt_text			main_bt_text_disabled		Disabled

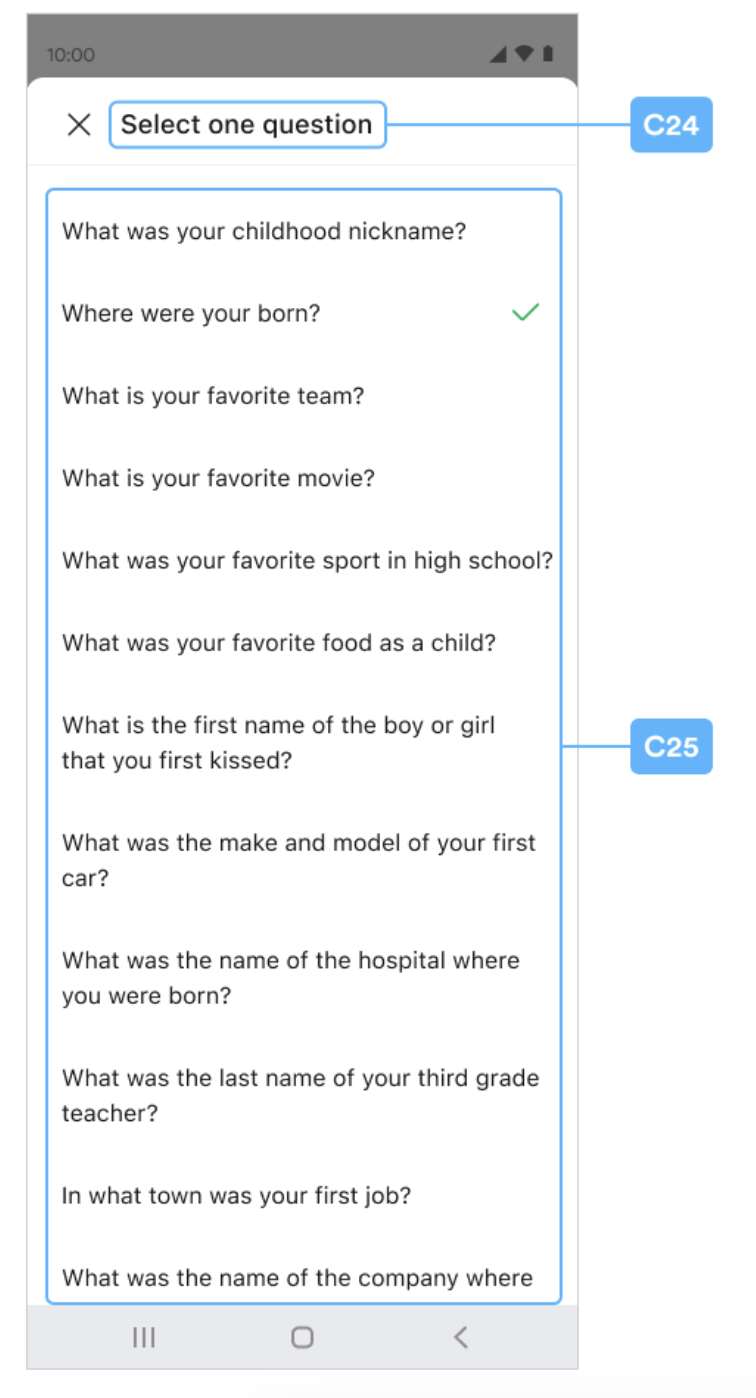

C24	circlepw_select_question_title	✅	✅	✅	circlepw_select_question_title	circlepw_text_main	circlepw_toolbarTitle	circlepw_select_question_title	text_main	medium
C25	circlepw_select_question_item_config	❌	✅	✅	❌	circlepw_text_main	circlepw_body1	❌	text_main	regular
C26	circlepw_security_summary_title	✅	✅	✅	circlepw_security_summary_title	circlepw_text_main	circlepw_toolbarTitle	circlepw_security_summary_title	text_main	medium
C27	circlepw_question_label	✅	✅	✅	circlepw_question_label	circlepw_text_auxiliary2	circlepw_body2	circlepw_question + “:”	text_auxiliary2	regular
C28	circlepw_security_summary_question_value_config	❌	✅	✅	❌	circlepw_text_summary	circlepw_body2	❌	text_summary	regular
C29	circlepw_answer_label	✅	✅	✅	circlepw_answer_label	circlepw_text_auxiliary2	circlepw_body2	circlepw_answer + “:“	text_auxiliary2	regular
C30	circlepw_security_summary_answer_value_config	❌	✅	✅	❌	circlepw_text_summary	circlepw_caption2	❌	text_summary_highlight	semibold
C31	circlepw_hint_label	✅	✅	✅	circlepw_hint_label	circlepw_text_auxiliary2	circlepw_body2	circlepw_hint + “:“	text_auxiliary2	regular
C32	circlepw_security_summary_hint_value_config	❌	✅	✅	❌	circlepw_text_summary	circlepw_body2	❌	text_summary	regular
C33	circlepw_security_confirm_title	✅	✅	✅	circlepw_security_confirm_title	circlepw_text_main	circlepw_toolbarTitle	circlepw_security_confirm_title	text_main	medium
C34	circlepw_security_confirm_headline	✅	✅	✅	circlepw_security_confirm_headline	circlepw_text_main	circlepw_heading4	circlepw_security_confirm_headline	text_main	medium
C35	circlepw_security_confirm_input_headline	✅	✅	✅	circlepw_security_confirm_input_headline	circlepw_text_main2	circlepw_caption1	circlepw_security_confirm_input_headline	text_main2	semibold
C36	circlepw_security_confirm_input_placeholder	✅🔖	✅🔖	❌🔖	circlepw_security_confirm_input_placeholder	circlepw_placeholder	circlepw_body1	circlepw_security_confirm_input_placeholder	text_placeholder	regular	Set TextView’s textColorHint and hint. Apply circlepw_security_confirm_input_config (C37)’s font.
C37	circlepw_security_confirm_input_config	❌	✅	✅	❌	circlepw_text_main	circlepw_body1	❌	text_main2	regular
C37-1	circlepw_security_confirm_input_match	✅	❌	❌	circlepw_security_confirm_input_match	❌	❌	circlepw_security_confirm_input_match	❌	❌	The text is the answer that requires user type. e.g. I agree

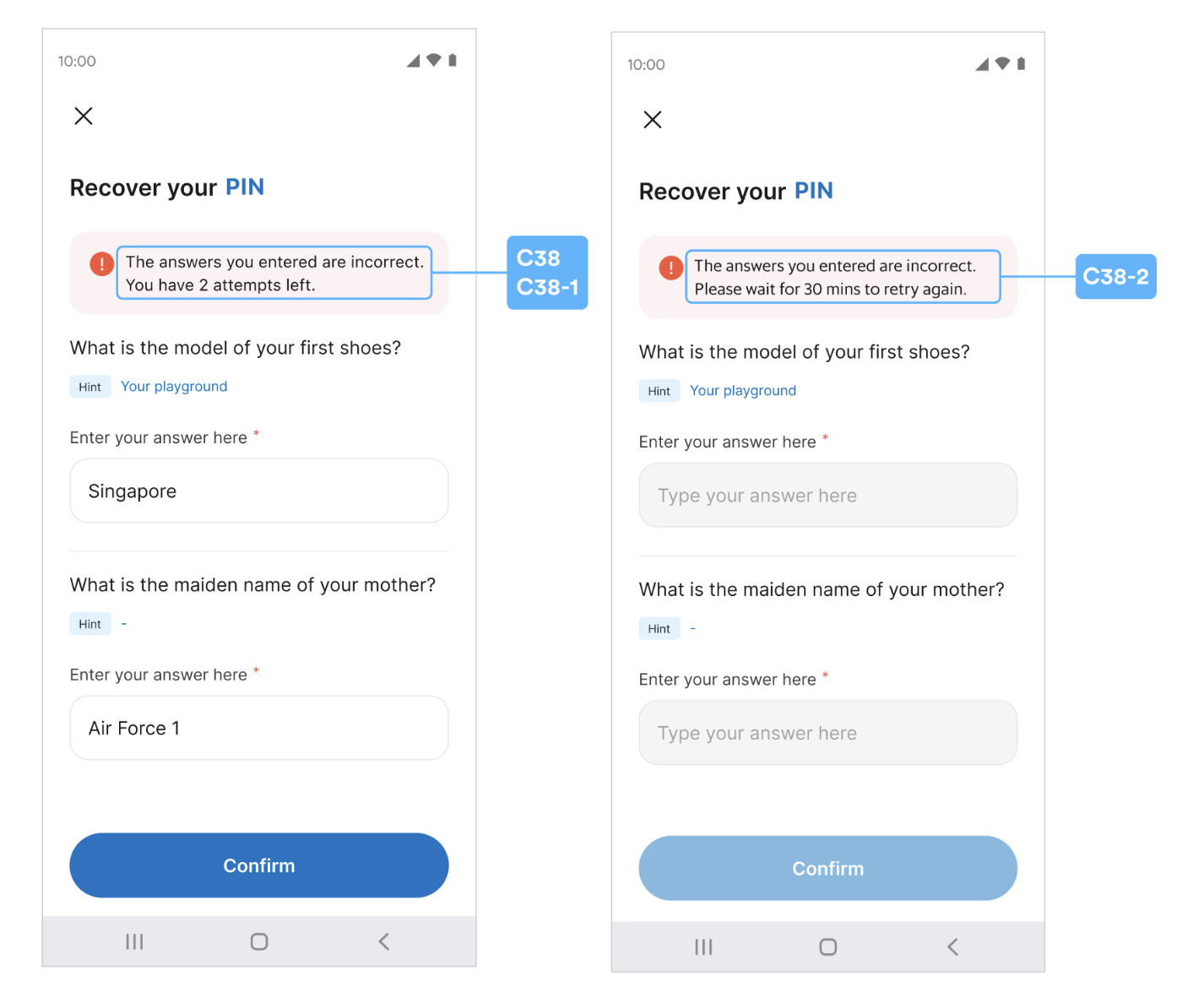

C38	circlepw_recover_pincode_error_config	❌🔖	✅	✅	❌🔖	circlepw_text_main	circlepw_body2	❌	text_main	regular	For text, see Error Message:incorrectSecurityAnswers(155115), securityAnswersLocked(155120)
C38-1	circlepw_answer_remain_attemps_template	✅🔖	❌	❌	circlepw_answer_remain_attemps_template	❌	❌				e.g. You have %s attempts left.
C38-2	circlepw_answer_lock_period_template	✅🔖	❌	❌	circlepw_answer_lock_period_template	❌	❌				e.g. Please wait for %s mins to retry later
C39	circlepw_recover_pincode_question_config	❌	✅	✅	❌	circlepw_text_main2	circlepw_body1	❌	text_main2	regular
C40	circlepw_hint_tag	✅	✅	✅	circlepw_hint_tag	circlepw_tag_text	circlepw_metadata2	circlepw_hint	recover_pin_hint_title	regular
C41	circlepw_recover_pincode_answer_hint_config	❌	✅	✅	❌	circlepw_tag_following_text	circlepw_metadata1	❌	recover_pin_hint	regular
C42	circlepw_recover_pincode_answer_input_header	✅	✅	✅	circlepw_recover_pincode_answer_input_header	circlepw_text_auxiliary	circlepw_body2	circlepw_recover_pincode_answer_input_header	text_auxiliary	regular
C43	circlepw_recover_pincode_answer_input_placeholder	✅🔖	✅🔖	❌🔖	circlepw_recover_pincode_answer_input_placeholder	circlepw_placeholder	circlepw_body1	circlepw_recover_pincode_answer_input_placeholder	text_placeholder	regular	Set TextView’s textColorHint and hint. Apply circlepw_recover_pincode_input_config (C44)’s font.
C44	circlepw_recover_pincode_input_config	❌	✅	✅	❌	circlepw_text_main	circlepw_body1	❌	text_main	regular
C45	circlepw_confirm	✅	✅	✅	circlepw_confirm	circlepw_main_bt_text	circlepw_mainButtonText	circlepw_confirm	main_bt_text	semibold
						circlepw_main_bt_text_pressed			main_bt_text_pressed
						circlepw_disabled_main_bt_text			main_bt_text_disabled
C46	circlepw_pin_biometrics_allow_title	✅	✅	✅	circlepw_pin_biometrics_allow_title	circlepw_text_main	circlepw_heading3	circlepw_pin_biometrics_allow_title	text_prompt	bold
C47	circlepw_pin_biometrics_allow_subtitle	✅	✅	✅	circlepw_pin_biometrics_allow_subtitle	circlepw_text_auxiliary	circlepw_body2	circlepw_pin_biometrics_allow_subtitle	text_prompt2	regular
C48	circlepw_skip	✅	✅	✅	circlepw_skip	circlepw_second_bt_text	circlepw_secondButton	circlepw_skip	second_bt_text	semibold	Normal
						circlepw_second_bt_text					Pressed
						circlepw_second_bt_text_disabled					Disabled
C49	circlepw_pin_biometrics_disable	✅	✅	✅	circlepw_pin_biometrics_disable	circlepw_plain_bt_text	circlepw_plainButton	circlepw_pin_biometrics_disable	plain_bt_text	semibold	Normal
						circlepw_plain_bt_text					Pressed
						circlepw_plain_bt_text_disabled					Disabled
C50	circlepw_pin_biometrics_encrypt_title	✅	❌	❌	circlepw_pin_biometrics_encrypt_title	❌	❌	❌	❌	❌	Android only.
C51	circlepw_pin_biometrics_encrypt_negative_text	✅	❌	❌	circlepw_pin_biometrics_encrypt_negative_text	❌	❌	❌	❌	❌	Android only.
C52	circlepw_pin_biometrics_encrypt_subtitle	✅	❌	❌	circlepw_pin_biometrics_encrypt_subtitle	❌	❌	❌	❌	❌	Android only.
C53	circlepw_pin_biometrics_encrypt_desc	✅	❌	❌	circlepw_pin_biometrics_encrypt_desc	❌	❌	❌	❌	❌	Android only.
C54	circlepw_pin_biometrics_decrypt_title	✅	❌	❌	circlepw_pin_biometrics_decrypt_title	❌	❌	❌	❌	❌	Android only.
C55	circlepw_pin_biometrics_decrypt_negative_text	✅	❌	❌	circlepw_pin_biometrics_decrypt_negative_text	❌	❌	❌	❌	❌	Android only.
C56	circlepw_pin_biometrics_decrypt_subtitle	✅	❌	❌	circlepw_pin_biometrics_decrypt_subtitle	❌	❌	❌	❌	❌	Android only.
C57	circlepw_pin_biometrics_decrypt_desc	✅	❌	❌	circlepw_pin_biometrics_decrypt_desc	❌	❌	❌	❌	❌	Android only.
C58	circlepw_pin_biometrics_update_title	✅🔖	✅	✅	circlepw_pin_biometrics_update_title	circlepw_text_main	circlepw_heading3	circlepw_pin_biometrics_update_title	text_prompt	bold	After the auto-fill PIN verify fails, the following biometrics setting page title will use this.
C59	circlepw_pin_biometrics_update_subtitle	✅🔖	✅	✅	circlepw_pin_biometrics_update_subtitle	circlepw_text_auxiliary	circlepw_body2	circlepw_pin_biometrics_update_subtitle	text_prompt2	regular	After the auto-fill PIN verify fails, the following biometrics setting page subtitle will use this.

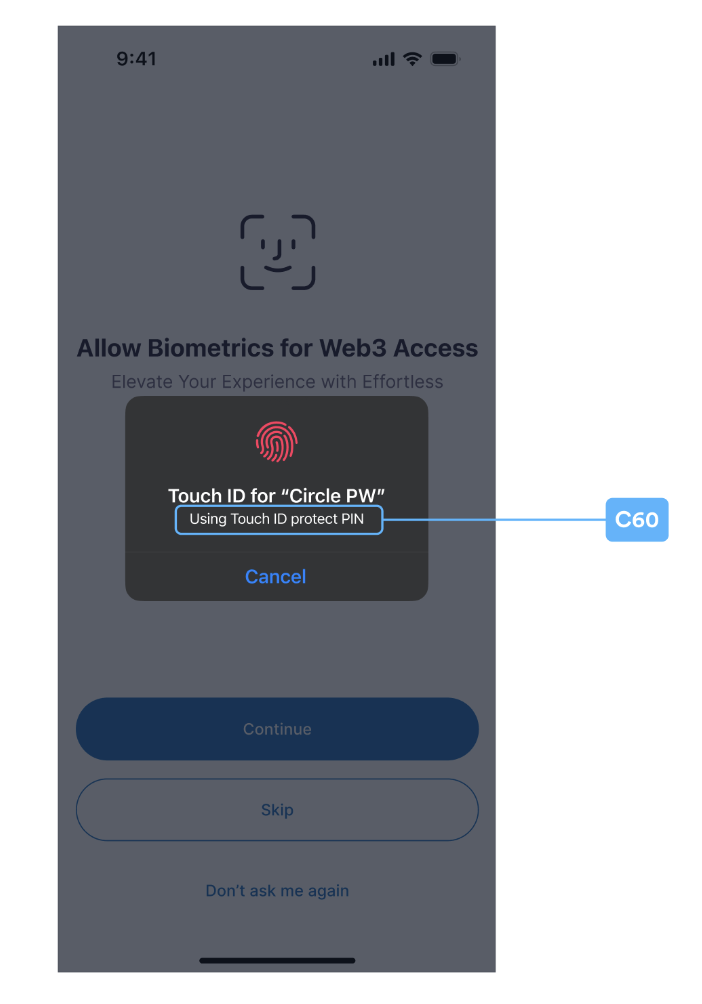

C60	❌	❌	❌	❌	❌	❌	❌	circlepw_pin_touch_id_dialog_subtitle	❌	❌	iOS only. info.plist
C61	circlepw_alert_pop_window_description_config	❌🔖	✅	✅	❌🔖	circlepw_alert_pop_description_text	circlepw_body2	❌	❌	❌	For text, see Error Message: biometricsKeyPermanentlyInvalidated(155710). Android only.
C62	circlepw_alert_pop_window_confirm	✅	✅	✅	circlepw_alert_pop_window_confirm	circlepw_alert_pop_btn_text	circlepw_actionText	❌	❌	❌	Android only.
C63	circlepw_transaction_request_title	✅	✅	✅	circlepw_transaction_request_title	circlepw_text_main	circlepw_heading3	circlepw_transaction_request_title	text_main	medium
C64	circlepw_transaction_request_subtitle	✅	✅	✅	circlepw_transaction_request_subtitle	circlepw_text_auxiliary	circlepw_body2	circlepw_transaction_request_subtitle	text_auxiliary	regular
C65	circlepw_transaction_request_main_currency	✅🔖	✅	✅	❌	circlepw_text_prompt	circlepw_txAmountMainText	circlepw_transaction_request_main_currency	text_prompt	heavy
C66	circlepw_transaction_request_exchange_value	✅	✅	✅	❌	circlepw_text_exchange	circlepw_txExchangeText	circlepw_transaction_request_exchange_value	text_exchange	semibold
C67	circlepw_transaction_request_from_label	✅	✅	✅	circlepw_transaction_request_from_label	circlepw_text_prompt	circlepw_txInfoText	circlepw_transaction_request_from_label	text_prompt	regular
C68	circlepw_transaction_request_from	✅	✅	✅	❌	circlepw_text_prompt	circlepw_txInfoValueText	circlepw_transaction_request_from	text_prompt	regular
C69	circlepw_transaction_request_to_label	✅	✅	✅	circlepw_transaction_request_to_label	circlepw_text_prompt	circlepw_txInfoText	circlepw_transaction_request_to_label	text_prompt	regular
C70	circlepw_transaction_request_to_config	❌	✅	✅	❌	circlepw_text_prompt	circlepw_txInfoValueText	❌	text_prompt	semibold
C71	circlepw_transaction_request_to_contract_name	✅	✅	✅	❌	circlepw_text_prompt	circlepw_txInfoValueText	circlepw_transaction_request_to_contract_name	text_prompt	semibold
C72	circlepw_transaction_request_to_contract_url	✅	✅	✅	❌	circlepw_text_prompt	circlepw_txInfoValueText	circlepw_transaction_request_to_contract_url	text_prompt	semibold
C73	circlepw_transaction_request_network_fee_label	✅	✅	✅	circlepw_transaction_request_network_fee_label	circlepw_text_prompt	circlepw_txInfoText	circlepw_transaction_request_network_fee_label	text_prompt	regular
C74	circlepw_transaction_request_network_fee	✅	✅	✅	❌	circlepw_text_prompt	circlepw_txInfoValueText	circlepw_transaction_request_network_fee	text_prompt	semibold
C75	circlepw_transaction_request_exchange_network_fee	✅	✅	✅	❌	circlepw_text_exchange	circlepw_txInfoExchangeText	circlepw_transaction_request_exchange_network_fee	text_exchange	regular
C76	circlepw_transaction_request_total_label	✅	✅	✅	circlepw_transaction_request_total_label	circlepw_text_prompt	circlepw_txInfoText	circlepw_transaction_request_total_label	text_prompt	regular
C77	circlepw_transaction_request_total_config	❌	✅	✅	❌	circlepw_text_prompt	circlepw_txInfoValueText	❌	text_prompt	semibold
C78	circlepw_transaction_request_exchange_total_value	✅	✅	✅	❌	circlepw_text_exchange	circlepw_txInfoExchangeText	circlepw_transaction_request_exchange_total_value	text_exchange	regular
C79	circlepw_transaction_request_error_config	❌	✅	✅	❌	circlepw_error	circlepw_body2	❌	error	regular

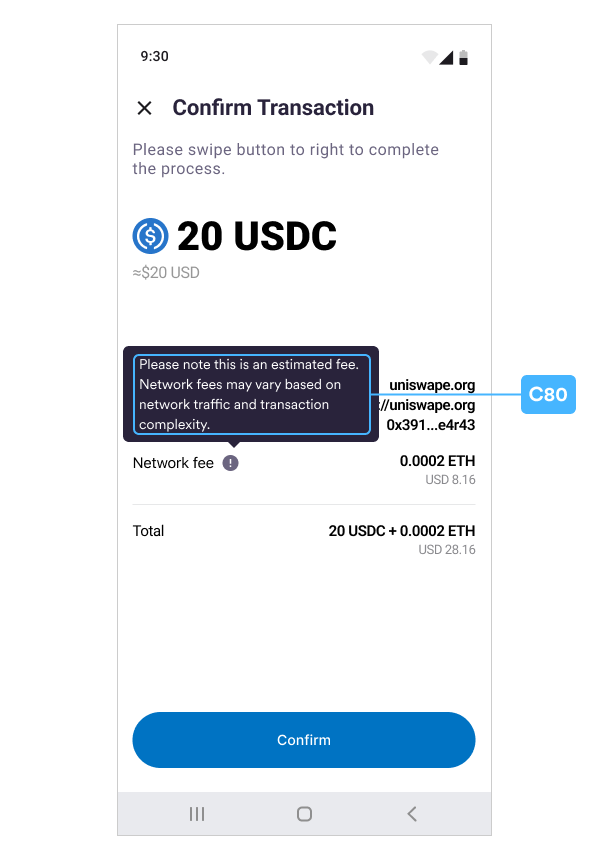

C80	circlepw_transaction_request_fee_tip	✅	✅	✅	circlepw_transaction_request_fee_tip	circlepw_tip_text	circlepw_feeTipText	circlepw_transaction_request_fee_tip	tip_text	regular

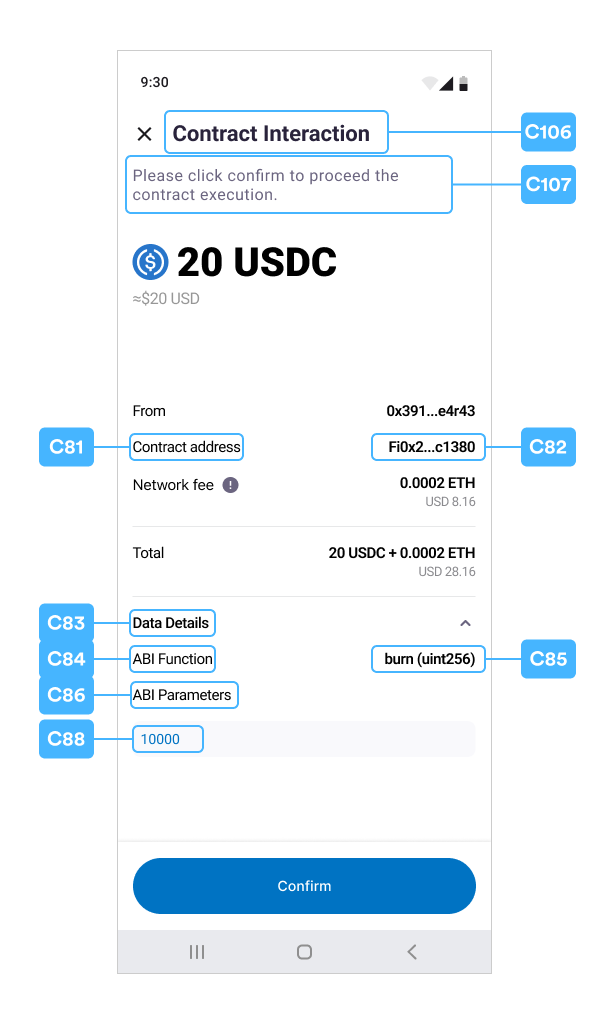

C81	circlepw_contract_interaction_contract_address_label	✅	✅	✅	circlepw_contract_interaction_contract_address_label	circlepw_text_prompt	circlepw_txInfoText	circlepw_contract_interaction_contract_address_label	text_prompt	regular
C82	circlepw_contract_interaction_contract_address_config	❌	✅	✅	❌	circlepw_text_prompt	circlepw_txInfoValueText	❌	text_prompt	semibold
C83	circlepw_contract_interaction_data_details	✅	✅	✅	circlepw_contract_interaction_data_details	circlepw_text_prompt	circlepw_txInfoValueText	circlepw_contract_interaction_data_details	text_prompt	semibold
C84	circlepw_contract_interaction_abi_function_label	✅	✅	✅	circlepw_contract_interaction_abi_function_label	circlepw_text_prompt	circlepw_txInfoText	circlepw_contract_interaction_abi_function_label	text_prompt	regular
C85	circlepw_contract_interaction_abi_function_config	❌	✅	✅	❌	circlepw_text_prompt	circlepw_txInfoValueText	❌	text_prompt	semibold
C86	circlepw_contract_interaction_abi_parameter_label	✅	✅	✅	circlepw_contract_interaction_abi_parameter_label	circlepw_text_prompt	circlepw_txInfoText	circlepw_contract_interaction_abi_parameter_label	text_prompt	regular

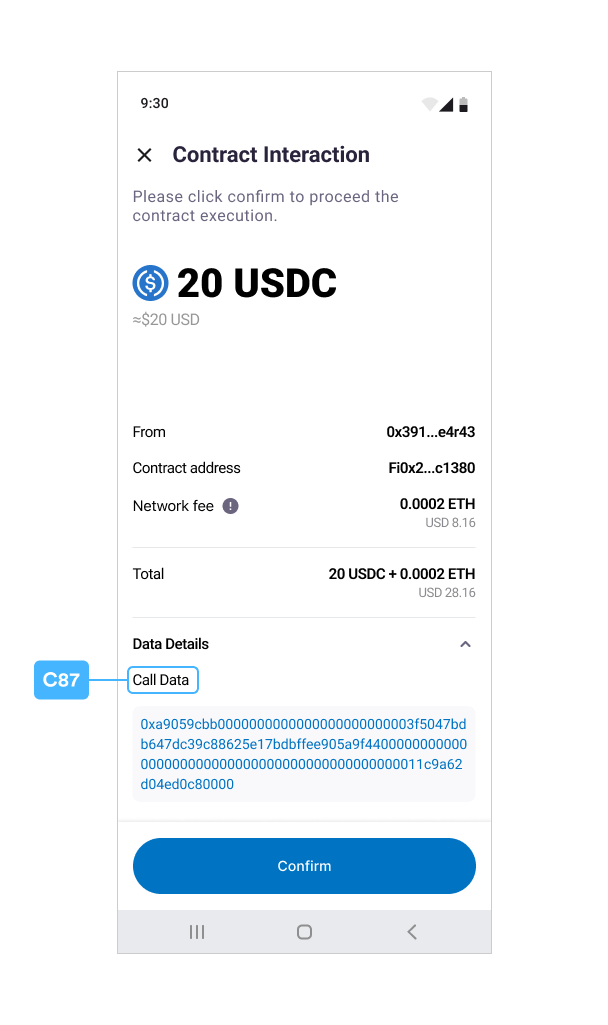

C87	circlepw_contract_interaction_call_data_label	✅	✅	✅	circlepw_contract_interaction_call_data_label	circlepw_text_prompt	circlepw_txInfoText	circlepw_contract_interaction_call_data_label	text_prompt	regular
C88	circlepw_contract_interaction_call_data_config	❌	✅	✅	❌	circlepw_text_interactive	circlepw_contractDataText	❌	text_interactive	regular

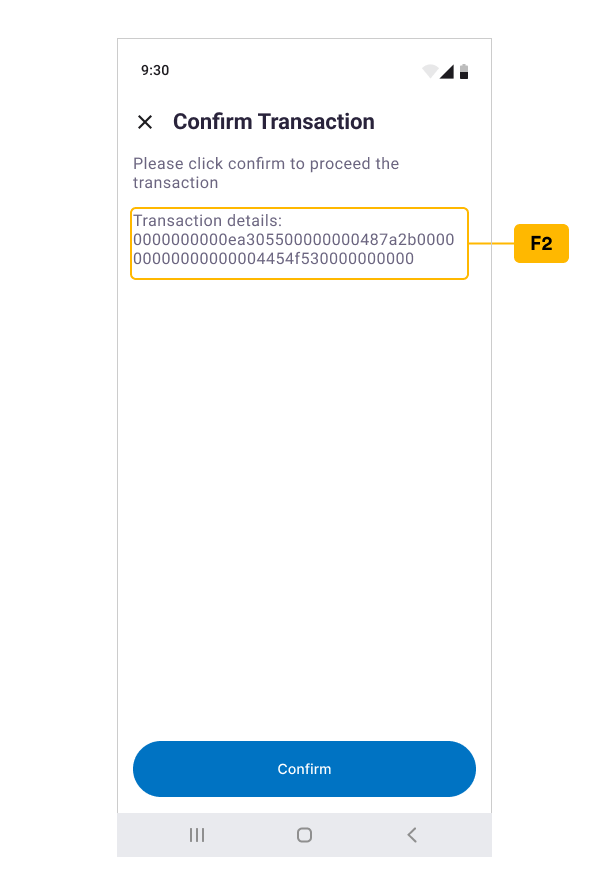

C89	circlepw_transaction_request_raw_tx_description	✅	✅	✅	circlepw_transaction_request_raw_tx_description	circlepw_text_auxiliary	circlepw_body2	❌	text_auxiliary	regular
C90	circlepw_transaction_request_raw_tx_config	❌	✅	✅	❌	circlepw_text_auxiliary	circlepw_body2	❌	text_auxiliary	regular
C91	circlepw_signature_request_title	✅	✅	✅	circlepw_signature_request_title	circlepw_text_main	circlepw_heading3	circlepw_signature_request_title	text_main	semibold
C92	circlepw_signature_request_contract_name	✅	✅	✅	❌	circlepw_text_prompt	circlepw_signNameText	circlepw_signature_request_contract_name	text_prompt	semibold
C93	circlepw_signature_request_contract_url	✅	✅	✅	❌	circlepw_text_sign_url	circlepw_signUrlText	circlepw_signature_request_contract_url	text_sign_url	regular
C94	circlepw_signature_request_subtitle	✅	✅	✅	circlepw_signature_request_subtitle	circlepw_text_auxiliary	circlepw_body2	circlepw_signature_request_subtitle	text_auxiliary	regular
C95	circlepw_signature_request_description	✅	✅	✅	circlepw_signature_request_description	circlepw_text_auxiliary	circlepw_body2	circlepw_signature_request_description	text_auxiliary	regular
C96	circlepw_signature_request_msg_config	❌	✅	✅	❌	circlepw_text_auxiliary	circlepw_body2	❌	text_auxiliary	regular
C97	circlepw_sign	✅	✅	✅	circlepw_sign	circlepw_main_bt_text	circlepw_mainButtonText	circlepw_sign	main_bt_text	semibold
						circlepw_main_bt_text_pressed			main_bt_text_pressed
						circlepw_disabled_main_bt_text			main_bt_text_disabled
C98	circlepw_try_again	✅	✅	✅	circlepw_try_again	circlepw_main_bt_text	circlepw_mainButtonText	circlepw_try_again	main_bt_text	semibold
						circlepw_main_bt_text_pressed			main_bt_text_pressed
						circlepw_disabled_main_bt_text			main_bt_text_disabled
C99	circlepw_email_otp_title	✅	✅	✅	circlepw_email_otp_title	circlepw_text_main	circlepw_heading3	circlepw_email_otp_title	text_main	medium
C100	circlepw_email_otp_description	✅	✅	✅	circlepw_email_otp_description	circlepw_text_auxiliary	circlepw_body2	circlepw_email_otp_description	text_auxiliary	regular
C101	circlepw_email_otp_email	✅	❌	❌	❌	❌	❌	circlepw_email_otp_email	❌	❌
C102	circlepw_email_otp_head_config	❌	✅	✅	❌	circlepw_otp_head_text	circlepw_otpHeadText	❌	text_prompt	regular
C103	circlepw_email_otp_dash	✅	✅	✅	circlepw_email_otp_dash	circlepw_otp_head_text	circlepw_otpHeadText	circlepw_email_otp_dash	text_prompt	regular
C104	circlepw_email_otp_send_again_hint	✅	✅	✅	circlepw_email_otp_send_again_hint	circlepw_otp_hint_text	circlepw_otpSendAgainHintText	circlepw_email_otp_send_again_hint	text_auxiliary	regular
C105	circlepw_email_otp_send_again	✅	✅	✅	circlepw_email_otp_send_again	circlepw_otp_action_text	circlepw_otpSendAgainHintText	circlepw_email_otp_send_again	text_action	regular
C106	circlepw_contract_interaction_title	✅	✅	✅	circlepw_contract_interaction_title	circlepw_text_main	circlepw_heading3	circlepw_contract_interaction_title	text_main	medium
C107	circlepw_contract_interaction_subtitle	✅	✅	✅	circlepw_contract_interaction_subtitle	circlepw_text_auxiliary	circlepw_body2	circlepw_contract_interaction_subtitle	text_auxiliary	regular

Error Messages

When using this table, reference the ApiError heading in the WalletSDK section of the SDK.

Possible display location	ApiError.ErrorCode	Default Value	Note
C5, C38, C79	unknown(-1)	Unknown error
	success(0)	Success
C5, C38, C79	apiParameterMissing(1)	API parameter missing
C5, C38, C79	apiParameterInvalid(2)	API parameter invalid
C5, C38, C79	forbidden(3)	Forbidden
C5, C38, C79	unauthorized(4)	Unauthorized
C5, C38, C79	retry(9)	Retry
C5, C38	customerSuspended(10)	Customer suspended
C5, C38	pending(11)	Pending
C5, C38	invalidSession(12)	Invalid session
C5, C38	invalidPartnerId(13)	Invalid partner ID
C5, C38	invalidMessage(14)	Invalid Message published to a SQS queue
C5, C38, C79	invalidPhone(15)	Invalid phone number - should be in E.164 format
C5, C79	walletIdNotFound(156001)	No such wallet or not accessible to caller
C5, C79	tokenIdNotFound(156002)	No such token or not accessible to caller
C5, C79	transactionIdNotFound(156003)	No such transaction or not accessible to caller
C5, C79	entityCredentialNotFound(156004)	Reusing entity secret ciphertext not allowed
C5, C79	walletSetIdNotFound(156005)	No such wallet set or not accessible to caller
	userAlreadyExisted(155101)	User already existed
	userNotFound(155102)	User not found
C5, C38, C79	userTokenNotFound(155103)	User token not found
C5, C38, C79	userTokenExpired(155104)	User token expired
C5, C38	invalidUserToken(155105)	Invalid user token
C5	userWasInitialized(155106)	User was initialized
C5	userHasSetPin(155107)	User has set pin
C38	userHasSetSecurityQuestion(155108)	User has set security question
C5, C38	userWasDisabled(155109)	User was disabled
C5	userDoesNotSetPinYet(155110)	User does not set pin yet
C38	userDoesNotSetSecurityQuestionYet(155111)	User does not set security questions yet
C5	incorrectUserPin(155112)	PIN entered is incorrect
	incorrectDeviceId(155113)	Incorrect device id
	incorrectAppId(155114)	App id not found
C38	incorrectSecurityAnswers(155115)	Answers entered are incorrect
	invalidChallengeId(155116)	Invalid challenge id
C5	invalidApproveContent(155117)	Invalid approve content
C5, C38	invalidSecretKey(155118)	Invalid secret key
C5	userPinLocked(155119)	User PIN input is locked	Just display circlepw_pin_lock_period_template (C5-2)
C38	securityAnswersLocked(155120)	Answers entered are incorrect
C5	walletIsFrozen(155501)	Wallet is frozen
C5	maxWalletLimitReached(155502)	Max wallet limit reached
C5	walletSetIdMutuallyExclusive(155503)	WalletSetId can not be used together with blockchain and address filter
C5	metadataUnmatched(155504)	Metadata array length does not match wallet count
	userCanceled(155701)	User canceled
	launchUiFailed(155702)	UI launch failed	Check error message for exact UI launch failure reason
C5	pinCodeNotMatched(155703)	PIN entered not the same as first one
C5	insecurePinCode(155704)	PIN can’t have repeating or consecutive numbers
C22	hintsMatchAnswers(155705)	Hint can’t be the same as the answer
	biometricsSettingNotEnabled(155708)	“Biometrics instead of PIN” is disabled
	deviceNotSupportBiometrics(155709)	The device system doesn’t support biometrics
C61	biometricsKeyPermanentlyInvalidated(155710)	Failed to decrypt biometrics key
	biometricsUserSkip(155711)	The user has not enabled biometrics yet
	biometricsUserDisableForPin(155712)	The user refused to enable biometrics
	biometricsUserLockout(155713)	Too many requests - try again later
	biometricsUserLockoutPermanent(155714)	Too many requests - biometrics sensor on the device is locked
	biometricsUserNotAllowPermission(155715)	User didn’t allow to enable biometrics
	biometricsInternalError(155716)	Unexpected error for biometrics	Check error message for more information

Image Customization

The SDK does not contain any image resources for the SDK; you must provide the icon images from either local assets or remote URLs.
Each image has its suggested size of width and height shown in the index table’s Image view size column. Follow the suggested size to avoid the possibility of a broken layout or unexpected display.

ImageKey

D1~D9

D Index Table

#	ImageKey	Image View size (dp)		Note
		width	height

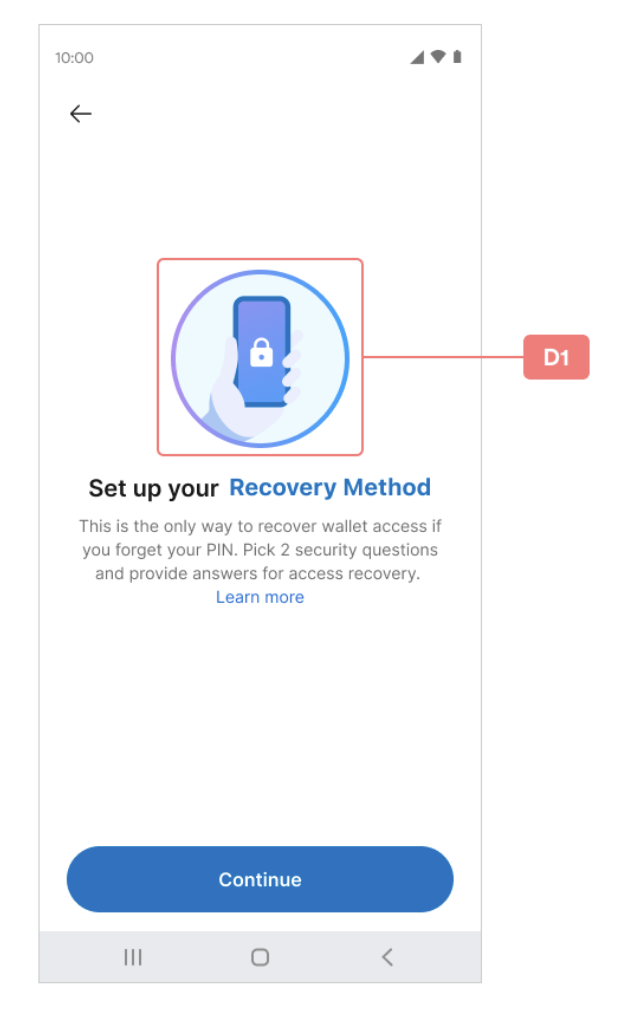

D1	securityIntroMain	144	144
D2	selectCheckMark	24	24
D3	dropdownArrow	40	40
D4	errorInfo	21	21
D5	securityConfirmMain	144	144
D6	biometricsAllowMain	80	80
D7	showPin	20	15
D8	hidePin	20	15
D9	alertWindowIcon	24	24	Android only
D10	close	24	24
D11	back	24	24

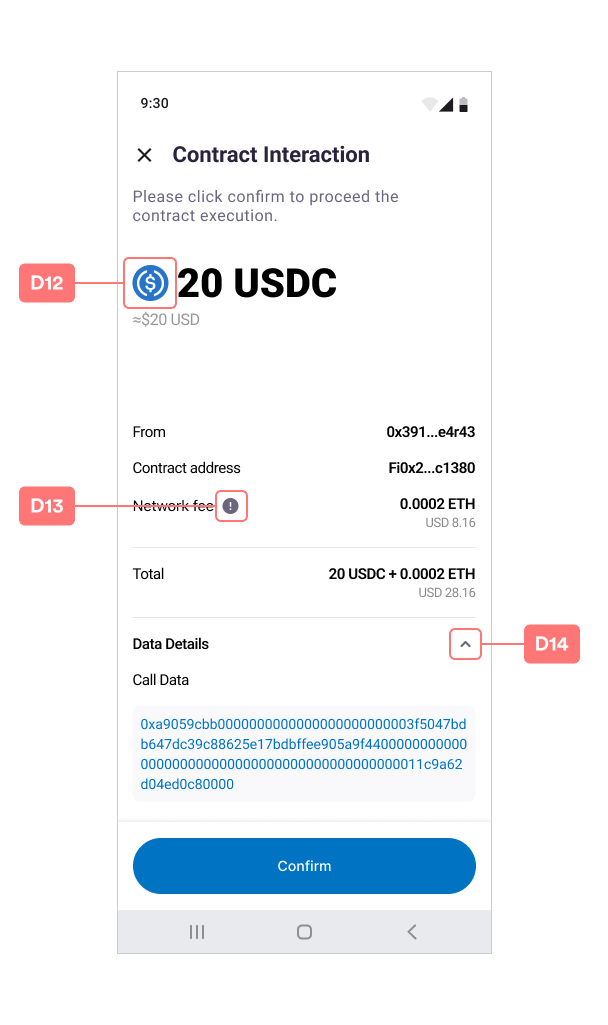

D12	transactionTokenIcon	36	36
D13	networkFeeTipIcon	16	16
D14	showLessDetailArrow	20	20

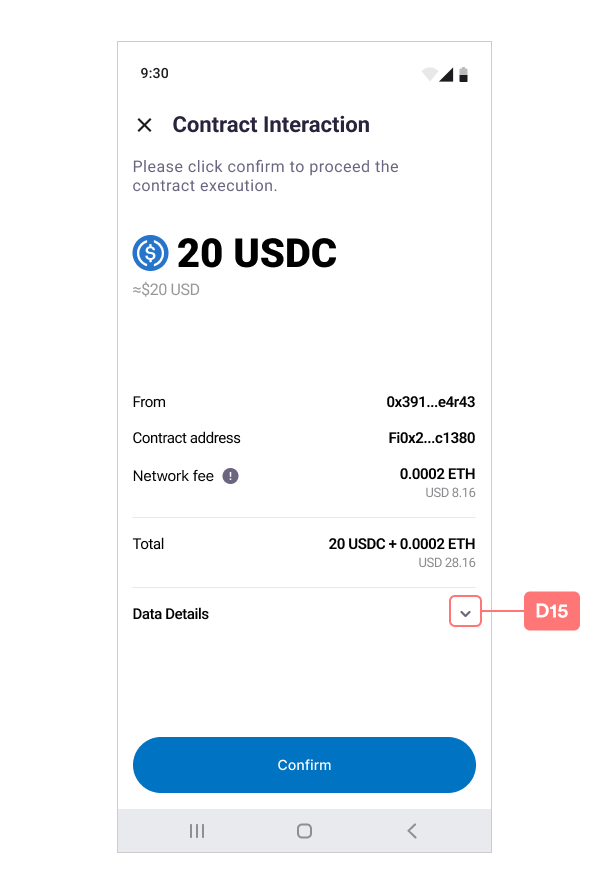

D15	showMoreDetailArrow	20	20
D16	requestIcon	72	72

Color Customization

Colors can be customized in a static way as a static string; with the UI screenshots and Key mapping index table below, the colors of each string can be defined in the colors.xml.Note that some keys are not specified in the screenshot but can be referenced from the A and C index table in the colors.xml (for Android) and color(for iOS) column.
To avoid dynamic customization, initialize a TextConfig that contains text only with no color value. For example, use a configuration with new TextConfig(key, undefined, font).
For the static resource usage, please check Android - colors.xml and iOS - CirclePWTheme.json.

New, Confirm, and Enter PIN Code

Security Intros

Security Questions

Security Summary

Security Confirm

Recover PIN Code

Biometrics PIN Protection

Contract Interaction

Confirm Transaction

Signature Request

Verify OTP

F Index Table

#	colors.xml	iOS CirclePWTheme.json	Color Code	Note
F1	circlepw_text_main	text_main	# 1A1A1A
F2	circlepw_text_auxiliary	text_auxiliary	# 3D3D3D
F3	circlepw_text_action	text_action	# 136FD8	Normal action text color
F4	circlepw_text_action_pressed	text_action_pressed	# B3136FD8	Pressed action text color
F5	circlepw_placeholder	text_placeholder	# A3A3A3
F6	circlepw_error	error	# F55538
F7	circlepw_error_background	error_background	# FDF2F2
F8	circlepw_text_main2	text_main2	# 1C1C1C
F9	circlepw_text_auxiliary2	text_auxiliary2	# 707070
F10	circlepw_text_summary	text_summary	# 0073C3
F11	circlepw_disabled_main_bt_text	main_bt_text_disabled	# 80FFFFFF	Disabled button text color
F12	circlepw_main_bt_text	main_bt_text	# FFFFFF	Normal button text color
F13	circlepw_main_bt_text_pressed	main_bt_text_pressed	# FFFFFF	Pressed button text color
F14	circlepw_disabled_main_bt_background	main_bt_background_disabled	# 800073C3	Disabled button background color
F15	circlepw_main_bt_background	main_bt_background	# 0073C3	Normal button background color
F16	circlepw_main_bt_background_pressed	main_bt_background_pressed	# 1AA3FF	Pressed button background color
F17	circlepw_success	success	# 0B9C4A
F18	circlepw_input_boarder	input_border	# E8E8E8	Normal input field border
F19	circlepw_input_boarder_focused	input_border_focused	# 46B5FF	Focused input field border
F20	circlepw_tag_text	recover_pin_hint_title	# 005339	Tag text color
F21	circlepw_tag_background	recover_pin_hint_title_bg	# E1F2FF	Tag background color
F22	circlepw_tag_following_text	recover_pin_hint	# 0073C3
F23	circlepw_divider	divider	# F0EFEF
F24	circlepw_pin_dot_base	pin_dot_base	# FFFFFF	PIN dot unfilled color
F25	circlepw_pin_dot_base_boarder	pin_dot_base_boarder	# 707070	PIN dot unfilled border color
F26	circlepw_pin_dot_activated	pin_dot_activated	# 0073C3	PIN dot filled color
F27	circlepw_background	background	# FFFFFF	General background color
F28	circlepw_security_confirm_main_bg	security_confirm_main_bg	# E9EEFE
F29	circlepw_disabled_input_background	input_background_disabled	# F5F5F5	Disabled input field background color
F30	circlepw_second_bt_text	second_bt_text	# 0073C3
F32	circlepw_second_bt_border	second_bt_border	# 0073C3
F34	circlepw_second_bt_background	second_bt_background	# FFFFFF
F35	circlepw_second_bt_background_pressed	second_bt_background_pressed	# F1F9FE
F37	circlepw_plain_bt_text	plain_bt_text	# 0073C3
F39	circlepw_plain_bt_background	plain_bt_background	# FFFFFF
F40	circlepw_plain_bt_background_pressed	plain_bt_background_pressed	# F1F9FE
F42	circlepw_text_prompt	text_prompt	# 29233B
F43	circlepw_text_interactive	text_interactive	# 0073C3
F44	circlepw_interactive_bg	interactive_background	# F9F9FC
F45	circlepw_text_exchange	text_exchange	# F0EFEF
F46	circlepw_tip_text	tip_text	# FFFFFF
F47	circlepw_transaction_request_fee_tip_bg	tip_background	# 29233B
F48	circlepw_text_sign_url	text_sign_url	# 8E8E93
F49	circlepw_otp_head_text	text_prompt	# 000000
F50	circlepw_otp_hint_text	text_auxiliary	# 6B6580
F51	circlepw_otp_action_text	text_action	# 007AFF

Text Style / Font Customization

Styles can be customized in a Static way as a static style by using the UI screenshots and Key mapping index table below. The styles of each string can be defined in the styles.xml file.
To avoid dynamic customization, initialize a TextConfig that contains text and color only. For example, use a configuration with new TextConfig(key, color, undefined).

Note:Some keys (error message) are not specified in the screenshot but can be referenced from the A and C index table at the styles.xmlfile column.

For the static resource usage, please check Android - styles.xml and iOS - CirclePWTheme.json.

G Index Table

#	styles.xml	iOS CirclePWTheme.json	Note
G1	circlepw_heading3	semibold
G2	circlepw_heading4	semibold
G3	circlepw_heading5	semibold
G4	circlepw_body1	regular
G5	circlepw_body2	regular
G6	circlepw_caption1	semibold
G7	circlepw_caption2	semibold
G8	circlepw_metadata1	regular
G9	circlepw_metadata2	regular
G10	circlepw_actionText	semibold
G11	circlepw_pinDigitText	light
G12	circlepw_mainButtonText	semibold

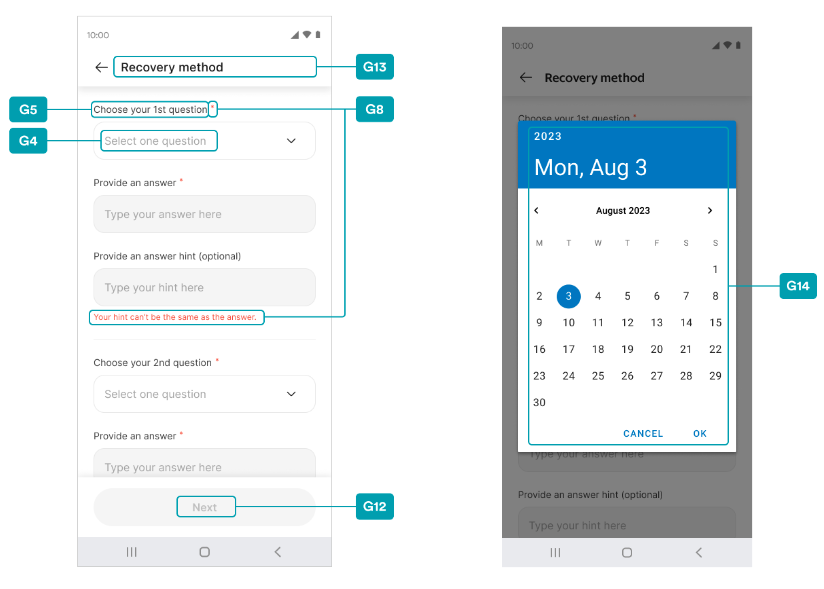

G13	circlepw_toolbarTitle	medium
G14	circlepw_datePicker		Android only
G15	circlepw_secondButtonText	semibold
G16	circlepw_plainButtonText	semibold
G17	circlepw_txAmountMainText	heavy
G18	circlepw_txInfoText	regular
G19	circlepw_txInfoValueText	semibold
G20	circlepw_detailToggleText	semibold
G21	circlepw_contractDataText	regular
G22	circlepw_txExchangeText	semibold
G23	circlepw_txInfoExchangeText	regular
G24	circlepw_feeTipText	regular
G25	circlepw_otpHeadText	regular
G26	circlepw_otpSendAgainHintText	regular
G27	circlepw_signNameText	semibold
G28	circlepw_signUrlText	regular

Static Resources

This section describes how to customize the UI statically.
Android - strings.xml
The example values in the strings.xml file below can be used for Static Customization. The fields also show the default string values in the SDK if you do not set dynamic customization.
Please reference this example and add/update any desired text string in your strings.xml under the res/values folder.

XML

<resources>
    <!-- [General] -->
    <string name="circlepw_continue">Continue</string>
    <string name="circlepw_next">Next</string>
    <string name="circlepw_skip">Skip</string>
    <string name="circlepw_question_label">Question:</string>
    <string name="circlepw_answer_label">Answer:</string>
    <string name="circlepw_hint_label">Hint:</string>
    <string name="circlepw_hint_tag">Hint</string>
    <string name="circlepw_empty"></string>
    <string name="circlepw_empty_placeholder">-</string>
    <string name="circlepw_confirm">Confirm</string>
    <string name="circlepw_pin_remain_attemps_template">You have %s attempts left.</string>
    <string name="circlepw_pin_lock_period_template">You’ve used up all PIN attempts. Please wait for %s mins to retry later.</string>
    <string name="circlepw_answer_remain_attemps_template">You have %s attempts left.</string>
    <string name="circlepw_answer_lock_period_template">Please wait for %s mins to retry later.</string>

    <!-- [Page] EnterPINCode -->
    <string name="circlepw_enter_pincode_subhead">Let us know if it’s really you.</string>
    <string name="circlepw_enter_pincode_forgot_pin">Forgot PIN?</string>
    <string name="circlepw_enter_pincode_use_biometrics">Use Biometrics</string>

    <!-- [Page] NewPINCode -->
    <string name="circlepw_new_pincode_subhead">Your PIN can’t have repeating (e.g. 000000) or consecutive (e.g. 123456) numbers.</string>
    <!-- [Page] ConfirmPINCode -->
    <string name="circlepw_confirm_pincode_headline">Re-enter your PIN to confirm</string>
    <string name="circlepw_confirm_pincode_subhead"></string>
    <!-- [Page] SecurityIntros -->
    <string name="circlepw_security_intros_description">This is the only way to recover wallet access if you forget your PIN. Pick 2 security questions and provide answers for access recovery.</string>

    <!-- [Page] SecurityQuestions -->
    <string name="circlepw_security_questions_title">Recovery method</string>
    <string name="circlepw_security_questions_required_mark">*</string>
    <string name="circlepw_security_questions_question_placeholder">Select one question</string>
    <string name="circlepw_security_questions_answer_header">Provide an answer</string>
    <string name="circlepw_security_questions_answer_placeholder">Type your answer here</string>
    <string name="circlepw_security_questions_answer_hint_header">Provide an answer hint (optional)</string>
    <string name="circlepw_security_questions_answer_hint_placeholder">Type your hint here</string>

    <!-- [Page] SelectQuestion -->
    <string name="circlepw_select_question_title">Select one question</string>
    <!-- [Page] SecuritySummary -->
    <string name="circlepw_security_summary_title">Summary</string>

    <!-- [Page] SecurityConfirm -->
    <string name="circlepw_security_confirm_title">Confirmation</string>
    <string name="circlepw_security_confirm_headline">Keep your questions safe</string>
    <string name="circlepw_security_confirm_input_headline">Type \"I agree\" to proceed:</string>
    <string name="circlepw_security_confirm_input_placeholder">Type \"I agree\" here</string>
    <string name="circlepw_security_confirm_input_match">I agree</string>

    <!-- [Page] RecoverPINCode -->
    <string name="circlepw_recover_pincode_answer_input_header">Enter your answer here</string>
    <string name="circlepw_recover_pincode_answer_input_placeholder">Type your answer here</string>

    <!-- [Page] BiometricsAllowFragment -->
    <string name="circlepw_pin_biometrics_allow_title">Allow Biometrics for Web3 Access</string>
    <string name="circlepw_pin_biometrics_allow_subtitle">Elevate your experience with effortless biometrics  recognition</string>
    <string name="circlepw_pin_biometrics_disable">Don\'t ask me again</string>
    <string name="circlepw_pin_biometrics_encrypt_title">Verify It\'s Youe</string>
    <string name="circlepw_pin_biometrics_encrypt_negative_text">Cancel</string>
    <string name="circlepw_pin_biometrics_encrypt_subtitle"></string>
    <string name="circlepw_pin_biometrics_encrypt_desc"></string>
    <string name="circlepw_pin_biometrics_decrypt_title">Verify It\'s Youe</string>
    <string name="circlepw_pin_biometrics_decrypt_negative_text">Cancel</string>
    <string name="circlepw_pin_biometrics_decrypt_subtitle"></string>
    <string name="circlepw_pin_biometrics_decrypt_desc"></string>

    <string name="circlepw_pin_biometrics_update_title">Update Biometrics for Web3 Access</string>
    <string name="circlepw_pin_biometrics_update_subtitle">Please update your biometrics</string>
    <string name="circlepw_transaction_request_title">Confirm transaction</string>
    <string name="circlepw_transaction_request_subtitle">Please click confirm to proceed the transaction</string>
    <string name="circlepw_transaction_request_from_label">From</string>
    <string name="circlepw_transaction_request_to_label">To</string>
    <string name="circlepw_transaction_request_network_fee_label">Network fee</string>
    <string name="circlepw_transaction_request_total_label">Total</string>
    <string name="circlepw_transaction_request_fee_tip">Please note this is an estimated fee. Network fees may vary based on network traffic and transaction complexity.</string>
    <string name="circlepw_transaction_request_raw_tx_description">Transaction details:</string>
    <string name="circlepw_signature_request_title">Signature Request</string>
    <string name="circlepw_signature_request_subtitle">Click on sign button to provide a signature for verification.</string>
    <string name="circlepw_signature_request_description">You are signing:</string>

    <string name="circlepw_contract_interaction_title">Contract Interaction</string>
    <string name="circlepw_contract_interaction_subtitle">Please click confirm to proceed the  contract execution.</string>
    <string name="circlepw_contract_interaction_contract_address_label">Contract address</string>
    <string name="circlepw_contract_interaction_data_details">Data Details</string>
    <string name="circlepw_contract_interaction_abi_function_label">ABI Function</string>
    <string name="circlepw_contract_interaction_abi_parameter_label">ABI Parameters</string>
    <string name="circlepw_contract_interaction_call_data_label">Call Data</string>
    <string name="circlepw_email_otp_title">Enter verification code</string>
    <string name="circlepw_email_otp_description">The one-time passcode has been sent to %s</string>
    <string name="circlepw_email_otp_email">your email</string>
    <string name="circlepw_email_otp_dash">-</string>
    <string name="circlepw_email_otp_send_again_hint">Don’t receive the code?</string>
    <string name="circlepw_email_otp_send_again">Send again</string>

    <!-- [Social log in] -->
    <string name="google_web_client_id">YOUR_WEB_CLIENT_ID</string>
    <string name="facebook_app_id">YOUR_APP_ID</string>
    <string name="fb_login_protocol_scheme">your_protocol_scheme</string>
    <string name="facebook_client_token">YOUR_CLIENT_TOKEN</string>
</resources>

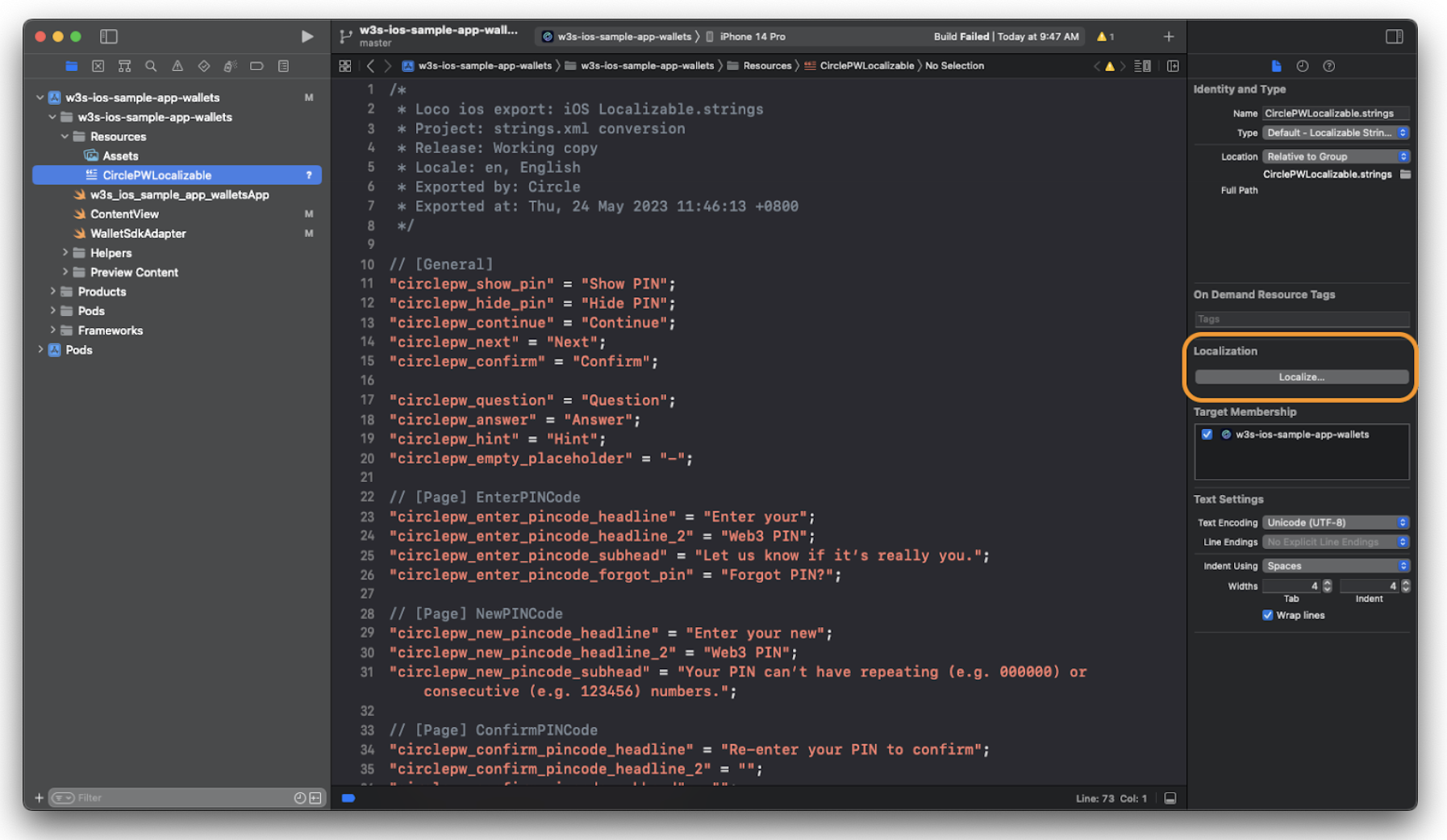

iOS - CirclePWLocalizable.strings

Setup

Create a file CirclePWLocalizable.strings in your main bundle.
Provide your strings. Partial override is supported.

Note:You can provide specific keys and values you want to override and others keys will still refer to the default values.

Localization is supported. For more information, see Localization | Apple Developer Documentation.

Example CirclePWLocalizable.strings

XML

/*
 * Loco ios export: iOS Localizable.strings
 * Project: strings.xml conversion
 * Release: Working copy
 * Locale: en, English
 * Exported by: Circle
 * Exported at: Tue, 27 Jun 2023 23:35:22 +0800
 */


// [General]
"circlepw_show_pin" = "Show PIN";
"circlepw_hide_pin" = "Hide PIN";
"circlepw_continue" = "Continue";
"circlepw_next" = "Next";
"circlepw_confirm" = "Confirm";
"circlepw_skip" = "Skip";


"circlepw_question" = "Question";
"circlepw_answer" = "Answer";
"circlepw_hint" = "Hint";
"circlepw_empty_placeholder" = "-";


// [Page] EnterPINCode
"circlepw_enter_pincode_headline" = "Enter your";
"circlepw_enter_pincode_headline_2" = "PIN";
"circlepw_enter_pincode_subhead" = "Let us know if it’s really you.";
"circlepw_enter_pincode_forgot_pin" = "Forgot PIN?";
"circlepw_enter_pincode_use_biometrics" = "Use Biometrics";


// [Page] NewPINCode
"circlepw_new_pincode_headline" = "Enter your";
"circlepw_new_pincode_headline_2" = "New PIN";
"circlepw_new_pincode_subhead" = "Your PIN can’t have repeating (e.g. 000000) or consecutive (e.g. 123456) numbers.";


// [Page] ConfirmPINCode
"circlepw_confirm_pincode_headline" = "Re-enter your PIN to confirm";
"circlepw_confirm_pincode_headline_2" = "";
"circlepw_confirm_pincode_subhead" = "";


// [Page] SecurityIntros
"circlepw_security_intros_title" = "Recovery Method";
"circlepw_security_intros_headline" = "Set up your";
"circlepw_security_intros_headline_2" = "Recovery Method";
"circlepw_security_intros_description" = "This is the only way to recover wallet access if you forget your PIN. Pick 2 security questions and provide answers for access recovery.";
"circlepw_security_intros_link" = "Learn more";


// [Page] SecurityQuestions
"circlepw_security_questions_title" = "Recovery method";
"circlepw_security_questions_question_header" = "Choose your %@ question";
"circlepw_security_questions_question_placeholder" = "Select one question";
"circlepw_security_questions_required_mark" = "*";
"circlepw_security_questions_answer_header" = "Provide an answer";
"circlepw_security_questions_answer_placeholder" = "Type your answer here";
"circlepw_security_questions_answer_hint_header" = "Provide an answer hint (optional)";
"circlepw_security_questions_answer_hint_placeholder" = "Type your hint here";


// [Page] SelectQuestion
"circlepw_select_question_title" = "Select one question";


// [Page] SecuritySummary
"circlepw_security_summary_title" = "Summary";


// [Page] SecurityConfirm
"circlepw_security_confirm_title" = "Confirmation";
"circlepw_security_confirm_headline" = "Keep your questions safe";
"circlepw_security_confirm_input_headline" = "Type “I agree” to proceed:";
"circlepw_security_confirm_input_placeholder" = "Type “I agree” here";
"circlepw_security_confirm_input_match" = "I agree";


// [Page] RecoverPINCode
"circlepw_recover_pincode_headline" = "Recover your";
"circlepw_recover_pincode_headline_2" = "Web3 PIN";
"circlepw_recover_pincode_subhead" = "Please enter the answer of the security questions provided below.";
"circlepw_recover_pincode_answer_input_header" = "Enter your answer here";
"circlepw_recover_pincode_answer_input_placeholder" = "Type your answer here";


// [Page] BiometricsPrompt
"circlepw_pin_biometrics_allow_title" = "Allow Biometrics for Web3 Access";
"circlepw_pin_biometrics_allow_subtitle" = "Elevate Your Experience with Effortless Biometrics";
"circlepw_pin_biometrics_failed_title" = "Failed Biometrics for Web3 Access";
"circlepw_pin_biometrics_update_title" = "Update Biometrics for Web3 Access";
"circlepw_pin_biometrics_update_subtitle" = "Please update your biometrics";
"circlepw_pin_biometrics_disable" = "Don't ask me again";
"circlepw_pin_touch_id_dialog_subtitle" = "Using Touch ID protect PIN";

Android - colors.xml

The example values in the colors.xml file can be used for Static Customization. The fields also show the default string values in the SDK if you do not set dynamic customization.
Please reference this example and add/update any desired text color in your colors.xml under the res/values folder of the App project.

XML

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <color name="circlepw_text_main">#1A1A1A</color>
    <color name="circlepw_text_auxiliary">#3D3D3D</color>
    <color name="circlepw_text_action">#136FD8</color>
    <color name="circlepw_text_action_pressed">#B3136FD8</color>
    <color name="circlepw_placeholder">#A3A3A3</color>
    <color name="circlepw_error">#F55538</color>
    <color name="circlepw_error_background">#FDF2F2</color>
    <color name="circlepw_text_main2">#1C1C1C</color>
    <color name="circlepw_text_auxiliary2">#707070</color>
    <color name="circlepw_text_summary">#0073C3</color>
    <color name="circlepw_disabled_main_bt_text">#80FFFFFF</color>
    <color name="circlepw_disabled_main_bt_background">#800073C3</color>
    <color name="circlepw_main_bt_text">#FFFFFF</color>
    <color name="circlepw_main_bt_background">#0073C3</color>
    <color name="circlepw_main_bt_text_pressed">#FFFFFF</color>
    <color name="circlepw_main_bt_background_pressed">#1AA3FF</color>
    <color name="circlepw_second_bt_text">#0073C3</color>
    <color name="circlepw_second_bt_text_disabled">#800073C3</color>
    <color name="circlepw_second_bt_border">#0073C3</color>
    <color name="circlepw_second_bt_border_disabled">#800073C3</color>
    <color name="circlepw_second_bt_background">#FFFFFF</color>
    <color name="circlepw_second_bt_background_pressed">#F1F9FE</color>
    <color name="circlepw_second_bt_background_disabled">#80F1F9FE</color>
    <color name="circlepw_plain_bt_text">#0073C3</color>
    <color name="circlepw_plain_bt_text_disabled">#800073C3</color>
    <color name="circlepw_plain_bt_background">#FFFFFF</color>
    <color name="circlepw_plain_bt_background_pressed">#F1F9FE</color>
    <color name="circlepw_plain_bt_background_disabled">#80F1F9FE</color>
    <color name="circlepw_success">#0B9C4A</color>
    <color name="circlepw_input_boarder">#E8E8E8</color>
    <color name="circlepw_input_boarder_focused">#46B5FF</color>
    <color name="circlepw_input_boarder_focused_shadow">#00B1EABA</color>
    <color name="circlepw_tag_text">#3D3652</color>
    <color name="circlepw_tag_background">#E1F2FF</color>
    <color name="circlepw_tag_following_text">#0073C3</color>
    <color name="circlepw_divider">#F0EFEF</color>
    <color name="circlepw_pin_dot_base">#ffffff</color>
    <color name="circlepw_pin_dot_base_boarder">#707070</color>
    <color name="circlepw_pin_dot_activated">#0073C3</color>
    <color name="circlepw_background">#FFFFFF</color>
    <color name="circlepw_security_confirm_main_bg">#E9EEFE</color>
    <color name="circlepw_ripple_material_light">#08000000</color>
    <color name="circlepw_disabled_input_background">#F5F5F5</color>
    <color name="circlepw_alert_pop_window_background">#B3111827</color>
    <color name="circlepw_alert_pop_title_text">#1D1B20</color>
    <color name="circlepw_alert_pop_description_text">#49454F</color>
    <color name="circlepw_alert_pop_btn_text">#000000</color>
    <color name="circlepw_pin_dot_focused_boarder">#1894E8</color>
    <color name="circlepw_swipe_bt_text">#FFFFFF</color>
    <color name="circlepw_swipe_bt_main_background">#0073C3</color>
    <color name="circlepw_swpie_bt_secondary_background">#F1F9FE</color>
    <color name="circlepw_swpie_bt_confirming_progress_end">#33F1F9FE</color>
    <color name="circlepw_text_prompt">#29233B</color>
    <color name="circlepw_text_exchange">#979797</color>
    <color name="circlepw_text_sign_url">#8E8E93</color>
    <color name="circlepw_transaction_request_fee_tip_bg">#29233B</color>
    <color name="circlepw_tip_text">#FFFFFF</color>
    <color name="circlepw_interactive_bg">#F9F9FC</color>
    <color name="circlepw_text_interactive">#0073C3</color>
    <color name="transparent">#00000000</color>
    <color name="circlepw_otp_head_text">#000000</color>
    <color name="circlepw_otp_hint_text">#6B6580</color>
    <color name="circlepw_otp_action_text">#007AFF</color>
</resources>

Android - styles.xml

The example values in the styles.xml file can be used for Static Customization. The fields also show the default style values in the SDK if you do not set dynamic customization.
Please reference this example and add or update any desired text styles in your styles.xml file under the res/values folder of the App project.
The style can be used to define textSize and fontWeight, and it can also be used in conjunction with the static colors key defined in colors.xml, such as in the following:

XML

<item name="colorControlActivated">@color/circlepw_input_boarder_focused</item>

XML

<resources>
    <style name="circlepw_heading3">
        <item name="android:textSize">24sp</item>
    </style>
    <style name="circlepw_heading4">
        <item name="android:textSize">20sp</item>
    </style>
    <style name="circlepw_heading5">
        <item name="android:textSize">18sp</item>
    </style>
    <style name="circlepw_body1">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_body2">
        <item name="android:textSize">14sp</item>
    </style>
    <style name="circlepw_caption1">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_caption2">
        <item name="android:textSize">14sp</item>
    </style>
    <style name="circlepw_metadata1">
        <item name="android:textSize">12sp</item>
    </style>
    <style name="circlepw_metadata2">
        <item name="android:textSize">10sp</item>
    </style>
    <style name="circlepw_actionText">
        <item name="android:textSize">14sp</item>
    </style>
    <style name="circlepw_pinDigitText">
        <item name="android:textSize">40sp</item>
    </style>
    <style name="circlepw_mainButtonText">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_secondButtonText">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_plainButtonText">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_toolbarTitle">
        <item name="android:textSize">18sp</item>
    </style>

    <style name="circlepw_datePicker" parent="Theme.AppCompat.Light.Dialog">
        <!-- Top background-->
        <item name="colorAccent">@color/circlepw_main_bt_background</item>
        <!--selected Item color-->
        <item name="colorControlActivated">@color/circlepw_main_bt_background</item>
        <!-- arrow bordercolor(<>)-->
        <item name="android:selectableItemBackgroundBorderless">@color/circlepw_background</item>
        <!--Calender Background color -->
        <item name="android:windowBackground">@color/circlepw_background</item>
        <!-- Ok Cancel Color-->
        <item name="colorOnPrimary">@color/circlepw_main_bt_background</item>
        <!-- Week TextColor-->
        <item name="android:textColorSecondary">@color/circlepw_text_main</item>
        <!-- Calender Number color arrow color (< >) -->
        <item name="android:textColorPrimary">@color/circlepw_text_main</item>
        <!--day , month-->
        <item name="android:textColorPrimaryInverse">@color/circlepw_background</item>
        <!-- year-->
        <item name="android:textColorSecondaryInverse">@color/circlepw_background</item>
    </style>
    <style name="circlepw_txAmountMainText">
        <item name="android:textSize">40sp</item>
    </style>
    <style name="circlepw_txExchangeText">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_txInfoText">
        <item name="android:textSize">15sp</item>
    </style>
    <style name="circlepw_detailToggleText">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_txInfoValueText">
        <item name="android:textSize">15sp</item>
    </style>
    <style name="circlepw_contractDataText">
        <item name="android:textSize">14sp</item>
    </style>
    <style name="circlepw_txInfoExchangeText">
        <item name="android:textSize">13sp</item>
    </style>
    <style name="circlepw_feeTipText">
        <item name="android:textSize">14sp</item>
    </style>
    <style name="circlepw_signNameText">
        <item name="android:textSize">17sp</item>
    </style>
    <style name="circlepw_signUrlText">
        <item name="android:textSize">13sp</item>
    </style>
    <style name="circlepw_otpHeadText">
        <item name="android:textSize">24sp</item>
    </style>
    <style name="circlepw_otpSendAgainHintText">
        <item name="android:textSize">15sp</item>
    </style>
</resources>

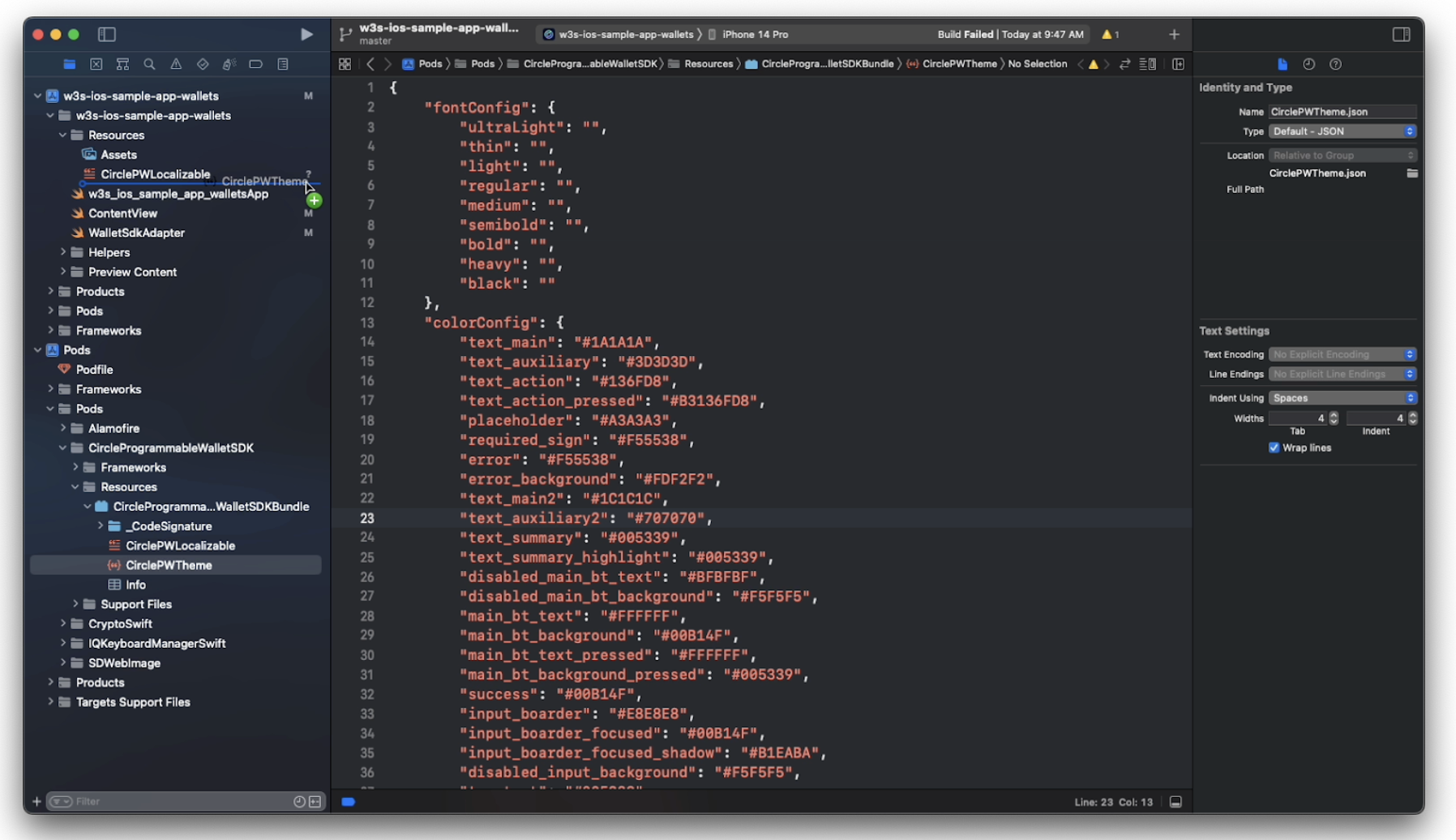

iOS - CirclePWTheme.json

Setup

Copy the file CirclePWTheme.json into your main bundle. You can use Cmd + drag and drop.

Make sure you have selected the Target Membership.

Provide values to set the font: To use a custom font, refer to this document: Adding a Custom Font to Your App | Apple Developer Documentation.
Set the color with a hex string:

Example: CirclePWTheme.json

XML

{
  "font": {
    "ultraLight": "",
    "thin": "",
    "light": "",
    "regular": "CustomFont-Regular",
    "medium": "CustomFont-Medium",
    "semibold": "",
    "bold": "",
    "heavy": "",
    "black": ""
  },
  "color": {
    "background": "#FFFFFF",
    "divider": "#F0EFEF",
    "success": "#0B9C4A",
    "error": "#F55538",
    "error_background": "#FDF2F2",


    "text_main": "#1A1A1A",
    "text_main2": "#1C1C1C",
    "text_auxiliary": "#3D3D3D",
    "text_auxiliary2": "#707070",
    "text_summary": "#0073C3",
    "text_summary_highlight": "#0073C3",
    "text_placeholder": "#A3A3A3",
    "text_action": "#136FD8",
    "text_action_pressed": "#B3136FD8",
    "text_prompt": "#29233B",
    "text_prompt2": "#6B6580",




    "pin_dot_base": "#FFFFFF",
    "pin_dot_base_border": "#707070",
    "pin_dot_activated": "#3D3D3D",
    "pin_dot_focused": "#0073C3",


    "input_border": "#E8E8E8",
    "input_border_focused": "#46B5FF",
    "input_background_disabled": "#F5F5F5",


    "main_bt_text": "#FFFFFF",
    "main_bt_text_pressed": "#80FFFFFF",
    "main_bt_text_disabled": "#BFBFBF",
    "main_bt_background": "#0073C3",
    "main_bt_background_pressed": "#1AA3FF",
    "main_bt_background_disabled": "#F5F5F5",


    "second_bt_text": "#0073C3",
    "second_bt_border": "#0073C3",
    "second_bt_background": "#FFFFFF",
    "second_bt_background_pressed": "#F1F9FE",


    "plain_bt_text": "#0073C3",
    "plain_bt_background": "#FFFFFF",
    "plain_bt_background_pressed": "#F1F9FE",


    "recover_pin_hint_title": "#3D3652",
    "recover_pin_hint_title_bg": "#E1F2FF",
    "recover_pin_hint": "#0073C3",


    "security_confirm_main_bg": "#E9EEFE",


    "title_gradients": ["#0073C3", "#0073C3"],
  }
}

Wallets

Contracts

CCTP

CCTP V1

Gateway

Paymaster

References

​Text, Color, and Font Customization

​New PIN Code

​A1 / C1~C5

​Confirm PIN Code

​C6~C7

​Enter PIN Code

​A2 / C8~C9, C5-1, C5-2

​Security Intros

​A3A4 / C10C11

​Security Questions Customization

​A5 / C12~C25

​Security Summary

​A6 / C26~C32

​Security Confirm

​C33~C37 / B1

​Recover PIN Code

​A7 / C39~C47

​Biometrics Prompt

​C46~C60

​Alert Pop Window

​C61~C62

​Confirm Transaction

​C63~C90

​Signature Request

​C91~C98

​Verify OTP

​C99~C105

​A Index Table -TextsKey

​B Index Table - IconTextsKey

​C Index Table - TextKey

​Error Messages

​Image Customization

​ImageKey

​D1~D9

​D Index Table

​Color Customization

​New, Confirm, and Enter PIN Code

​Security Intros

​Security Questions

​Security Summary

​Security Confirm

​Recover PIN Code

​Biometrics PIN Protection

​Contract Interaction

​Confirm Transaction

​Signature Request

​Verify OTP

​F Index Table

​Text Style / Font Customization

​G Index Table

​Static Resources

​iOS - CirclePWLocalizable.strings

​Setup

​Example CirclePWLocalizable.strings

​Android - colors.xml

​Android - styles.xml

​iOS - CirclePWTheme.json

​Setup

​Example: CirclePWTheme.json

Text, Color, and Font Customization

New PIN Code

A1 / C1~C5

Confirm PIN Code

C6~C7

Enter PIN Code

A2 / C8~C9, C5-1, C5-2

Security Intros

A3A4 / C10C11

Security Questions Customization

A5 / C12~C25

Security Summary

A6 / C26~C32

Security Confirm

C33~C37 / B1

Recover PIN Code

A7 / C39~C47

Biometrics Prompt

C46~C60

Alert Pop Window

C61~C62

Confirm Transaction

C63~C90

Signature Request

C91~C98

Verify OTP

C99~C105

A Index Table -TextsKey

B Index Table - IconTextsKey

C Index Table - TextKey

Error Messages

Image Customization

ImageKey

D1~D9

D Index Table

Color Customization

New, Confirm, and Enter PIN Code

Security Intros

Security Questions

Security Summary

Security Confirm

Recover PIN Code

Biometrics PIN Protection

Contract Interaction

Confirm Transaction

Signature Request

Verify OTP

F Index Table

Text Style / Font Customization

G Index Table

Static Resources

iOS - CirclePWLocalizable.strings

Setup

Example CirclePWLocalizable.strings

Android - colors.xml

Android - styles.xml

iOS - CirclePWTheme.json

Setup

Example: CirclePWTheme.json
