iOS SDK UI Customization API

This article describes two different ways to customize your iOS application using the iOS SDK:

Static Resources customize the UI layout during build time.
Programmatic Customization modifies the layout at run time.

Note:You can combine static and programmatic approaches for customization.

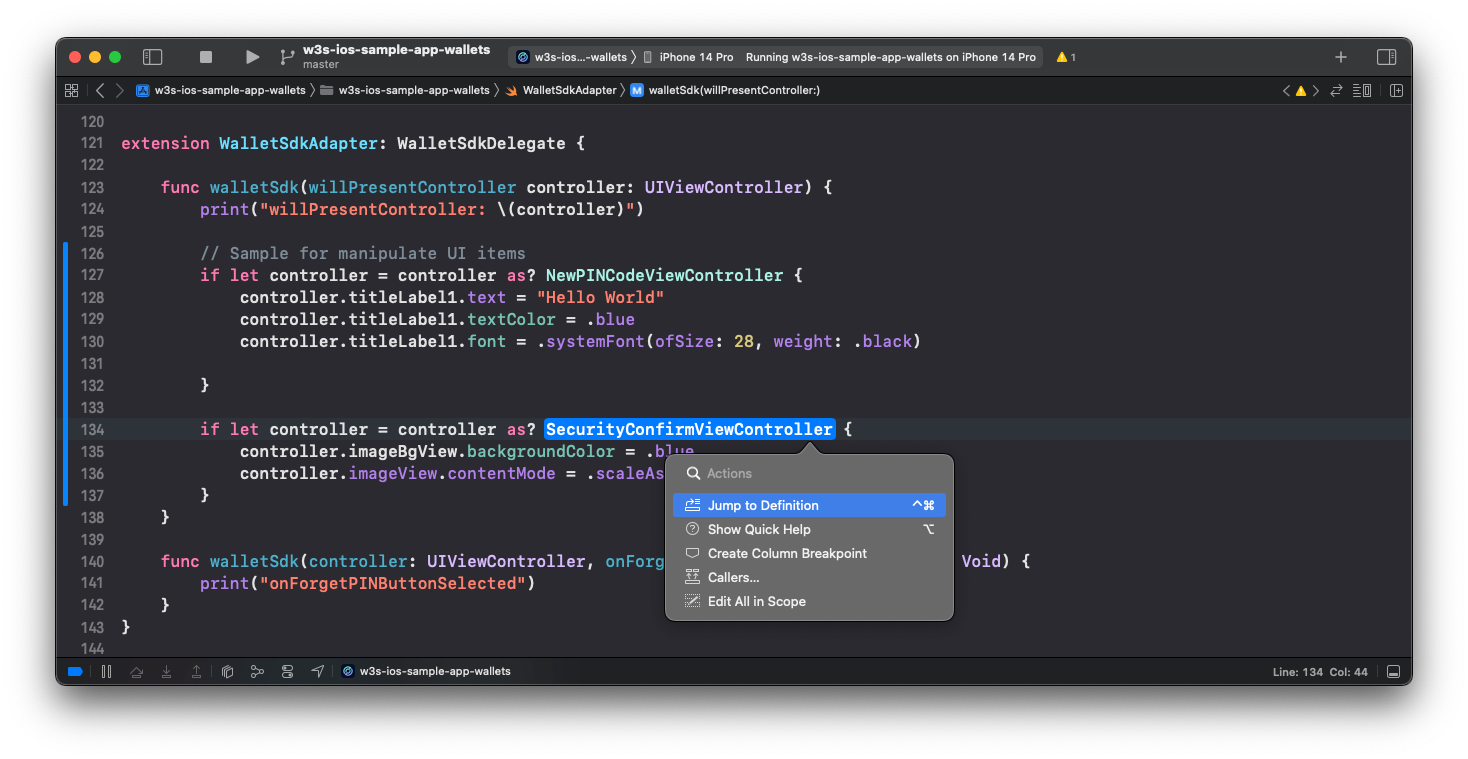

To use the SDK in the most flexible way, combine the reference in this article with the iOS SDK. Sample Application: Refer to the iOS sample application for example code.

Layouts

How to Use the Layout Images and Index Tables

This section includes screenshots of layouts for the SDK functionality. As you review the layouts, you can cross-reference the alphanumeric tags in the images with the values in the index tables that follow this section:

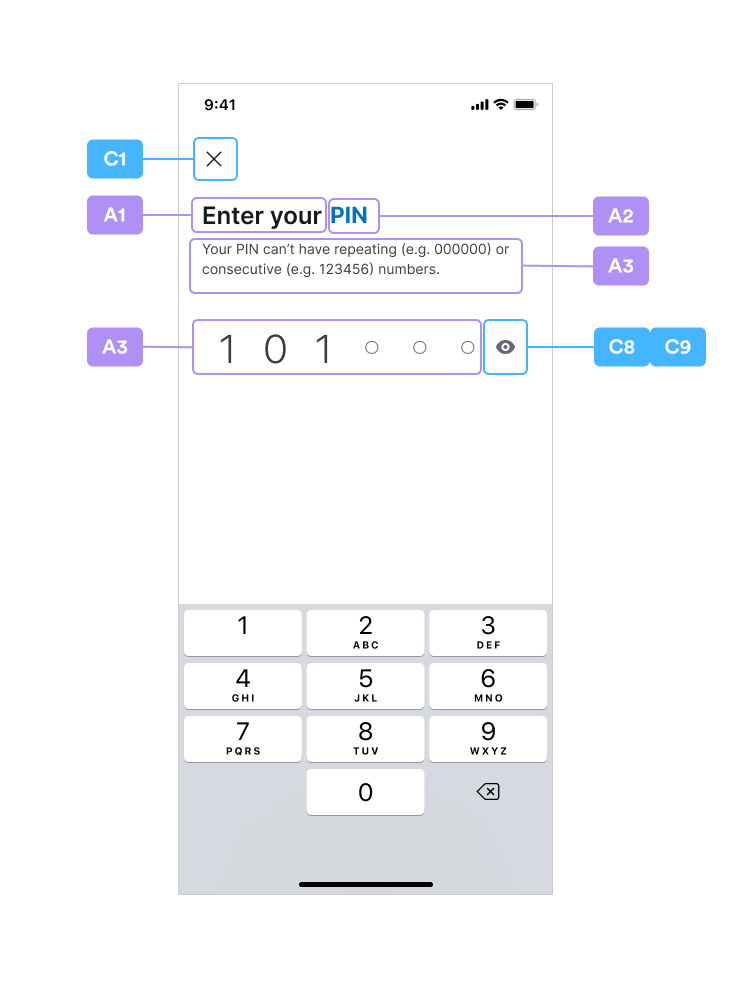

New PIN Code

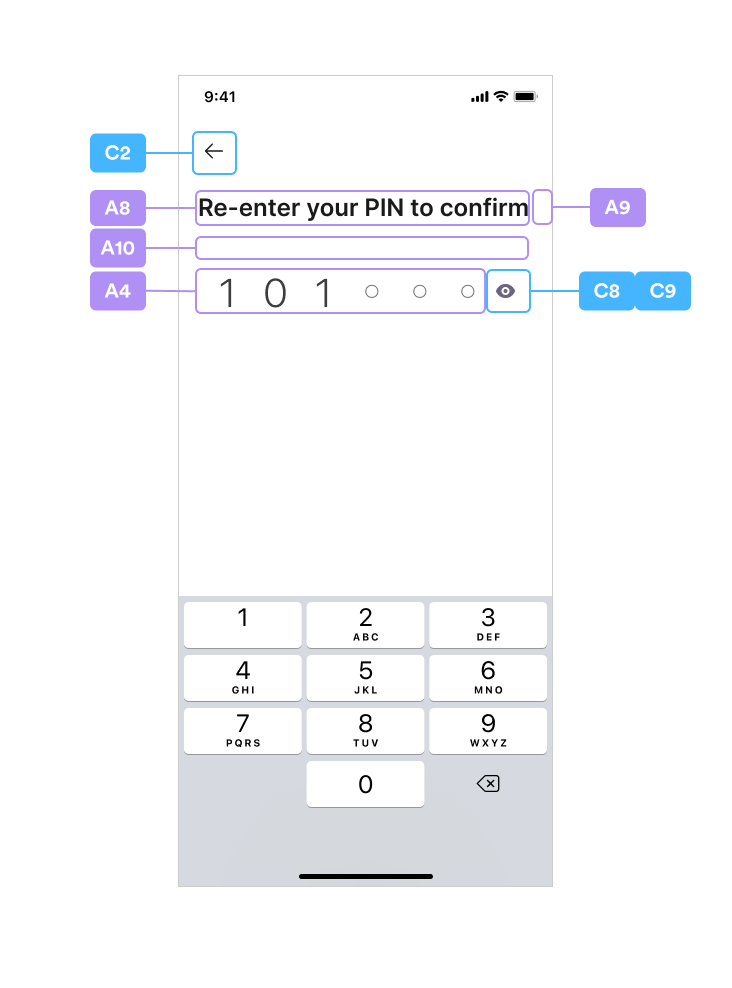

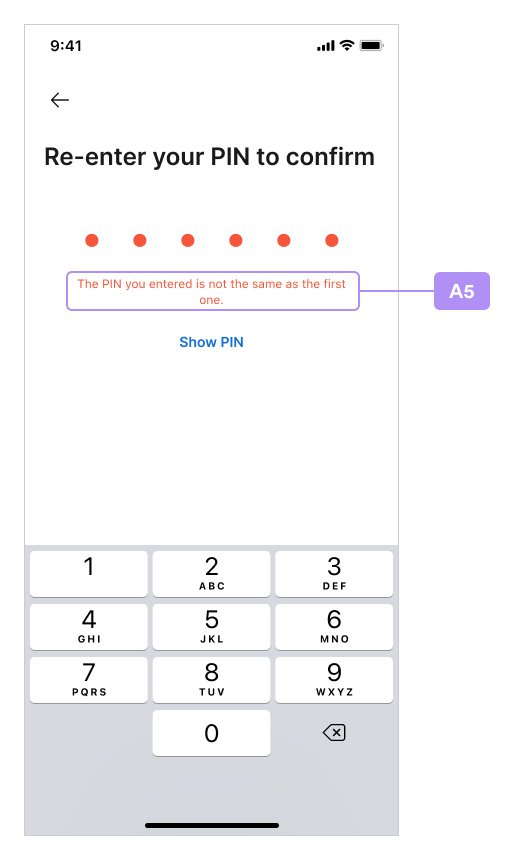

Confirm PIN Code

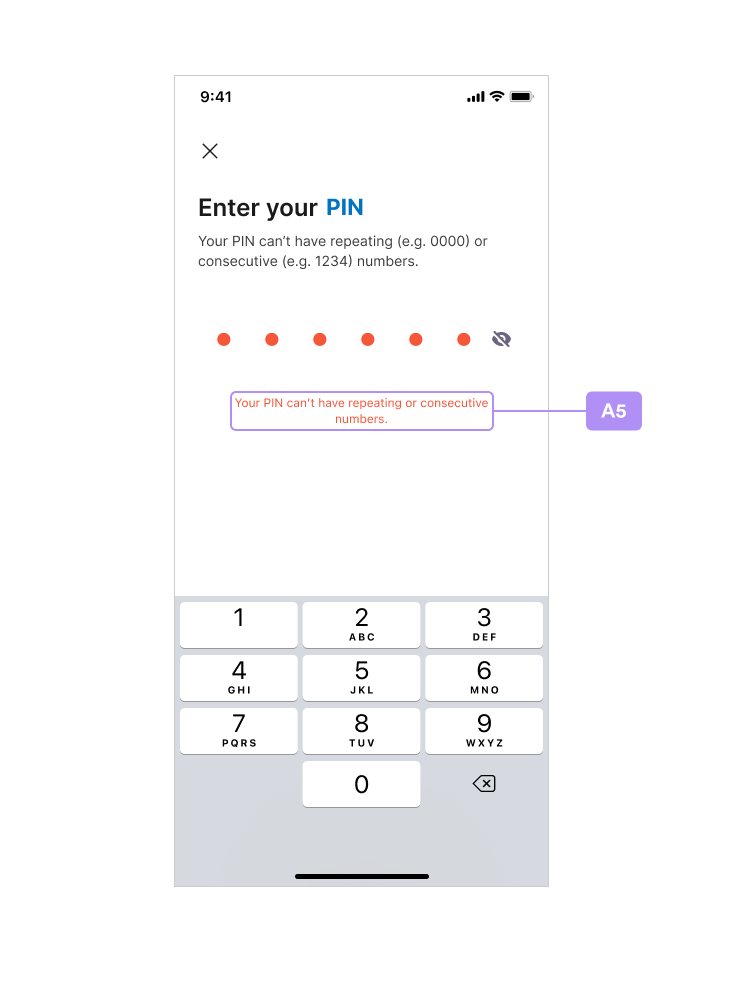

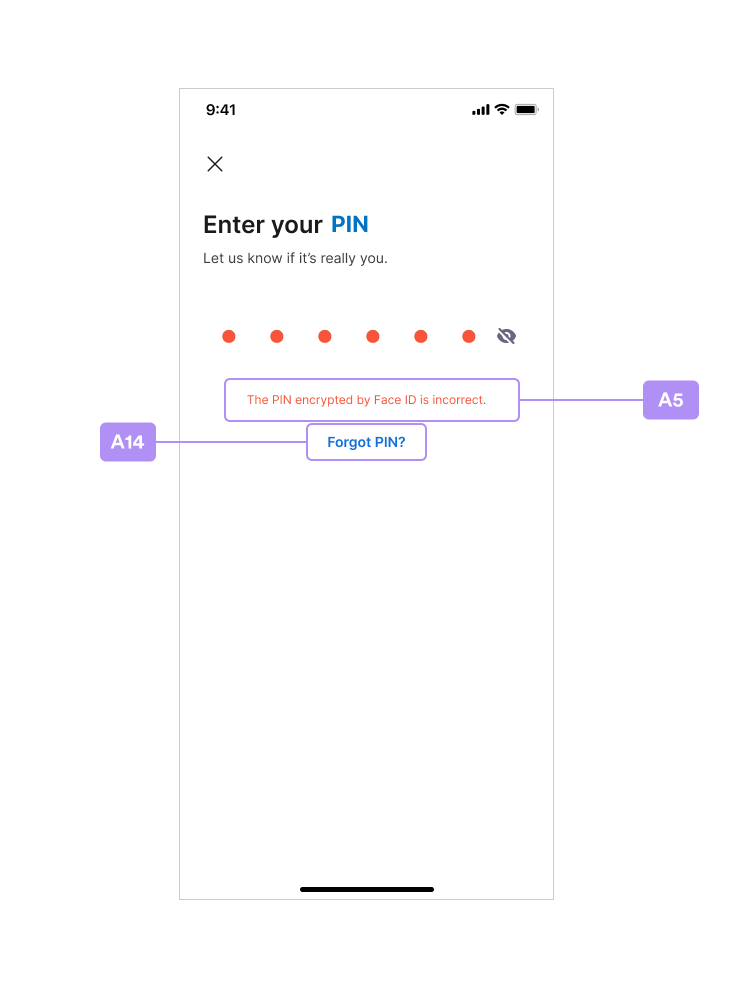

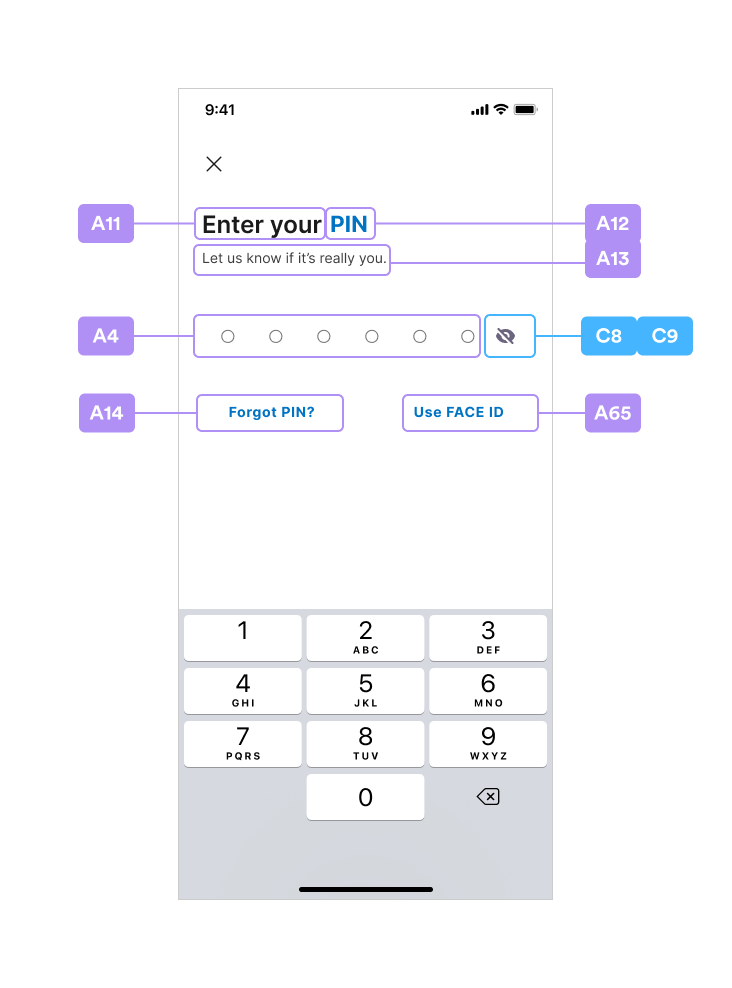

Enter PIN Code

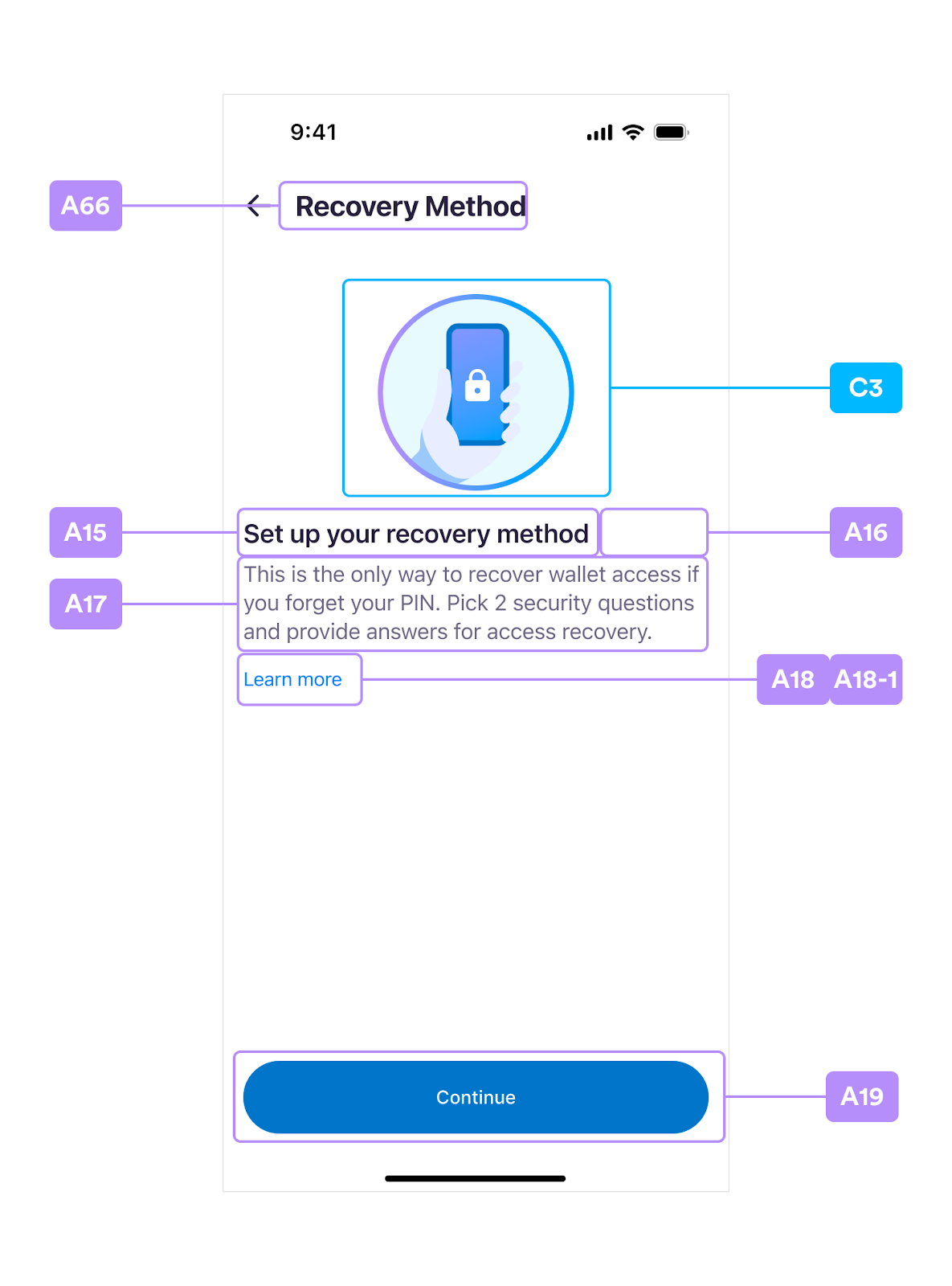

Security Intro

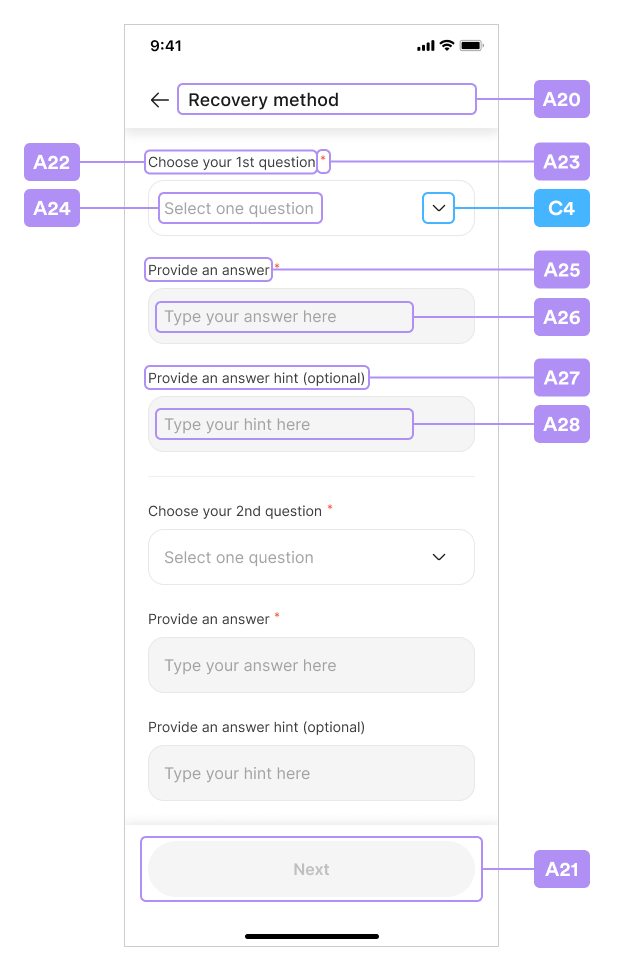

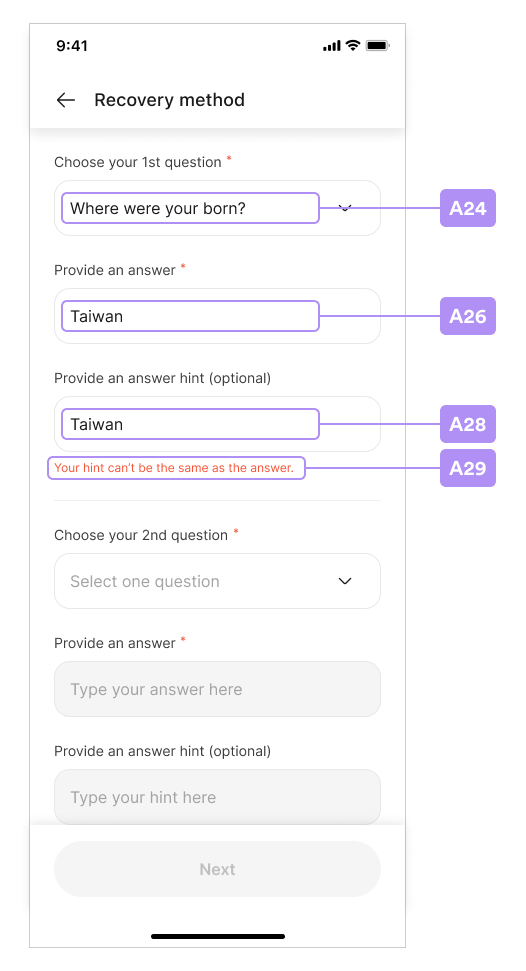

Security Questions

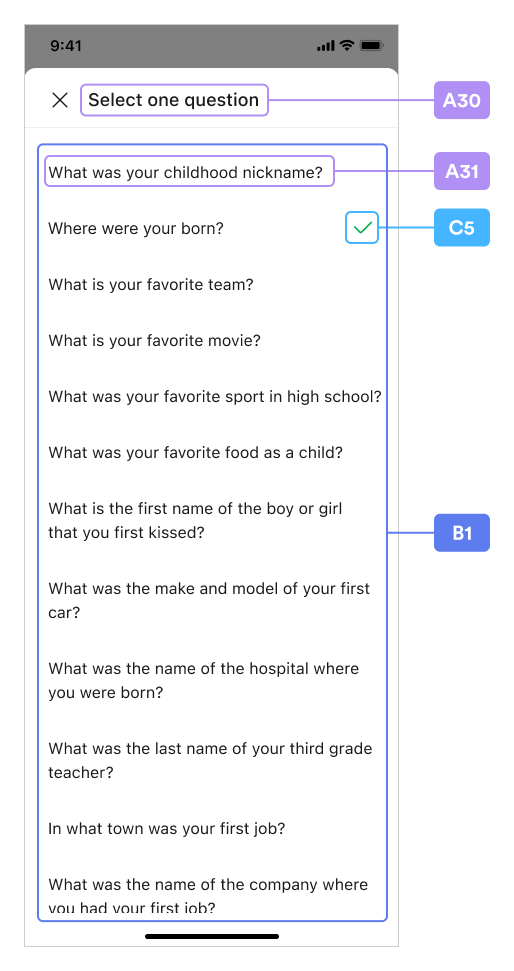

Select Question

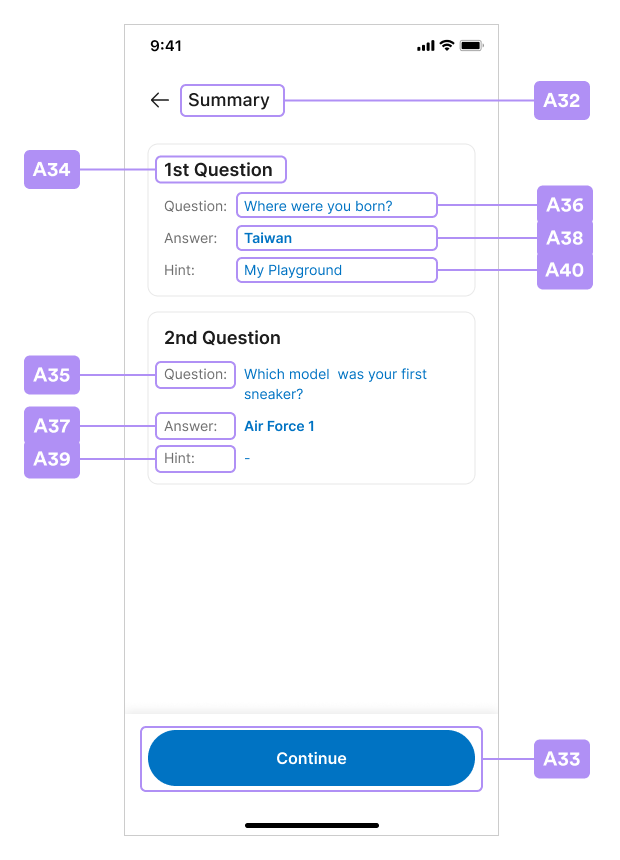

Security Summary

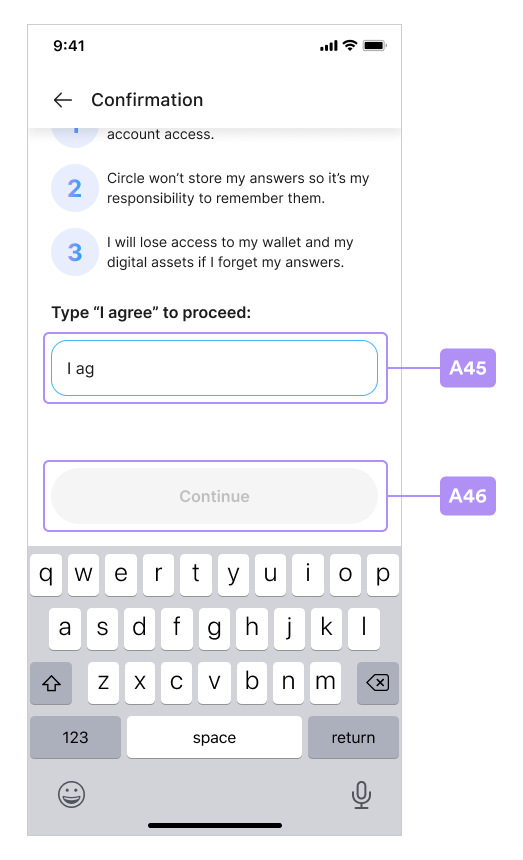

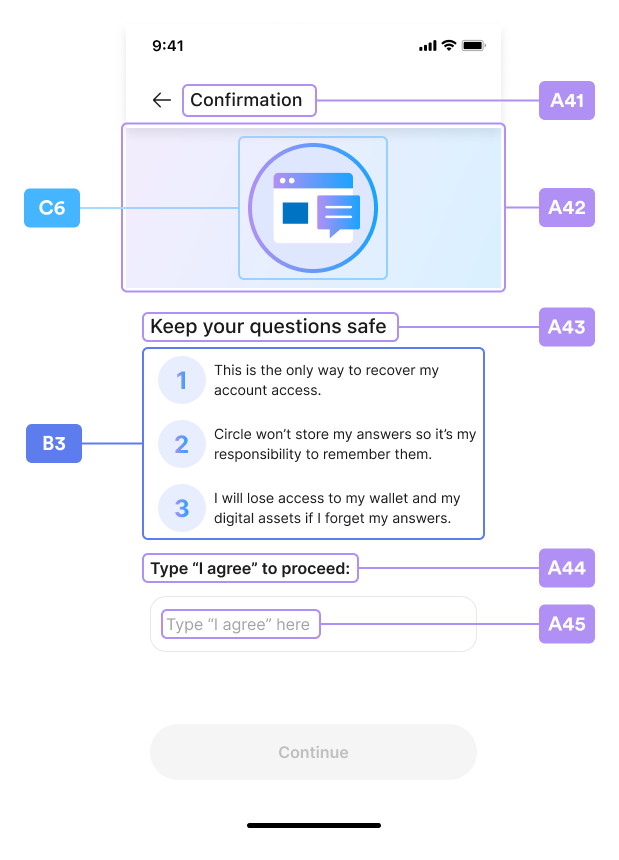

Security Confirm

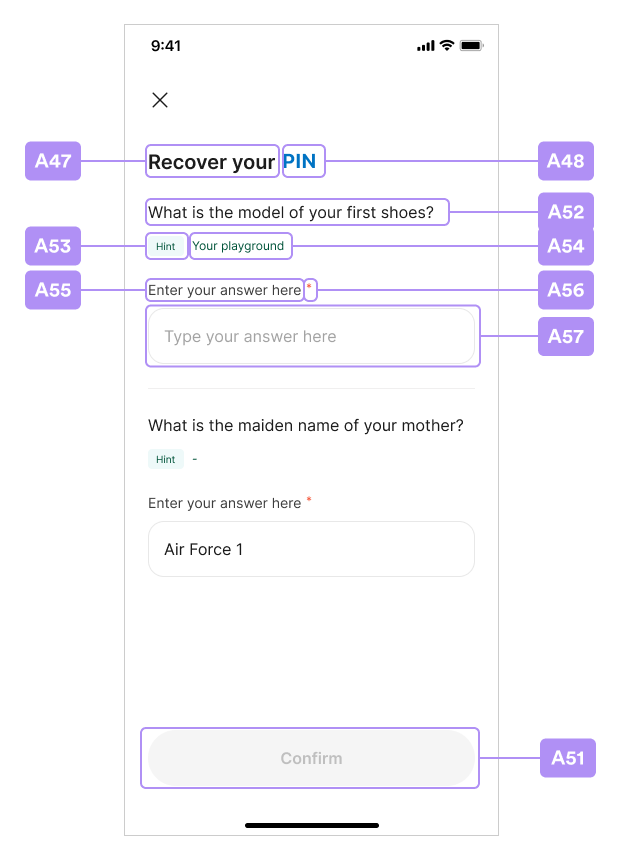

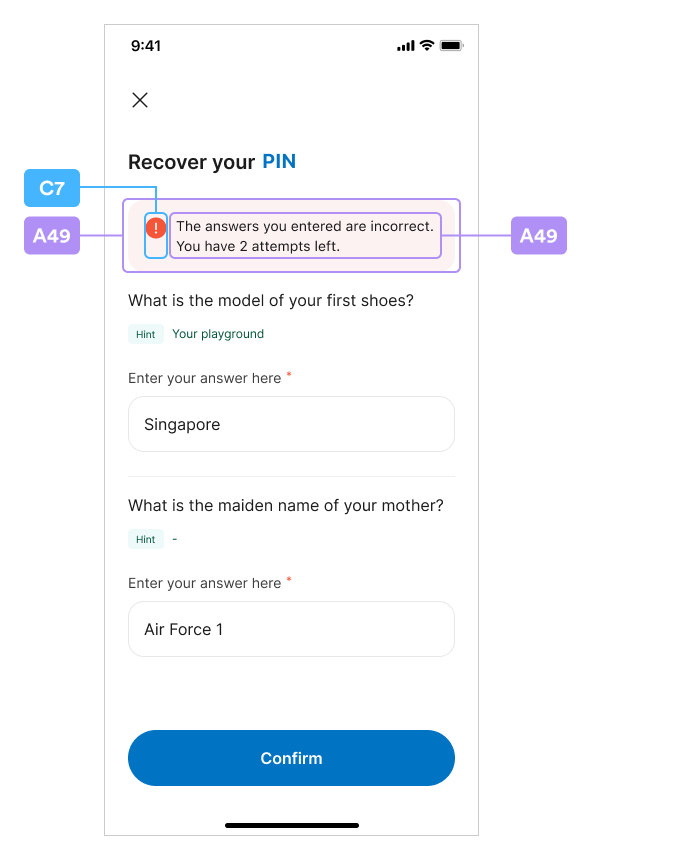

Recover PIN Code

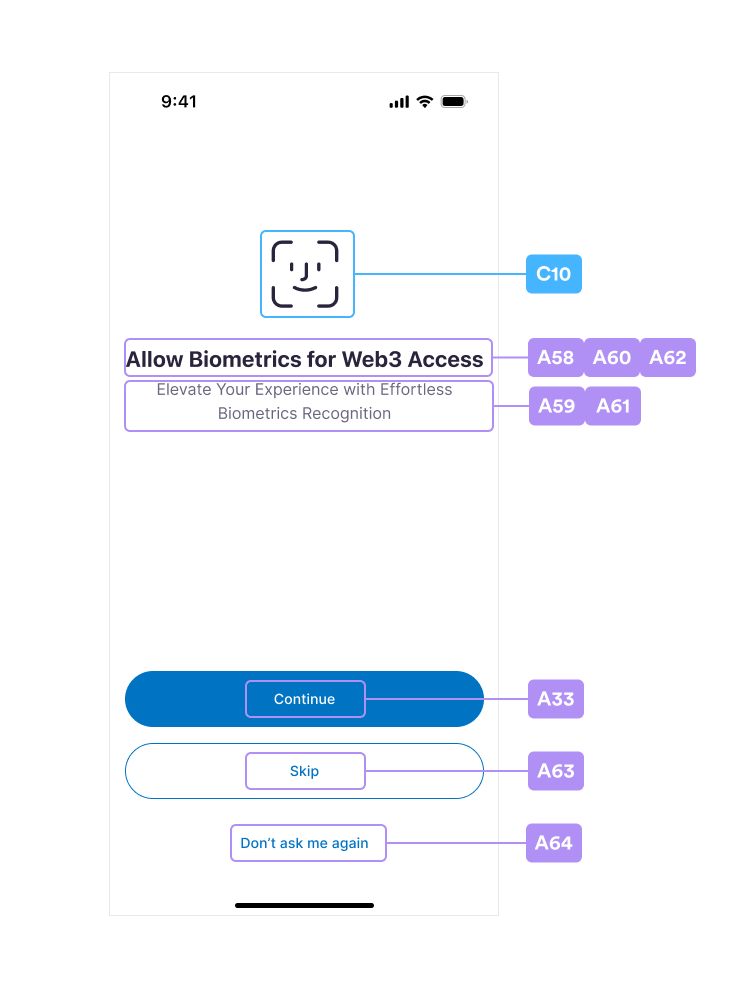

Biometrics Setup

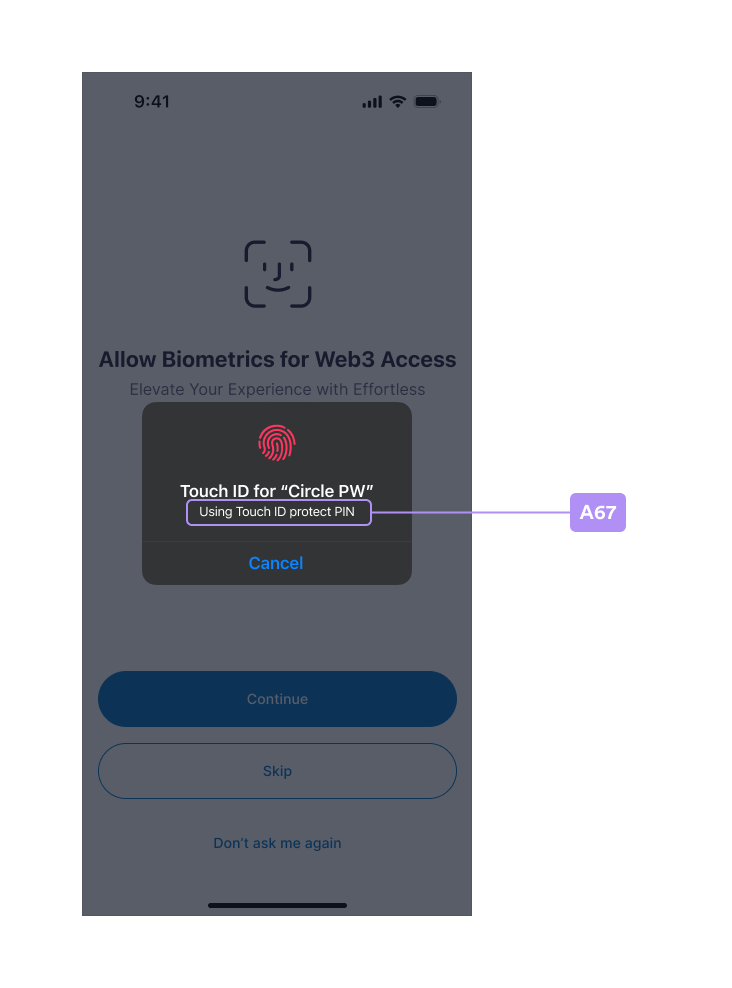

Touch ID Setup

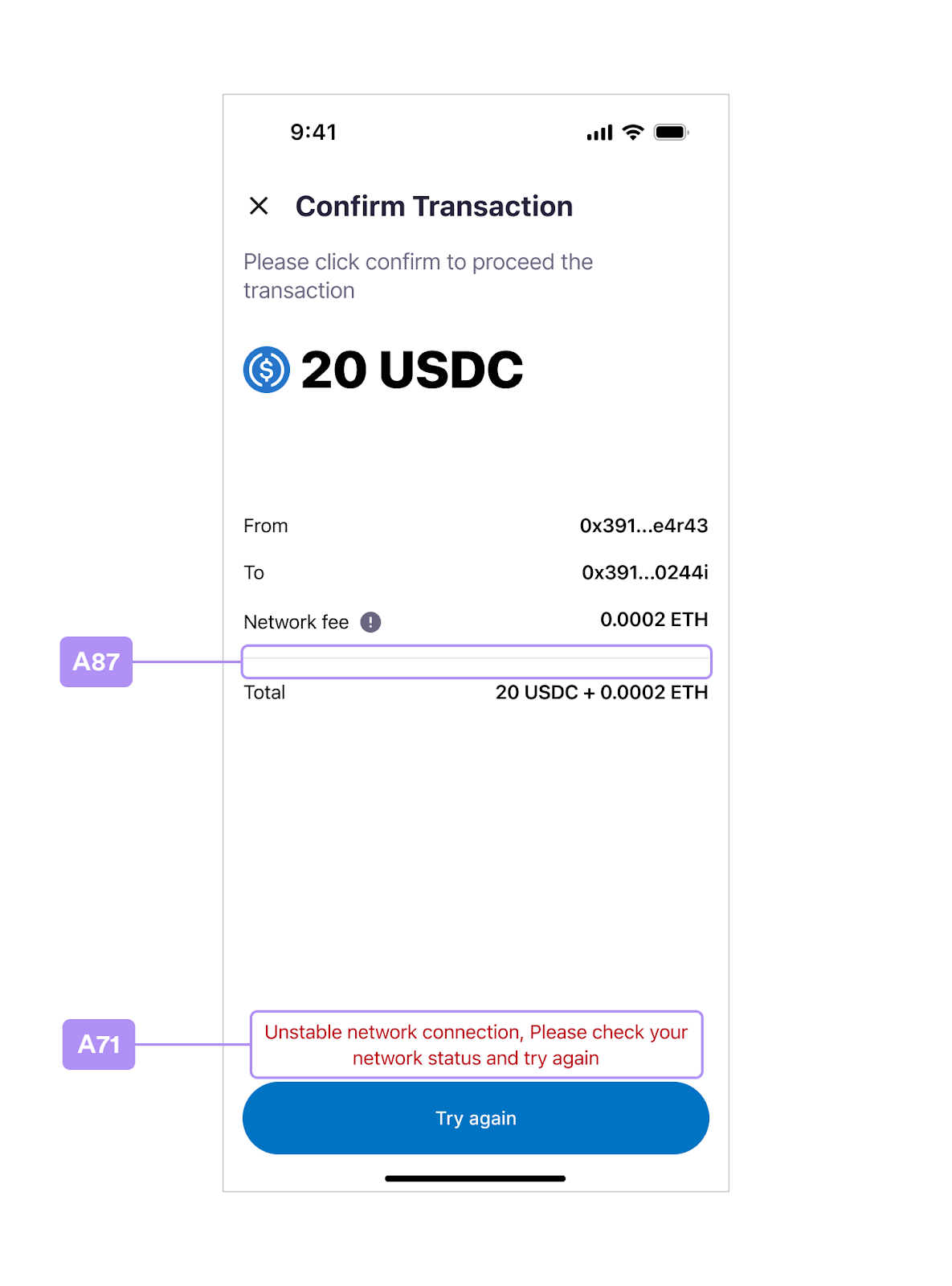

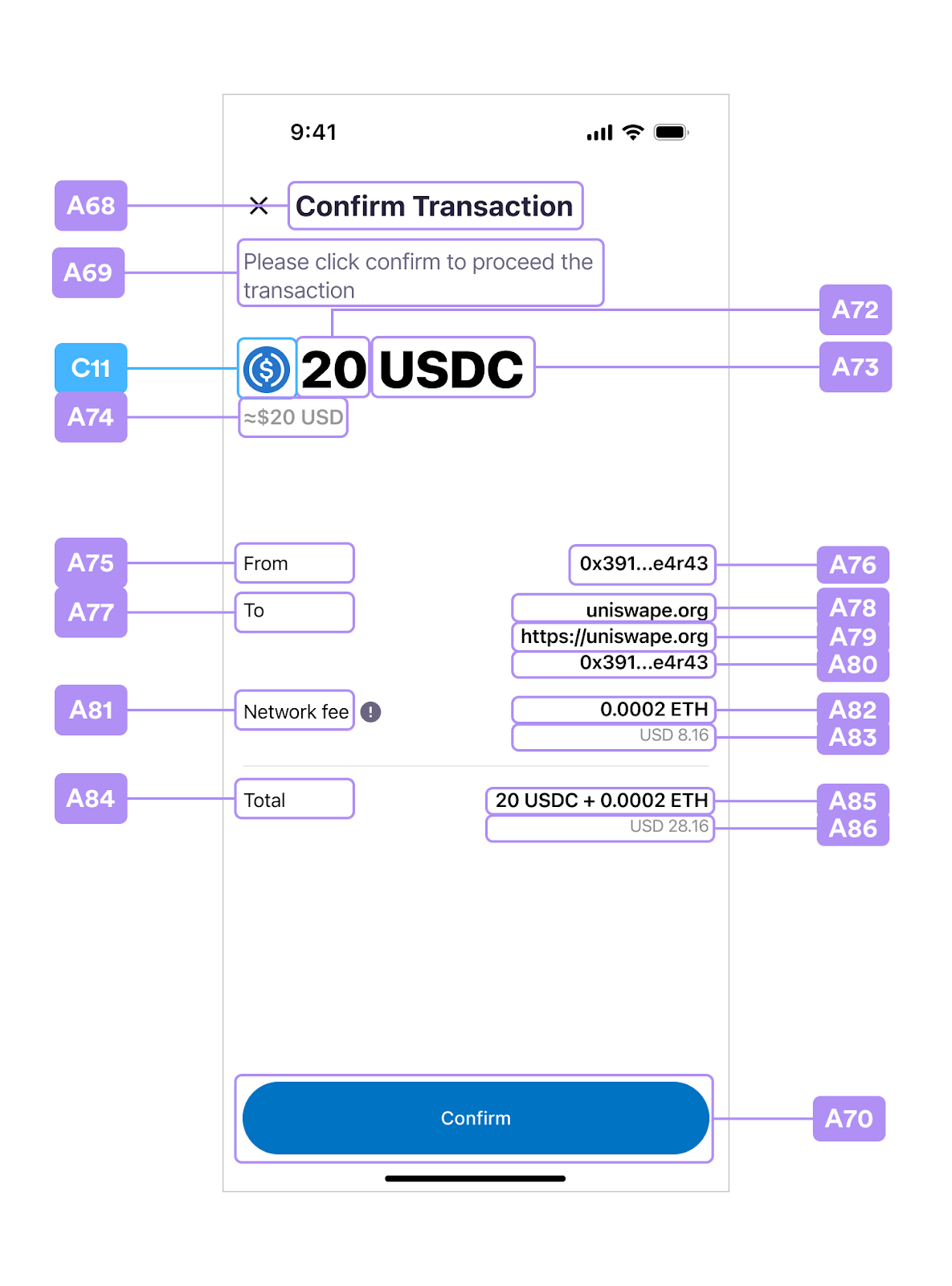

Confirm Transaction

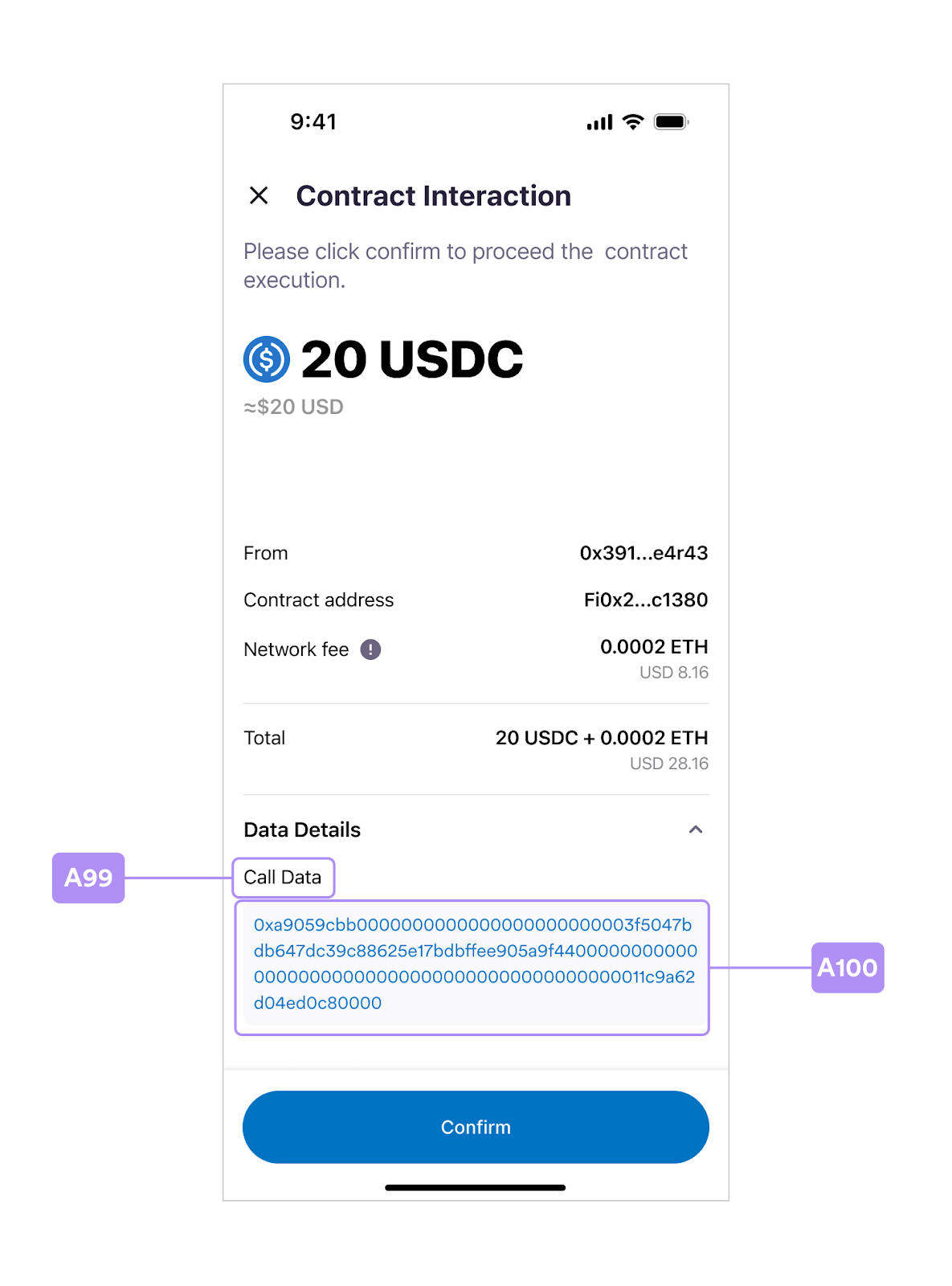

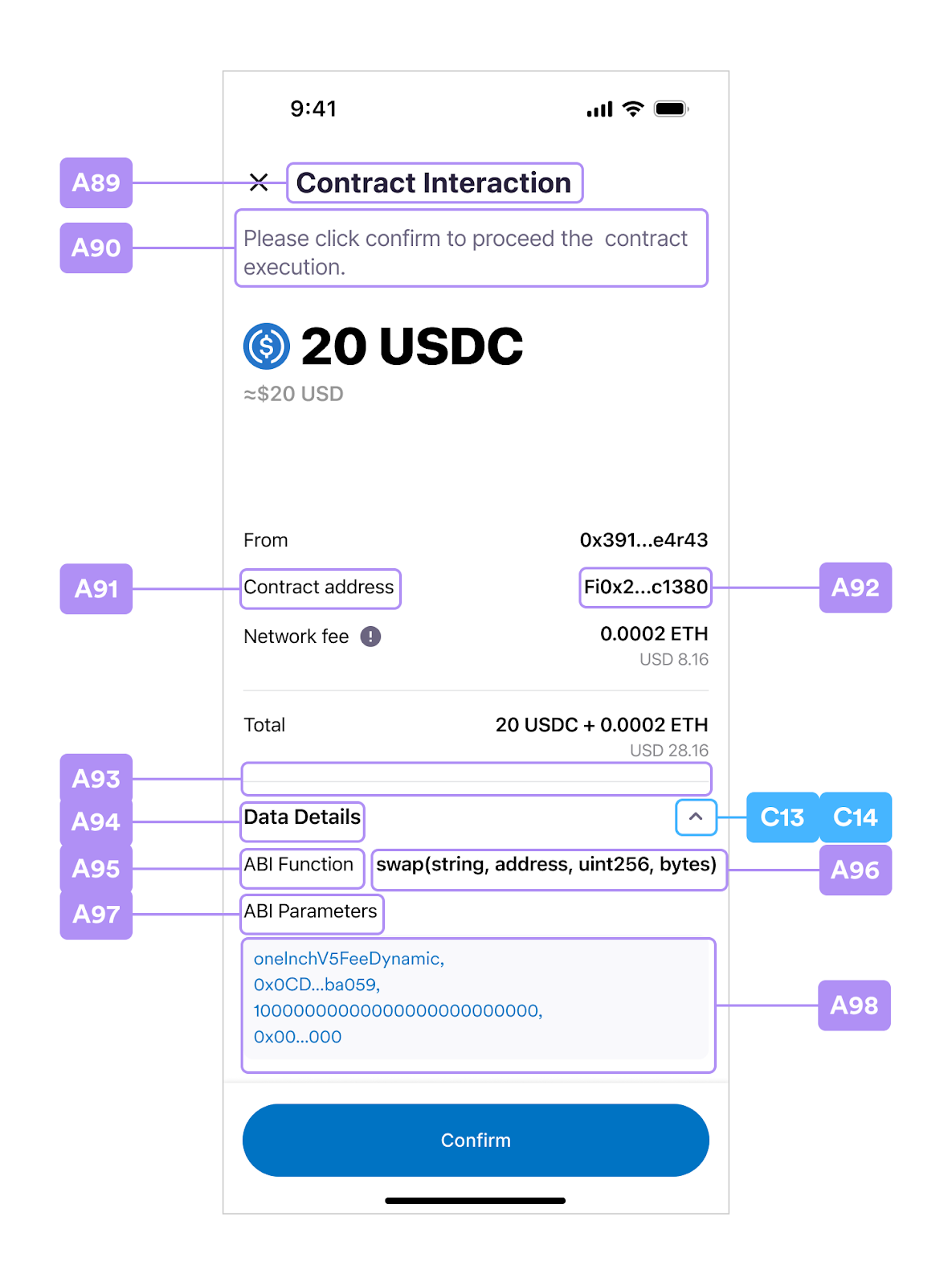

Contract Interaction

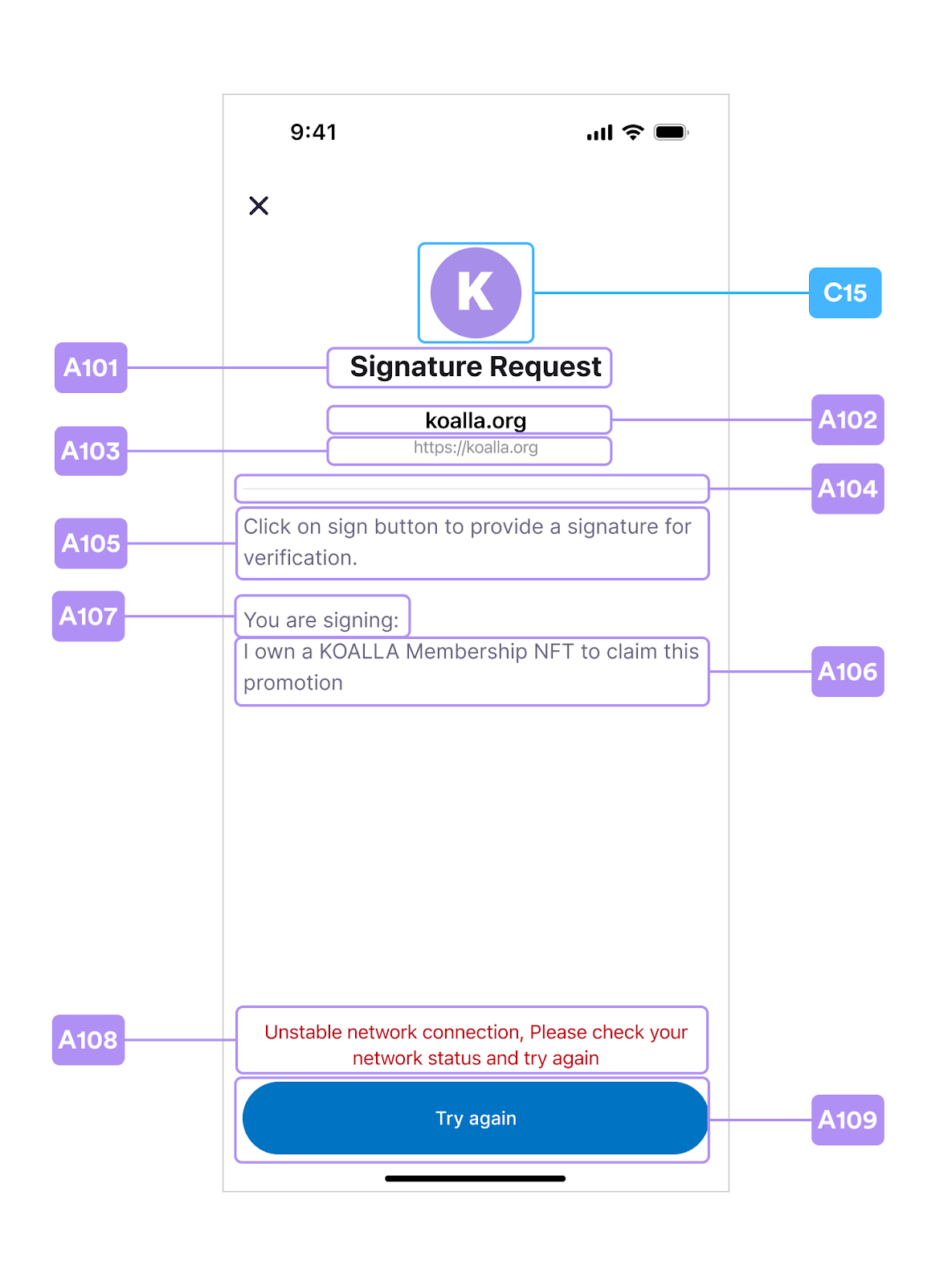

Signature Request

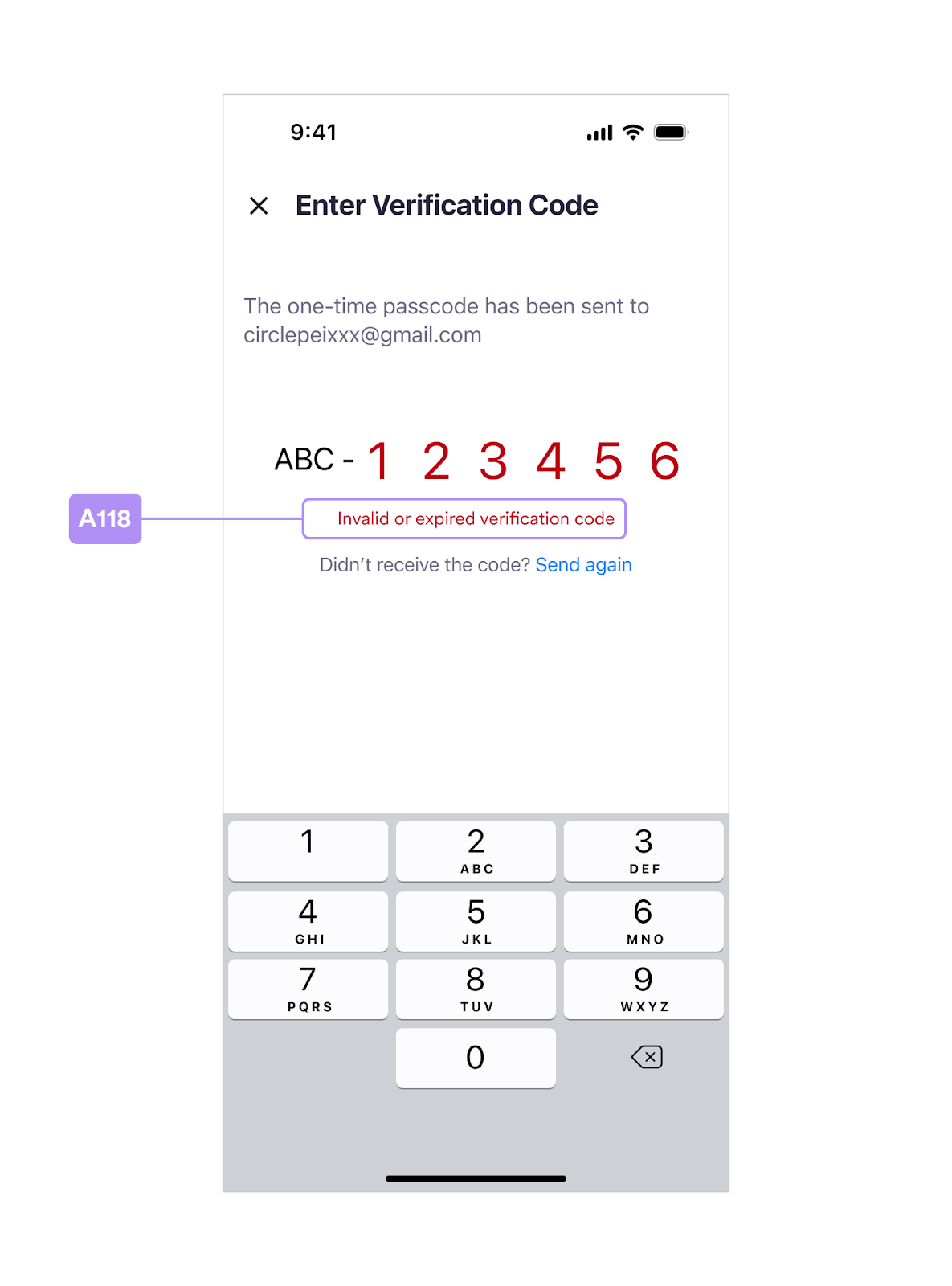

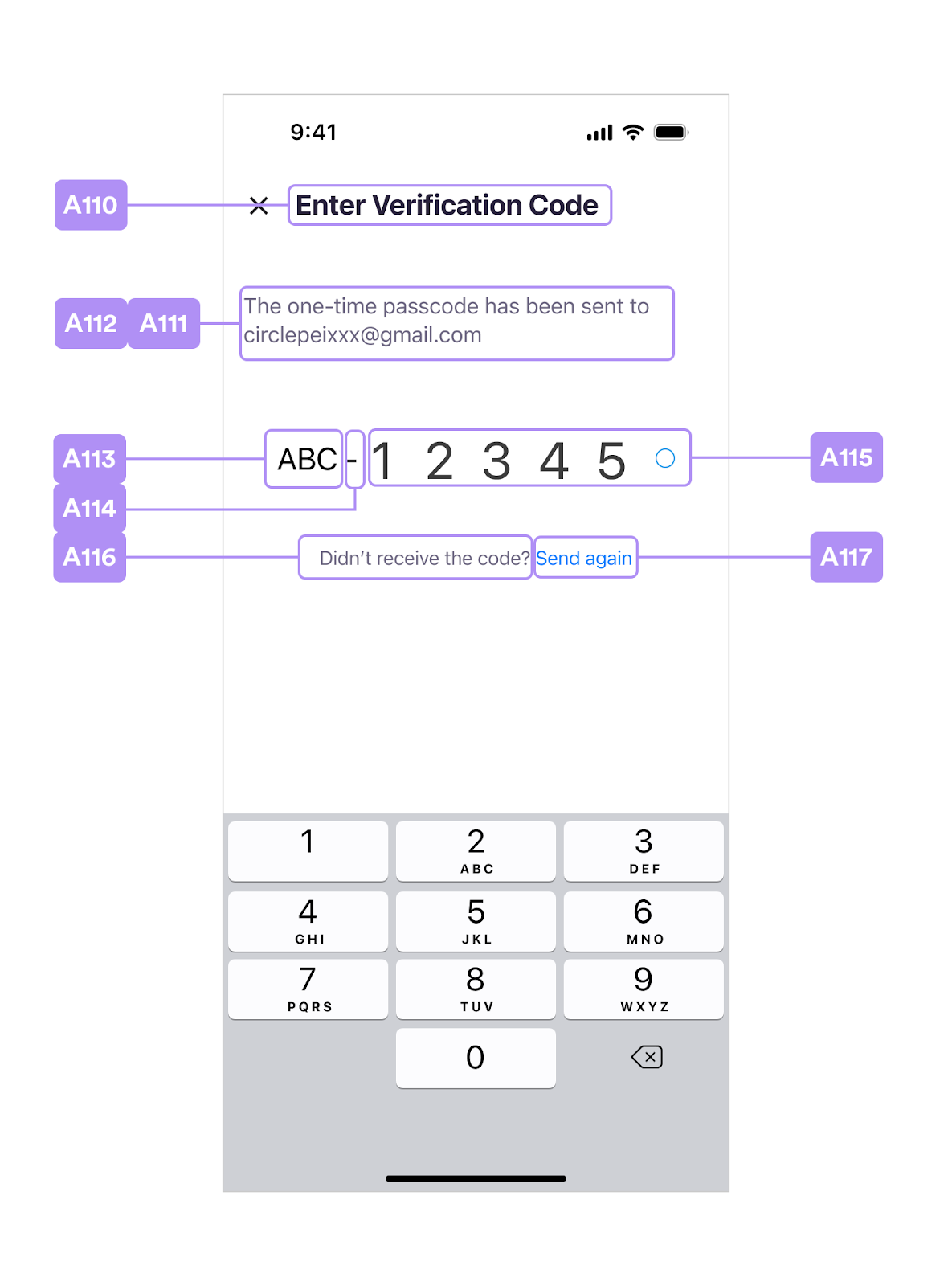

Verify Email OTP

Index Table A

Based on the layouts, table A provides the UI item named in the controller and the keys in use. You can get the UIViewController from WalletSdkDelegate and customize the UI items in the run time. Also, you can provide the values in static resources CirclePWLocalizable.strings and CirclePWTheme.json for customization layouts in build time.

	Programmatic Customization			Static Resources

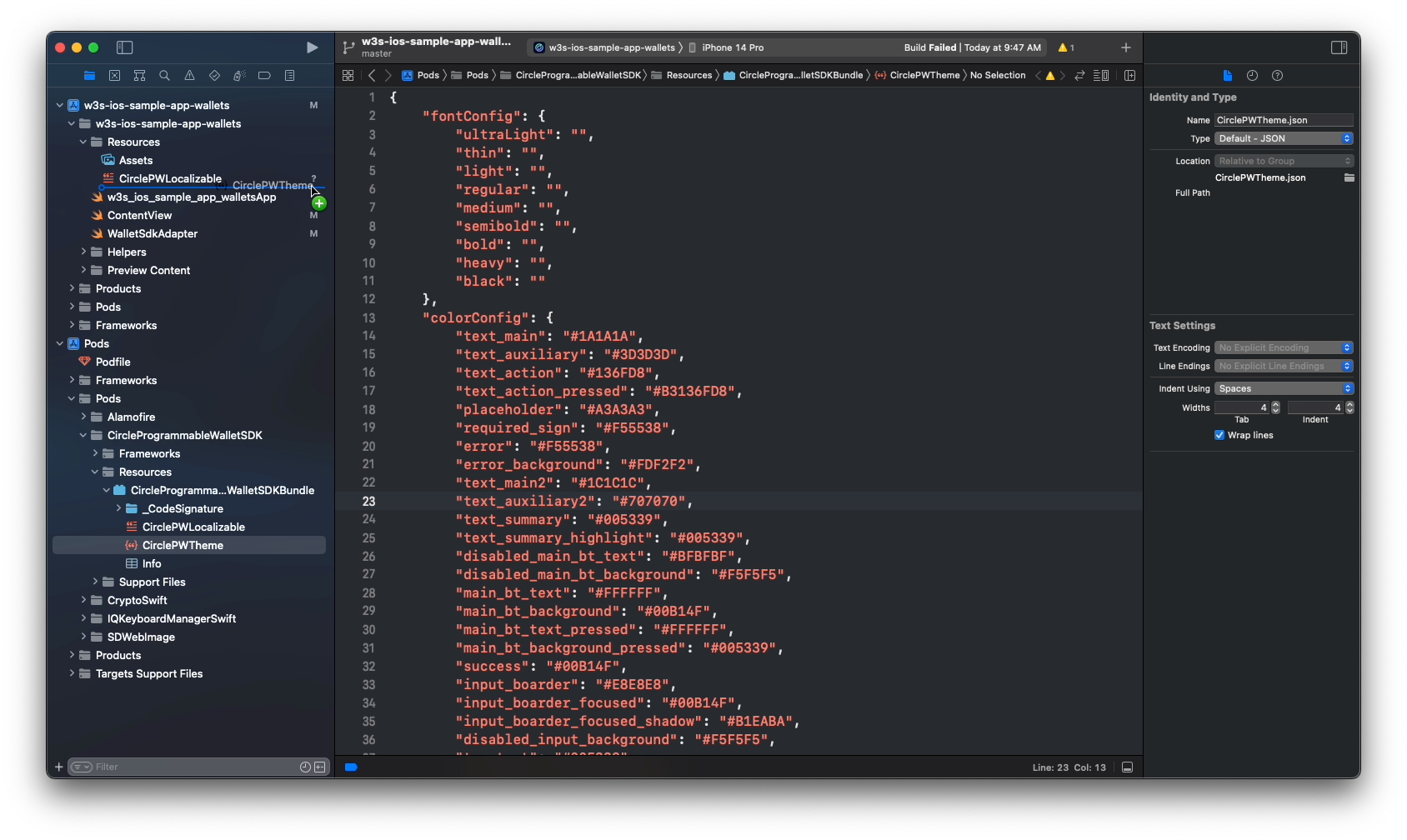

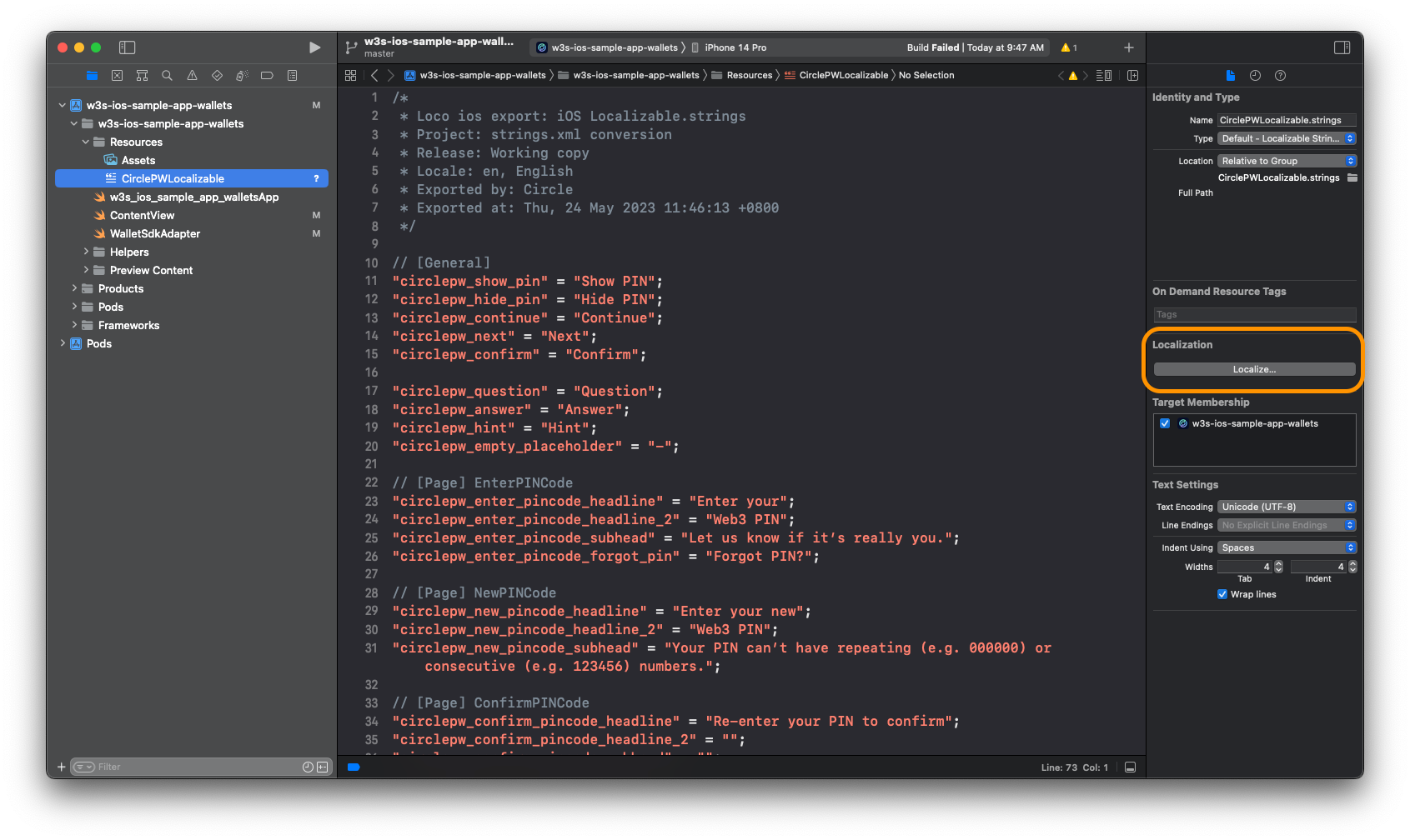

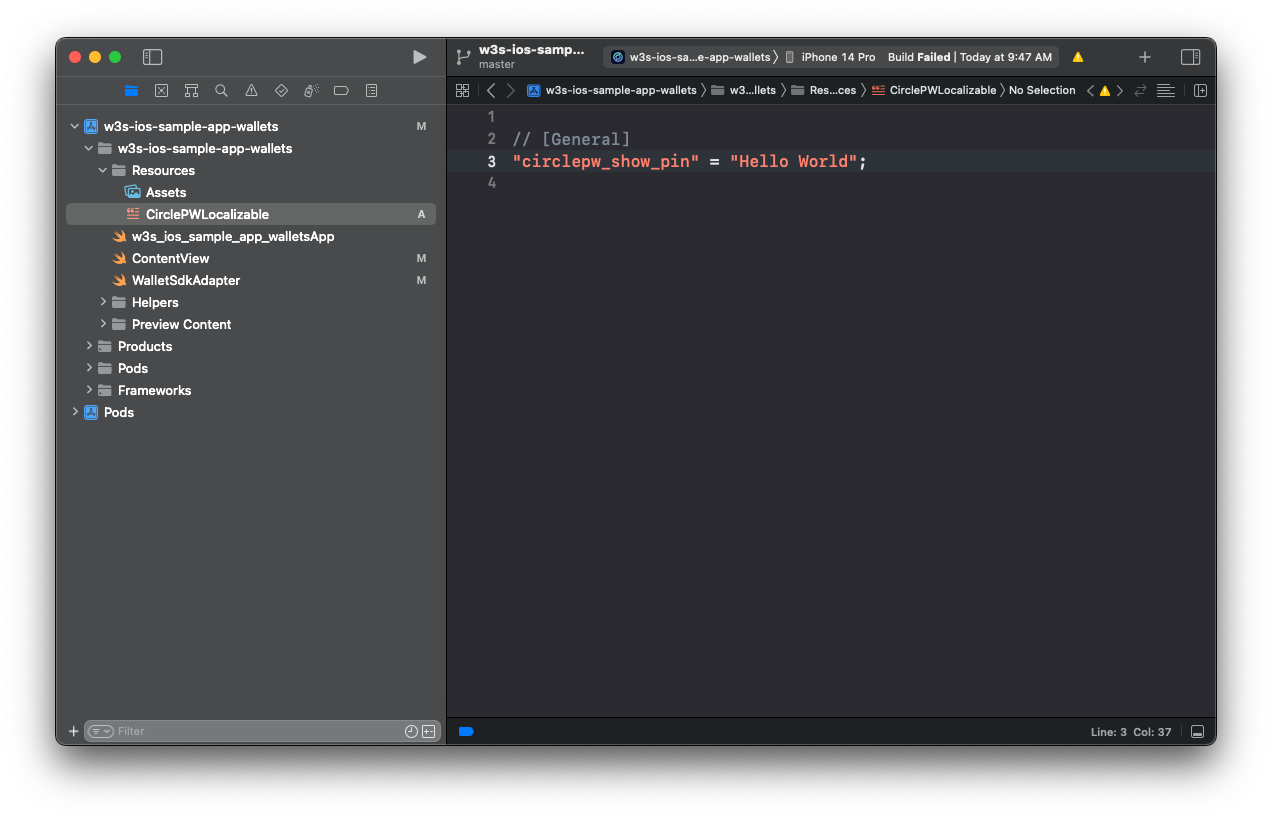

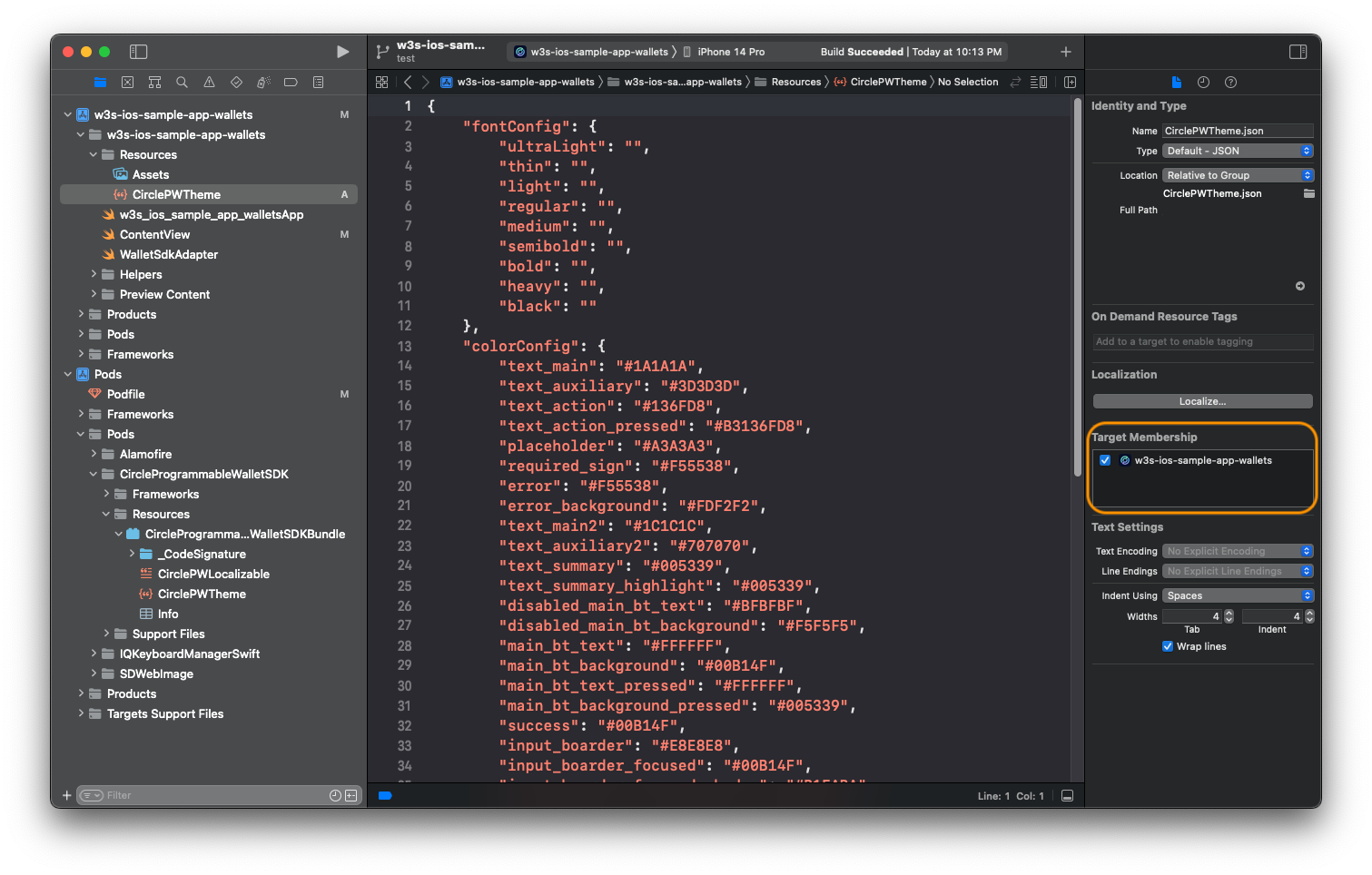

				CirclePWLocalizable.strings	CirclePWTheme.json
#	Controller	Item	Note		font	color
A1	NewPINCodeViewController	titleLabel1	-	circlepw_new_pincode_headline	semibold	text_main
A2	”	titleLabel2	-	circlepw_new_pincode_headline_2	bold	title_gradients
A3	”	subtitleLabel	-	circlepw_new_pincode_subhead	regular	text_auxiliary
A4	BasePINInputViewController	-	dots and texts will be generated dynamically	-	light	pin_dot_base / pin_dot_base_border / pin_dot_activated / pin_dot_focused / pin_digit_activated / success / error
A5	”	-	shows ApiError.displayString	-	regular	error
A8	ConfirmPINCodeViewController	titleLabel1	-	circlepw_confirm_pincode_headline	semibold	text_main
A9	”	titleLabel2	-	circlepw_confirm_pincode_headline_2	bold	title_gradients
A10	”	subtitleLabel	-	circlepw_confirm_pincode_subhead	regular	text_auxiliary
A11	EnterPINCodeViewController	titleLabel1	-	circlepw_enter_pincode_headline	semibold	text_main
A12	”	titleLabel2	-	circlepw_enter_pincode_headline_2	bold	title_gradients
A13	”	subtitleLabel	-	circlepw_enter_pincode_subhead	regular	text_auxiliary
A14	”	forgotPINButton	-	circlepw_enter_pincode_forgot_pin	semibold	text_action / text_action_pressed
A65	”	biometricsButton	-	circlepw_enter_pincode_use_biometrics	semibold	text_action / text_action_pressed
A15	SecurityIntrosViewController	titleLabel1	-	circlepw_security_intros_headline	semibold	text_main
A16	”	titleLabel2	-	circlepw_security_intros_headline_2	bold	title_gradients
A17	”	introDescLabel	-	circlepw_security_intros_description	regular	text_auxiliary2
A18	”	introLinkButton	-	circlepw_security_intros_link	regular	text_action / text_action_pressed
A18-1	”	introLink	custom your url string	-	-	-
A19	”	continueButton	text	circlepw_continue	semibold	main_bt_text / main_bt_text_pressed / main_bt_text_disabled
	”	”	background	-	-	main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A20	SecurityQuestionsViewController	baseNaviTitleLabel	-	circlepw_security_questions_title	medium	text_main
A21	”	nextButton	text	circlepw_next	semibold	main_bt_text / main_bt_text_pressed / main_bt_text_disabled
	”		background	-	-	main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A22	SecurityQuestionTableViewCell	questionTitleLabel	-	circlepw_security_questions_question_header	regular	text_auxiliary
A23	”	questionMarkLabel	-	circlepw_security_questions_required_mark	regular	error
A24	”	-	placeholder	circlepw_security_questions_question_placeholder	regular	text_placeholder
	”	-	selected question	-	regular	text_main
A25	”	answerTitleLabel	-	circlepw_security_questions_answer_header	regular	text_auxiliary
A26	”	-	placeholder	circlepw_security_questions_answer_placeholder	regular	text_placeholder
	”	-	input text	-	regular	text_main
	”	-	view	-	-	input_background_disabled / input_border / input_border_focused
A27	”	hintTitleLabel	-	circlepw_security_questions_answer_hint_header	regular	text_auxiliary
A28	”	-	placeholder	circlepw_security_questions_answer_hint_placeholder	regular	text_placeholder
	”	-	input text	-	regular	text_main
	”	-	view	-	-	input_background_disabled / input_border / input_border_focused
A29	”	hintWarningLabel	ApiError(.hintsMatchAnswers)	-	regular	error
A30	SelectQuestionViewController	baseNaviTitleLabel	-	circlepw_select_question_title	medium	text_main
A31	SelectQuestionTableViewCell	titleLabel	question list	-	regular	text_main
A32	SecuritySummaryViewController	baseNaviTitleLabel	-	circlepw_security_summary_title	medium	text_main
A33	”	continueButton	text	circlepw_continue	semibold	main_bt_text / main_bt_text_pressed / main_bt_text_disabled
	”		background	-	-	main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A34	SecuritySummaryTableViewCell	titleLabel	-	{ordinal} + circlepw_question	semibold	text_main2
A35	”	questionTitleLabel	-	circlepw_question + “:”	regular	text_auxiliary2
A36	”	-	-	-	regular	text_summary
A37	”	answerTitleLabel	-	circlepw_answer + “:“	regular	text_auxiliary2
A38	”	-	-	-	semibold	text_summary_highlight
A39	”	hintTitleLabel	-	circlepw_hint + “:“	regular	text_auxiliary2
A40	”	-	-	circlepw_empty_placeholder	regular	text_summary

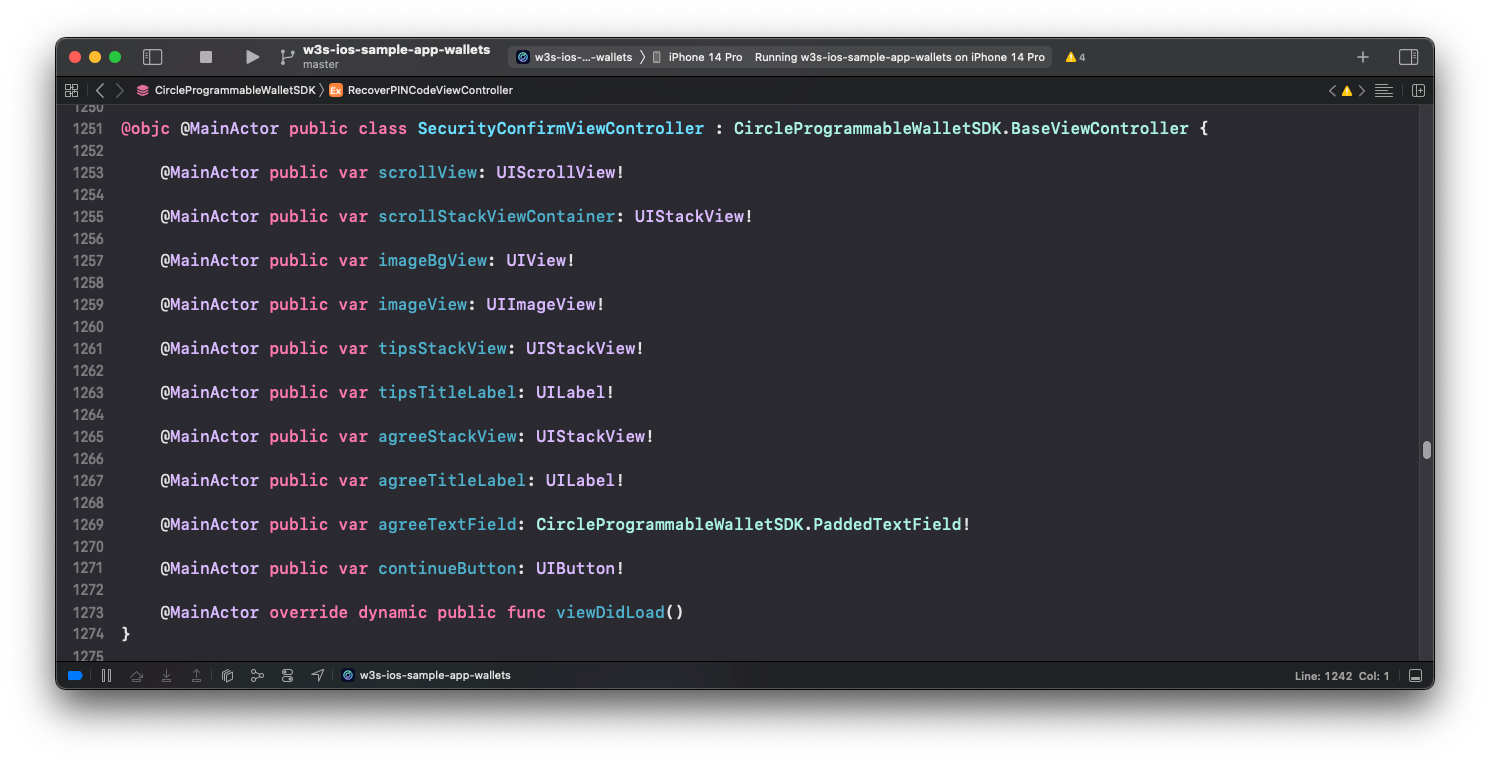

A41	SecurityConfirmViewController	baseNaviTitleLabel	-	circlepw_security_confirm_title	medium	text_main
A42	”	imageBgView	-	-	-	security_confirm_main_bg
A43	”	tipsTitleLabel	-	circlepw_security_confirm_headline	medium	text_main
A44	”	agreeTitleLabel	-	circlepw_security_confirm_input_headline	semibold	text_main2
A45	”	agreeTextField	placeholder	circlepw_security_confirm_input_placeholder	regular	text_placeholder
	”	”	input text	-	regular	text_main2
	”	”	view	-	-	input_background_disabled / input_border / input_border_focused
A46	”	continueButton	text	circlepw_continue	semibold	main_bt_text / main_bt_text_pressed / main_bt_text_disabled
	”	”	background	-	-	main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A47	RecoverPINCodeViewController	titleLabel1	-	circlepw_recover_pincode_headline	semibold	text_main
A48	”	titleLabel2	-	circlepw_recover_pincode_headline_2	bold	title_gradients
A49	”	-	shows ApiError.displayString	-	regular	text_main
A50	”	errorMessageView	background	-	-	error_background
A51	”	confirmButton	text	circlepw_confirm	semibold	main_bt_text / main_bt_text_pressed / main_bt_text_disabled
	”	”	background	-	-	main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A52	RecoverPINCodeTableViewCell	-	-	-	regular	text_main2
A53	”	hintTitleLabel	text	circlepw_hint	regular	recover_pin_hint_title
	”	”	background	-	-	recover_pin_hint_title_bg
A54	”	-	placeholder	circlepw_empty_placeholder	regular	recover_pin_hint
A55	”	answerTitleLabel	-	circlepw_recover_pincode_answer_input_header	regular	text_auxiliary
A56	”	answerMarkLabel	-	circlepw_security_questions_required_mark	regular	error
A57	”	-	placeholder	circlepw_recover_pincode_answer_input_placeholder	regular	text_placeholder
	”	-	input text	-	regular	text_main
	”	-	view	-	-	input_background_disabled / input_border / input_border_focused
A58	BiometricsPromptViewController	promptTitleLabel	Set up biometrics first in the process	circlepw_pin_biometrics_allow_title	bold	text_prompt
A60	”	”	After first setting up biometrics process	circlepw_pin_biometrics_failed_title
A62	”	”	Update after failure to use biometric PIN	circlepw_pin_biometrics_update_title
A59	”	promptSubtitleLabel	Set up biometrics in the process	circlepw_pin_biometrics_allow_subtitle	regular	text_prompt2
A61	”	”	Update after failure to use biometric PIN	circlepw_pin_biometrics_update_subtitle
A63	”	skipButton	text	circlepw_skip	semibold	second_bt_text
	”	”	background	-	-	second_bt_border / second_bt_background / second_bt_background_pressed
A64	”	dontAskButton	text	circlepw_pin_biometrics_disable	semibold	plain_bt_text
	”	”	background	-	-	plain_bt_background / plain_bt_background_pressed
A67	-	-	-	circlepw_pin_touch_id_dialog_subtitle	-	-
A68	BaseRequestViewController	baseNaviTitleLabel	-	circlepw_transaction_request_title	medium	text_main
A69	”	descriptionLabel	-	circlepw_transaction_request_subtitle	regular	text_auxiliary
A70	”	confirmButton	text	circlepw_confirm / circlepw_try_again	semibold	main_bt_text / main_bt_text_pressed / main_bt_text_disabled
	”	”	background	-	-	main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A71	”	errorLabel	shows ApiError.displayString	-	regular	error
A72	TransactionRequestViewController	amountLabel	-	-	heavy	text_prompt
A73	”	currencyLabel	-	circlepw_transaction_request_main_currency	heavy	text_prompt
A74	”	txFiatValueLabel	If it has no value, it will be hidden	circlepw_transaction_request_exchange_amount	semibold	text_exchange
A75	”	fromTitleLabel	If the fromLabel has no value, it will be hidden	circlepw_transaction_request_from_label	regular	text_prompt
A76	”	fromLabel	-	circlepw_transaction_request_from	semibold	text_prompt
A77	”	toTitleLabel	-	circlepw_transaction_request_to_label	regular	text_prompt
A78	”	toContractNameLabel	If it has no value, it will be hidden	circlepw_transaction_request_to_contract_name	semibold	text_prompt
A79	”	toContractURLLabel	If it has no value, it will be hidden	circlepw_transaction_request_to_contract_url	semibold	text_prompt
A80	”	toLabel	-	-	semibold	text_prompt
A81	”	feeTitleLabel	If the feeLabel has no value, it will be hidden	circlepw_transaction_request_network_fee_label	regular	text_prompt
A82	”	feeLabel	-	circlepw_transaction_request_network_fee	semibold	text_prompt
A83	”	feeFiatValueLabel	-	circlepw_transaction_request_exchange_network_fee	regular	text_exchange
A84	”	totalTitleLabel	If the totalLabel has no value, it will be hidden	circlepw_transaction_request_total_label	regular	text_prompt
A85	”	totalLabel	-	-	semibold	text_prompt
A86	”	totalFiatValueLabel	If it or the totalLabel has no value, it will be hidden	circlepw_transaction_request_exchange_total_value	regular	text_exchange
A87	”	dividerView1	-	-	-	divider

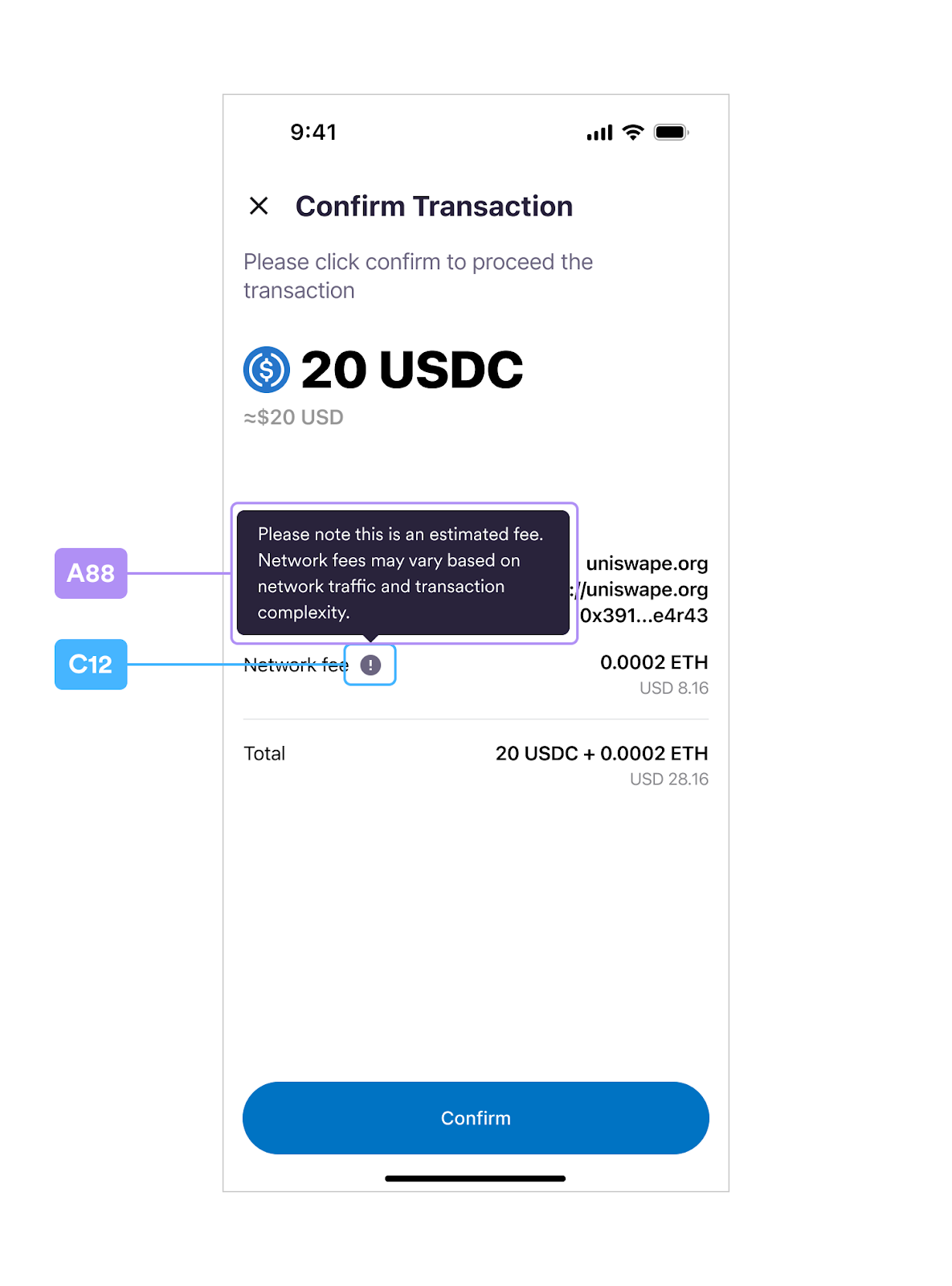

A88	FeeTipViewController	descriptionLabel	-	circlepw_transaction_request_fee_tip	regular	tip_text
	”	backgroundColor	-	-	-	tip_background
A89	ContractRequestViewController	baseNaviTitleLabel	-	circlepw_contract_interaction_title	medium	text_main
A90	”	descriptionLabel	-	circlepw_contract_interaction_subtitle	regular	text_auxiliary
A91	”	contractAddressTitleLabel	-	circlepw_contract_interaction_contract_address_label	regular	text_prompt
A92	”	contractAddressLabel	-	-	semibold	text_prompt
A93	”	dividerView2	-	-	-	divider
A94	”	dataDetailsLabel	-	circlepw_contract_interaction_data_details	semibold	text_prompt
A95	”	abiFunctionTitleLabel	-	circlepw_contract_interaction_abi_function_label	regular	text_prompt
A96	”	abiFunctionLabel	-	-	semibold	text_prompt
A97	”	abiParameterTitleLabel	-	circlepw_contract_interaction_abi_parameter_label	regular	text_prompt
A98	”	abiParameterLabel	text	-	regular	text_interactive
	”	”	background	-	-	interactive_background
A99	”	callDataTitleLabel	-	circlepw_contract_interaction_call_data_label	regular	text_prompt
A100	”	callDataLabel	text	-	regular	text_interactive
	”	”	background	-	-	interactive_background
A101	SignatureRequestViewController	titleLabel	-	circlepw_signature_request_title	semibold	text_main
A102	”	contractNameLabel	If it has no value, it will be hidden	circlepw_signature_request_contract_name	semibold	text_prompt
A103	”	contractURLLabel	If it has no value, it will be hidden	circlepw_signature_request_contract_name	regular	text_sign_url
A104	”	dividerView	-	-	-	divider
A105	”	subtitleLabel	-	circlepw_signature_request_subtitle	regular	text_auxiliary
A106	”	descriptionLabel	-	circlepw_signature_request_description	regular	text_auxiliary
A107	”	messageLabel	-	-	regular	text_auxiliary
A108	”	errorLabel	shows ApiError.displayString	-	regular	error
A109	”	confirmButton	text	circlepw_confirm / circlepw_try_again	semibold	main_bt_text / main_bt_text_pressed / main_bt_text_disabled
	”	”	background	-	-	main_bt_background / main_bt_background_pressed / main_bt_background_disabled
A110	EmailOTPViewController	baseNaviTitleLabel	-	circlepw_email_otp_title	medium	text_main
A111	”	descriptionLabel	-	circlepw_email_otp_description	regular	text_auxiliary
A112	”		-	circlepw_email_otp_email
A113	”	otpHeadLabel	-	-	regular	text_prompt
A114	”	otpDashLabel	-	circlepw_email_otp_dash	regular	text_prompt
A115	”	-	texts will be generated dynamically	-	light	pin_dot_base / pin_dot_base_border / pin_dot_focused / pin_digit_activated / success / error
A116	”	sendAgainHintLabel	-	circlepw_email_otp_send_again_hint	regular	text_auxiliary
A117	”	sendAgainButton	-	circlepw_email_otp_send_again	regular	text_action / text_action_pressed
A118	”	errorMessageLabel	shows ApiError.displayString	-	regular	error

Index Table B

By confirming the WalletSdkLayoutProvider, you can custom layout from Table-B dynamically. See the Sample Code.

#	WalletSdkLayoutProvider	Note
B1	func securityQuestions() -> [SecurityQuestion]	Set security question list
B2	func securityQuestionsRequiredCount() -> Int	Set security question required count (default is 2)
B3	func securityConfirmItems() -> [SecurityConfirmItem]	Set security confirm item list
B4	func displayDateFormat() -> String	Set the date format for display date strings. (Default is “yyyy-MM-dd”)
-	func imageStore() -> ImageStore	Set local and remote images (more details in Table-C)
-	func themeFont() -> ThemeConfig.ThemeFont?	Set theme font programmatically- Provide the ThemeFont structure by code. - This method will override the font setups in CirclePWTheme.json file. -

Index Table C

	Used in WalletSdkLayoutProvider	Used in WalletSdkDelegate
#	ImageStore.Img (Enum)	Controller	Item
C1	naviClose	-	-
C2	naviBack	-	-
C3	securityIntroMain	SecurityIntrosViewController	introImageView
C4	dropdownArrow	SecurityQuestionTableViewCell	questionTrailingButton
C5	selectCheckMark	SelectQuestionTableViewCell	checkmarkImage
C6	securityConfirmMain	SecurityConfirmViewController	imageView
C7	errorInfo	RecoverPINCodeViewController	errorImageView
C8	showPin	BasePINInputViewController (NewPIN/ConfirmPIN/EnterPIN)	showPINButton (normal state)
C9	hidePin	BasePINInputViewController (NewPIN/ConfirmPIN/EnterPIN)	showPINButton (selected state)
C10	biometricsAllowMain	BiometricsPromptViewController	imageView
C11	transactionTokenIcon	TransactionRequestViewController	tokenSymbol
C12	networkFeeTipIcon	TransactionRequestViewController	feeTipIcon
C13	showLessDetailArrow	ContractRequestViewController	showLessMoreDetailButton
C14	showMoreDetailArrow	ContractRequestViewController	showLessMoreDetailButton
C15	requestIcon	SignatureRequestViewController	requestIcon

Use the ImageStore.Img (Enum) column to customize with the WalletSdkLayoutProvider:

Swift

func imageStore() -> ImageStore {
    let local: [ImageStore.Img: UIImage] = [
        .naviBack: UIImage(named: "ic_navi_back")!,
        .naviClose: UIImage(named: "ic_navi_close")!,
        .selectCheckMark: UIImage(named: "ic_checkmark")!,
        .dropdownArrow: UIImage(named: "ic_trailing_down")!,
        .errorInfo: UIImage(named: "ic_warning_alt")!,
        .securityIntroMain: UIImage(named: "img_security_intro")!,
        .securityConfirmMain: UIImage(named: "img_driver_blog")!,
        .biometricsAllowMain: UIImage(named: "ic_biometrics")!,
        .hidePin: UIImage(named: "eye_closed")!,
        .showPin: UIImage(named: "eye_open")!,
        .transactionTokenIcon: UIImage(named: "BTC")!,
        .networkFeeTipIcon: UIImage(named: "BTC")!,
        .showLessDetailArrow: UIImage(named: "chevron-up")!,
        .showMoreDetailArrow: UIImage(named: "chevron-down")!,
        .requestIcon: UIImage(named: "dApp_icon")!,
    ]

    let remote: [ImageStore.Img: URL] = [
        .securityIntroMain: URL(string: "https://www.circle.com/hs-fs/hubfs/Sundaes/810/global-payments-810x810.png")!,
        .securityConfirmMain: URL(string: "https://www.circle.com/hs-fs/hubfs/Sundaes/810/Trust-810x810.png")!,
    ]

    return ImageStore(local: local, remote: remote)
}

If you set both local and remote images, the remote image will present after the image loads, and the local image will be set as the placeholder image.
The remote image formats supported include those from the Apple system (JPEG, PNG, TIFF, BMP, etc.), GIF, and APNG animated images.
The remote image formats unsupported for new image formats include HEIC, BPG, AVIF, and vector formats such as PDF and SVG.
The Controller and Item column shows where the images are used.
Refer to the UI items If you have special customizations with WalletSdkDelegate (not recommended)

Static Resources

This section describes how to customize the UI for iOS statically.

Note:Circle recommends customizing the UI using static files.You can copy the icon images from the Sample Project.

Assets

Because the CircleProgrammableWalletSDK does not contain any image resources for the SDK; you must provide the icon images from either local assets or remote URLs.

Important:Setting the WalletSdkLayoutProvider.imageStore in WalletSdkLayoutProvider is required for you to see icons in the layouts.

CirclePWLocalizable.strings

Setup

Create a file CirclePWLocalizable.strings in your main bundle.
Provide your strings. Partial override is supported.

Note:You can provide specific keys and values you want to override and others keys will still refer to the default values.

Localization is supported. For more information, see Localization | Apple Developer Documentation.

Example CirclePWLocalizable.strings

Swift

/*
 * Loco ios export: iOS Localizable.strings
 * Project: strings.xml conversion
 * Release: Working copy
 * Locale: en, English
 * Exported by: Circle
 * Exported at: Tue, 27 Jun 2023 23:35:22 +0800
 */

// [General]
"circlepw_continue" = "Continue";
"circlepw_next" = "Next";
"circlepw_confirm" = "Confirm";
"circlepw_skip" = "Skip";
"circlepw_sign" = "Sign";
"circlepw_try_again" = "Try Again";

"circlepw_question" = "Question";
"circlepw_answer" = "Answer";
"circlepw_hint" = "Hint";
"circlepw_empty_placeholder" = "-";

// [Page] EnterPINCode
"circlepw_enter_pincode_headline" = "Enter your";
"circlepw_enter_pincode_headline_2" = "Web3 PIN";
"circlepw_enter_pincode_subhead" = "Let us know if it’s really you.";
"circlepw_enter_pincode_forgot_pin" = "Forgot PIN?";

// [Page] NewPINCode
"circlepw_new_pincode_headline" = "Enter your new";
"circlepw_new_pincode_headline_2" = "Web3 PIN";
"circlepw_new_pincode_subhead" = "Your PIN can’t have repeating (e.g. 000000) or consecutive (e.g. 123456) numbers.";

// [Page] ConfirmPINCode
"circlepw_confirm_pincode_headline" = "Re-enter your PIN to confirm";
"circlepw_confirm_pincode_headline_2" = "";
"circlepw_confirm_pincode_subhead" = "";

// [Page] SecurityIntros
"circlepw_security_intros_headline" = "Set up your";
"circlepw_security_intros_headline_2" = "Recovery Method";
"circlepw_security_intros_description" = "This is the only way to recover wallet access if you forget your PIN. Pick 2 security questions and provide answers for access recovery.";
"circlepw_security_intros_link" = "Learn more";

// [Page] SecurityQuestions
"circlepw_security_questions_title" = "Recovery method";
"circlepw_security_questions_question_header" = "Choose your %@ question";
"circlepw_security_questions_question_placeholder" = "Select one question";
"circlepw_security_questions_required_mark" = "*";
"circlepw_security_questions_answer_header" = "Provide an answer";
"circlepw_security_questions_answer_placeholder" = "Type your answer here";
"circlepw_security_questions_answer_hint_header" = "Provide an answer hint (optional)";
"circlepw_security_questions_answer_hint_placeholder" = "Type your hint here";

// [Page] SelectQuestion
"circlepw_select_question_title" = "Select one question";

// [Page] SecuritySummary
"circlepw_security_summary_title" = "Summary";

// [Page] SecurityConfirm
"circlepw_security_confirm_title" = "Confirmation";
"circlepw_security_confirm_headline" = "Keep your questions safe";
"circlepw_security_confirm_input_headline" = "Type “I agree” to proceed:";
"circlepw_security_confirm_input_placeholder" = "Type “I agree” here";
"circlepw_security_confirm_input_match" = "I agree";

// [Page] RecoverPINCode
"circlepw_recover_pincode_headline" = "Recover your";
"circlepw_recover_pincode_headline_2" = "Web3 PIN";
"circlepw_recover_pincode_subhead" = "Please enter the answer of the security questions provided below.";
"circlepw_recover_pincode_answer_input_header" = "Enter your answer here";
"circlepw_recover_pincode_answer_input_placeholder" = "Type your answer here";

// [Page] BiometricsPrompt
"circlepw_pin_biometrics_allow_title" = "Allow Biometrics for Web3 Access";
"circlepw_pin_biometrics_allow_subtitle" = "Elevate Your Experience with Effortless Biometrics";
"circlepw_pin_biometrics_failed_title" = "Failed Biometrics for Web3 Access";
"circlepw_pin_biometrics_update_title" = "Update Biometrics for Web3 Access";
"circlepw_pin_biometrics_update_subtitle" = "Please update your biometrics";
"circlepw_pin_biometrics_disable" = "Don't ask me again";
"circlepw_pin_touch_id_dialog_subtitle" = "Using Touch ID protect PIN";

// [Page] EmailOTP
"circlepw_email_otp_title" = "Enter verification code";
"circlepw_email_otp_description" = "The one-time passcode has been sent to";
"circlepw_email_otp_email" = "your email";
"circlepw_email_otp_dash" = "-";
"circlepw_email_otp_send_again_hint" = "Didn't receive the code?";
"circlepw_email_otp_send_again" = "Send again";

// [Page] SignatureRequest
"circlepw_signature_request_title" = "Signature Request";
"circlepw_signature_request_subtitle" = "Click on sign button to provide a signature for verification";
"circlepw_signature_request_contract_name" = "";
"circlepw_signature_request_contract_url" = "";
"circlepw_signature_request_description" = "You are signing:";

// [Page] TransactionRequest
"circlepw_transaction_request_title" = "Confirm Transaction";
"circlepw_transaction_request_subtitle" = "Please click confirm to proceed the transaction";
"circlepw_transaction_request_main_currency" = "";
"circlepw_transaction_request_exchange_amount" = "";
"circlepw_transaction_request_from_label" = "From";
"circlepw_transaction_request_from" = "";
"circlepw_transaction_request_to_label" = "To";
"circlepw_transaction_request_to_contract_name" = "";
"circlepw_transaction_request_to_contract_url" = "";
"circlepw_transaction_request_network_fee_label" = "Est. Network Fee";
"circlepw_transaction_request_network_fee" = "";
"circlepw_transaction_request_exchange_network_fee" = "";
"circlepw_transaction_request_total_label" = "Total";
"circlepw_transaction_request_exchange_total_value" = "";

// [View] FeeTip
"circlepw_transaction_request_fee_tip" = "Please note this is an estimated fee. Network fees may vary based on network traffic and transaction complexity.";

// [Page] RawTransactionRequest
"circlepw_transaction_request_raw_tx_description" = "Transaction details:";

// [Page] ContractRequest
"circlepw_contract_interaction_title" = "Contract Interaction";
"circlepw_contract_interaction_subtitle" = "Please click confirm to proceed the  contract execution";
"circlepw_contract_interaction_contract_address_label" = "Contract address";
"circlepw_contract_interaction_data_details" = "Data Details";
"circlepw_contract_interaction_abi_function_label" = "ABI Function";
"circlepw_contract_interaction_abi_parameter_label" = "ABI Parameters";
"circlepw_contract_interaction_call_data_label" = "Call Data";

CirclePWTheme.json

Setup

Copy the file CirclePWTheme.json into your main bundle. You can use Cmd + drag and drop.

Make sure you have selected the Target Membership.

Provide values to set the font: To use a custom font, refer to this document: Adding a Custom Font to Your App | Apple Developer Documentation.
Set the color with a hex string:

Example: CirclePWTheme.json

JSON

{
  "font": {
    "ultraLight": "",
    "thin": "",
    "light": "",
    "regular": "CustomFont-Regular",
    "medium": "CustomFont-Medium",
    "semibold": "",
    "bold": "",
    "heavy": "",
    "black": ""
  },
  "color": {
    "background": "#FFFFFF",
    "divider": "#F0EFEF",
    "success": "#0B9C4A",
    "error": "#F55538",
    "error_background": "#FDF2F2",

    "text_main": "#1A1A1A",
    "text_main2": "#1C1C1C",
    "text_auxiliary": "#3D3D3D",
    "text_auxiliary2": "#707070",
    "text_summary": "#0073C3",
    "text_summary_highlight": "#0073C3",
    "text_placeholder": "#A3A3A3",
    "text_action": "#136FD8",
    "text_action_pressed": "#B3136FD8",
    "text_prompt": "#29233B",
    "text_prompt2": "#6B6580",
    "text_exchange": "#979797",
    "text_interactive": "#0073C3",
    "text_sign_url": "#8E8E93",

    "pin_dot_base": "#FFFFFF",
    "pin_dot_base_border": "#707070",
    "pin_dot_activated": "#3D3D3D",
    "pin_dot_focused": "#0073C3",
    "pin_digit_activated": "#3D3D3D",

    "input_border": "#E8E8E8",
    "input_border_focused": "#46B5FF",
    "input_background_disabled": "#F5F5F5",

    "main_bt_text": "#FFFFFF",
    "main_bt_text_pressed": "#80FFFFFF",
    "main_bt_text_disabled": "#BFBFBF",
    "main_bt_background": "#0073C3",
    "main_bt_background_pressed": "#1AA3FF",
    "main_bt_background_disabled": "#F5F5F5",

    "second_bt_text": "#0073C3",
    "second_bt_border": "#0073C3",
    "second_bt_background": "#FFFFFF",
    "second_bt_background_pressed": "#F1F9FE",

    "plain_bt_text": "#0073C3",
    "plain_bt_background": "#FFFFFF",
    "plain_bt_background_pressed": "#F1F9FE",

    "recover_pin_hint_title": "#3D3652",
    "recover_pin_hint_title_bg": "#E1F2FF",
    "recover_pin_hint": "#0073C3",

    "security_confirm_main_bg": "#E9EEFE",

    "tip_text": "#FFFFFF",
    "tip_background": "#29233B",

    "interactive_background": "#F9F9FC",

    "title_gradients": ["#0073C3", "#0073C3"]
  }
}

Programmatic Customization

To programmatically customize the UI refers to the following documents:

The corresponding rendered layout and the notes on Index Table B.
The Programmable Wallet iOS SDK .

Example Code

Swift

extension WalletSdkAdapter: WalletSdkLayoutProvider {

    func securityQuestions() -> [SecurityQuestion] {
        return [
            SecurityQuestion(title: "What is your childhood nickname?", inputType: .text),
            SecurityQuestion(title: "What is the middle name of your oldest child?", inputType: .text),
            SecurityQuestion(title: "What is your favorite team?", inputType: .text),
            SecurityQuestion(title: "When was your birthday?", inputType: .datePicker),
            SecurityQuestion(title: "When is your marriage anniversary?", inputType: .datePicker),
        ]
    }

    func securityQuestionsRequiredCount() -> Int {
        return 2
    }

    func securityConfirmItems() -> [SecurityConfirmItem] {
        return [
            SecurityConfirmItem(image: UIImage(named: "img_info"),
                                text: "This is the only way to recover my account access."),
            SecurityConfirmItem(image: UIImage(named: "img_claim_success"),
                                text: "Circle won’t store my answers so it’s my responsibility to remember them."),
            SecurityConfirmItem(image: UIImage(named: "img_claim_success"),
                                text: "I will lose access to my wallet and my digital assets if I forget my answers."),
        ]
    }

    func displayDateFormat() -> String {
        return "yyyy/MM/dd"
    }

    func imageStore() -> ImageStore {
        let local: [ImageStore.Img: UIImage] = [
            .naviBack: UIImage(named: "ic_navi_back")!,
            .naviClose: UIImage(named: "ic_navi_close")!,
            .selectCheckMark: UIImage(named: "ic_checkmark")!,
            .dropdownArrow: UIImage(named: "ic_trailing_down")!,
            .errorInfo: UIImage(named: "ic_warning_alt")!,
            .securityIntroMain: UIImage(named: "img_security_intro")!,
            .securityConfirmMain: UIImage(named: "img_driver_blog")!
        ]

        let remote: [ImageStore.Img: URL] = [
            .securityIntroMain: URL(string: "https://www.circle.com/hs-fs/hubfs/Sundaes/810/global-payments-810x810.png")!,
            .securityConfirmMain: URL(string: "https://www.circle.com/hs-fs/hubfs/Sundaes/810/Trust-810x810.png")!,
        ]

        return ImageStore(local: local, remote: remote)
    }

    func themeFont() -> ThemeConfig.ThemeFont? {
        return ThemeConfig.ThemeFont(
            ultraLight: nil,
            thin: nil,
            light: "CustomFont-Light",
            regular: "CustomFont-Regular",
            medium: "CustomFont-Medium",
            semibold: "CustomFont-SemiBold",
            bold: "CustomFont-Bold",
            heavy: nil,
            black: nil
        )
    }
}

WalletSdkDelegate

By modifying the WalletSdkDelegate, you can get the current view controller and control the UI parameters in the controller at run time.

Swift

public protocol WalletSdkDelegate: AnyObject {

    /// Tells the delegate that the SDK is about to be presented in the controller.
    /// You can customize the layout as you wish dynamically.
    ///
    /// - Parameter controller: The UIViewController to be presented
    func walletSdk(willPresentController controller: UIViewController)

    ...
}

Example Code

Swift

extension WalletSdkAdapter: WalletSdkDelegate {

    func walletSdk(willPresentController controller: UIViewController) {
        print("willPresentController: \(controller)")

        if let controller = controller as? NewPINCodeViewController {
            controller.titleLabel1.text = "Hello World"
            controller.titleLabel1.textColor = .blue
            controller.titleLabel1.font = .systemFont(ofSize: 28, weight: .black)

        }

        if let controller = controller as? SecurityConfirmViewController {
            controller.imageBgView.backgroundColor = .blue
            controller.imageView.contentMode = .scaleAspectFill
        }
    }

    ...
}

View Public Interface

Use Jump to Definition (Cmd + left click) to see the public interface of the view controller. Change the UI items as you need.

Jump to Definition

Public Interface

ErrorMessenger

`ApiError` Interface

Swift

public struct ApiError: Error {

    public let errorCode: ErrorCode

    /// Error string from the SDK
    public let errorString: String

    /// Error string for UI display
    public var displayString: String
}

By modifying the ErrorMessenger, you can customize the ApiError messages. Your customization replaces the default ApiError.displayString for UI usage. You can also manage the localized error message.

Swift

public protocol ErrorMessenger {

    func getErrorString(_ code: ApiError.ErrorCode) -> String?
}

Example Code

Swift

import CircleProgrammableWalletSDK

class MyErrorMessenger: ErrorMessenger {

    func getErrorString(_ code: ApiError.ErrorCode) -> String? {
        switch code {
        case .hintsMatchAnswers:
            return "Your custom error message."

        case .networkError:
            return "Your custom error message."

        default:
            return nil
        }
    }
}

// ============ setErrorMessenger ============

WalletSdk.shared.setErrorMessenger(MyErrorMessenger())

ErrorCode and Messages Table

The following table shows the ApiError.ErrorCode key names and their default values:

ApiError.ErrorCode	Default Value
unknown(-1)	Unknown error
success(0)	Success
apiParameterMissing(1)	API parameter missing
apiParameterInvalid(2)	API parameter invalid
forbidden(3)	Forbidden
unauthorized(4)	Unauthorized
retry(9)	Retry
customerSuspended(10)	Customer suspended
pending(11)	Pending
invalidSession(12)	Invalid session
invalidPartnerId(13)	Invalid partner ID
invalidMessage(14)	Invalid Message published to a SQS queue.
invalidPhone(15)	Invalid phone number %@
walletIdNotFound(156001)	<server definition>
tokenIdNotFound(156002)	<server definition>
transactionIdNotFound(156003)	<server definition>
entityCredentialNotFound(156004)	<server definition>
walletSetIdNotFound(156005)	<server definition>
userAlreadyExisted(155101)	user already existed
userNotFound(155102)	user not found
userTokenNotFound(155103)	user token not found
userTokenExpired(155104)	user token expired
invalidUserToken(155105)	invalid user token
userWasInitialized(155106)	user was initialized
userHasSetPin(155107)	user has set pin
userHasSetSecurityQuestion(155108)	user has set security question
userWasDisabled(155109)	user was disabled
userDoesNotSetPinYet(155110)	user does not set pin yet
userDoesNotSetSecurityQuestionYet(155111)	user does not set security questions yet
incorrectUserPin(155112)	The PIN you entered is incorrect. You have %@ attempts left.
incorrectDeviceId(155113)	incorrect device id
incorrectAppId(155114)	app id not found
incorrectSecurityAnswers(155115)	The answers you entered are incorrect. You have %@ attempts left.
invalidChallengeId(155116)	invalid challenge id
invalidApproveContent(155117)	invalid approve content
invalidEncryptionKey(155118)	invalid encryption key
userPinLocked(155119)	You’ve used up all PIN attempts. Please wait for %@ mins to retry later.
securityAnswersLocked(155120)	The answers you entered are incorrect. Please wait for %@ mins to retry again.
walletIsFrozen(155501)	Wallet is Frozen
maxWalletLimitReached(155502)	Max wallet limit reached
walletSetIdMutuallyExclusive(155503)	WalletSetId can not be used together with blockchain and address filter
metadataUnmatched(155504)	metadata array length does not match wallet count
userCanceled(155701)	User canceled
launchUiFailed(155702)	<Launch UI failed reason>
pinCodeNotMatched(155703)	The PIN you entered is not the same as the first one.
insecurePinCode(155704)	Your PIN can’t have repeating or consecutive numbers.
hintsMatchAnswers(155705)	Your hint can’t be the same as the answer.
networkError(155706)	Network error
biometricsSettingNotEnabled(155708)	Biometrics is disabled
deviceNotSupportBiometrics(155709)	System doesn’t support biometrics
biometricsKeyPermanentlyInvalidated(155710)	(Android only) Failed to decrypt biometrics key
biometricsUserSkip(155711)	The user has not enabled biometrics yet
biometricsUserDisableForPin(155712)	The user refused to enable biometrics
biometricsUserLockout(155713)	(Android only) Too many requests. Try again later.
biometricsUserLockoutPermanent(155714)	Too many requests. The biometrics sensor on the device is locked.
biometricsUserNotAllowPermission(155715)	Biometrics is not permitted by the user.
biometricsInternalError(155716)	Unexpected error for biometrics: %@
invalidUserSecret(155718)	User token format is invalid. Please ensure the format of the user token is correct, then perform login and execute the challenge again.
userTokenMismatch(155719)	User token and SDK API execute function do not match. Ensure that `executeWithUserSecret` is for users with SSO/Email auth method and `execute` is for users with PIN auth method.
socialLoginFailed(155720)	Social login is failed. The social provider returns failed during the execution of social login flow. Please refer to the error message for more details.
loginInfoMissing(155721)	Login info is missing. Please perform login and execute the challenge again.
walletIdNotFound(156001)	The specified wallet does not exist, or is not visible to the caller. Try the request again with a valid wallet ID.
tokenIdNotFound(156002)	The specified token does not exist, or is not visible to the caller. Try the request again with a valid token ID.
transactionIdNotFound(156003)	The specified transaction does not exist, or is not visible to the caller. Try the request again with a valid transaction ID.
entityCredentialNotFound(156004)	Reusing an entity secret ciphertext is not allowed. Please re-encrypt the entity secret to generate a new ciphertext and try again.
walletSetIdNotFound(156005)	The specified wallet set does not exist, or is not visible to the caller. Try the request again with a valid wallet set.

Wallets

Contracts

CCTP

CCTP V1

Gateway

Paymaster

References

​Layouts

​How to Use the Layout Images and Index Tables

​New PIN Code

​Confirm PIN Code

​Enter PIN Code

​Security Intro

​Security Questions

​Select Question

​Security Summary

​Security Confirm

​Recover PIN Code

​Biometrics Setup

​Touch ID Setup

​Confirm Transaction

​Contract Interaction

​Signature Request

​Verify Email OTP

​Index Table A

​Index Table B

​Index Table C

​Static Resources

​Assets

​CirclePWLocalizable.strings

​Setup

​Example CirclePWLocalizable.strings

​CirclePWTheme.json

​Setup

​Example: CirclePWTheme.json

​Programmatic Customization

​Example Code

​WalletSdkDelegate

​Example Code

​View Public Interface

​Jump to Definition

​Public Interface

​ErrorMessenger

​ ApiError Interface

​Example Code

​ErrorCode and Messages Table

Layouts

How to Use the Layout Images and Index Tables

New PIN Code

Confirm PIN Code

Enter PIN Code

Security Intro

Security Questions

Select Question

Security Summary

Security Confirm

Recover PIN Code

Biometrics Setup

Touch ID Setup

Confirm Transaction

Contract Interaction

Signature Request

Verify Email OTP

Index Table A

Index Table B

Index Table C

Static Resources

Assets

CirclePWLocalizable.strings

Setup

Example CirclePWLocalizable.strings

CirclePWTheme.json

Setup

Example: CirclePWTheme.json

Programmatic Customization

Example Code

WalletSdkDelegate

Example Code

View Public Interface

Jump to Definition

Public Interface

ErrorMessenger

`ApiError` Interface

Example Code

ErrorCode and Messages Table
