Android SDK UI Customization API

Android SDK UI and key mapping reference for customizations.

This document describes the different customizable sections of the Programmable Wallet SDK customization API. To get the most flexibility out of the SDK, use this reference with the SDK API.

Text, Color, and Font Customization

For text-related customization, there are two types of customization, dynamic and static:

• For dynamic customization, update the source code’s desired string, color, and font (as typeface).
• For Static customization, add or update the strings.xml file located at src/main/res/values/strings.xml. To avoid the static customization being overwritten by the dynamic customization, use the null value for the text argument when initializing with theTextConfig() constructor, for example:

Java

new TextConfig(null, color, typeface);

Please reference the UI screenshots below with each string’s mapping code, then use the mapping code to find the Resource.TextsKey name in the Index Table for more detail of customization support and usage for each text string.

Note:

Some strings do not support static or dynamic customization for text, color, font and gradientColors using the TextConfig() constructor.

The detail of supporting scope can be found in the index table and the note column. If the app still customizes those unsupported values, it will give a WARN level log printed to logcat, filtered with CustomizeChecker for log abstraction.

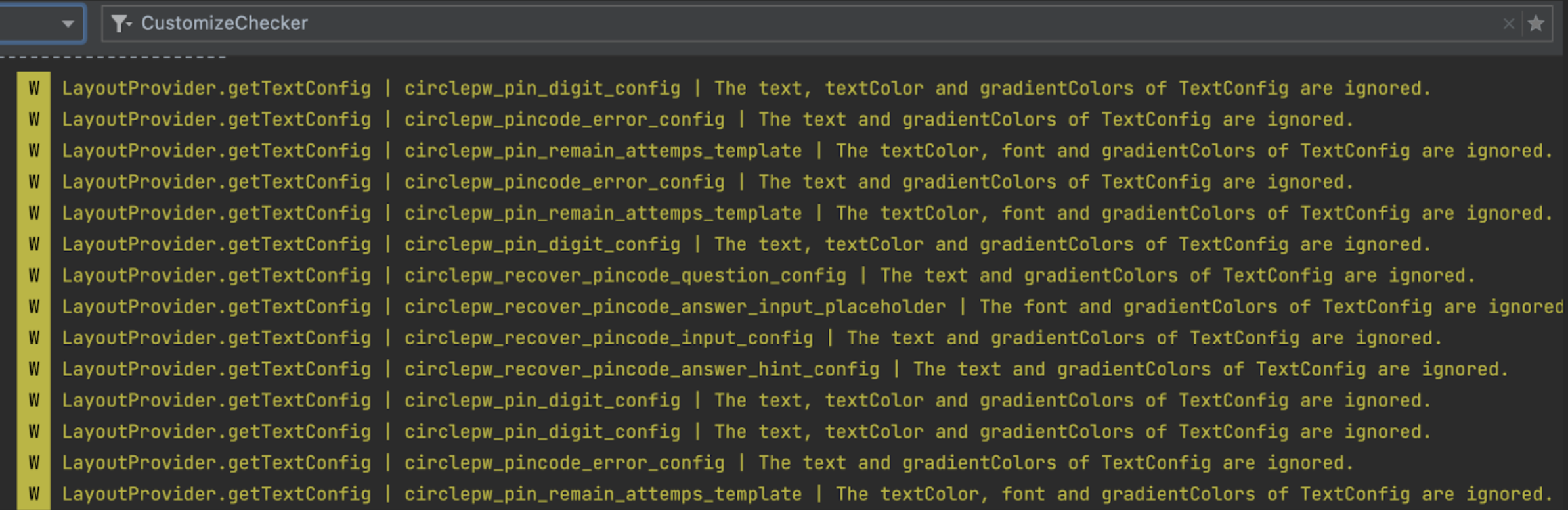

The correct usage for unsupported value when initializing with the TextConfig() constructor is as follows:

Java

new TextConfig("Your Text Here", null /*gradientColors*/, null); //color is 0 by default.
new TextConfig("", 0 /*color*/, null);
new TextConfig("Your Text Here");

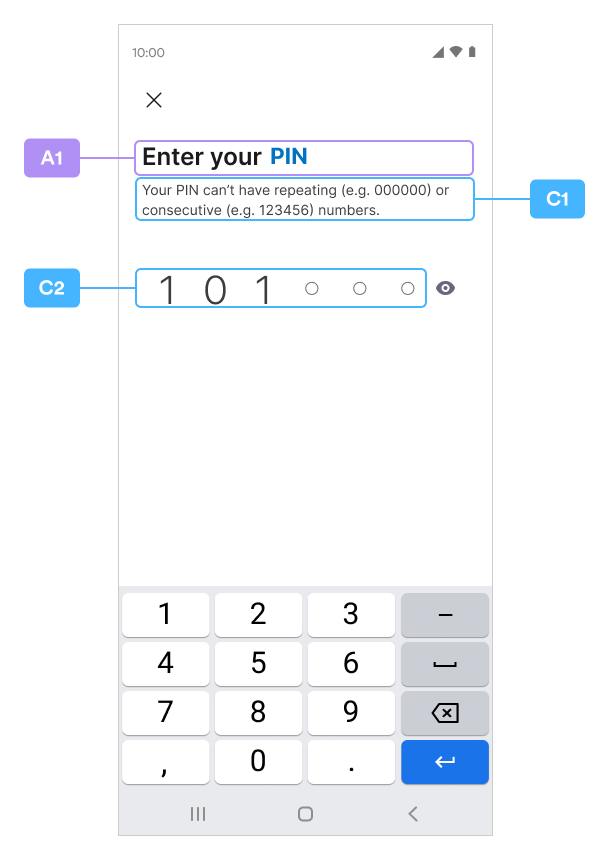

New PIN Code

A1 / C1~C5

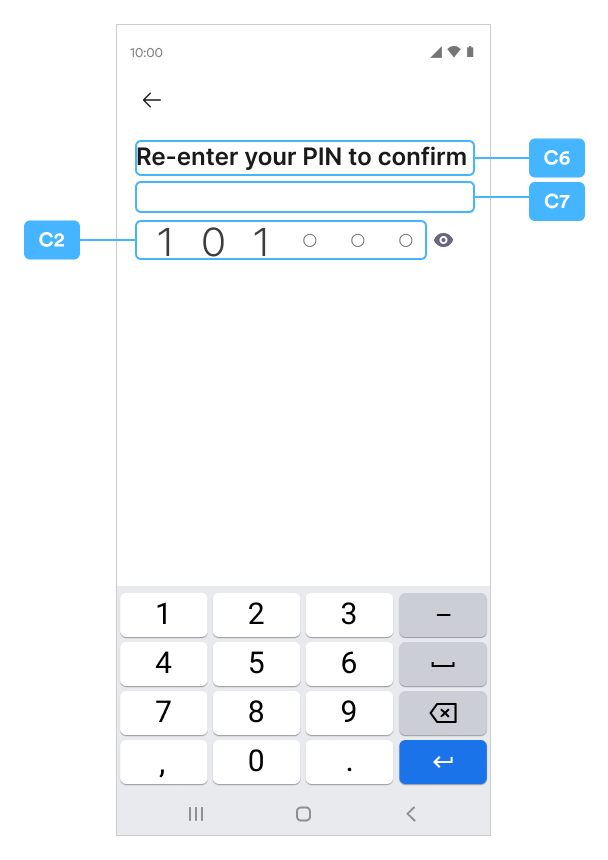

Confirm PIN Code

C6~C7

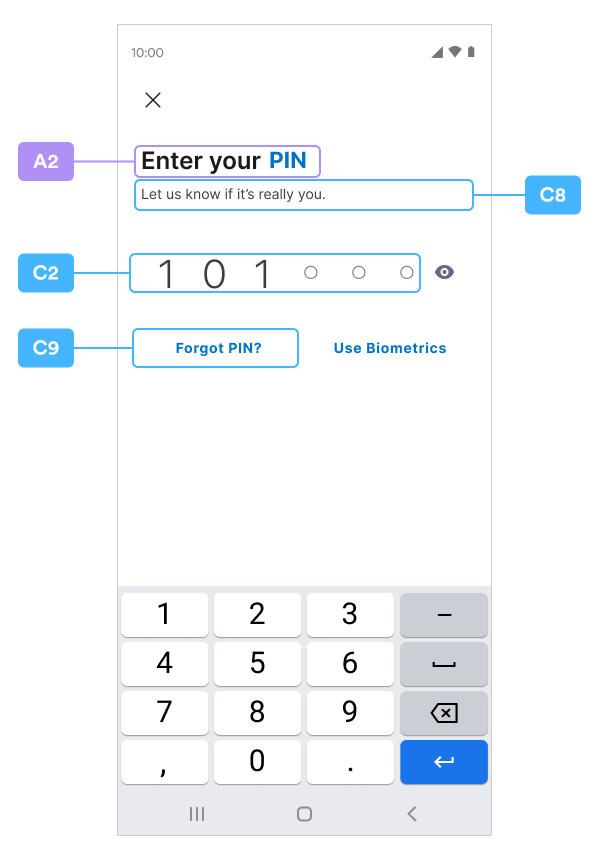

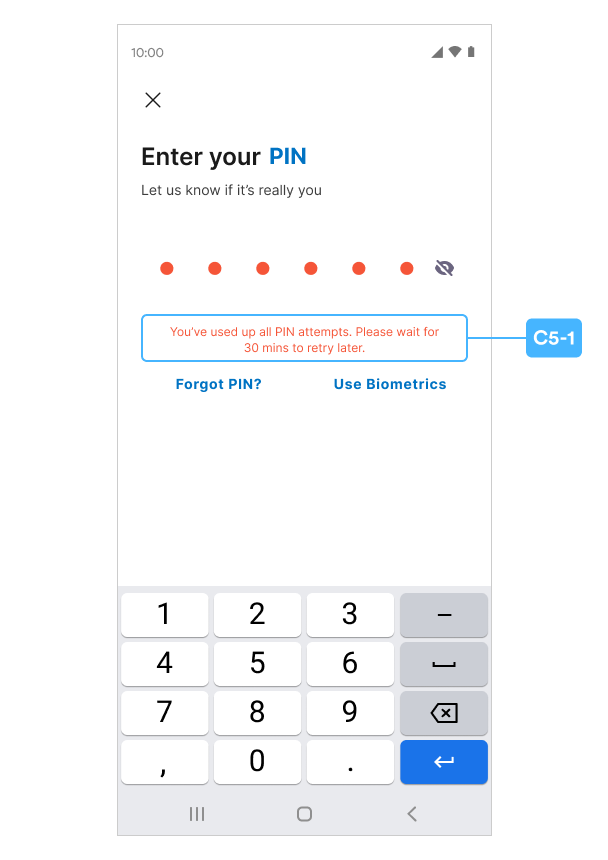

Enter PIN Code

A2 / C8~C9, C5-1, C5-2

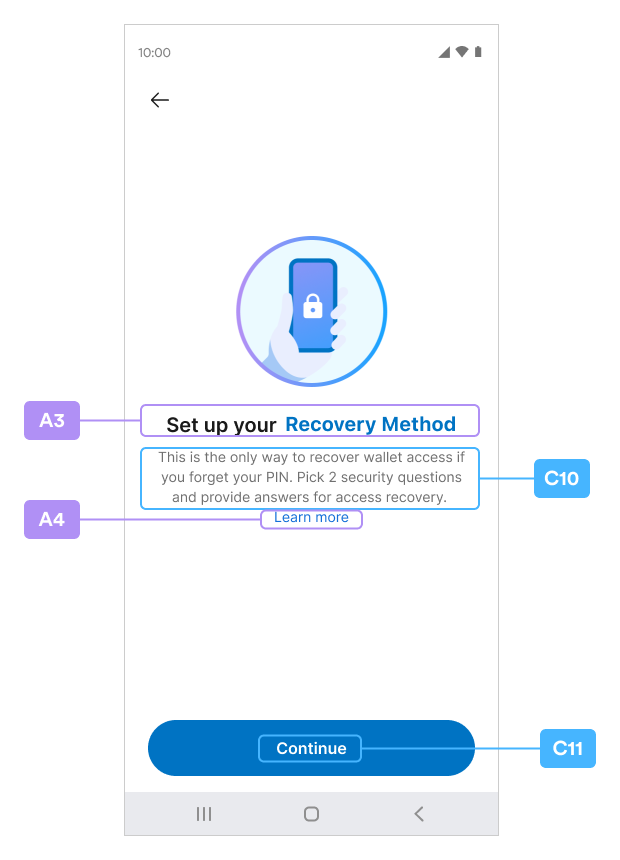

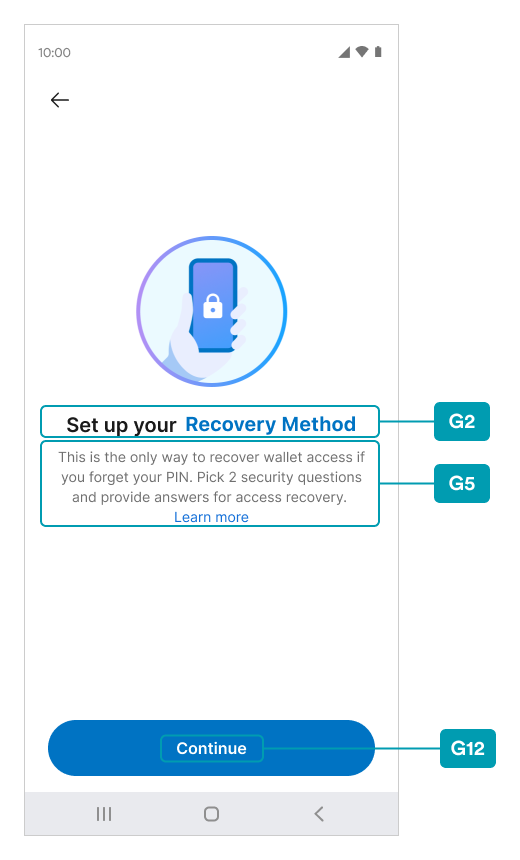

Security Intros

A3A4 / C10C11

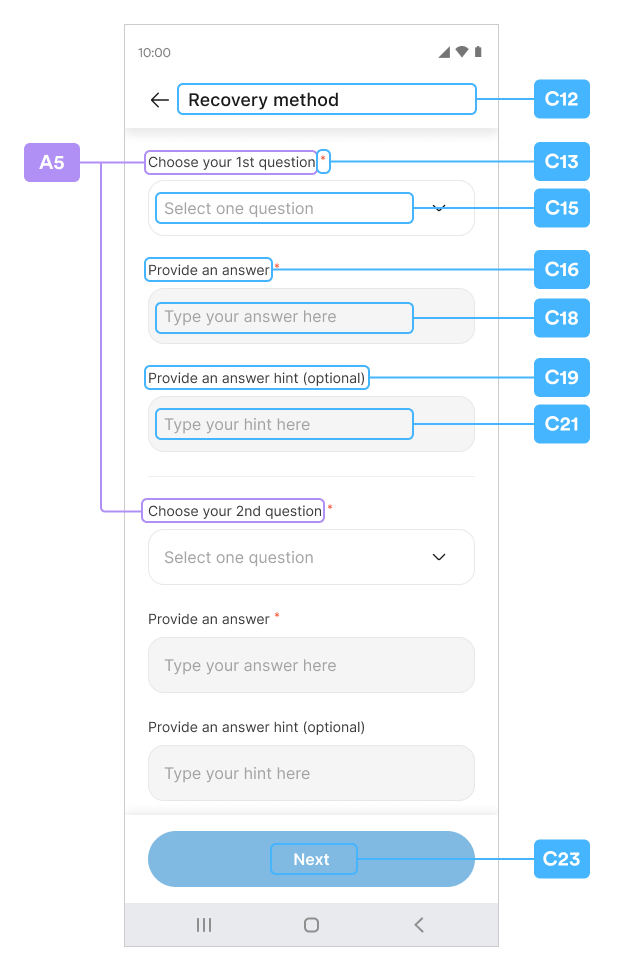

Security Questions Customization

Please reference the Security Question section in the SDK for how to customize the question by using setSecurityQuestions method.

A5 / C12~C25

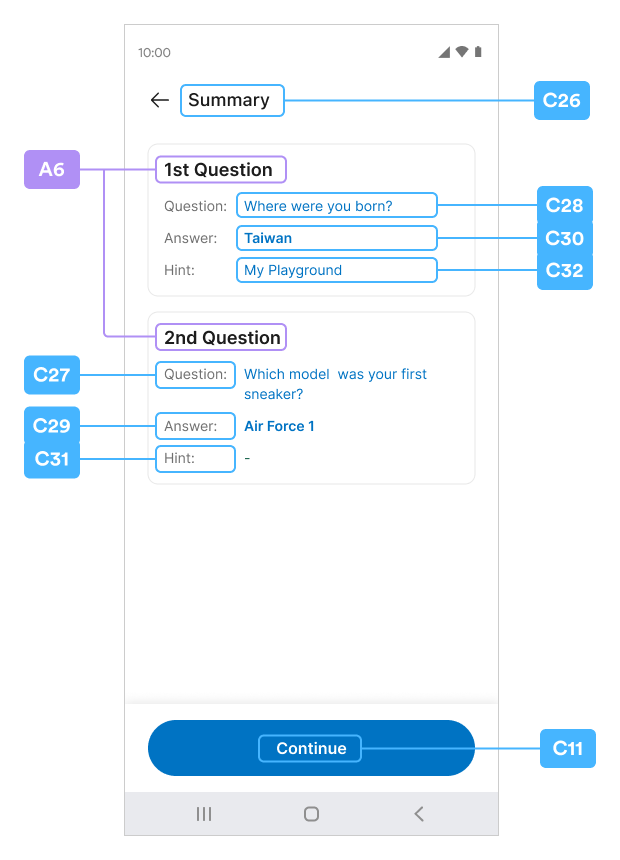

Security Summary

A6 / C26~C32

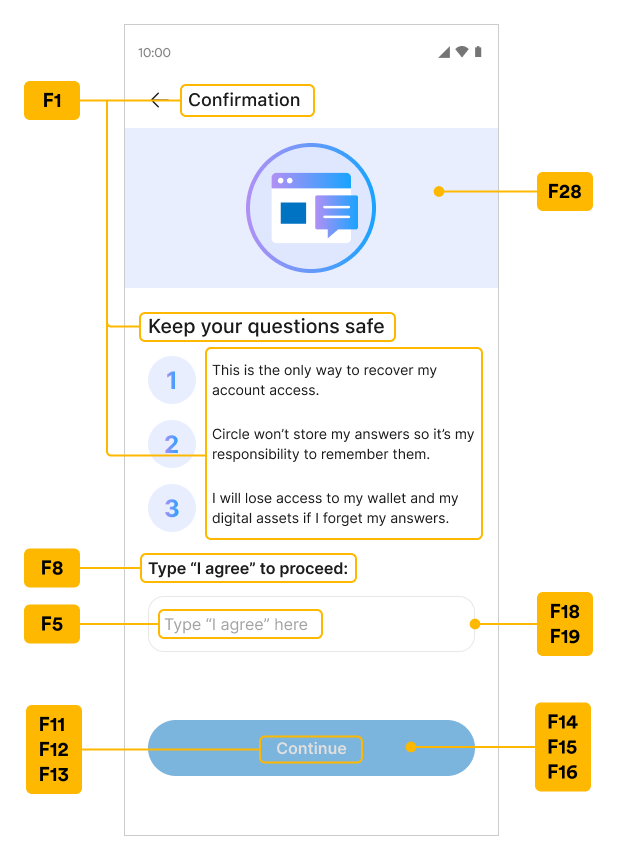

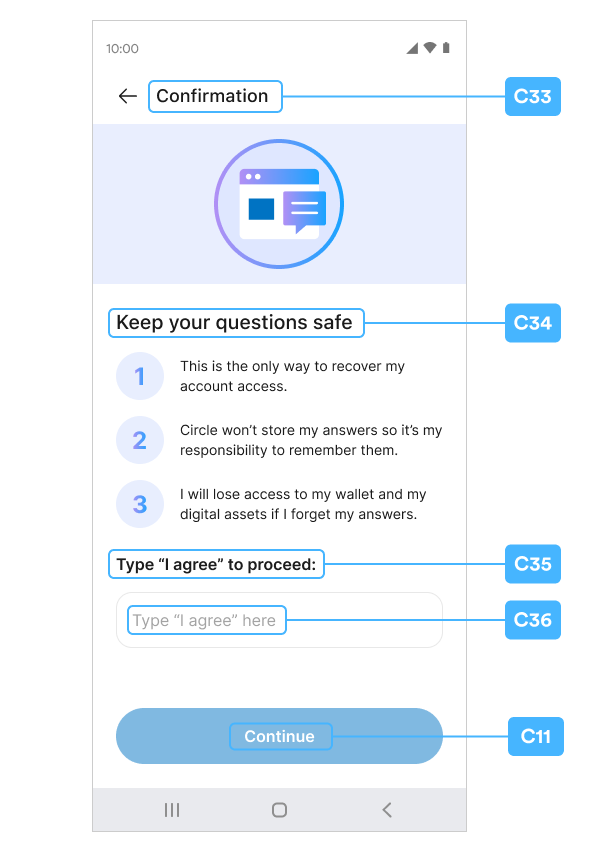

Security Confirm

C33~C37 / B1

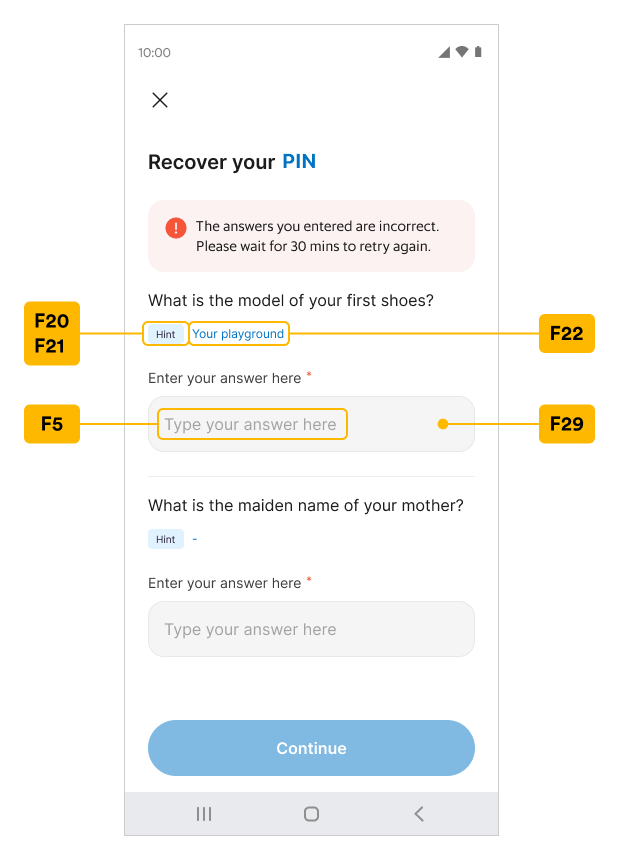

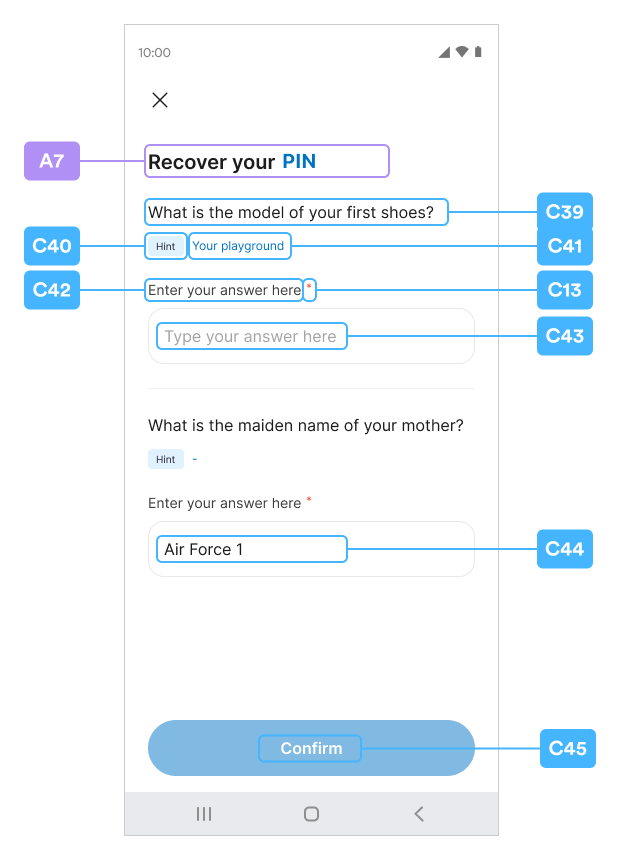

Recover PIN Code

A7 / C39~C60

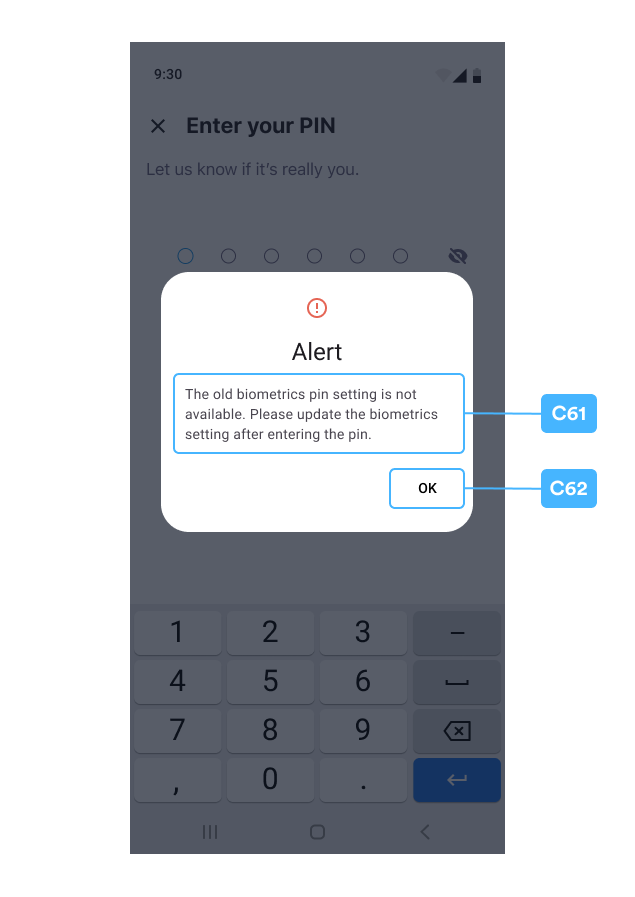

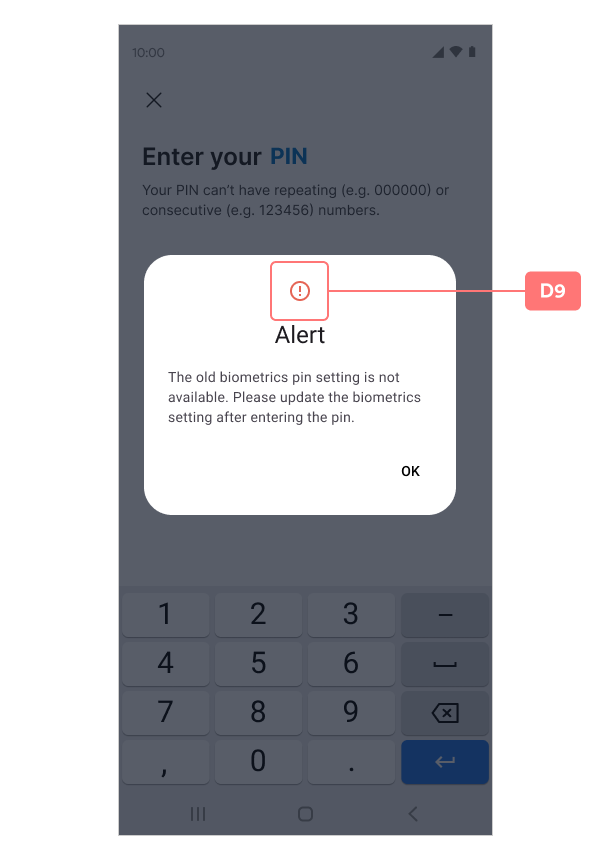

Alert Pop Window

C61~C62

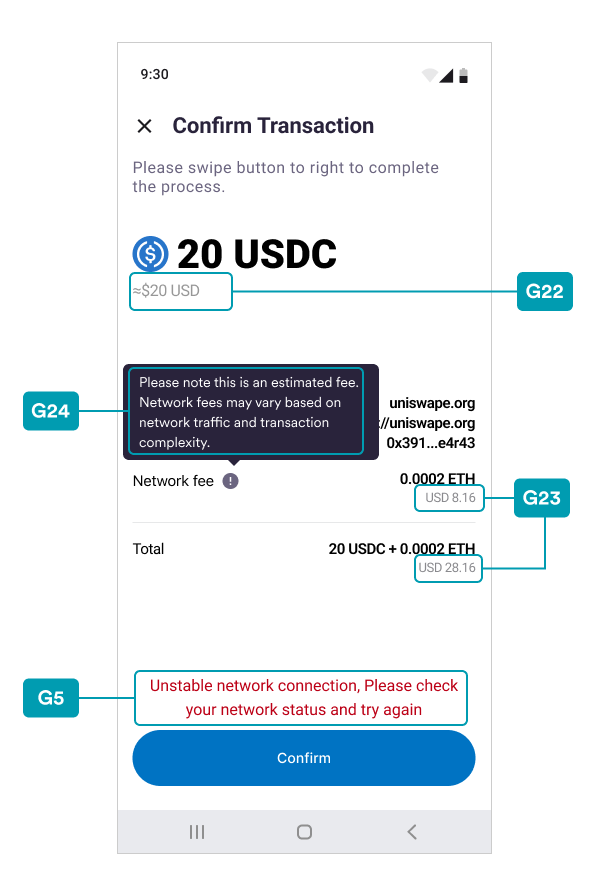

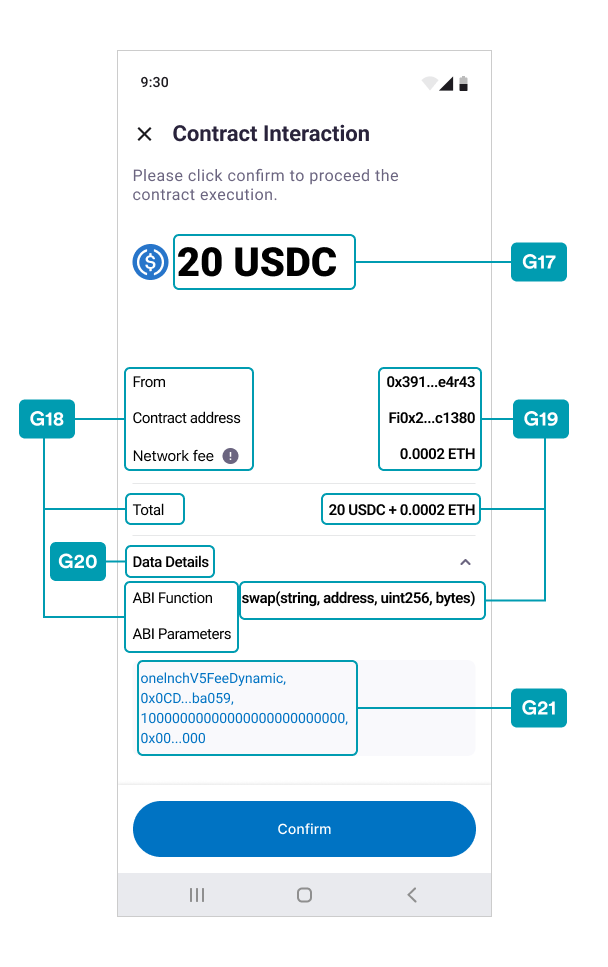

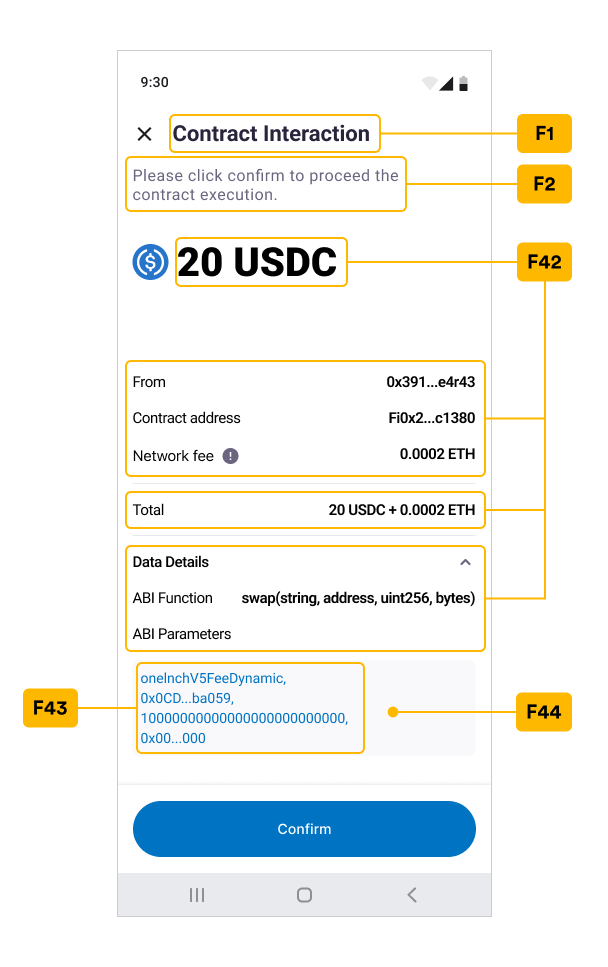

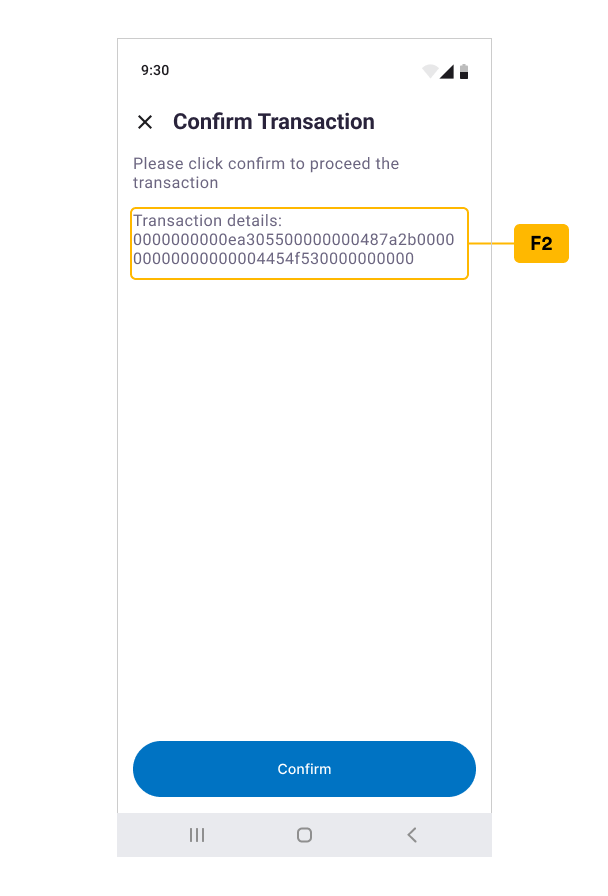

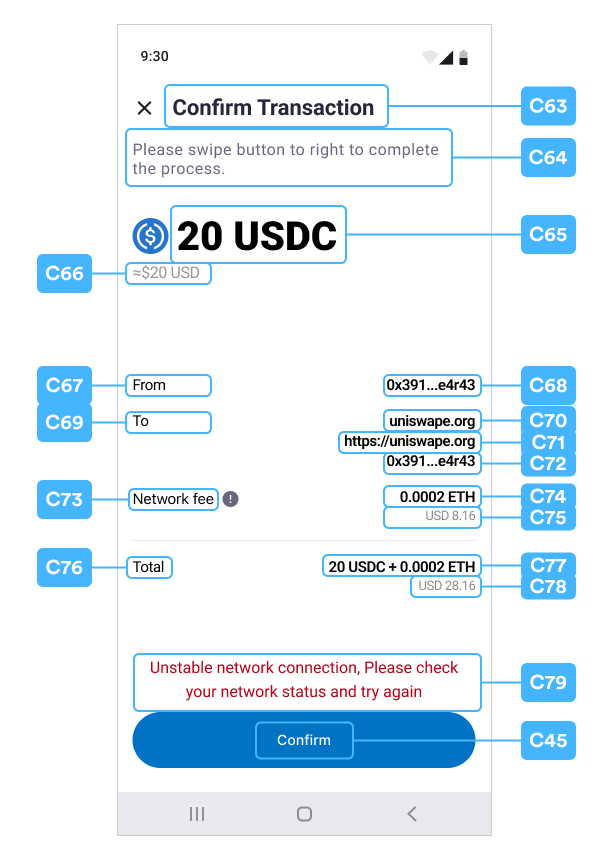

Confirm Transaction

C63~C90

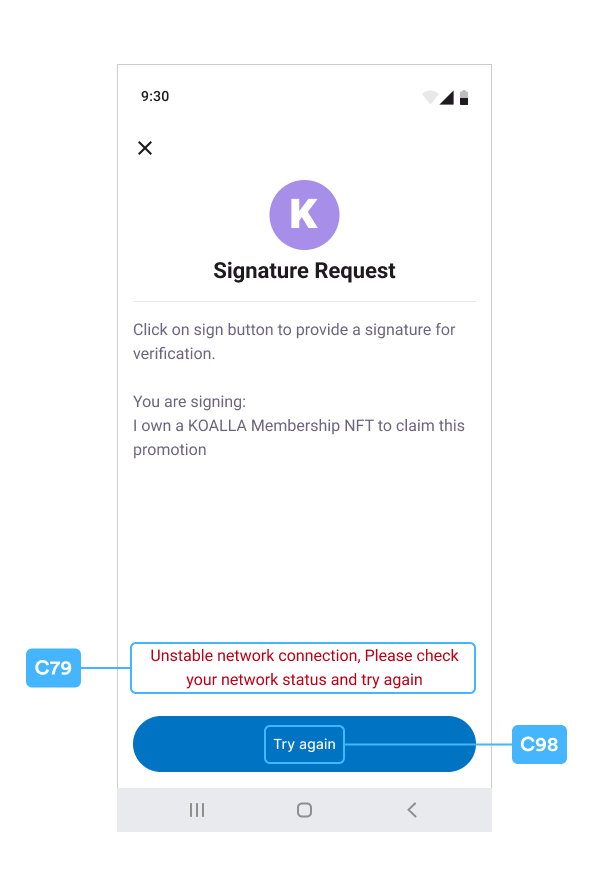

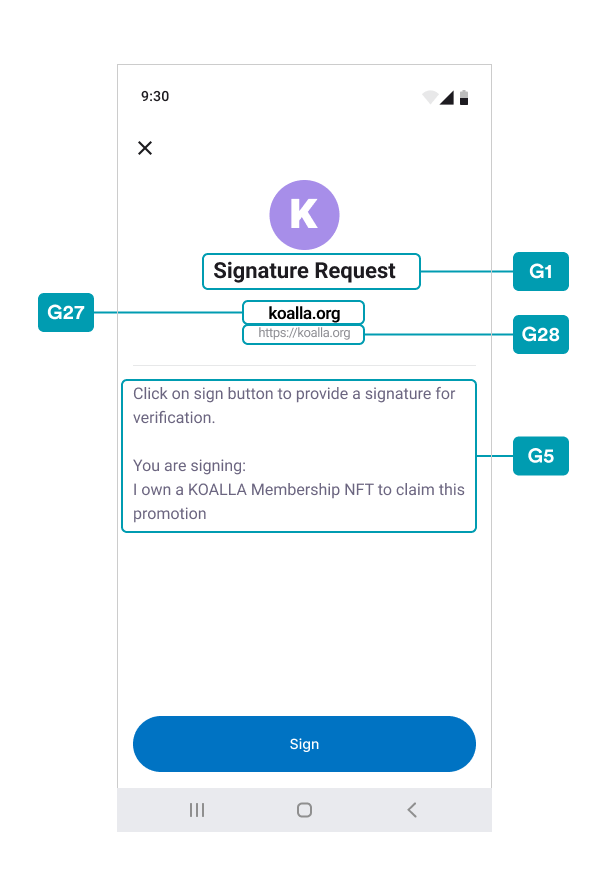

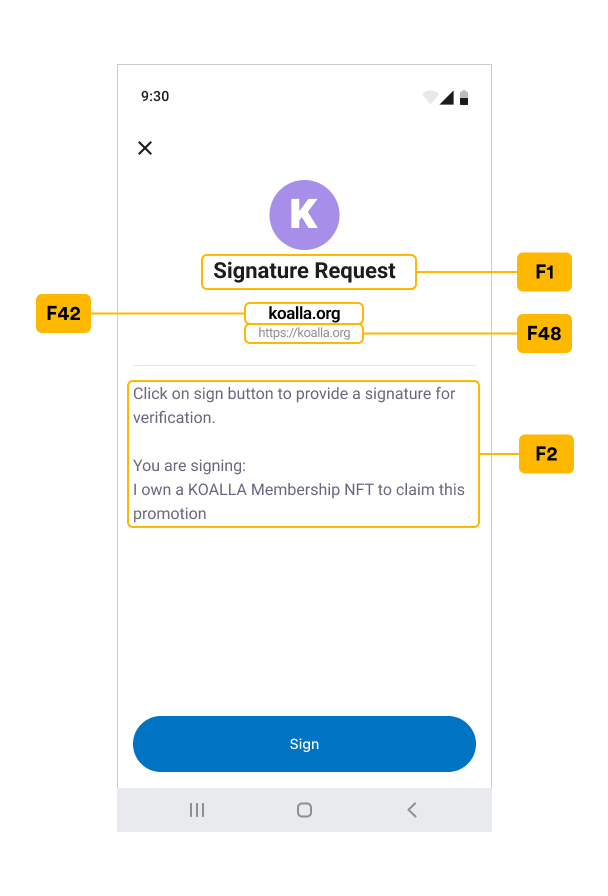

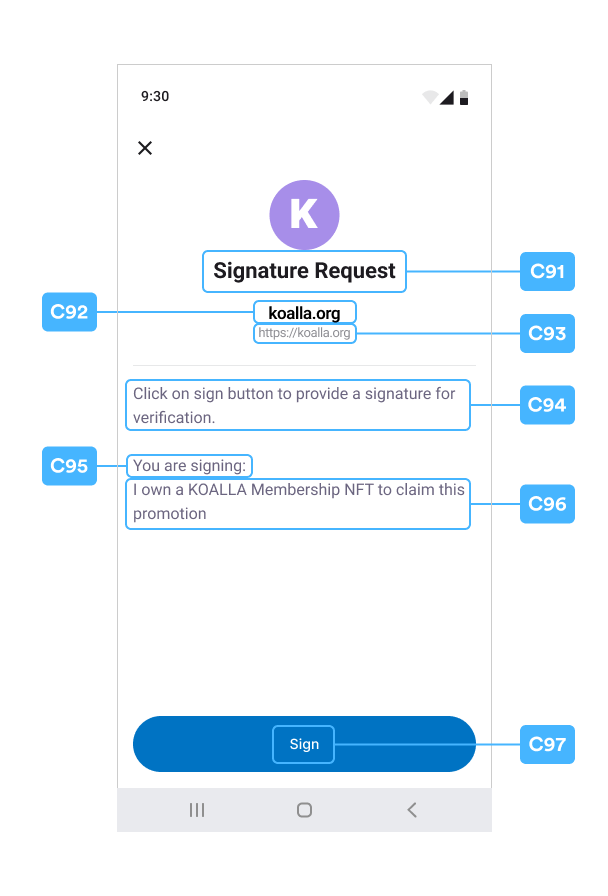

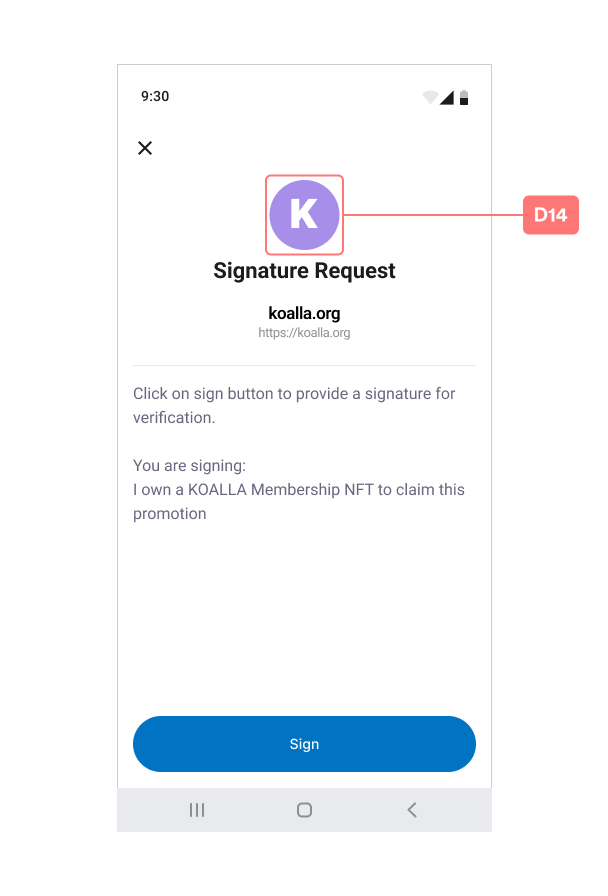

Signature Request

C91~C98

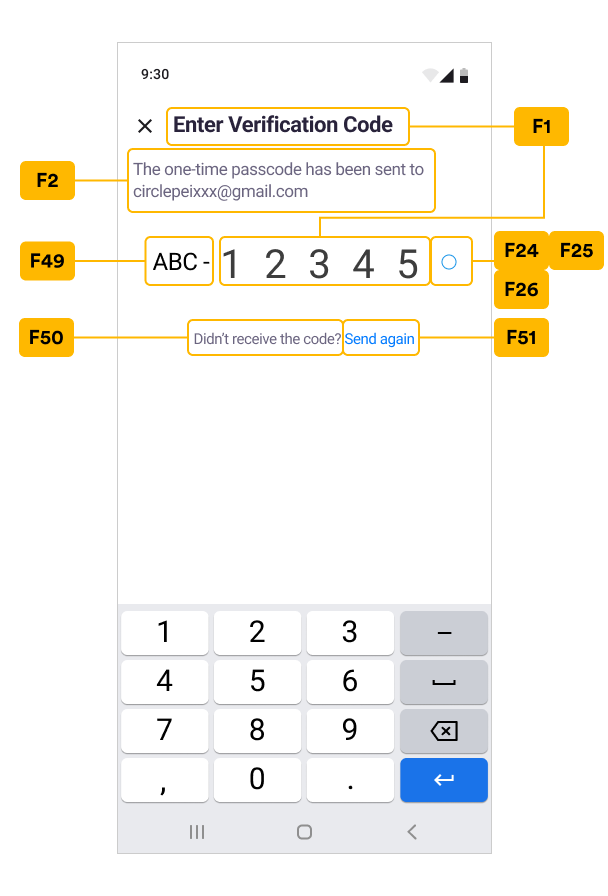

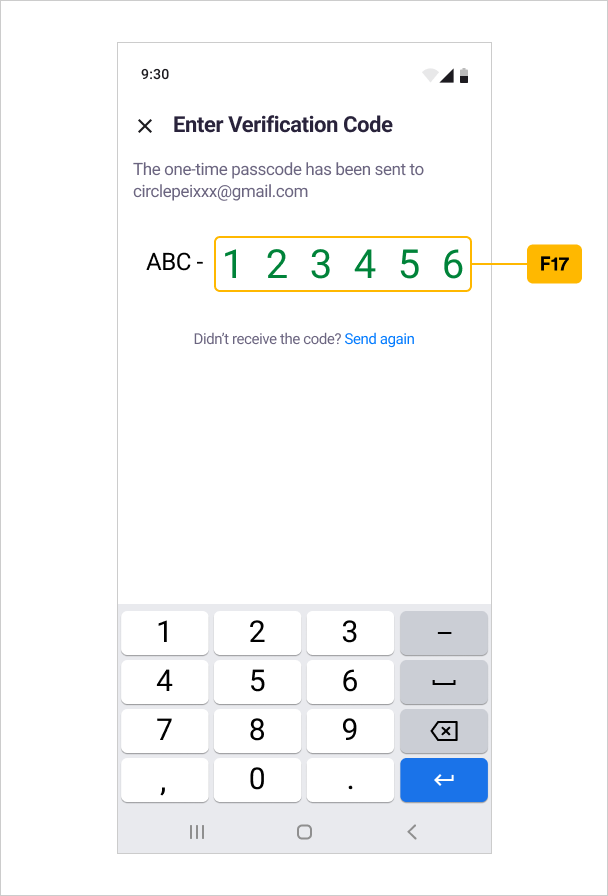

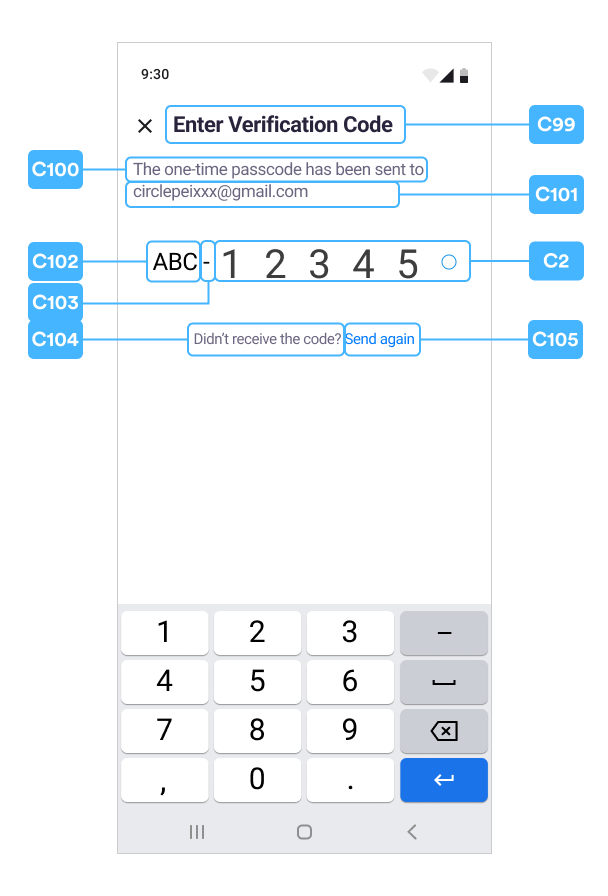

Verify OTP

C99~C105

A Index Table - Resource.TextsKey

#	Resource.TextsKey	TextConfigs length	TextConfig.text	TextConfig.textColor	TextConfig.font	TextConfig.gradientColors	colors.xml	styles.xml	Note🔖
A1	newPinCodeHeadline	Free	✅	✅🔖	✅	✅🔖	circlepw_text_main	circlepw_heading3	textColor will be applied if gradientColors is null.
A2	enterPinCodeHeadline	Free	✅	✅🔖	✅	✅🔖	circlepw_text_main	circlepw_heading3	textColor will be applied if gradientColors is null.
A3	securityIntroHeadline	Free	✅	✅🔖	✅	✅🔖	circlepw_text_main	circlepw_heading4	textColor will be applied if gradientColors is null.
A4	securityIntroLink	2🔖	✅	✅🔖	✅🔖	❌	circlepw_text_action	circlepw_body2	TextConfigs: [DisplayText, URL]Only display when the array length is not less then 2 and the URL is not empty.Set color / font according to TextConfig[0].
A5	securityQuestionHeaders	<= 5🔖	✅	✅🔖	✅🔖	❌	circlepw_text_auxiliary	circlepw_body2	TextConfigs over the length limit will be ignored.
A6	securitySummaryQuestionHeaders	Same as securityQuestionHeaders (A5)	✅	✅	✅	❌	circlepw_text_main2	circlepw_heading5	TextConfigs over the length limit will be ignored.
A7	recoverPinCodeHeadline	Free	✅	✅🔖	✅	✅🔖	circlepw_text_main	circlepw_heading3	textColor will be applied if gradientColors is null.

B Index Table - Resource.IconTextsKey

Use this Index Table to reference the Dynamic special Icon, Text, Color, and Font Customization. Both the icon image and the text fields are dynamically configured together.

Use RemoteImageSetter or LocalImageSetter for icon images:

• RemoteImageSetter constructor:
  • RemoteImageSetter(int drawableId, String url)
• LocalImageSetter constructor:
  • LocalImageSetter(int drawableId)

The SDK uses glide as the image loader for remote images. For the cache strategy, please see DiskCacheStrategy.AUTOMATIC.

#	Resource.IconTextsKey	TextConfigs length	TextConfig.text	TextConfig.textColor	TextConfig.font	TextConfig.gradientColors	colors.xml	styles.xml	Note🔖
B1	securityConfirmationItems	<= 4🔖	✅	✅	✅	❌	circlepw_text_main	circlepw_body2	TextConfigs over the length limit will be ignored.

C Index Table - Resource.Key

Note:

The gradientColors field is not supported for the Keys in this table. If you dynamically set the color as gradientColor, the effect will be ignored and the WARN level log will be printed.

#	Resource.Key	string.xml	text	textColor	font	colors.xml	styles.xml	Note
C1	circlepw_new_pincode_subhead	circlepw_new_pincode_subhead	✅	✅	✅	circlepw_text_auxiliary	circlepw_body2
C2	circlepw_pin_digit_config	❌	❌	✅	✅	circlepw_text_main	circlepw_pinDigitText	Normal
						circlepw_main_bt_background		Succeed
						circlepw_error		Failed

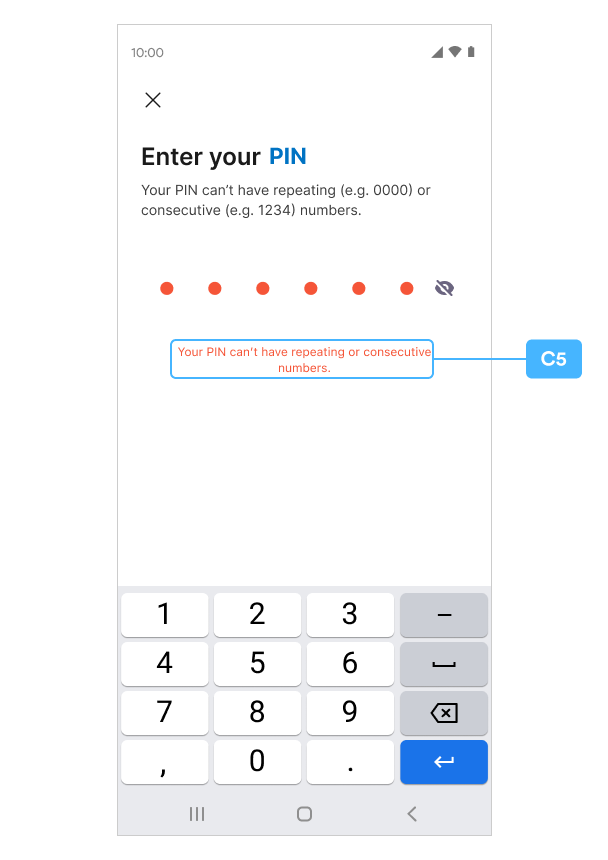

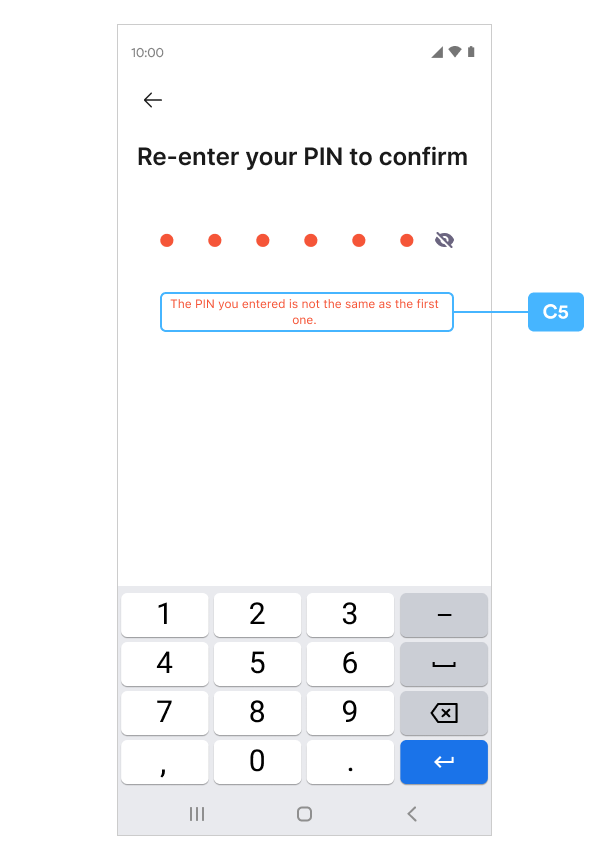

C5	circlepw_pincode_error_config	❌🔖	❌🔖	✅	✅	circlepw_error	circlepw_body2	For text, see Error Message:incorrectUserPin(155112)userPinLocked(155119)pinCodeNotMatched(155703)
C5-1	circlepw_pin_remain_attemps_template	circlepw_pin_remain_attemps_template	✅🔖	❌	❌	❌	❌	e.g. You have %s attempts left.
C5-2	circlepw_pin_lock_period_template	circlepw_pin_lock_period_template	✅🔖	❌	❌	❌	❌	e.g. You’ve used up all PIN attempts. Please wait for %s mins to retry later..
C6	circlepw_confirm_pincode_headline	circlepw_confirm_pincode_headline	✅	✅	✅	circlepw_text_main	circlepw_heading3
C7	circlepw_confirm_pincode_subhead	circlepw_confirm_pincode_subhead	✅	✅	✅	circlepw_text_auxiliary	circlepw_body2
C8	circlepw_enter_pincode_subhead	circlepw_enter_pincode_subhead	✅	✅	✅	circlepw_text_auxiliary	circlepw_body2
C9	circlepw_enter_pincode_forgot_pin	circlepw_enter_pincode_forgot_pin	✅	✅	✅	circlepw_text_action	circlepw_actionText
C10	circlepw_security_intros_description	circlepw_security_intros_description	✅	✅	✅	circlepw_text_auxiliary2	circlepw_body2
C11	circlepw_continue	circlepw_continue	✅	✅	✅	circlepw_main_bt_text	circlepw_mainButtonText	Normal
						circlepw_main_bt_text_pressed		Pressed
						circlepw_disabled_main_bt_text		Disabled
C12	circlepw_security_questions_title	circlepw_security_questions_title	✅	✅	✅	circlepw_text_main	circlepw_toolbarTitle
C13	circlepw_security_questions_required_mark	circlepw_security_questions_required_mark	✅	✅	✅	circlepw_error	circlepw_metadata1

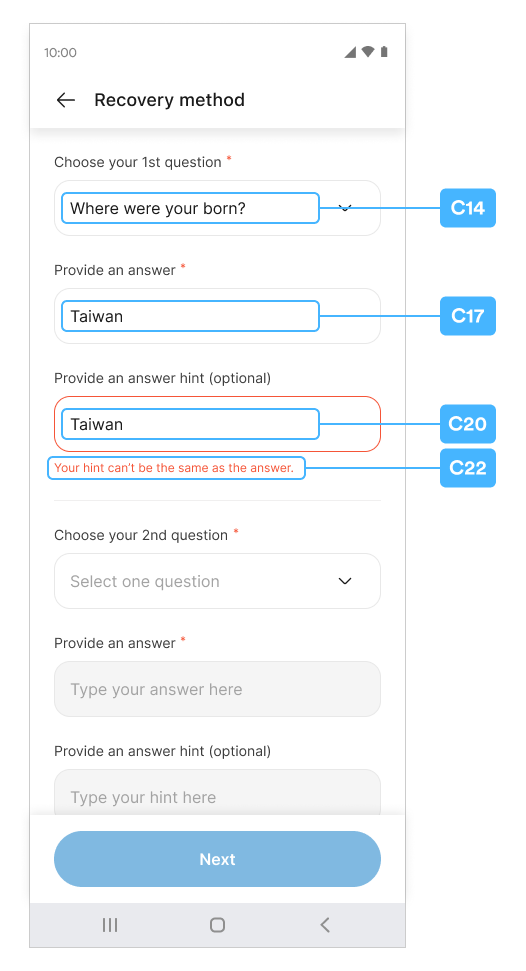

C14	circlepw_security_questions_question_input_config	❌	❌	✅	✅	circlepw_text_main	circlepw_body1
C15	circlepw_security_questions_question_placeholder	circlepw_security_questions_question_placeholder	✅🔖	✅🔖	❌	circlepw_placeholder	circlepw_body1	Set ​​TextView’s textColorHint and hint. Apply circlepw_security_questions_question_input_config (C14)’s font.
C16	circlepw_security_questions_answer_header	circlepw_security_questions_answer_header	✅	✅	✅	circlepw_text_auxiliary	circlepw_body2
C17	circlepw_security_questions_answer_input_config	❌	❌	✅	✅	circlepw_text_main	circlepw_body1
C18	circlepw_security_questions_answer_placeholder	circlepw_security_questions_answer_placeholder	✅🔖	✅🔖	❌🔖	circlepw_placeholder	circlepw_body1	Set ​​TextView’s textColorHint and hint. Apply circlepw_security_questions_answer_input_config (C17)’s font.
C19	circlepw_security_questions_answer_hint_header	circlepw_security_questions_answer_hint_header	✅	✅	✅	circlepw_text_auxiliary	circlepw_body2
C20	circlepw_security_questions_answer_hint_input_config	❌	❌	✅	✅	circlepw_text_main	circlepw_body1
C21	circlepw_security_questions_answer_hint_placeholder	circlepw_security_questions_answer_hint_placeholder	✅🔖	✅🔖	❌🔖	circlepw_placeholder	circlepw_body1	Set ​​TextView’s textColorHint and hint. Apply circlepw_security_questions_answer_hint_input_config (C20)’s font.
C22	circlepw_security_questions_error_config	❌🔖	❌🔖	✅	✅	circlepw_error	circlepw_metadata1	For text, see Error Message:hintsMatchAnswers(155705)
C23	circlepw_next	circlepw_next	✅	✅	✅	circlepw_main_bt_text	circlepw_mainButtonText	Normal
						circlepw_main_bt_text_pressed		Pressed
						circlepw_disabled_main_bt_text		Disabled

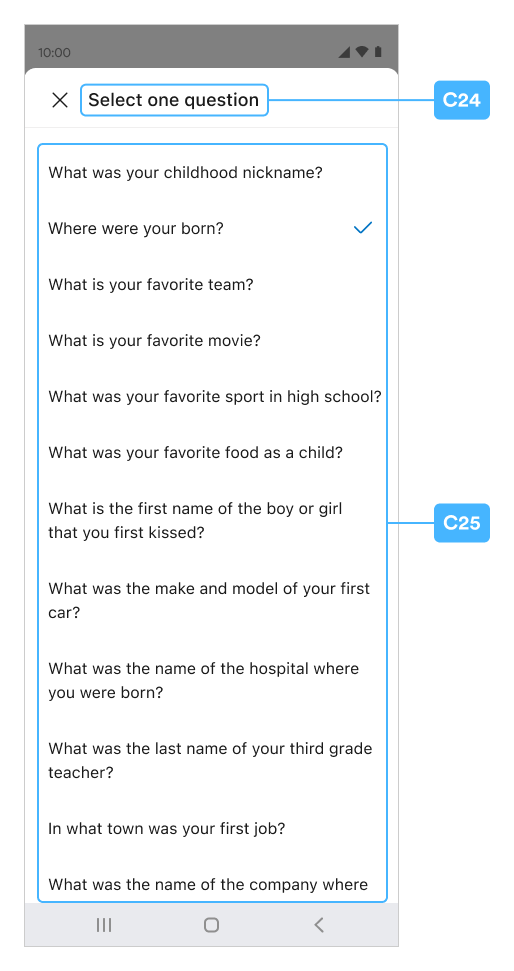

C24	circlepw_select_question_title	circlepw_select_question_title	✅	✅	✅	circlepw_text_main	circlepw_toolbarTitle
C25	circlepw_select_question_item_config	❌	❌	✅	✅	circlepw_text_main	circlepw_body1
C26	circlepw_security_summary_title	circlepw_security_summary_title	✅	✅	✅	circlepw_text_main	circlepw_toolbarTitle
C27	circlepw_question_label	circlepw_question_label	✅	✅	✅	circlepw_text_auxiliary2	circlepw_body2
C28	circlepw_security_summary_question_value_config	❌	❌	✅	✅	circlepw_text_summary	circlepw_body2
C29	circlepw_answer_label	circlepw_answer_label	✅	✅	✅	circlepw_text_auxiliary2	circlepw_body2
C30	circlepw_security_summary_answer_value_config	❌	❌	✅	✅	circlepw_text_summary	circlepw_caption2
C31	circlepw_hint_label	circlepw_hint_label	✅	✅	✅	circlepw_text_auxiliary2	circlepw_body2
C32	circlepw_security_summary_hint_value_config	❌	❌	✅	✅	circlepw_text_summary	circlepw_body2
C33	circlepw_security_confirm_title	circlepw_security_confirm_title	✅	✅	✅	circlepw_text_main	circlepw_toolbarTitle
C34	circlepw_security_confirm_headline	circlepw_security_confirm_headline	✅	✅	✅	circlepw_text_main	circlepw_heading4
C35	circlepw_security_confirm_input_headline	circlepw_security_confirm_input_headline	✅	✅	✅	circlepw_text_main2	circlepw_caption1
C36	circlepw_security_confirm_input_placeholder	circlepw_security_confirm_input_placeholder	✅🔖	✅🔖	❌🔖	circlepw_placeholder	circlepw_body1	Set ​​TextView’s textColorHint and hint. Apply circlepw_security_confirm_input_config (C37)’s font.
C37	circlepw_security_confirm_input_config	❌	❌	✅	✅	circlepw_text_main	circlepw_body1
C37-1	circlepw_security_confirm_input_match	circlepw_security_confirm_input_match	✅	❌	❌	❌	❌	The text is the answer that requires user type. e.g. I agree
C38	circlepw_recover_pincode_error_config	❌🔖	❌🔖	✅	✅	circlepw_text_main	circlepw_body2	For text, see Error Message:incorrectSecurityAnswers(155115)securityAnswersLocked(155120)
C38-1	circlepw_answer_remain_attemps_template	circlepw_answer_remain_attemps_template	✅🔖	❌	❌	❌	❌	e.g. You have %s attempts left.
C38-2	circlepw_answer_lock_period_template	circlepw_answer_lock_period_template	✅🔖	❌	❌	❌	❌	e.g. Please wait for %s mins to retry later
C39	circlepw_recover_pincode_question_config	❌	❌	✅	✅	circlepw_text_main2	circlepw_body1
C40	circlepw_hint_tag	circlepw_hint_tag	✅	✅	✅	circlepw_tag_text	circlepw_metadata2
C41	circlepw_recover_pincode_answer_hint_config	❌	❌	✅	✅	circlepw_tag_following_text	circlepw_metadata1
C42	circlepw_recover_pincode_answer_input_header	✅	✅	✅	✅	circlepw_text_auxiliary	circlepw_body2
C43	circlepw_recover_pincode_answer_input_placeholder	circlepw_recover_pincode_answer_input_placeholder	✅🔖	✅🔖	❌🔖	circlepw_placeholder	circlepw_body1	Set ​​TextView’s textColorHint and hint. Apply circlepw_recover_pincode_input_config (C44)’s font.
C44	circlepw_recover_pincode_input_config	❌	❌	✅	✅	circlepw_text_main	circlepw_body1
C45	circlepw_confirm	circlepw_confirm	✅	✅	✅	circlepw_main_bt_text	circlepw_mainButtonText	Normal
						circlepw_main_bt_text_pressed		Pressed
						circlepw_disabled_main_bt_text		Disabled

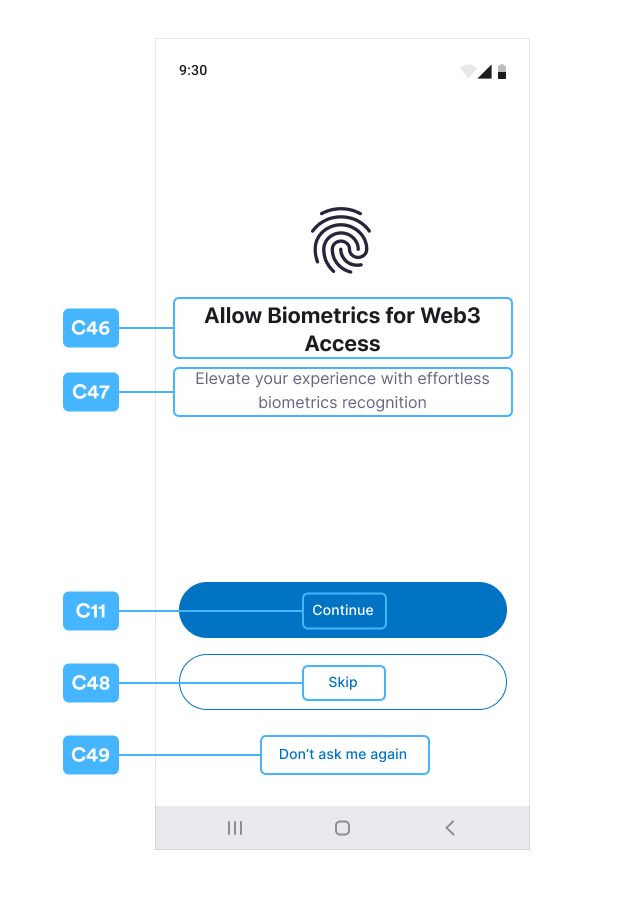

C46	circlepw_pin_biometrics_allow_title	circlepw_pin_biometrics_allow_title	✅	✅	✅	circlepw_text_main	circlepw_heading3
C47	circlepw_pin_biometrics_allow_subtitle	circlepw_pin_biometrics_allow_subtitle	✅	✅	✅	circlepw_text_auxiliary	circlepw_body2
C48	circlepw_skip	circlepw_skip	✅	✅	✅	circlepw_second_bt_text	circlepw_secondButton	Normal
						circlepw_second_bt_text		Pressed
						circlepw_second_bt_text_disabled		Disabled
C49	circlepw_pin_biometrics_disable	circlepw_pin_biometrics_disable	✅	✅	✅	circlepw_plain_bt_text	circlepw_plainButton	Normal
						circlepw_plain_bt_text		Pressed
						circlepw_plain_bt_text_disabled		Disabled

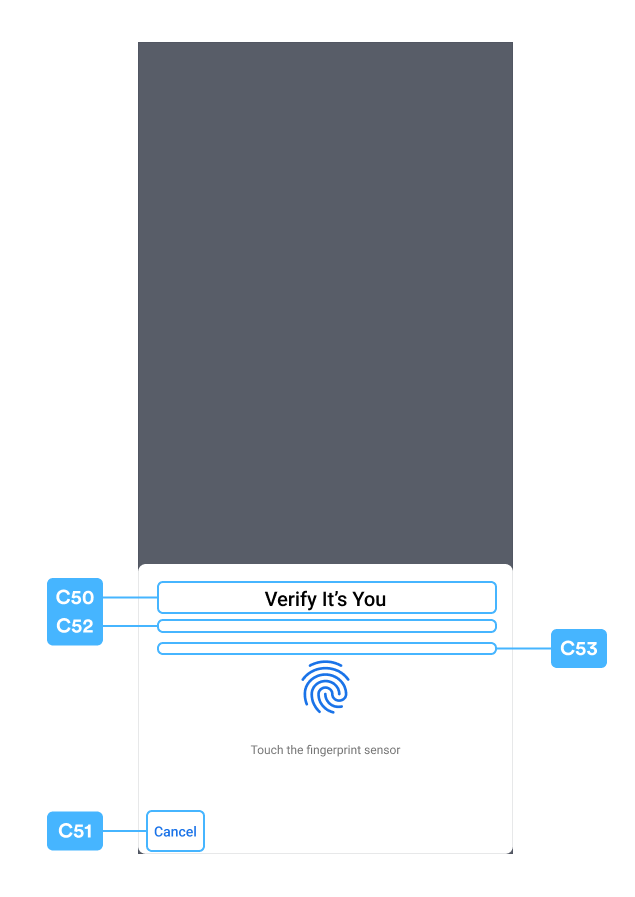

C50	circlepw_pin_biometrics_encrypt_title	circlepw_pin_biometrics_encrypt_title	✅	❌	❌	❌	❌
C51	circlepw_pin_biometrics_encrypt_negative_text	circlepw_pin_biometrics_encrypt_negative_text	✅	❌	❌	❌	❌
C52	circlepw_pin_biometrics_encrypt_subtitle	circlepw_pin_biometrics_encrypt_subtitle	✅	❌	❌	❌	❌
C53	circlepw_pin_biometrics_encrypt_desc	circlepw_pin_biometrics_encrypt_desc	✅	❌	❌	❌	❌

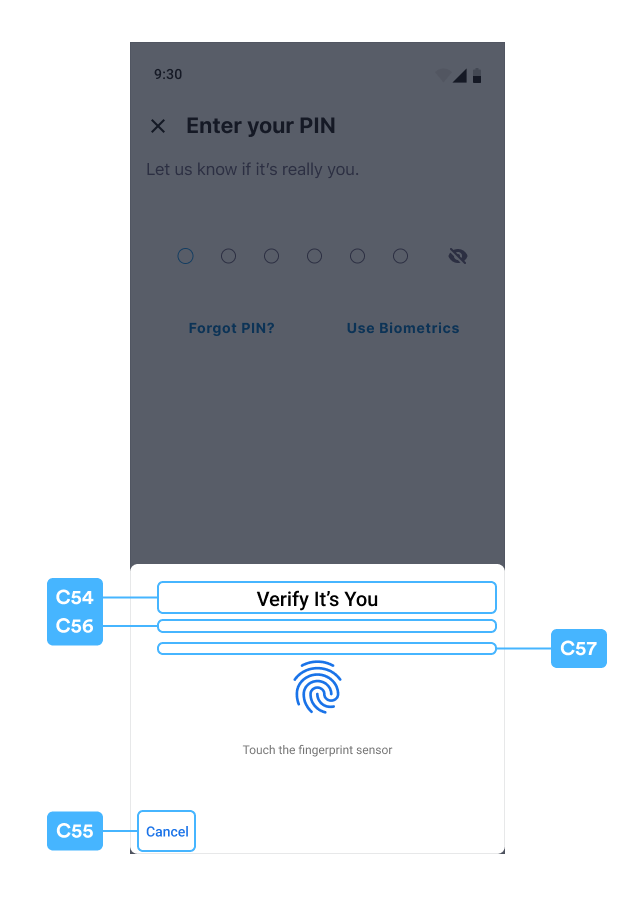

C54	circlepw_pin_biometrics_decrypt_title	circlepw_pin_biometrics_decrypt_title	✅	❌	❌	❌	❌
C55	circlepw_pin_biometrics_decrypt_negative_text	circlepw_pin_biometrics_decrypt_negative_text	✅	❌	❌	❌	❌
C56	circlepw_pin_biometrics_decrypt_subtitle	circlepw_pin_biometrics_decrypt_subtitle	✅	❌	❌	❌	❌
C57	circlepw_pin_biometrics_decrypt_desc	circlepw_pin_biometrics_decrypt_desc	✅	❌	❌	❌	❌

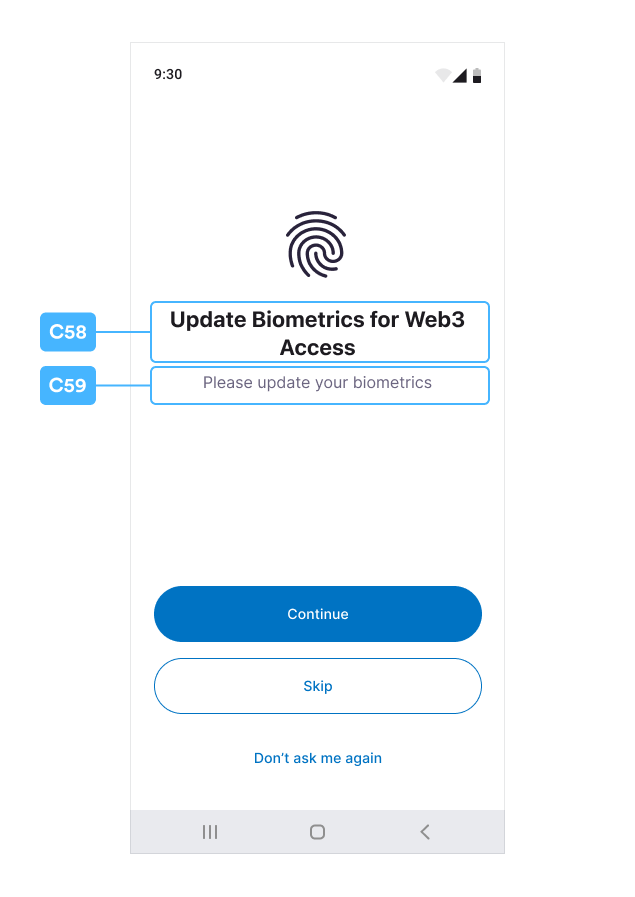

C58	circlepw_pin_biometrics_update_title	circlepw_pin_biometrics_update_title	✅🔖	✅	✅	circlepw_text_main	circlepw_heading3	After the auto-fill PIN verify fails, the following biometrics setting page title will use this.
C59	circlepw_pin_biometrics_update_subtitle	circlepw_pin_biometrics_update_subtitle	✅🔖	✅	✅	circlepw_text_auxiliary	circlepw_body2	After the auto-fill PIN verify fails, the following biometrics setting page subtitle will use this.

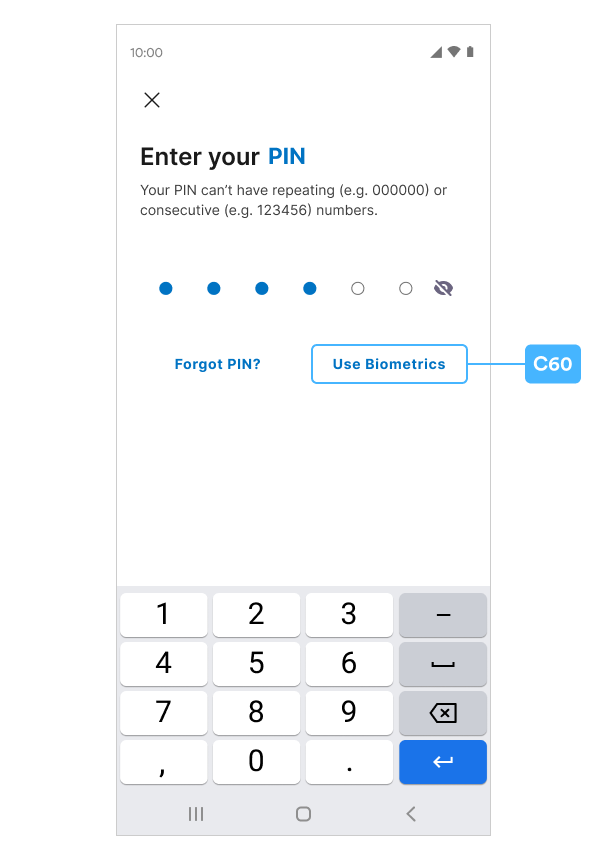

C60	circlepw_enter_pincode_use_biometrics	circlepw_enter_pincode_use_biometrics	✅	✅	✅	circlepw_pressed_assist_text_color	circlepw_actionText
C61	circlepw_alert_pop_window_description_config	❌🔖	❌🔖	✅	✅	circlepw_alert_pop_description_text	circlepw_body2	For text, see Error Message: biometricsKeyPermanentlyInvalidated(155710)
C62	circlepw_alert_pop_window_confirm	circlepw_alert_pop_window_confirm	✅	✅	✅	circlepw_alert_pop_btn_text	circlepw_actionText
C63	circlepw_transaction_request_title	circlepw_transaction_request_title	✅	✅	✅	circlepw_text_main	circlepw_heading3
C64	circlepw_transaction_request_subtitle	circlepw_transaction_request_subtitle	✅	✅	✅	circlepw_text_auxiliary	circlepw_body2
C65	circlepw_transaction_request_main_currency	❌	✅🔖	✅	✅	circlepw_text_prompt	circlepw_txAmountMainText	Append currency name as unit after amount, e.g. 20 USDC
C66	circlepw_transaction_request_exchange_value	❌	✅	✅	✅	circlepw_text_exchange	circlepw_txExchangeText
C67	circlepw_transaction_request_from_label	circlepw_transaction_request_from_label	✅	✅	✅	circlepw_text_prompt	circlepw_txInfoText
C68	circlepw_transaction_request_from	❌	✅	✅	✅	circlepw_text_prompt	circlepw_txInfoValueText
C69	circlepw_transaction_request_to_label	circlepw_transaction_request_to_label	✅	✅	✅	circlepw_text_prompt	circlepw_txInfoText
C70	circlepw_transaction_request_to_config	❌	❌	✅	✅	circlepw_text_prompt	circlepw_txInfoValueText
C71	circlepw_transaction_request_to_contract_name	❌	✅	✅	✅	circlepw_text_prompt	circlepw_txInfoValueText
C72	circlepw_transaction_request_to_contract_url	❌	✅	✅	✅	circlepw_text_prompt	circlepw_txInfoValueText
C73	circlepw_transaction_request_network_fee_label	circlepw_transaction_request_network_fee_label	✅	✅	✅	circlepw_text_prompt	circlepw_txInfoText
C74	circlepw_transaction_request_network_fee	❌	✅	✅	✅	circlepw_text_prompt	circlepw_txInfoValueText
C75	circlepw_transaction_request_exchange_network_fee	❌	✅	✅	✅	circlepw_text_exchange	circlepw_txInfoExchangeText
C76	circlepw_transaction_request_total_label	circlepw_transaction_request_total_label	✅	✅	✅	circlepw_text_prompt	circlepw_txInfoText
C77	circlepw_transaction_request_total_config	❌	❌	✅	✅	circlepw_text_prompt	circlepw_txInfoValueText
C78	circlepw_transaction_request_exchange_total_value	❌	✅	✅	✅	circlepw_text_exchange	circlepw_txInfoExchangeText
C79	circlepw_transaction_request_error_config	❌	❌	✅	✅	circlepw_error	circlepw_body2

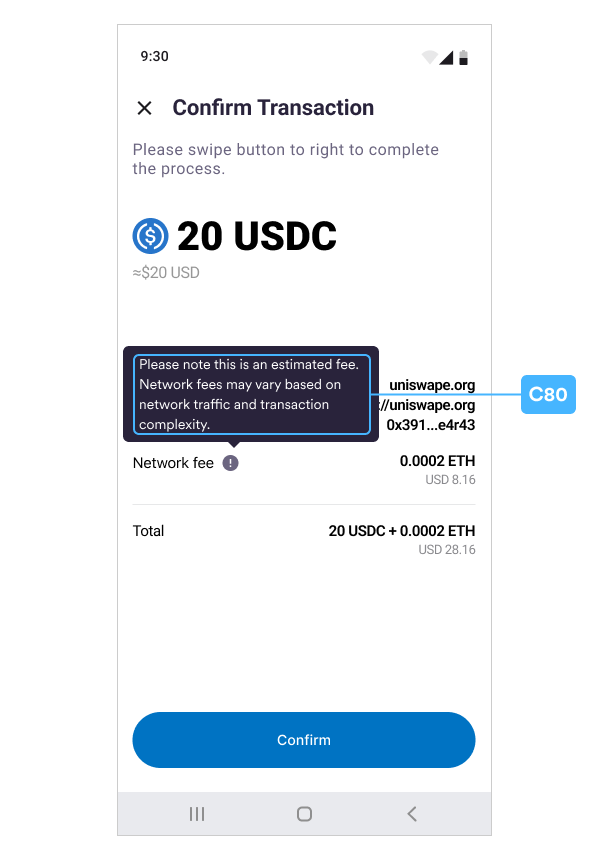

C80	circlepw_transaction_request_fee_tip	circlepw_transaction_request_fee_tip	✅	✅	✅	circlepw_tip_text	circlepw_feeTipText

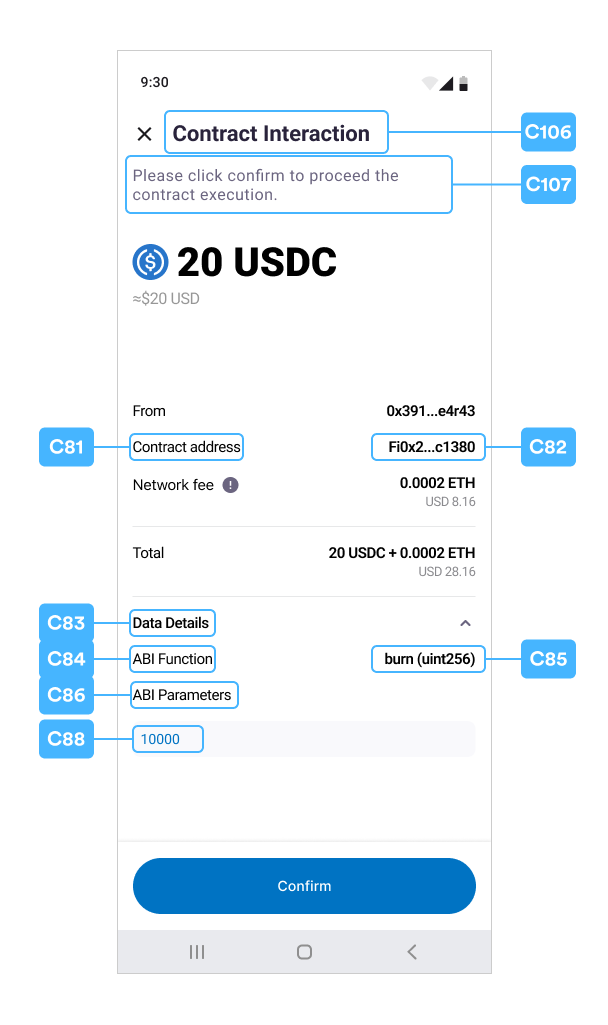

C81	circlepw_contract_interaction_contract_address_label	circlepw_contract_interaction_contract_address_label	✅	✅	✅	circlepw_text_prompt	circlepw_txInfoText
C82	circlepw_contract_interaction_contract_address_config	❌	❌	✅	✅	circlepw_text_prompt	circlepw_txInfoValueText
C83	circlepw_contract_interaction_data_details	circlepw_contract_interaction_data_details	✅	✅	✅	circlepw_text_prompt	circlepw_txInfoValueText
C84	circlepw_contract_interaction_abi_function_label	circlepw_contract_interaction_abi_function_label	✅	✅	✅	circlepw_text_prompt	circlepw_txInfoText
C85	circlepw_contract_interaction_abi_function_config	❌	❌	✅	✅	circlepw_text_prompt	circlepw_txInfoValueText
C86	circlepw_contract_interaction_abi_parameter_label	circlepw_contract_interaction_abi_parameter_label	✅	✅	✅	circlepw_text_prompt	circlepw_txInfoText

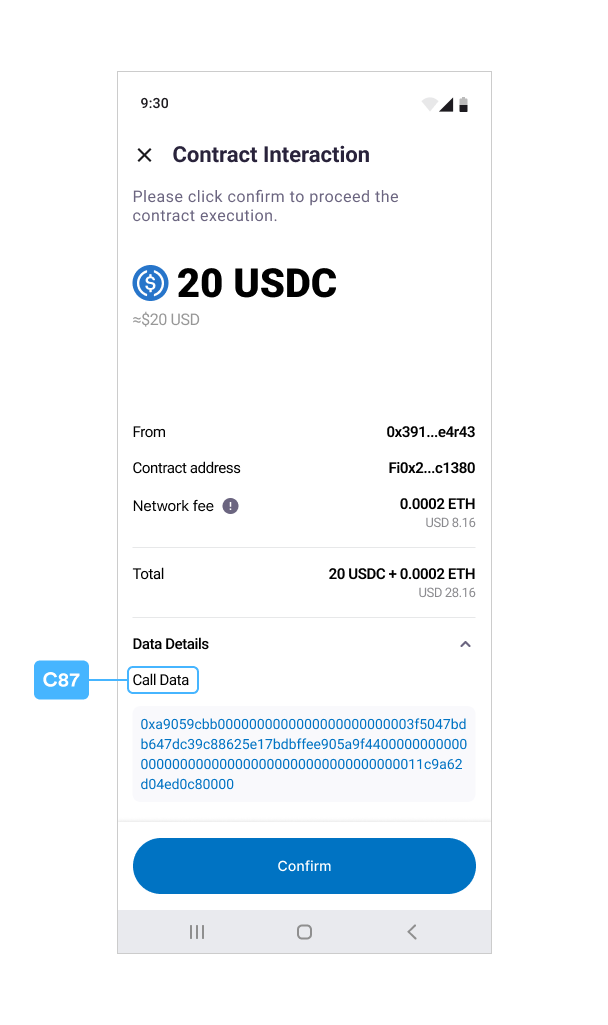

C87	circlepw_contract_interaction_call_data_label	circlepw_contract_interaction_call_data_label	✅	✅	✅	circlepw_text_prompt	circlepw_txInfoText
C88	circlepw_contract_interaction_call_data_config	❌	❌	✅	✅	circlepw_text_interactive	circlepw_contractDataText

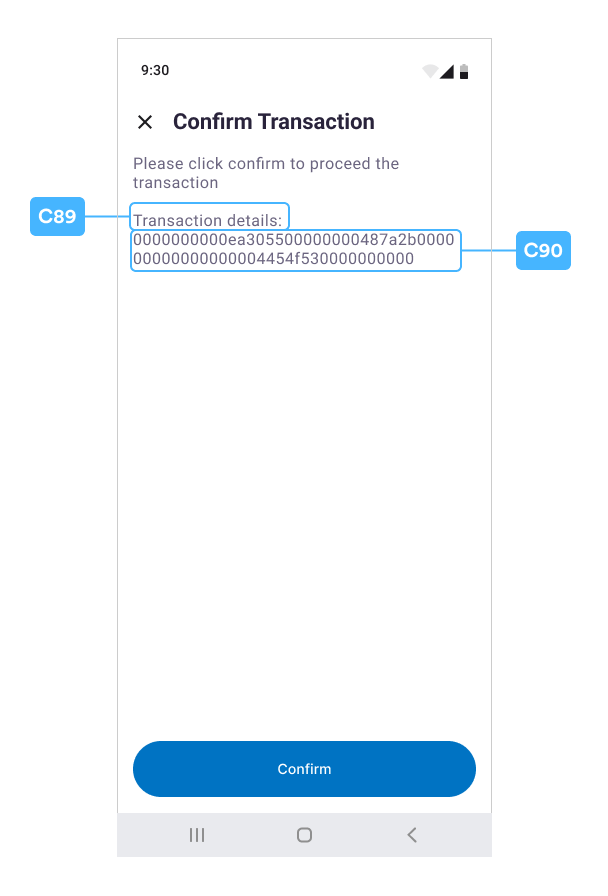

C89	circlepw_transaction_request_raw_tx_description	circlepw_transaction_request_raw_tx_description	✅	✅	✅	circlepw_text_auxiliary	circlepw_body2
C90	circlepw_transaction_request_raw_tx_config	❌	❌	✅	✅	circlepw_text_auxiliary	circlepw_body2
C91	circlepw_signature_request_title	circlepw_signature_request_title	✅	✅	✅	circlepw_text_main	circlepw_heading3
C92	circlepw_signature_request_contract_name	❌	✅	✅	✅	circlepw_text_prompt	circlepw_signNameText
C93	circlepw_signature_request_contract_url	❌	✅	✅	✅	circlepw_text_sign_url	circlepw_signUrlText
C94	circlepw_signature_request_subtitle	circlepw_signature_request_subtitle	✅	✅	✅	circlepw_text_auxiliary	circlepw_body2
C95	circlepw_signature_request_description	circlepw_signature_request_description	✅	✅	✅	circlepw_text_auxiliary	circlepw_body2
C96	circlepw_signature_request_msg_config	❌	❌	✅	✅	circlepw_text_auxiliary	circlepw_body2
C97	circlepw_sign	circlepw_sign	✅	✅	✅	circlepw_main_bt_text	circlepw_mainButtonText	Normal
						circlepw_main_bt_text_pressed		Pressed
						circlepw_disabled_main_bt_text		Disabled
C98	circlepw_try_again	circlepw_try_again	✅	✅	✅	circlepw_main_bt_text	circlepw_mainButtonText	Normal
						circlepw_main_bt_text_pressed		Pressed
						circlepw_disabled_main_bt_text		Disabled
C99	circlepw_email_otp_title	circlepw_email_otp_title	✅	✅	✅	circlepw_text_main	circlepw_heading3
C100	circlepw_email_otp_description	circlepw_email_otp_description	✅	✅	✅	circlepw_text_auxiliary	circlepw_body2
C101	circlepw_email_otp_email	❌	✅	❌	❌
C102	circlepw_email_otp_head_config	❌	❌	✅	✅
C103	circlepw_email_otp_dash	circlepw_email_otp_dash	✅	✅	✅
C104	circlepw_email_otp_send_again_hint	circlepw_email_otp_send_again_hint	✅	✅	✅
C105	circlepw_email_otp_send_again	circlepw_email_otp_send_again	✅	✅	✅

Error Messages

When using this table, reference the ApiError heading in the WalletSDK section of the SDK.

Possible display location	ApiError.ErrorCode	Default Value	Note
C5, C38, C79	unknown(-1)	Unknown error
	success(0)	Success
C5, C38, C79	apiParameterMissing(1)	API parameter missing
C5, C38, C79	apiParameterInvalid(2)	API parameter invalid
C5, C38, C79	forbidden(3)	Forbidden
C5, C38, C79	unauthorized(4)	Unauthorized
C5, C38, C79	retry(9)	Retry
C5, C38	customerSuspended(10)	Customer suspended
C5, C38	pending(11)	Pending
C5, C38	invalidSession(12)	Invalid session
C5, C38	invalidPartnerId(13)	Invalid partner ID
C5, C38	invalidMessage(14)	Invalid Message published to a SQS queue.
C5, C38, C79	invalidPhone(15)	Invalid phone number ‘%s’, format should be in E.164.
C5, C79	walletIdNotFound(156001)
C5, C79	tokenIdNotFound(156002)
C5, C79	transactionIdNotFound(156003)
C5, C79	entityCredentialNotFound(156004)
C5, C79	walletSetIdNotFound(156005)
	userAlreadyExisted(155101)	user already existed
	userNotFound(155102)	user not found
C5, C38, C79	userTokenNotFound(155103)	user token not found
C5, C38, C79	userTokenExpired(155104)	user token expired
C5, C38, C79	invalidUserToken(155105)	invalid user token
C5	userWasInitialized(155106)	user was initialized
C5	userHasSetPin(155107)	user has set pin
C38	userHasSetSecurityQuestion(155108)	user has set security question
C5, C38, C79	userWasDisabled(155109)	user was disabled
C5, C79	userDoesNotSetPinYet(155110)	user does not set pin yet
C38	userDoesNotSetSecurityQuestionYet(155111)	user does not set security questions yet
C5, C79	incorrectUserPin(155112)	The PIN you entered is incorrect.
	incorrectDeviceId(155113)	incorrect device id
	incorrectAppId(155114)	app id not found
C38	incorrectSecurityAnswers(155115)	The answers you entered are incorrect.
	invalidChallengeId(155116)	invalid challenge id
C5, C79	invalidApproveContent(155117)	invalid approve content
C5, C38, C79	invalidSecretKey(155118)	invalid secret key
C5, C79	userPinLocked(155119)		Just display circlepw_pin_lock_period_template (C5-2)
C38	securityAnswersLocked(155120)	The answers you entered are incorrect.
C5, C79	walletIsFrozen(155501)	Wallet is Frozen
C5, C79	maxWalletLimitReached(155502)	Max wallet limit reached
C5, C79	walletSetIdMutuallyExclusive(155503)	WalletSetId can not be used together with blockchain and address filter
C5, C79	metadataUnmatched(155504)	metadata array length does not match wallet count
	userCanceled(155701)	User canceled
	launchUiFailed(155702)
C5	pinCodeNotMatched(155703)	The PIN you entered is not the same as the first one.
C5	insecurePinCode(155704)	Your PIN can’t have repeating or consecutive numbers.
C22	hintsMatchAnswers(155705)	Your hint can’t be the same as the answer.
	biometricsSettingNotEnabled(155708)	“Biometrics instead of PIN” is disabled
	deviceNotSupportBiometrics(155709)	The device system doesn’t support biometrics
C61	biometricsKeyPermanentlyInvalidated(155710)	Failed to decrypt biometrics key
	biometricsUserSkip(155711)	The user has not enabled biometrics yet
	biometricsUserDisableForPin(155712)	The user refused to enable biometrics
	biometricsUserLockout(155713)	Too many requests. Try again later.
	biometricsUserLockoutPermanent(155714)	Too many requests. The biometrics sensor on the device is locked.
	biometricsUserNotAllowPermission(155715)	The user didn’t allow to enable biometrics.
	biometricsInternalError(155716)	Unexpected error for biometrics: %s

Usingstrings.xml for Static Customization

The example values in the strings.xml file below can be used for Static Customization. The fields also show the default string values in the SDK if you do not set dynamic customization.

Please reference this example and add/update any desired text string in your strings.xml under the res/values folder.

To avoid dynamic customization, return a TextConfig that doesn’t contain text or null in getTextConfig(String key) and getTextConfigs(Resource.TextsKey key) function. For example, a configuration that doesn’t have new TextConfig(null, color, typeface), return null, or super.getTextConfig(key) in its switch statement.

XML

<resources>
    <!-- [General] -->
    <string name="circlepw_continue">Continue</string>
    <string name="circlepw_next">Next</string>
    <string name="circlepw_skip">Skip</string>
    <string name="circlepw_question_label">Question:</string>
    <string name="circlepw_answer_label">Answer:</string>
    <string name="circlepw_hint_label">Hint:</string>
    <string name="circlepw_hint_tag">Hint</string>
    <string name="circlepw_empty"></string>
    <string name="circlepw_empty_placeholder">-</string>
    <string name="circlepw_confirm">Confirm</string>
    <string name="circlepw_pin_remain_attemps_template">You have %s attempts left.</string>
    <string name="circlepw_pin_lock_period_template">You’ve used up all PIN attempts. Please wait for %s mins to retry later.</string>
    <string name="circlepw_answer_remain_attemps_template">You have %s attempts left.</string>
    <string name="circlepw_answer_lock_period_template">Please wait for %s mins to retry later.</string>
    <string name="circlepw_sign">Sign</string>
    <string name="circlepw_try_again">Try again</string>

    <!-- [Page] EnterPINCode -->
    <string name="circlepw_enter_pincode_subhead">Let us know if it’s really you.</string>
    <string name="circlepw_enter_pincode_forgot_pin">Forgot PIN?</string>
    <string name="circlepw_enter_pincode_use_biometrics">Use Biometrics</string>

    <!-- [Page] NewPINCode -->
    <string name="circlepw_new_pincode_subhead">Your PIN can’t have repeating (e.g. 000000) or consecutive (e.g. 123456) numbers.</string>
    <!-- [Page] ConfirmPINCode -->
    <string name="circlepw_confirm_pincode_headline">Re-enter your PIN to confirm</string>
    <string name="circlepw_confirm_pincode_subhead"></string>
    <!-- [Page] SecurityIntros -->
    <string name="circlepw_security_intros_description">This is the only way to recover wallet access if you forget your PIN. Pick 2 security questions and provide answers for access recovery.</string>

    <!-- [Page] SecurityQuestions -->
    <string name="circlepw_security_questions_title">Recovery method</string>
    <string name="circlepw_security_questions_required_mark">*</string>
    <string name="circlepw_security_questions_question_placeholder">Select one question</string>
    <string name="circlepw_security_questions_answer_header">Provide an answer</string>
    <string name="circlepw_security_questions_answer_placeholder">Type your answer here</string>
    <string name="circlepw_security_questions_answer_hint_header">Provide an answer hint (optional)</string>
    <string name="circlepw_security_questions_answer_hint_placeholder">Type your hint here</string>

    <!-- [Page] SelectQuestion -->
    <string name="circlepw_select_question_title">Select one question</string>
    <!-- [Page] SecuritySummary -->
    <string name="circlepw_security_summary_title">Summary</string>

    <!-- [Page] SecurityConfirm -->
    <string name="circlepw_security_confirm_title">Confirmation</string>
    <string name="circlepw_security_confirm_headline">Keep your questions safe</string>
    <string name="circlepw_security_confirm_input_headline">Type \"I agree\" to proceed:</string>
    <string name="circlepw_security_confirm_input_placeholder">Type \"I agree\" here</string>
    <string name="circlepw_security_confirm_input_match">I agree</string>

    <!-- [Page] RecoverPINCode -->
    <string name="circlepw_recover_pincode_answer_input_header">Enter your answer here</string>
    <string name="circlepw_recover_pincode_answer_input_placeholder">Type your answer here</string>

    <!-- [PageBiometricsAllowFragment] -->
    <string name="circlepw_pin_biometrics_allow_title">Allow Biometrics for Web3 Access</string>
    <string name="circlepw_pin_biometrics_allow_subtitle">Elevate your experience with effortless biometrics  recognition</string>
    <string name="circlepw_pin_biometrics_disable">Don\'t ask me again</string>
    <string name="circlepw_pin_biometrics_encrypt_title">Verify It\'s Youe</string>
    <string name="circlepw_pin_biometrics_encrypt_negative_text">Cancel</string>
    <string name="circlepw_pin_biometrics_encrypt_subtitle"></string>
    <string name="circlepw_pin_biometrics_encrypt_desc"></string>
    <string name="circlepw_pin_biometrics_decrypt_title">Verify It\'s Youe</string>
    <string name="circlepw_pin_biometrics_decrypt_negative_text">Cancel</string>
    <string name="circlepw_pin_biometrics_decrypt_subtitle"></string>
    <string name="circlepw_pin_biometrics_decrypt_desc"></string>

    <string name="circlepw_pin_biometrics_update_title">Update Biometrics for Web3 Access</string>
    <string name="circlepw_pin_biometrics_update_subtitle">Please update your biometrics</string>
    <string name="circlepw_alert_pop_window_title">Alert</string>
    <string name="circlepw_alert_pop_window_confirm">OK</string>
    <!-- [HostSsoPinFragment] -->
    <string name="circlepw_transaction_request_title">Confirm transaction</string>
    <!-- [HostSsoPinFragment] -->
    <string name="circlepw_transaction_request_subtitle">Please click confirm to proceed the transaction</string>
    <string name="circlepw_transaction_request_from_label">From</string>
    <string name="circlepw_transaction_request_to_label">To</string>
    <string name="circlepw_transaction_request_network_fee_label">Network fee</string>
    <string name="circlepw_transaction_request_total_label">Total</string>
    <string name="circlepw_transaction_request_fee_tip">Please note this is an estimated fee. Network fees may vary based on network traffic and transaction complexity.</string>
    <string name="circlepw_transaction_request_raw_tx_description">Transaction details:</string>
    <string name="circlepw_signature_request_title">Signature Request</string>
    <string name="circlepw_signature_request_subtitle">Click on sign button to provide a signature for verification.</string>
    <string name="circlepw_signature_request_description">You are signing:</string>
    <string name="circlepw_contract_interaction_title">Contract Interaction</string>
    <string name="circlepw_contract_interaction_subtitle">Please click confirm to proceed the  contract execution.</string>
    <string name="circlepw_contract_interaction_contract_address_label">Contract address</string>
    <string name="circlepw_contract_interaction_data_details">Data Details</string>
    <string name="circlepw_contract_interaction_abi_function_label">ABI Function</string>
    <string name="circlepw_contract_interaction_abi_parameter_label">ABI Parameters</string>
    <string name="circlepw_contract_interaction_call_data_label">Call Data</string>
    <!-- [HostVerifyOtpFragment] -->
    <string name="circlepw_email_otp_title">Enter verification code</string>
    <!-- [PageVerifyOtpFragment] -->
    <string name="circlepw_email_otp_description">The one-time passcode has been sent to %s</string>
    <string name="circlepw_email_otp_email">your email</string>
    <string name="circlepw_email_otp_dash">-</string>
    <string name="circlepw_email_otp_send_again_hint">Don’t receive the code?</string>
    <string name="circlepw_email_otp_send_again">Send again</string>
</resources>

Image Customization

The SDK uses glide as the image loader for remote images. For the cache strategy, please see DiskCacheStrategy.AUTOMATIC. Use RemoteImageSetter or LocalImageSetter for icon images:

• RemoteImageSetter constructor:

  • RemoteImageSetter(int drawableId, String url)

• LocalImageSetter constructor:

  • LocalImageSetter(int drawableId)

Each image has its suggested size of width and height shown in the index table’s ImageView size column. Follow the suggested size to avoid the possibility of a broken layout or unexpected display.

Resource.Icon

D1~D14

D Index Table

#	Resource.Icon	ImageView size (dp)
		width	height

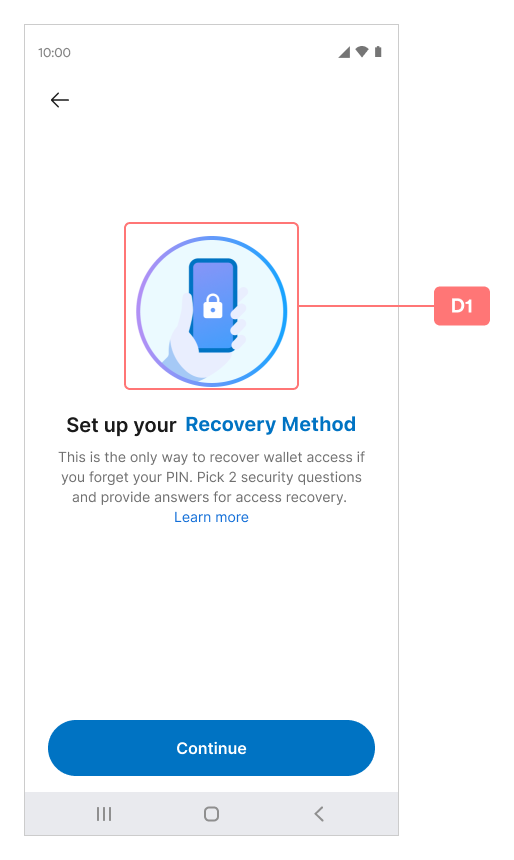

D1	securityIntroMain	144	144

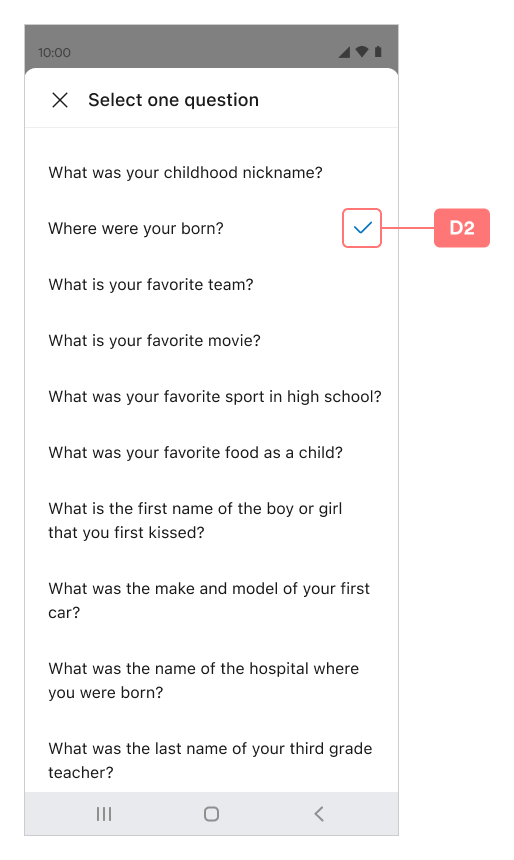

D2	selectCheckMark	24	24

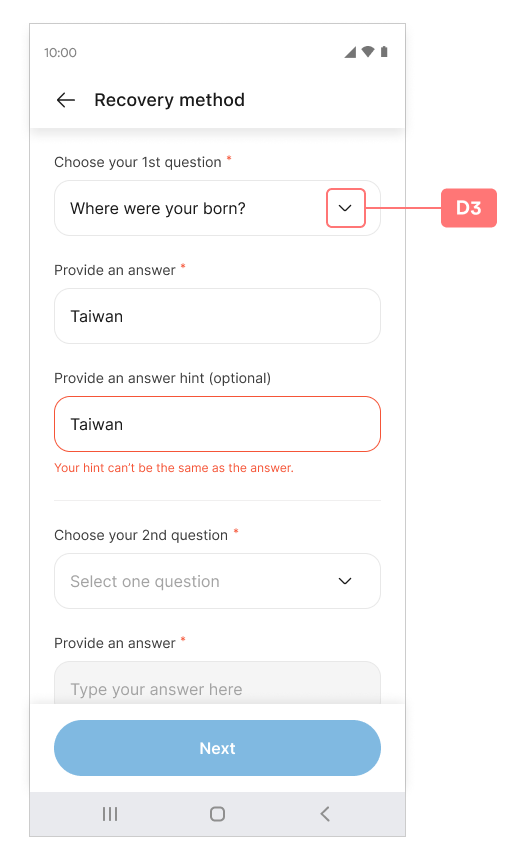

D3	dropdownArrow	40	40

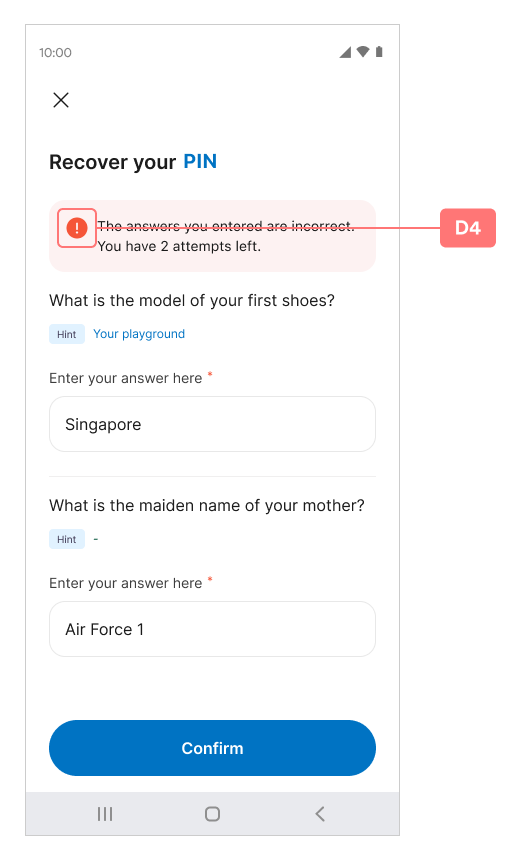

D4	errorInfo	21	21

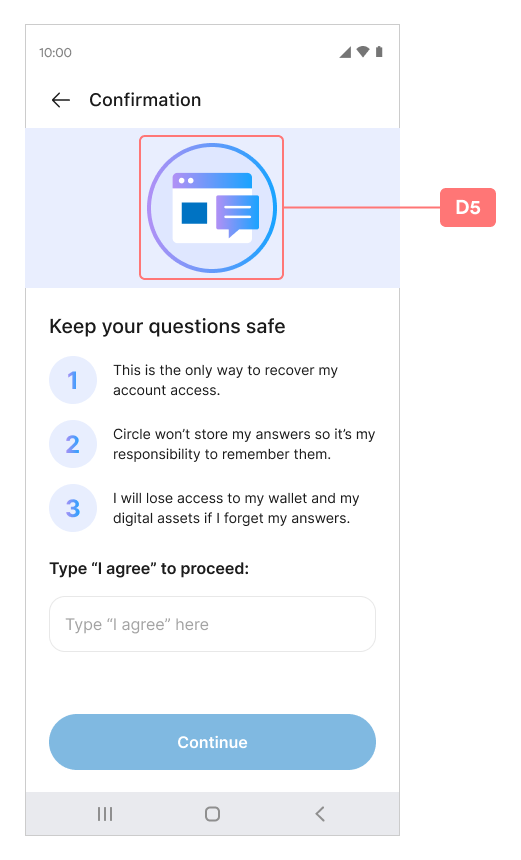

D5	securityConfirmMain	144	144

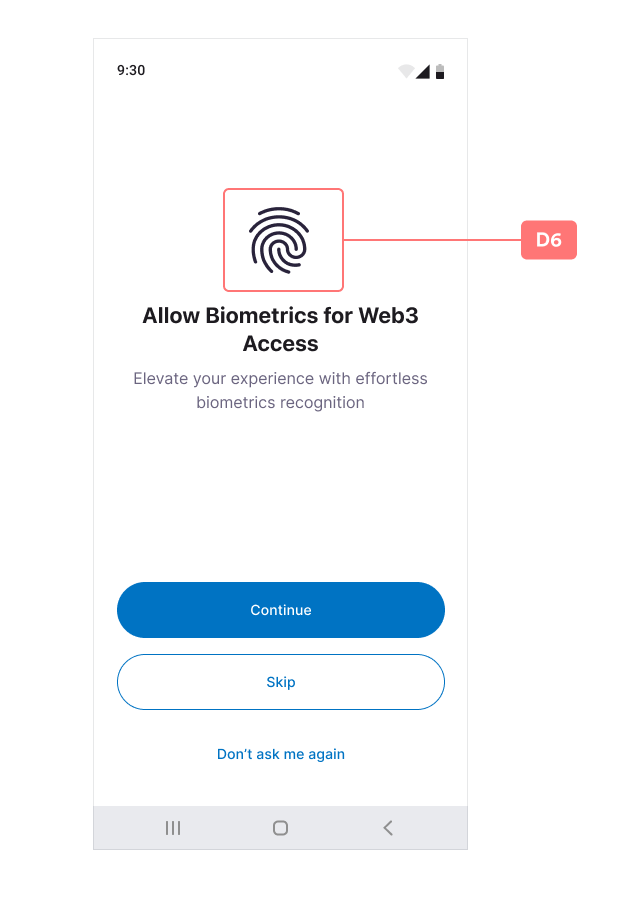

D6	biometricsAllowMain	80	80

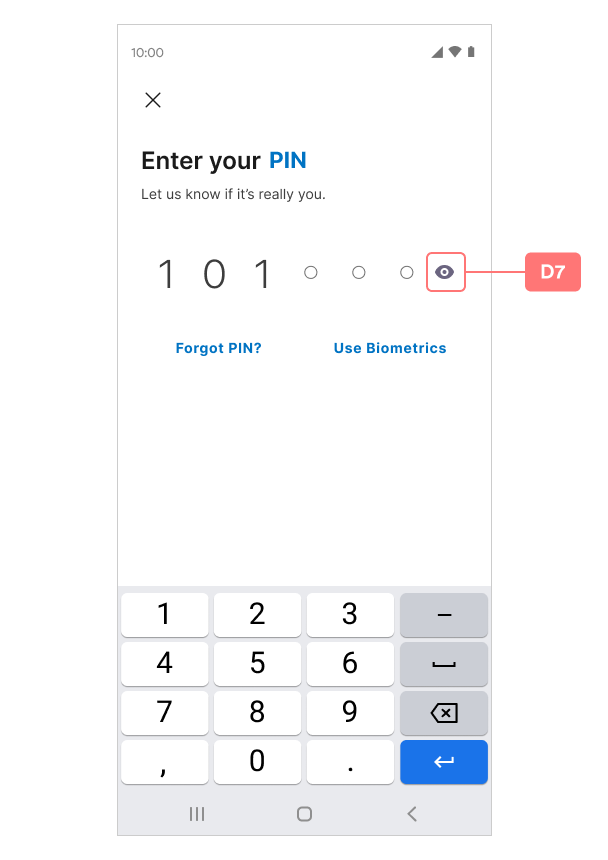

D7	showPin	20	15
D8	hidePin	20	15
D9	alertWindowIcon	24	24

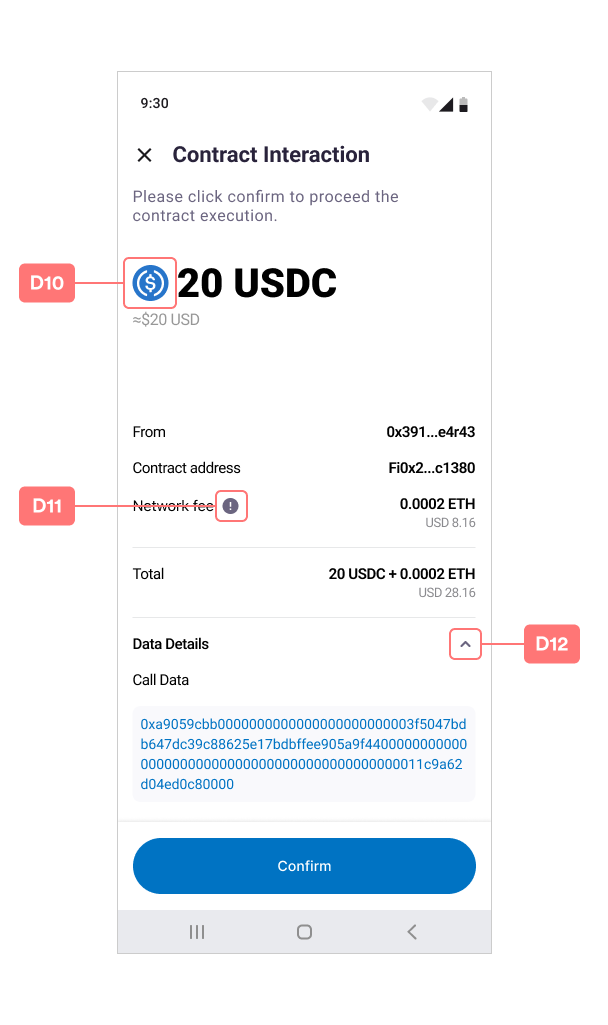

D10	transactionTokenIcon	36	36
D11	networkFeeTipIcon	16	16

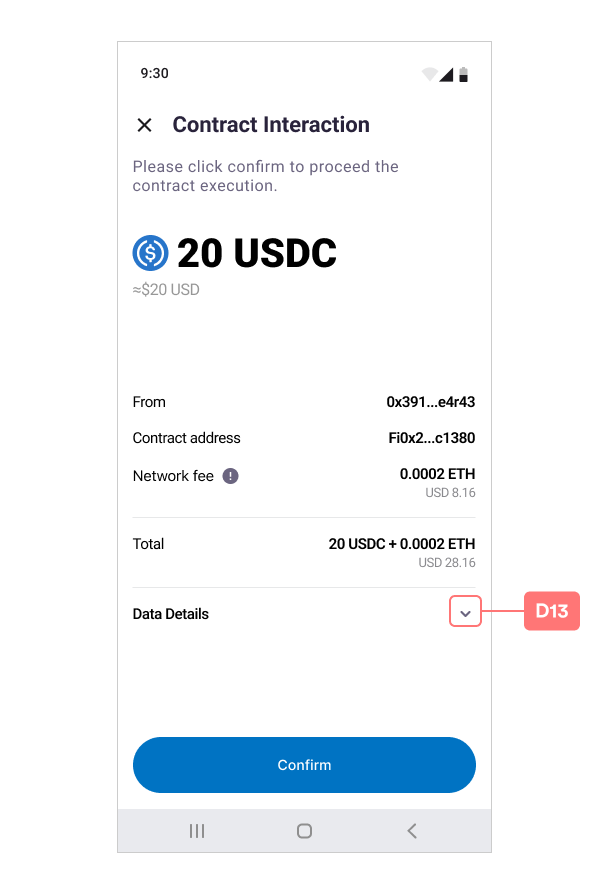

D12	showLessDetailArrow	20	20
D13	showMoreDetailArrow	20	20
D14	requestIcon	72	72

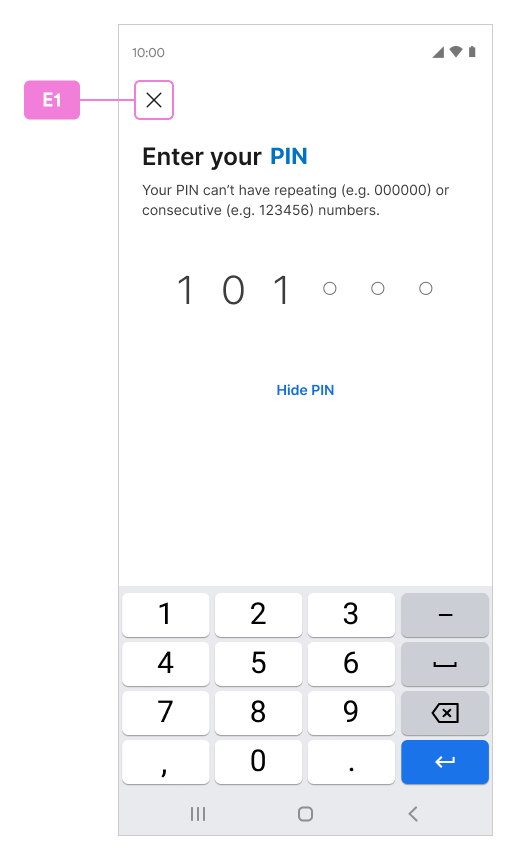

Resource.ToolbarIcon

E Index Table

#	Resource.ToolbarIcon	ImageView size (dp)
		width	height
E1	close	24	24

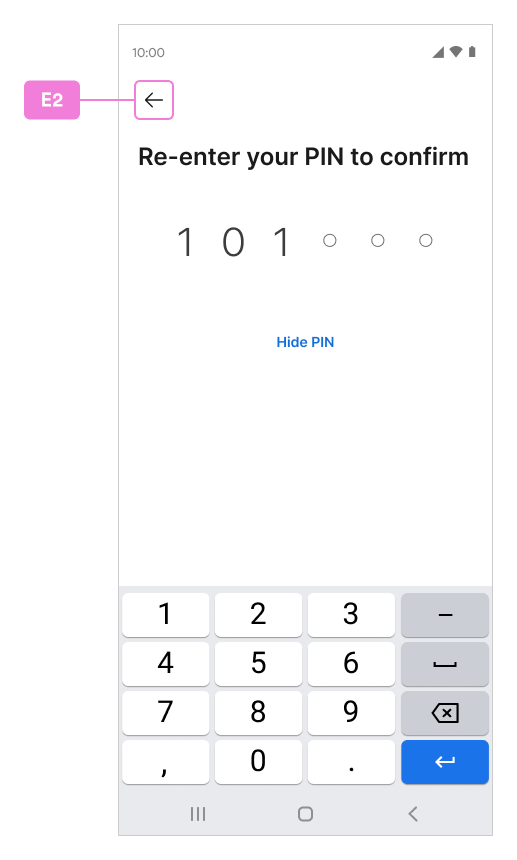

E2	back	24	24

Color Customization

Colors can be customized in a Static way as a static string; with the UI screenshots and Key mapping index table below, the colors of each string can be defined in the colors.xml.Note that some keys are not specified in the screenshot but can be referenced from the A and C index table in the colors.xml column.

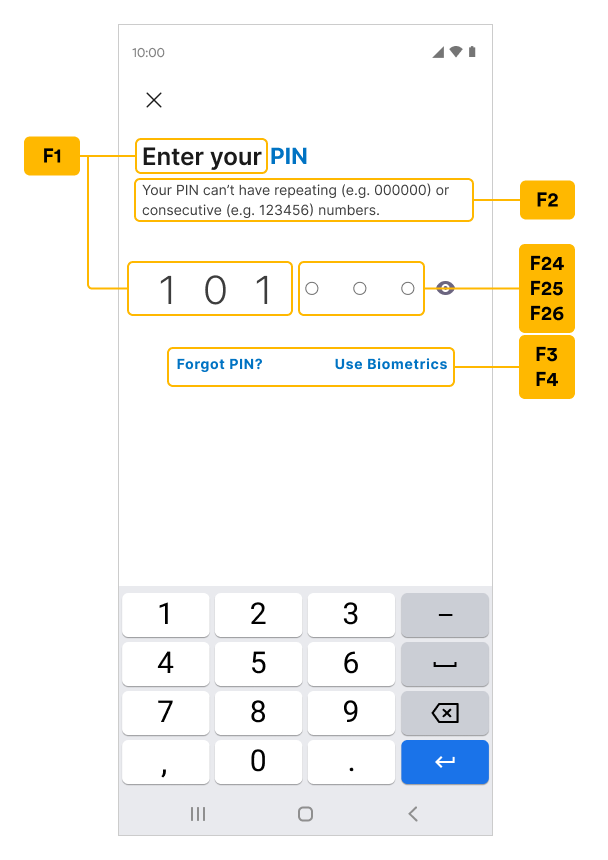

New, Confirm, and Enter PIN Code

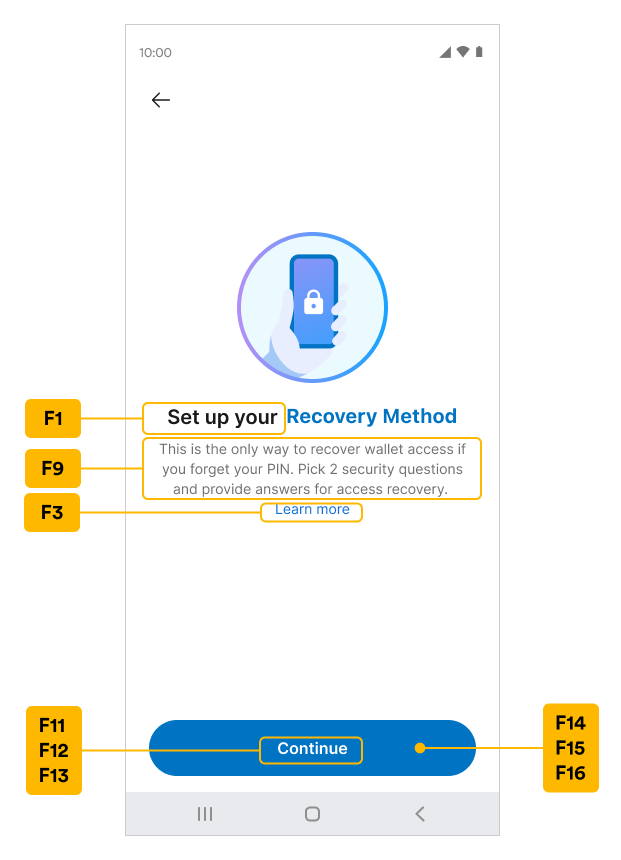

Security Intro

Security Questions

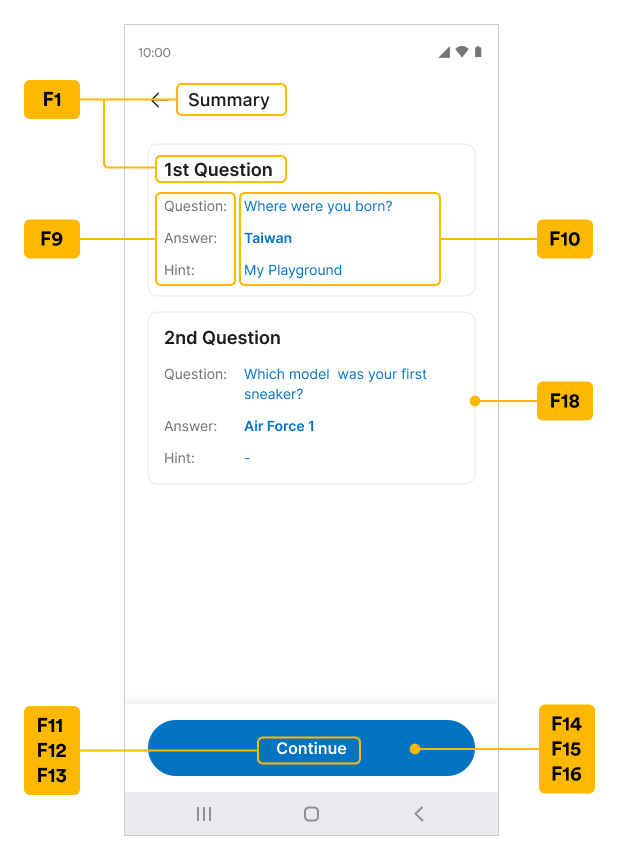

Security Summary

Security Confirm

Recover PIN Code

Biometrics Setup

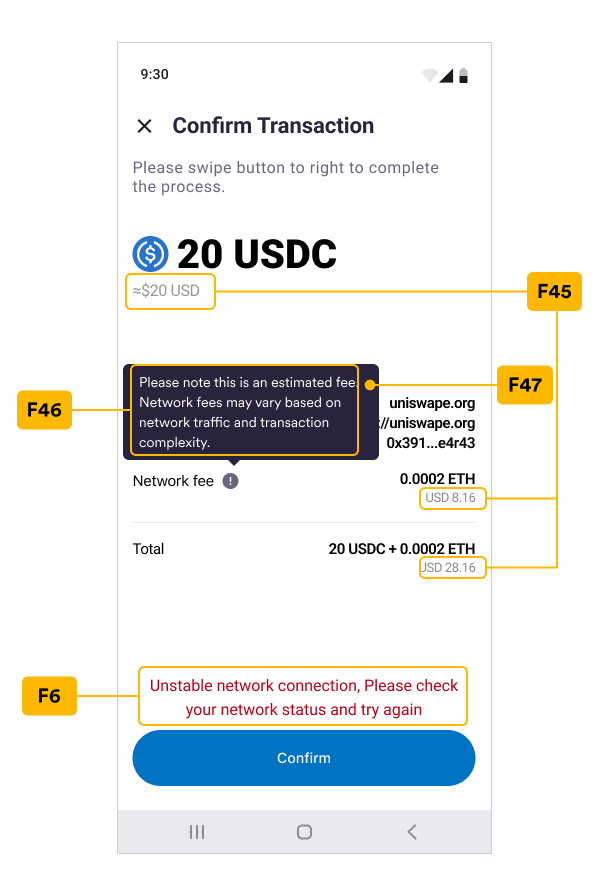

Confirm Transaction

Contract Interaction

Signature Request

Verify Email OTP

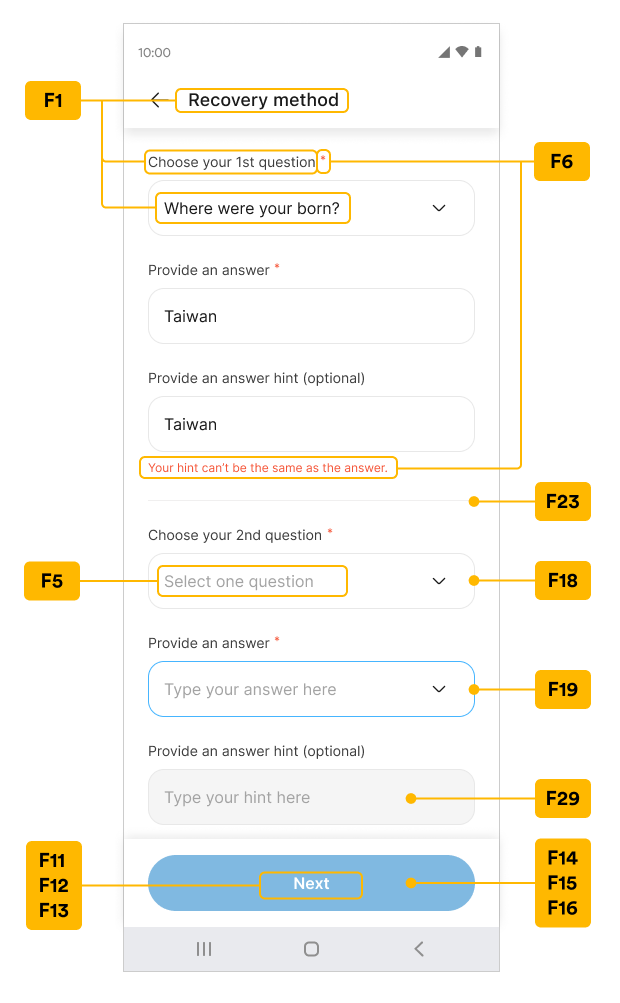

F Index Table

#	colors.xml	Color Code	Note
F1	circlepw_text_main	# 1A1A1A
F2	circlepw_text_auxiliary	# 3D3D3D
F3	circlepw_text_action	# 136FD8	Normal action text color
F4	circlepw_text_action_pressed	# B3136FD8	Pressed action text color
F5	circlepw_placeholder	# A3A3A3
F6	circlepw_error	# F55538
F7	circlepw_error_background	# FDF2F2
F8	circlepw_text_main2	# 1C1C1C
F9	circlepw_text_auxiliary2	# 707070
F10	circlepw_text_summary	# 0073C3
F11	circlepw_disabled_main_bt_text	# 80FFFFFF	Disabled button text color
F12	circlepw_main_bt_text	# FFFFFF	Normal button text color
F13	circlepw_main_bt_text_pressed	# FFFFFF	Pressed button text color
F14	circlepw_disabled_main_bt_background	# 800073C3	Disabled button background color
F15	circlepw_main_bt_background	# 0073C3	Normal button background color
F16	circlepw_main_bt_background_pressed	# 1AA3FF	Pressed button background color
F17	circlepw_success	# 0B9C4A
F18	circlepw_input_boarder	# E8E8E8	Normal input field border
F19	circlepw_input_boarder_focused	# 46B5FF	Focused input field border
F20	circlepw_tag_text	# 005339	Tag text color
F21	circlepw_tag_background	# E1F2FF	Tag background color
F22	circlepw_tag_following_text	# 0073C3
F23	circlepw_divider	# F0EFEF
F24	circlepw_pin_dot_base	# FFFFFF	PIN dot unfilled color
F25	circlepw_pin_dot_base_boarder	# 707070	PIN dot unfilled border color
F26	circlepw_pin_dot_activated	# 0073C3	PIN dot filled color
F27	circlepw_background	# FFFFFF	General background color
F28	circlepw_security_confirm_main_bg	# E9EEFE
F29	circlepw_disabled_input_background	# F5F5F5	Disabled input field background color
F30	circlepw_second_bt_text	# 0073C3
F31	circlepw_second_bt_text_disabled	# 800073C3
F32	circlepw_second_bt_border	# 0073C3
F33	circlepw_second_bt_border_disabled	# 800073C3
F34	circlepw_second_bt_background	# FFFFFF
F35	circlepw_second_bt_background_pressed	# F1F9FE
F36	circlepw_second_bt_background_disabled	# 80F1F9FE
F37	circlepw_plain_bt_text	# 0073C3
F38	circlepw_plain_bt_text_disabled	# 800073C3
F39	circlepw_plain_bt_background	# FFFFFF
F40	circlepw_plain_bt_background_pressed	# F1F9FE
F41	circlepw_plain_bt_background_disabled	# 80F1F9FE
F42	circlepw_text_prompt	# 29233B
F43	circlepw_text_interactive	# 0073C3
F44	circlepw_interactive_bg	# F9F9FC
F45	circlepw_text_exchange	# F0EFEF
F46	circlepw_tip_text	# FFFFFF
F47	circlepw_transaction_request_fee_tip_bg	# 29233B
F48	circlepw_text_sign_url	# 8E8E93
F49	circlepw_otp_head_text	# 000000
F50	circlepw_otp_hint_text	# 6B6580
F51	circlepw_otp_action_text	# 007AFF

Using colors.xml for Static Customization

The example values in the colors.xml file can be used for Static Customization. The fields also show the default string values in the SDK if you do not set dynamic customization.

Please reference this example and add/update any desired text color in your colors.xml under the res/values folder of the App project.

To avoid dynamic customization, return a TextConfig that contains text only with no color value in the getTextConfig(String key) and getTextConfigs(Resource.TextsKey key) functions. For example, use a configuration with new TextConfig(key, 0, typeface), return null, or super.getTextConfig(key) in its switch statement.

XML

<resources>
    <color name="circlepw_text_main">#1A1A1A</color>
    <color name="circlepw_text_auxiliary">#3D3D3D</color>
    <color name="circlepw_text_action">#136FD8</color>
    <color name="circlepw_text_action_pressed">#B3136FD8</color>
    <color name="circlepw_placeholder">#A3A3A3</color>
    <color name="circlepw_error">#F55538</color>
    <color name="circlepw_error_background">#FDF2F2</color>
    <color name="circlepw_text_main2">#1C1C1C</color>
    <color name="circlepw_text_auxiliary2">#707070</color>
    <color name="circlepw_text_summary">#0073C3</color>
    <color name="circlepw_disabled_main_bt_text">#80FFFFFF</color>
    <color name="circlepw_disabled_main_bt_background">#800073C3</color>
    <color name="circlepw_main_bt_text">#ffffff</color>
    <color name="circlepw_main_bt_background">#0073C3</color>
    <color name="circlepw_main_bt_text_pressed">#ffffff</color>
    <color name="circlepw_main_bt_background_pressed">#1AA3FF</color>
    <color name="circlepw_second_bt_text">#0073C3</color>
    <color name="circlepw_second_bt_text_disabled">#800073C3</color>
    <color name="circlepw_second_bt_border">#0073C3</color>
    <color name="circlepw_second_bt_border_disabled">#800073C3</color>
    <color name="circlepw_second_bt_background">#FFFFFF</color>
    <color name="circlepw_second_bt_background_pressed">#F1F9FE</color>
    <color name="circlepw_second_bt_background_disabled">#80F1F9FE</color>
    <color name="circlepw_plain_bt_text">#0073C3</color>
    <color name="circlepw_plain_bt_text_disabled">#800073C3</color>
    <color name="circlepw_plain_bt_background">#FFFFFF</color>
    <color name="circlepw_plain_bt_background_pressed">#F1F9FE</color>
    <color name="circlepw_plain_bt_background_disabled">#80F1F9FE</color>
    <color name="circlepw_success">#0B9C4A</color>
    <color name="circlepw_input_boarder">#E8E8E8</color>
    <color name="circlepw_input_boarder_focused">#46B5FF</color>
    <color name="circlepw_tag_text">#005339</color>
    <color name="circlepw_tag_background">#E1F2FF</color>
    <color name="circlepw_tag_following_text">#0073C3</color>
    <color name="circlepw_divider">#F0EFEF</color>
    <color name="circlepw_pin_dot_base">#ffffff</color>
    <color name="circlepw_pin_dot_base_boarder">#707070</color>
    <color name="circlepw_pin_dot_activated">#0073C3</color>
    <color name="circlepw_background">#FFFFFF</color>
    <color name="circlepw_security_confirm_main_bg">#E9EEFE</color>
    <color name="circlepw_disabled_input_background">#F5F5F5</color>
    <color name="circlepw_alert_pop_window_background">#B3111827</color>
    <color name="circlepw_alert_pop_title_text">#1D1B20</color>
    <color name="circlepw_alert_pop_description_text">#49454F</color>
    <color name="circlepw_alert_pop_btn_text">#000000</color>
    <color name="circlepw_pin_dot_focused_boarder">#1894E8</color>
    <color name="circlepw_text_prompt">#29233B</color>
    <color name="circlepw_text_exchange">#979797</color>
    <color name="circlepw_text_sign_url">#8E8E93</color>
    <color name="circlepw_transaction_request_fee_tip_bg">#29233B</color>
    <color name="circlepw_tip_text">#FFFFFF</color>
    <color name="circlepw_interactive_bg">#F9F9FC</color>
    <color name="circlepw_text_interactive">#0073C3</color>
    <color name="transparent">#00000000</color>
    <color name="circlepw_otp_head_text">#000000</color>
    <color name="circlepw_otp_hint_text">#6B6580</color>
    <color name="circlepw_otp_action_text">#007AFF</color>
</resources>

Style Customization

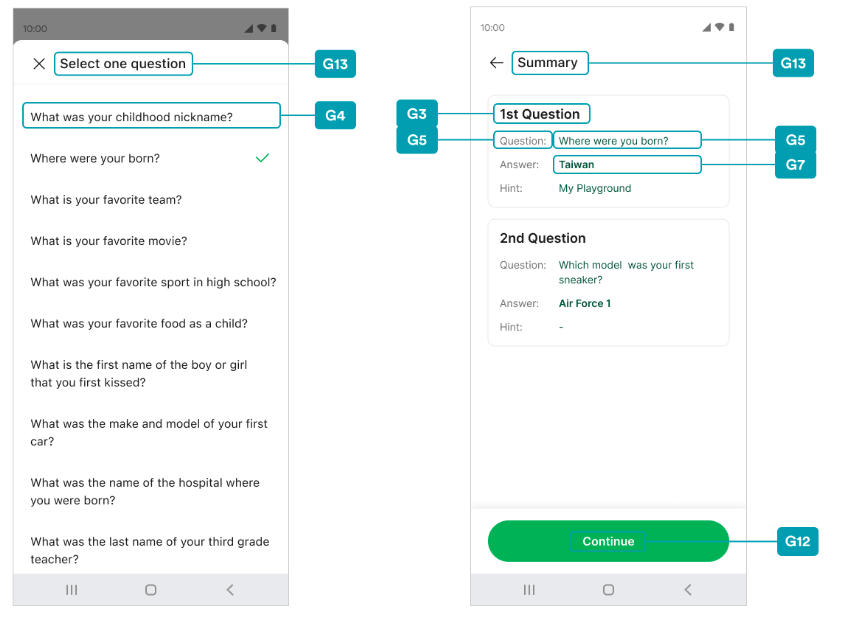

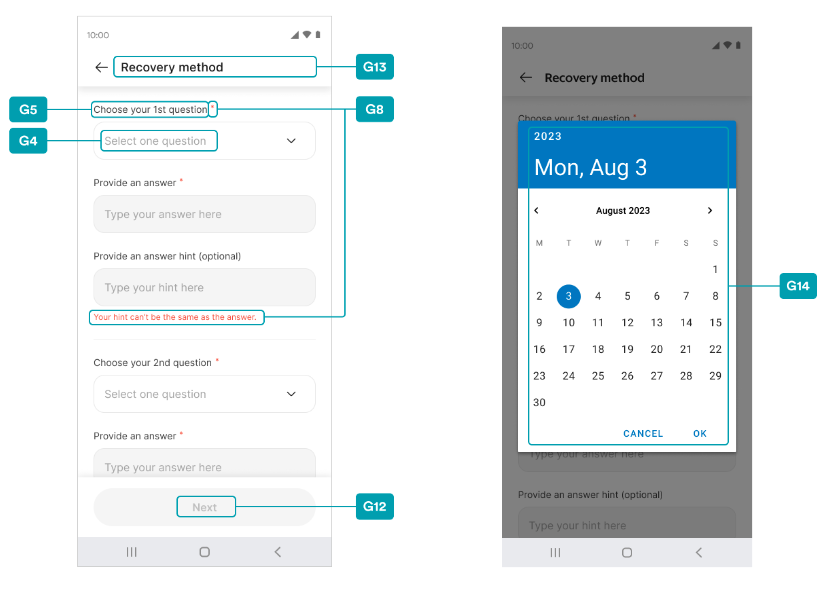

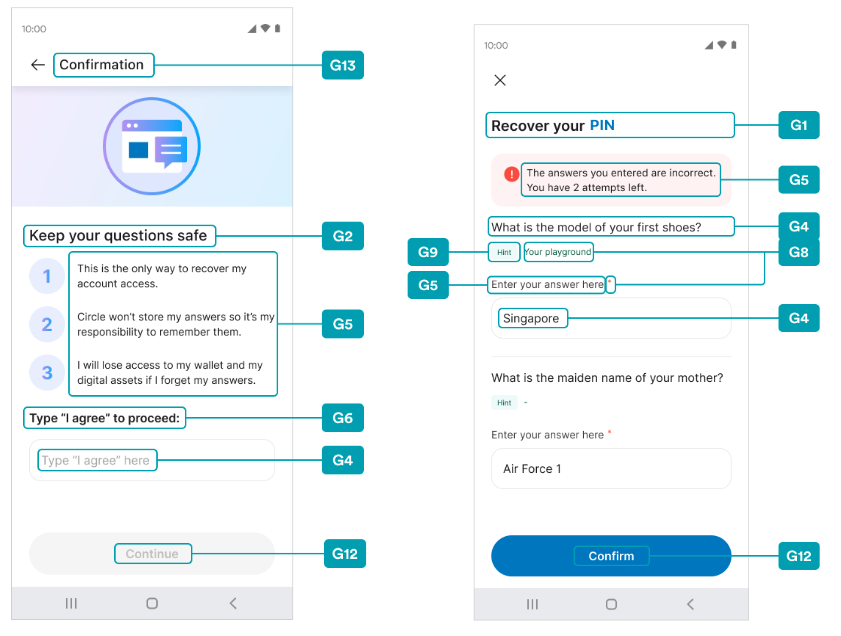

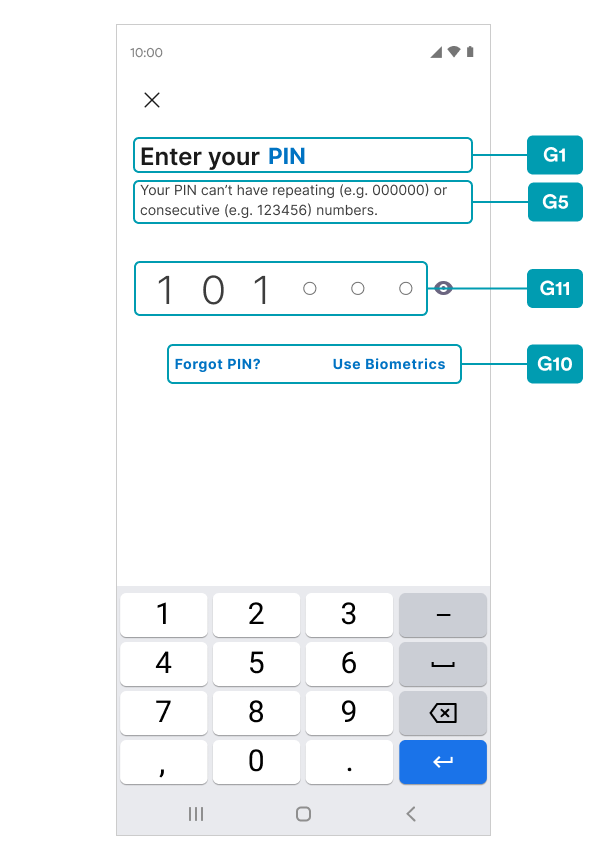

Styles can be customized in a Static way as a static style by using the UI screenshots and Key mapping index table below. The styles of each string can be defined in the styles.xml file.

To avoid dynamic customization,  return TextConfig that contains text only in getTextConfig(String key) and getTextConfigs(Resource.TextsKey key) functions. For example, use new TextConfig(“Your text here”) or super.getTextConfig(key) to ignore that key in the switch statement.

Note:

Some keys (error message) are not specified in the screenshot but can be referenced from the A and C index table at the styles.xmlfile column.

G Index Table

#	styles.xml
G1	circlepw_heading3
G2	circlepw_heading4
G3	circlepw_heading5
G4	circlepw_body1
G5	circlepw_body2
G6	circlepw_caption1
G7	circlepw_caption2
G8	circlepw_metadata1
G9	circlepw_metadata2
G10	circlepw_actionText
G11	circlepw_pinDigitText
G12	circlepw_mainButtonText
G13	circlepw_toolbarTitle
G14	circlepw_datePicker
G15	circlepw_secondButtonText
G16	circlepw_plainButtonText
G17	circlepw_txAmountMainText
G18	circlepw_txInfoText
G19	circlepw_txInfoValueText
G20	circlepw_detailToggleText
G21	circlepw_contractDataText
G22	circlepw_txExchangeText
G23	circlepw_txInfoExchangeText
G24	circlepw_feeTipText
G25	circlepw_otpHeadText
G26	circlepw_otpSendAgainHintText
G27	circlepw_signNameText
G28	circlepw_signUrlText

Using the styles.xml file for Static Customization

The example values in the styles.xml file can be used for Static Customization. The fields also show the default style values in the SDK if you do not set dynamic customization.

Please reference this example and add or update any desired text styles in your styles.xml file under the res/values folder of the App project.

The style can be used to define textSize and fontWeight, and it can also be used in conjunction with the static colors key defined in colors.xml, such as in the following:

XML

<item name="colorControlActivated">@color/circlepw_input_boarder_focused</item>

XML

<resources>
    <style name="circlepw_heading3">
        <item name="android:textSize">24sp</item>
    </style>
    <style name="circlepw_heading4">
        <item name="android:textSize">20sp</item>
    </style>
    <style name="circlepw_heading5">
        <item name="android:textSize">18sp</item>
    </style>
    <style name="circlepw_body1">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_body2">
        <item name="android:textSize">14sp</item>
    </style>
    <style name="circlepw_caption1">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_caption2">
        <item name="android:textSize">14sp</item>
    </style>
    <style name="circlepw_metadata1">
        <item name="android:textSize">12sp</item>
    </style>
    <style name="circlepw_metadata2">
        <item name="android:textSize">10sp</item>
    </style>
    <style name="circlepw_actionText">
        <item name="android:textSize">14sp</item>
    </style>
    <style name="circlepw_pinDigitText">
        <item name="android:textSize">40sp</item>
    </style>
    <style name="circlepw_mainButtonText">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_secondButtonText">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_plainButtonText">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_toolbarTitle">
        <item name="android:textSize">18sp</item>
    </style>

    <style name="circlepw_datePicker" parent="Theme.AppCompat.Light.Dialog">
        <!-- Top background-->
        <item name="colorAccent">@color/circlepw_main_bt_background</item>
        <!--selected Item color-->
        <item name="colorControlActivated">@color/circlepw_main_bt_background</item>
        <!-- arrow bordercolor(<>)-->
        <item name="android:selectableItemBackgroundBorderless">@color/circlepw_background</item>
        <!--Calender Background color -->
        <item name="android:windowBackground">@color/circlepw_background</item>
        <!-- Ok Cancel Color-->
        <item name="colorOnPrimary">@color/circlepw_main_bt_background</item>
        <!-- Week TextColor-->
        <item name="android:textColorSecondary">@color/circlepw_text_main</item>
        <!-- Calender Number color arrow color (< >) -->
        <item name="android:textColorPrimary">@color/circlepw_text_main</item>
        <!--day , month-->
        <item name="android:textColorPrimaryInverse">@color/circlepw_background</item>
        <!-- year-->
        <item name="android:textColorSecondaryInverse">@color/circlepw_background</item>
    </style>

    <style name="circlepw_txAmountMainText">
        <item name="android:textSize">40sp</item>
    </style>
    <style name="circlepw_txInfoText">
        <item name="android:textSize">15sp</item>
    </style>
    <style name="circlepw_txInfoValueText">
        <item name="android:textSize">15sp</item>
    </style>
    <style name="circlepw_detailToggleText">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_contractDataText">
        <item name="android:textSize">14sp</item>
    </style>
    <style name="circlepw_txExchangeText">
        <item name="android:textSize">16sp</item>
    </style>
    <style name="circlepw_txInfoExchangeText">
        <item name="android:textSize">13sp</item>
    </style>
    <style name="circlepw_feeTipText">
        <item name="android:textSize">14sp</item>
    </style>
    <style name="circlepw_otpHeadText">
        <item name="android:textSize">24sp</item>
    </style>
    <style name="circlepw_otpSendAgainHintText">
        <item name="android:textSize">15sp</item>
    </style>
    <style name="circlepw_signName" parent="circlepw_signNameText">
        <item name="android:textColor">@color/circlepw_text_prompt</item>
    </style>
    <style name="circlepw_signUrl" parent="circlepw_signUrlText">
        <item name="android:textColor">@color/circlepw_text_sign_url</item>
    </style>
</resources>
