This is CCTP V1 version. For the latest version, see CCTP.
Cross-Chain Transfer Protocol V1 uses generalized message passing to facilitate the native burning and minting of USDC across supported blockchains, also known as domains. Message passing is a three-step process:
  1. An onchain component on the source domain emits a message.
  2. Circle’s offchain attestation service signs the message.
  3. The onchain component at the destination domain receives the message, and forwards the message body to the specified recipient.

​
Architecture

Onchain components on all domains have the same purpose, but implementation differs between EVM-compatible and non-EVM domains.

​
CCTP V1 on EVM Domains

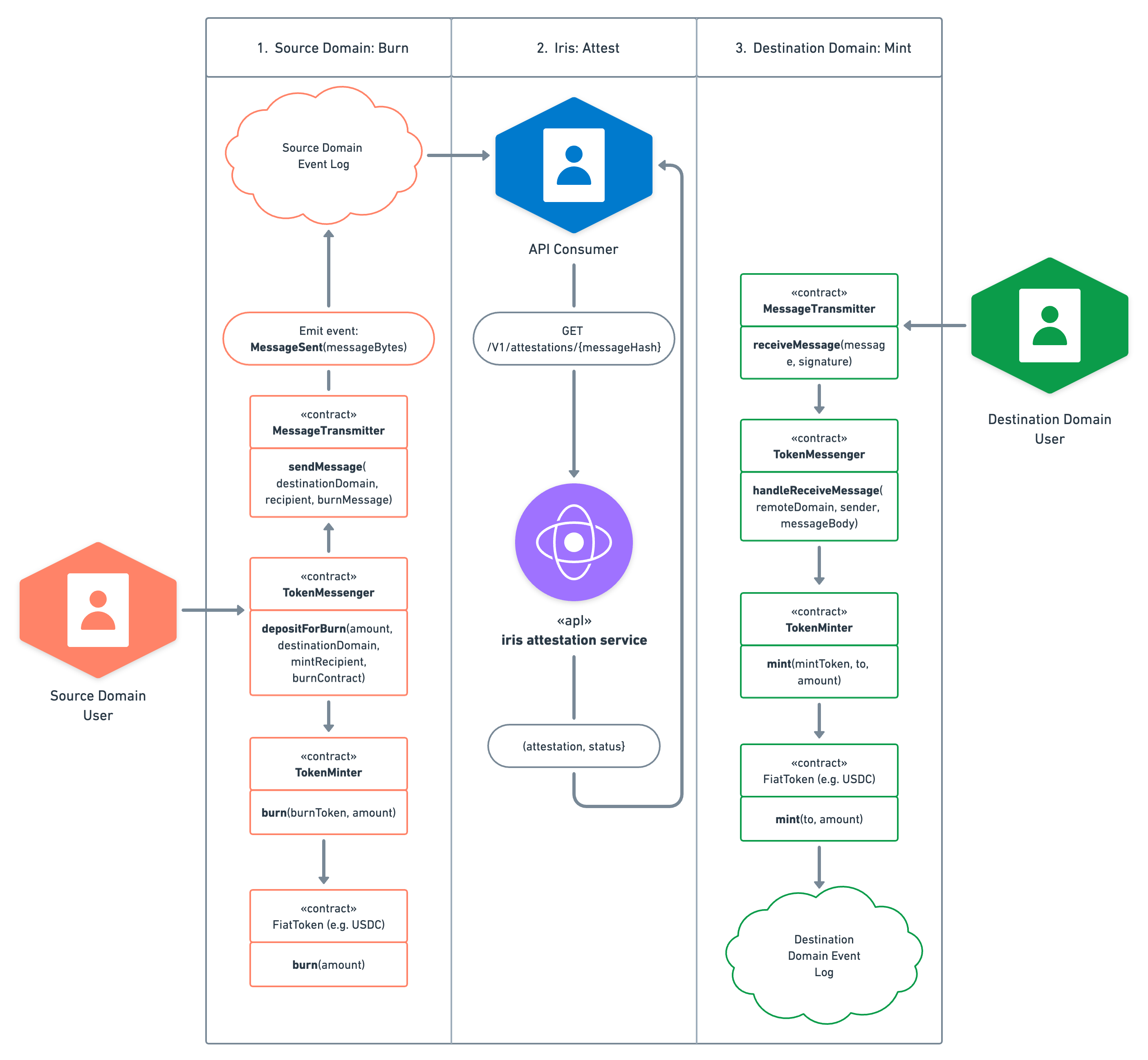

The relationship between CCTP V1’s onchain components and Circle’s offchain Attestation Service is illustrated below for a burn-and-mint of USDC between EVM-compatible domains:
On EVM domains, the onchain component for cross-chain burning and minting is called TokenMessenger, which is built on top of MessageTransmitter, an onchain component for generalized message passing. In the diagram above, a token depositor calls the TokenMessenger#depositForBurn function to deposit a native token (such as USDC), which delegates to the TokenMinter contract to burn the token. The TokenMessenger contract then sends a message via the MessageTransmitter#sendMessage function. After sufficient block confirmations, Circle’s offchain attestation service, Iris, signs the message. An API consumer queries this attestation and submits it onchain to the destination domain’s MessageTransmitter#receiveMessage function. For more details, see Quickstart: Cross-chain USDC transfer. To send an arbitrary message, directly call MessageTransmitter#sendMessage. Note that the message recipient must implement IMessageHandler#handleReceiveMessage.
Note:In CCTP V1, it is not possible to perform a burn-and-mint operation for USDC and include arbitrary data in the same message. You must include arbitrary data in a separate message. In later CCTP versions, you can burn-and-mint while including data in the same message via Hooks.

​
CCTP V1 on Non-EVM Domains

​
Noble

Noble is a Cosmos application-specific blockchain (or “appchain”) that provides native asset issuance for the Cosmos ecosystem. USDC is natively issued on Noble and can be transferred via the Inter-Blockchain Communication (IBC) protocol to other supported appchains in Cosmos, or via CCTP V1 to any supported domain (for example, Ethereum). Note that there are key differences between Cosmos appchains like Noble and EVM-compatible blockchains. Unlike on EVM domains where CCTP V1 is a set of smart contracts, CCTP V1 on Noble is a Cosmos SDK module, which is deployed by Noble governance and built into the Noble blockchain. Cosmos appchains can use IBC to build composable flows with CCTP V1 on Noble. Refer to the Noble documentation for more details.

​
Solana

Solana is a layer-1 blockchain where USDC is natively issued as an SPL-token. CCTP V1 is deployed to Solana as two Anchor programs: MessageTransmitter and TokenMessengerMinter. Developers can compose programs on top of CCTP V1 programs through CPI’s (Cross-Program Invocations). Arbitrary messages can be sent directly by calling MessageTransmitter#send_message just as described in the EVM section above. Refer to the Solana documentation for more details.

​
Sui

Sui is another layer-1 blockchain where USDC is natively issued as a Coin implementation. CCTP V1 is deployed to Sui as two programs: MessageTransmitter and TokenMessengerMinter. Arbitrary messages can be sent by directly calling message_transmitter::send_message similar to the EVM section above. Refer to the Sui documentation for more details.

​
Aptos

Aptos is another layer-1 blockchain where USDC is natively issued as a FA implementation. CCTP V1 is deployed to Aptos as two programs: MessageTransmitter and TokenMessengerMinter. Arbitrary messages can be sent by directly calling message_transmitter::send_message similar to the EVM section above. Refer to the Aptos documentation for more details.
